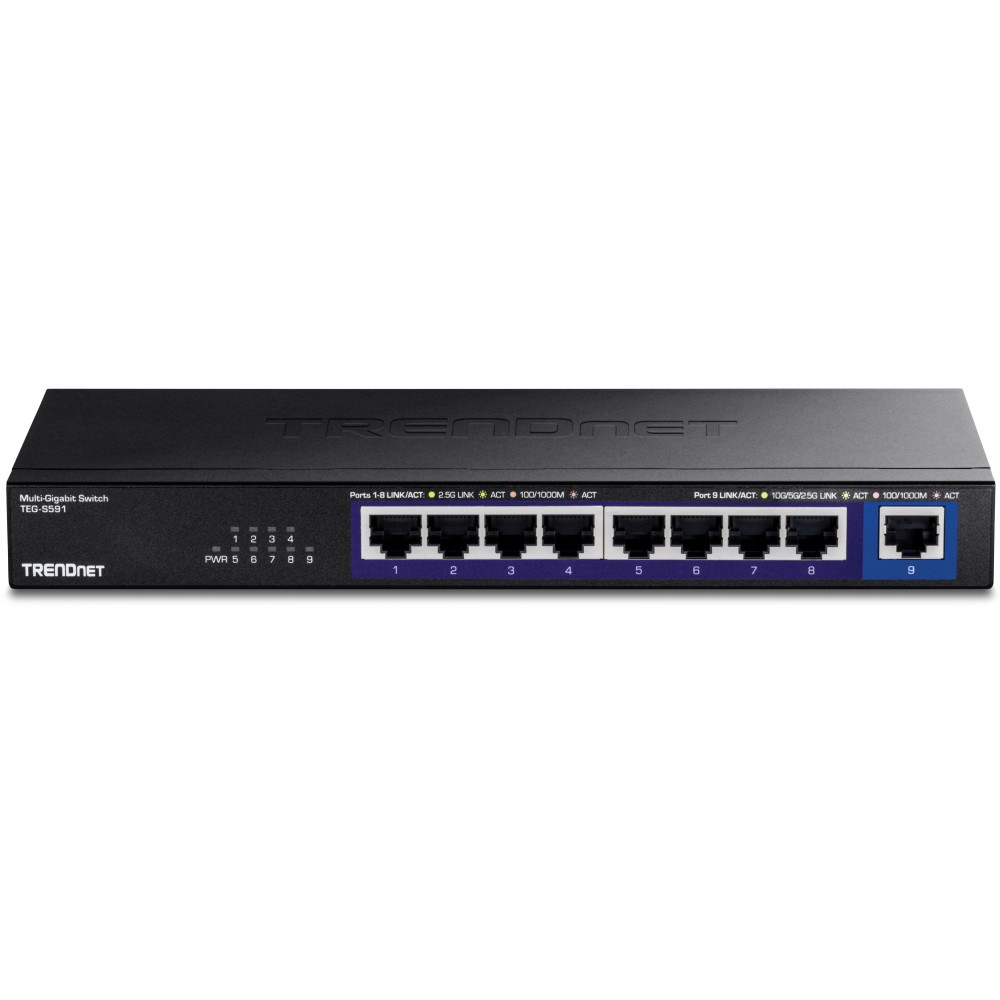

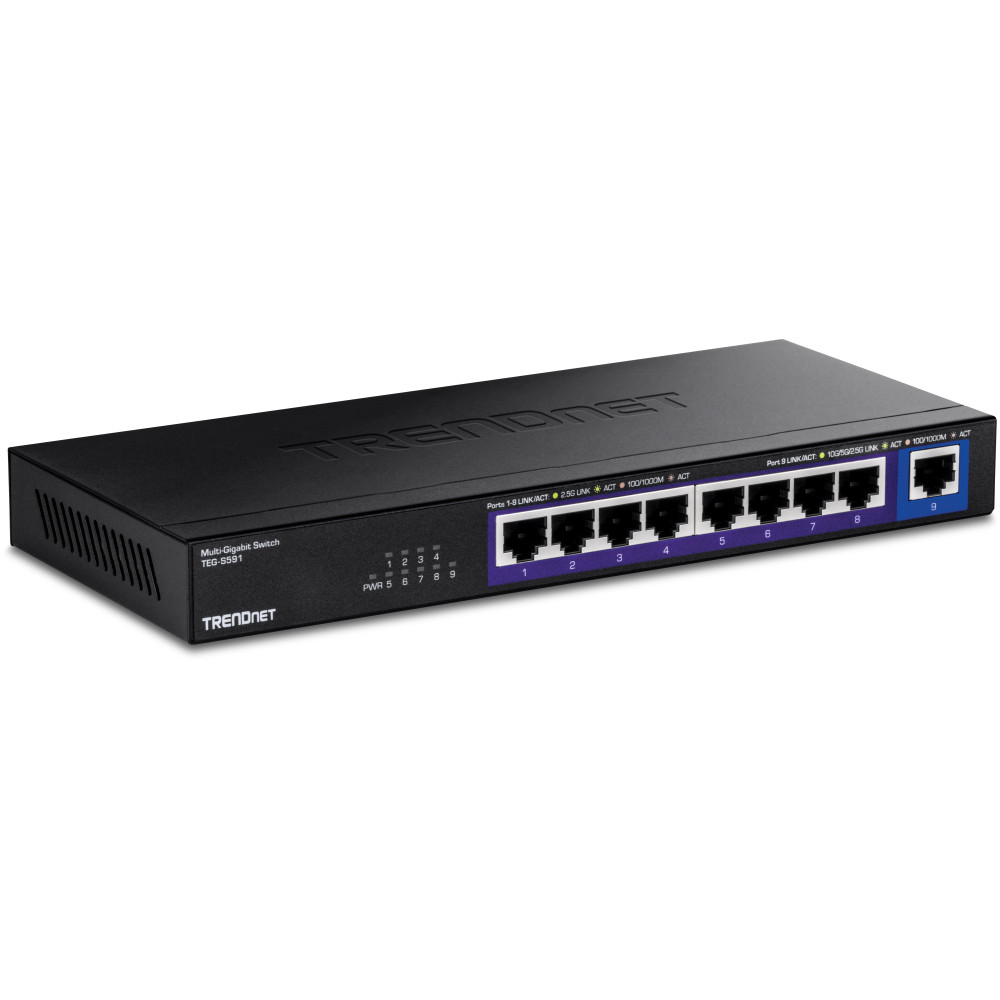

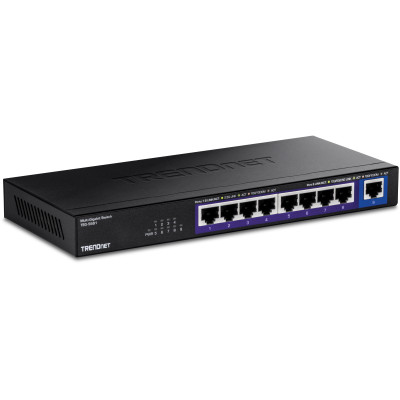

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s TEG-S591 9-Port Multi-Gigabit unmanaged Switch. This multi-gig 2.5G / 10G switch comes equipped with 2.5G RJ-45 ports that provide speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. It also offers one dedicated 10G RJ-45 port for an ultra-fast network connection, providing a cost-effective solution in adding 10G link capability to any SMB network.
The fanless design on this multi-gigabit 2.5G / 10G switch lowers energy consumption and eliminates distracting operating noise. It features a sturdy metal housing.
Count on the TEG-S591 Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 9 |
| Ethernet Ports | 8 x 2.5G RJ-45, 1x 10G RJ-45 |
| Fiber Ports | None |
| Standards | IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Transfer Rate | Gigabit Ethernet: 2Gbps (full duplex), 2.5G Ethernet: 5Gbps (full duplex), 10G Ethernet: 20Gbps (full duplex) |
| Jumbo Frame Support | 12KB |
| MAC Table Size | 4K |
| Power | |
| Power Consumption | 11.9W |
| Input Voltage | 90 – 264V AC, 47/63 Hz |
| Mechanical | |
| Enclosure | Metal |

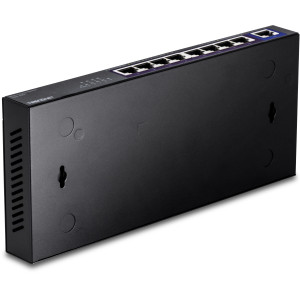

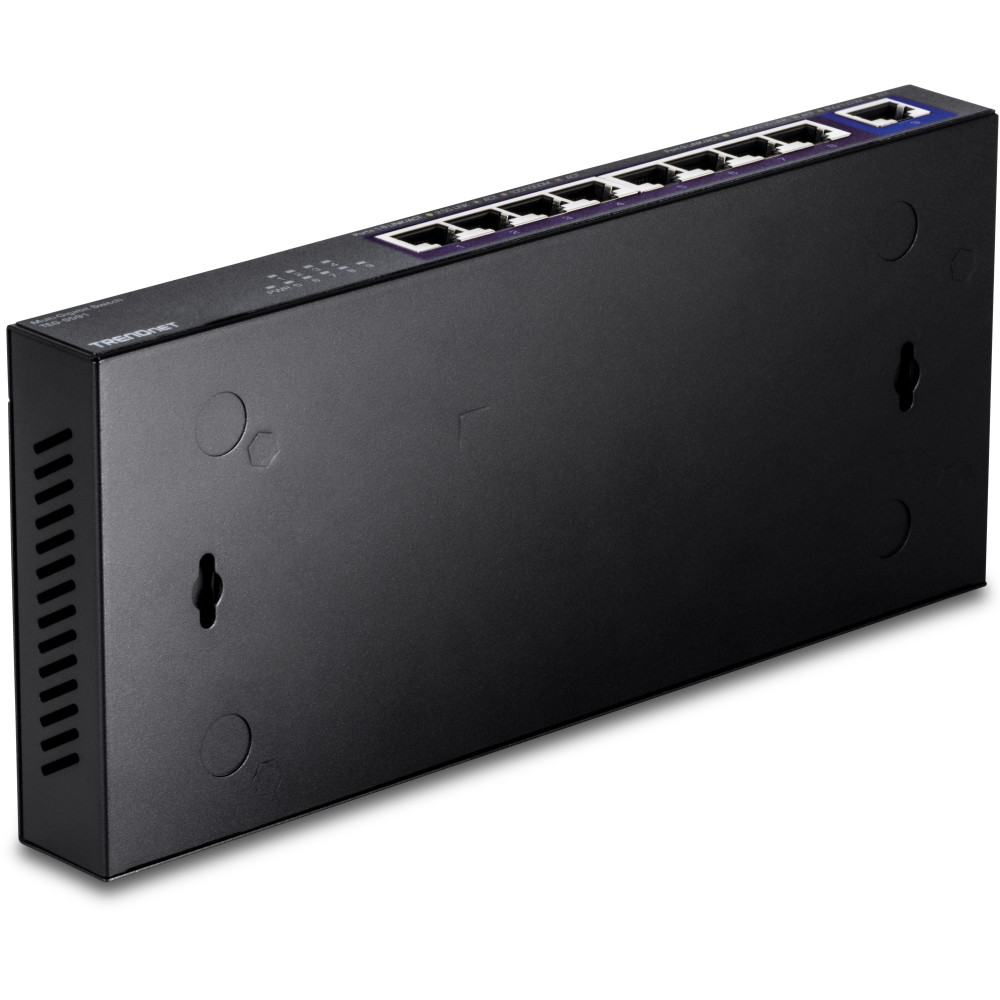

| Mounting | Wall mountable |
| Weight | .75 kg (1.6 lbs.) |
| Dimensions | 240 x 105 x 27mm (9.45 x 4.1 x 1.0 in.) |
| Ratings | |
| Operating Temperature | 0° - 40° C (32 - 104° F) |
| Humidity | Max 90% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE |
| MTBF | 518,151 hours |
| Warranty | Lifetime |
