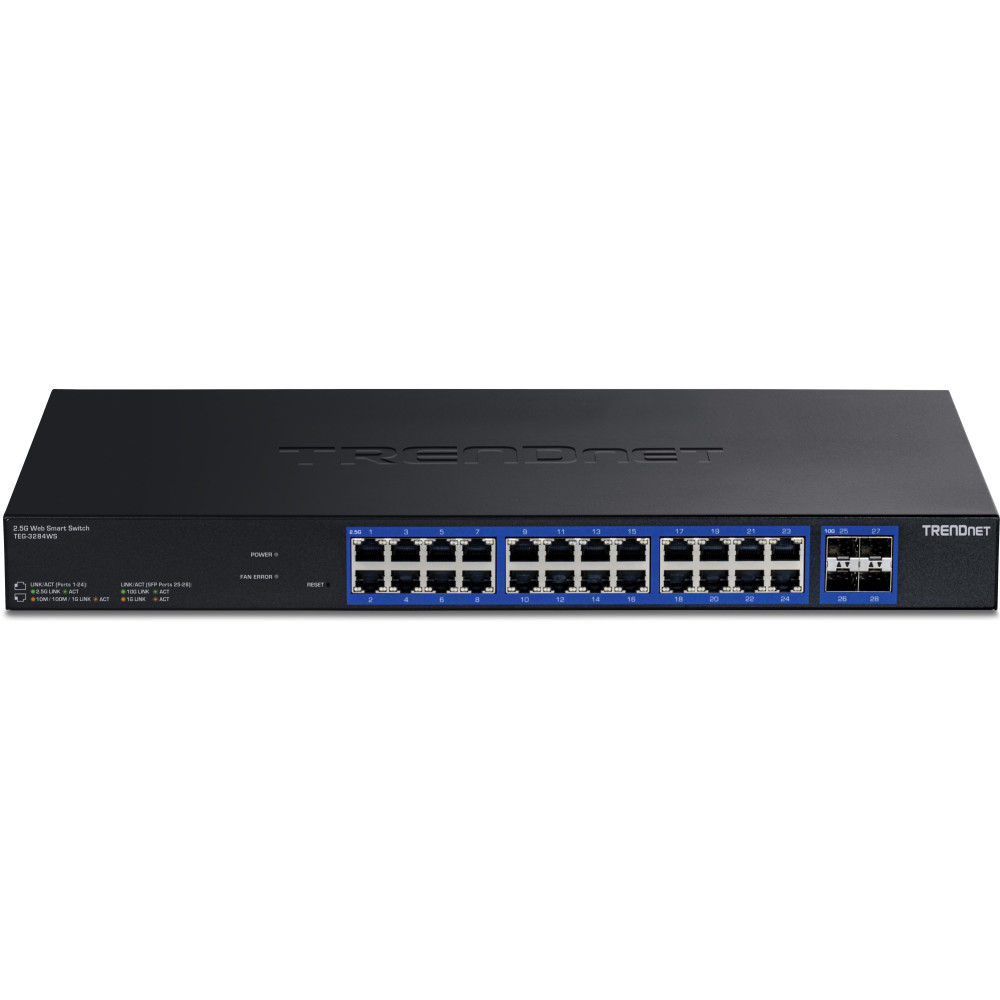

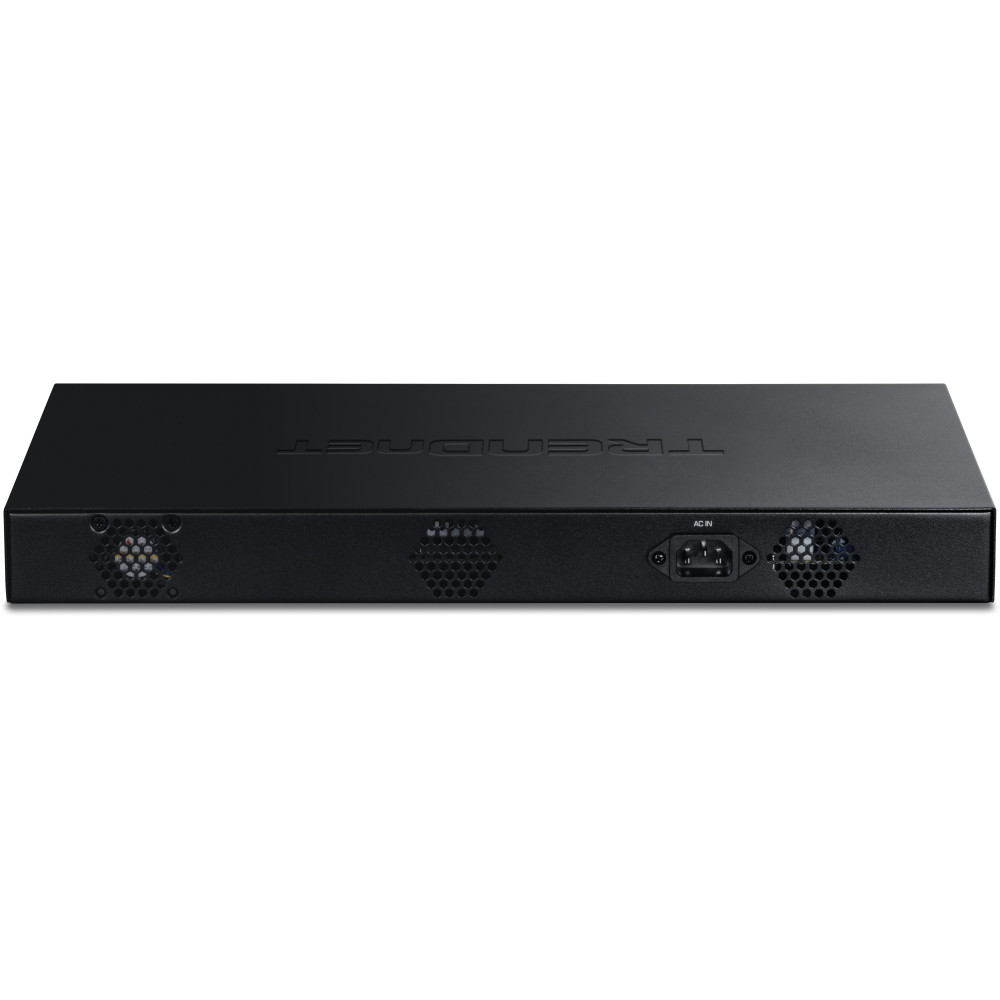

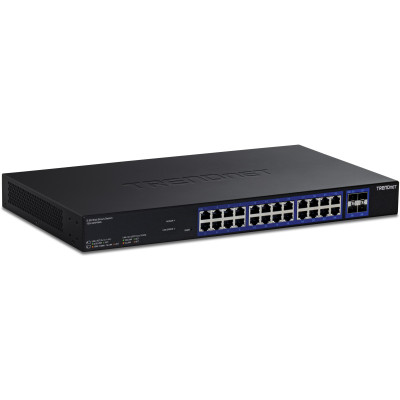

TRENDnet’s TEG-3284WS 28-Port Multi-Gig Web Smart Switch offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of today’s SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
The TEG-3284WS multi-gig managed switch comes equipped with 2.5G RJ-45 ports that provide higher than gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gig managed switch also offers four dedicated 10G SFP+ ports for high-speed network connections, provides an affordable solution in adding 10G link capability to any existing network. TRENDnet’s reliable 2.5G managed switch with 10G SFP+ ports offers a cost-effective solution to increase your network’s throughput.
TRENDnet Hive is a cloud management platform that provides a centralized cloud-based, remote network management solution for TRENDnet network devices. The Hive cloud networking solution offers better overall visibility of your network devices from a single intuitive and easy-to-use cloud interface. Advanced features supported with the Hive cloud networking solution include event and device hardware monitoring, traffic statistics, notification alerts, and troubleshooting tools. With the TRENDnet Hive network cloud manager, network device provisioning can be more easily accomplished through scheduled or immediate deployment of batch firmware and configuration updates. Reduce the time, complexity, and management costs of your network with the reliable TRENDnet Hive cloud networking solution.
Easily manage and configure the TEG-3284WS Managed Switch remotely by updating the switch to the latest firmware for access to TRENDnet Hive.This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service. With the purchase of each compatible device the first year of TRENDnet Hive for 'Consumers and End Users' is free or you can upgrade to TRENDnet Hive Pro for 'Integrators and Partners' for a nominal annual fee.
The TEG-32842WS is suited for a lot of applications. It doesn’t just provide management that can be extended to plug-and-play equipment, it has the power and versatility to enable you to customize your network in the most efficient way possible. Call Westward Sales today, and we’ll help specify the right switch and networking devices to meet your communication needs.
Technology | |
Category | Ethernet Switch |
Total Ports | 28 |
Ethernet Ports | 16 x 2.5G ports |
Fiber Ports | 4 x 10G SFP+ ports |
Standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz |
Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit Ethernet: 2Gbps (full duplex), 2.5G Ethernet: 5Gbps (full duplex), Gigabit SFP: 2Gbps (full duplex), 10G SFP+: 20Gbps (full duplex) |
Jumbo Frame Support | 12 KB |
MAC Table Size | 32 K |
Power | |
Power Consumption | 40 W |
Input Connection | 100 - 240V AC, 50/60 Hz, internal power supply |
Mechanical | |
Mounting | Rack mountable |
Weight | 3.408kg (7.51 lbs) |
Dimensions | 440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in.) |
Ratings | |
Operating Temperature | 0° - 50° C (32° - 122° F) |
Humidity | 95% non-condensing |
RoHS Compliant | Yes |
Certifications | FCC, CE, UL |
MTBF | 175,750 hours @ 25°C |
Warranty | Lifetime |
Download Name | File Size |
TRENDnet 2.5G Web Smart Switch Series Quick Installation Guide | 13.64MB |
TRENDnet 2.5G Web Smart Switch Series User's Guide | 3.92MB |
TRENDnet TEG-3284WS Datasheet | 924.25KB |
