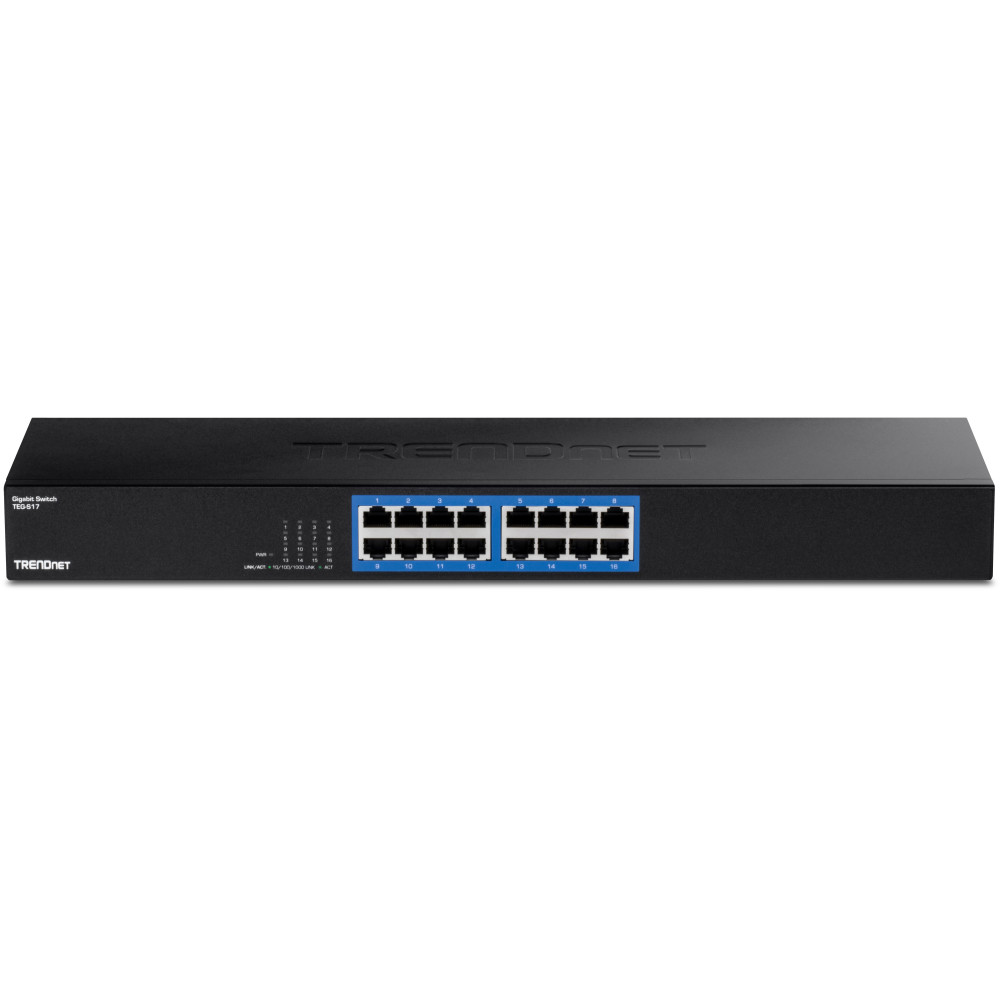

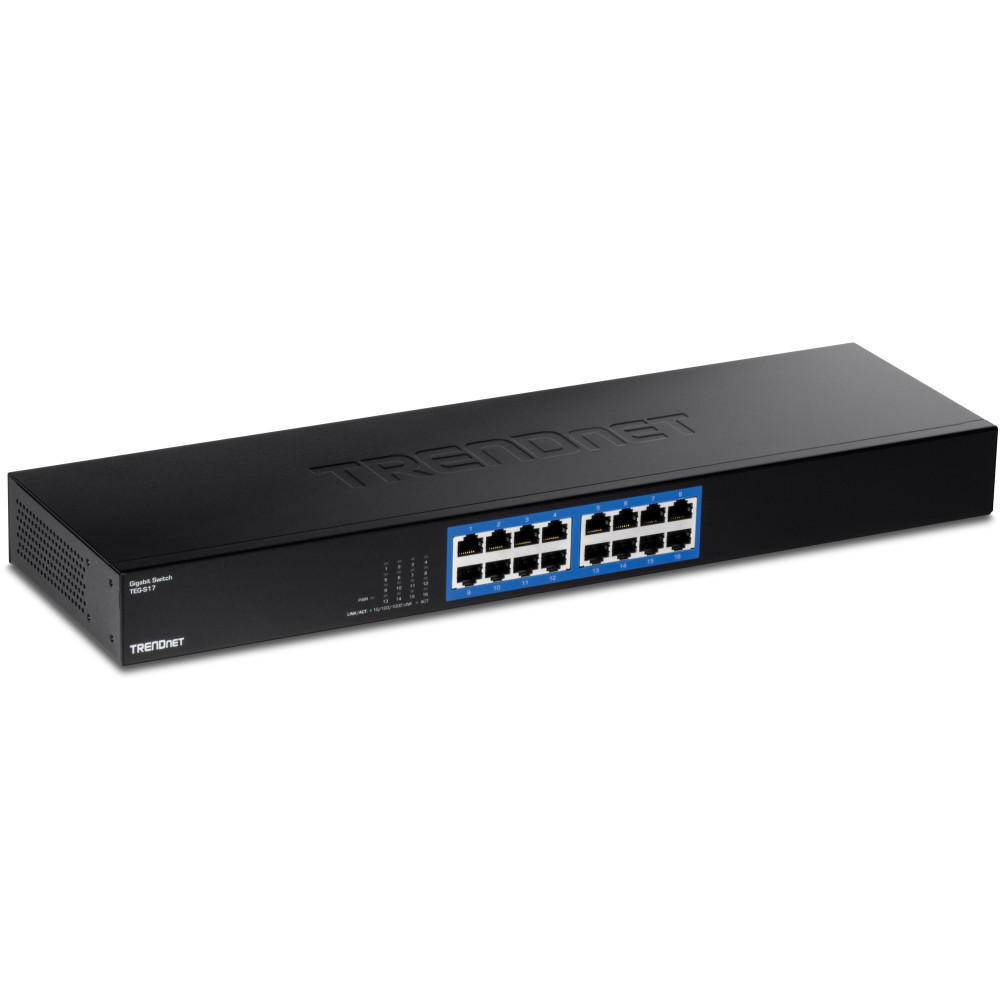

The TEG-S17D 16-Port Gigabit Switch provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and play this switch for reliable high-speed network connectivity.
With a compact and lightweight metal housing design, this gigabit Ethernet switch is well-suited for desktop or rackmount installations. The fanless design lowers energy consumption and eliminates operating noise.
Count on the TEG-S17 Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.
Technology | |
Category | Ethernet Switch |
Total Ports | 16 |
Ethernet Ports | 16 Gigabit ports |
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex) |
Jumbo Frame Support | 9KB |
MAC Table Size | 8K |
Power | |
Power Consumption | 9.19 W |
Input Voltage | 100 - 240V AC, 50/60 Hz, 0.2A |
Mechanical | |
Enclosure | Metal |

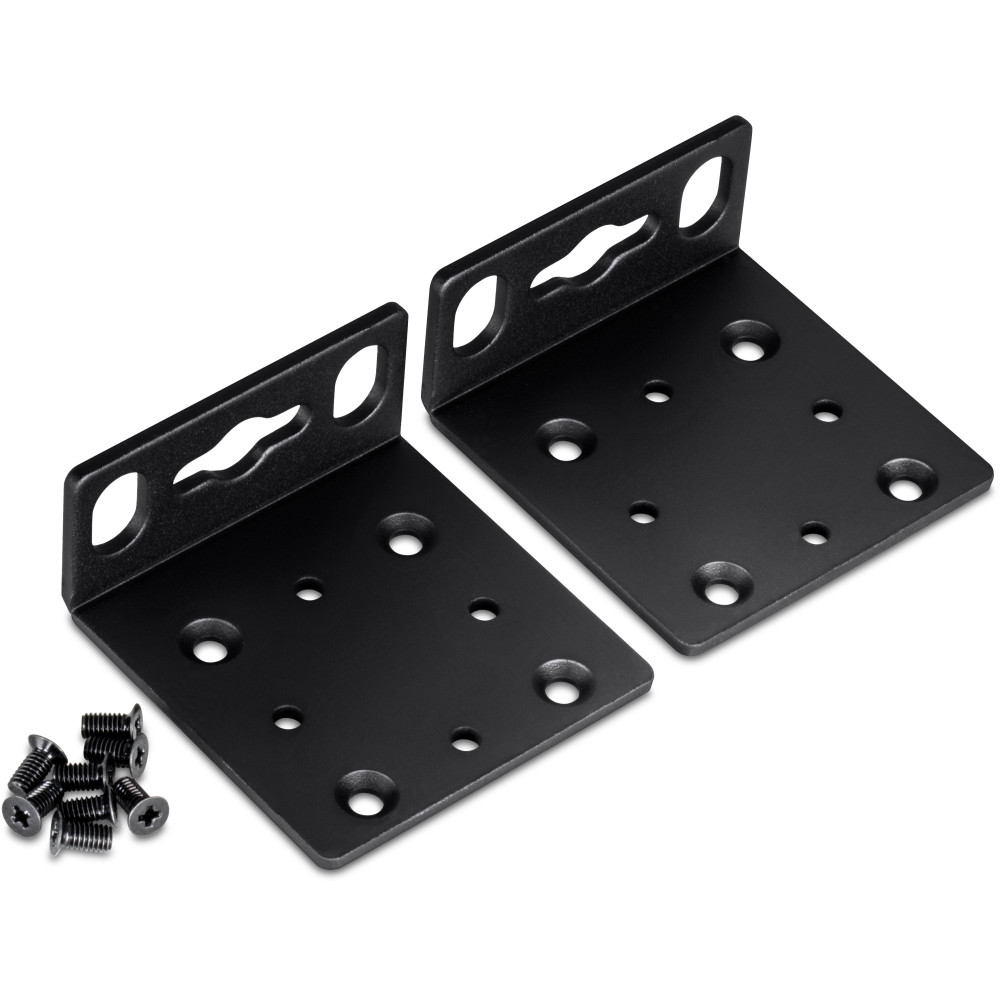

Mounting | Rackmount |
LED Indicators | Power, link, and activity |
Weight | 1.63 kg (3.59 lbs.) |
Dimensions | 435 x 130 x 43mm (17.12 x 5.11 x 1.69 in.) |
Ratings | |
Operating Temperature | 0° - 40° C (32 - 104° F) |
Humidity | Max 90% non-condensing |
RoHS Compliant | Yes |
Certifications | FCC, CE, ETL |
MTBF | 1,1121,721 hours |
Warranty | Lifetime |
Download Name | File Size |
TRENDnet TEG-S25/TEG-S25D/TEG-S17/TEG-S17D QIG | 3.83MB |
TRENDnet TEG-S17 Datasheet | 1.03MB |
