Manufacturer: TRENDnet

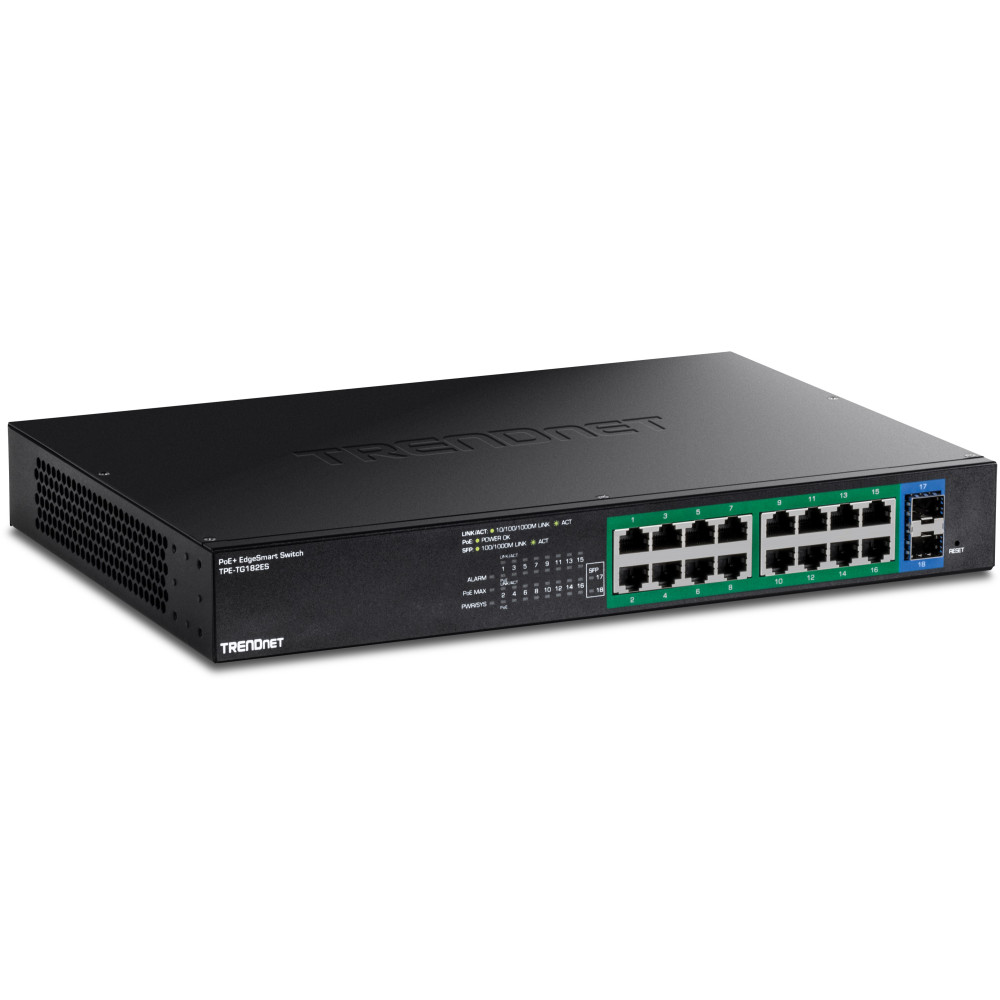

TRENDnet’s TPE-TG182ES 18-Port Gigabit EdgeSmart PoE+ Switch is a cost-effective rackmount PoE+ managed switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet’s TPE-TG182ES rackmount PoE+ managed switch provides sixteen gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and VoIP handsets; and two gigabit SFP ports for long-distance connectivity.
The smart fan saves energy and reduces noise during operation by auto adjusting the fan speed based on cooling needs.
The TPE-TG182ES features a sturdy 1U rack mountable metal housing with mounting brackets included.
The TPE-TG182ES gives you complete control over your network. It doesn’t just provide management that can be extended to plug-and-play equipment, it has the power and versatility to enable you to customize your network in the most efficient way possible. At the center of your operation, you want a switch that can handle virtually anything. Talk to us today. We’ll help you make the most of PoE options and other network enhancements to help cut unnecessary equipment and cables while improving overall network performance and capacity.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 18 |
| Ethernet Ports | 16 Gigabit PoE+ ports |
| Fiber Ports | 2 Gigabit SFP port |
| Standards | IEEE 802.1d, IEEE 802.1w,IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit Ethernet: 2000 Mbps (full duplex) |
| Jumbo Frame Support | 9 KB |
| MAC Table Size | 8 K |
| Power | |
| Power Consumption | 9.77W (without PD load) / 248.18W (with full PD load) |

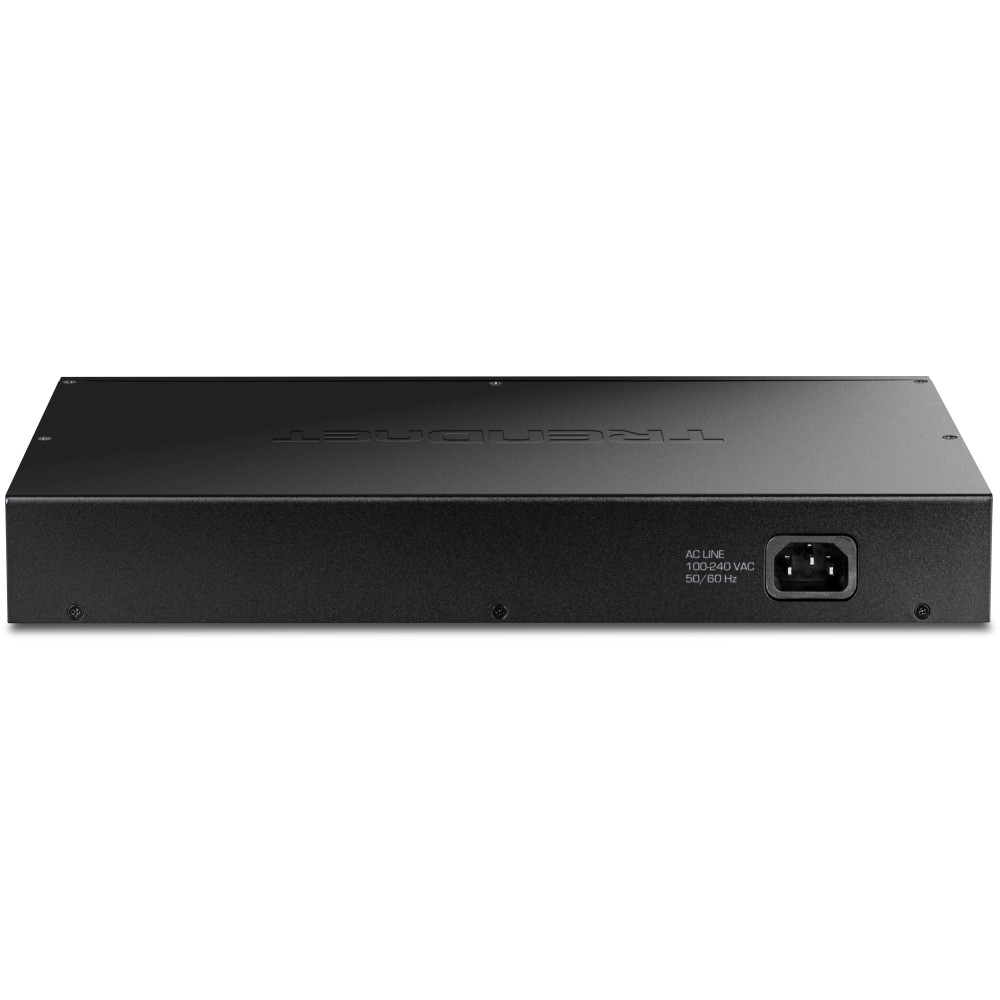

| Input Connection | 100 - 240V AC, 50/60Hz, internal power supply |
| Mechanical | |
| Mounting | Rack mountable |
| Weight | 2.58 kg (5.69 lbs) |
| Dimensions | 328 x 228 x 44mm (12.9 x 8.98 x 1.73 in.) |
| Ratings | |
| Operating Temperature | 0 - 40°C (32 - 104°F) |
| Humidity | 90% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE, ETL |
| MTBF | 609,351 hours @ 25° C |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TPE-TG182ES Datasheet | 755.87KB |
