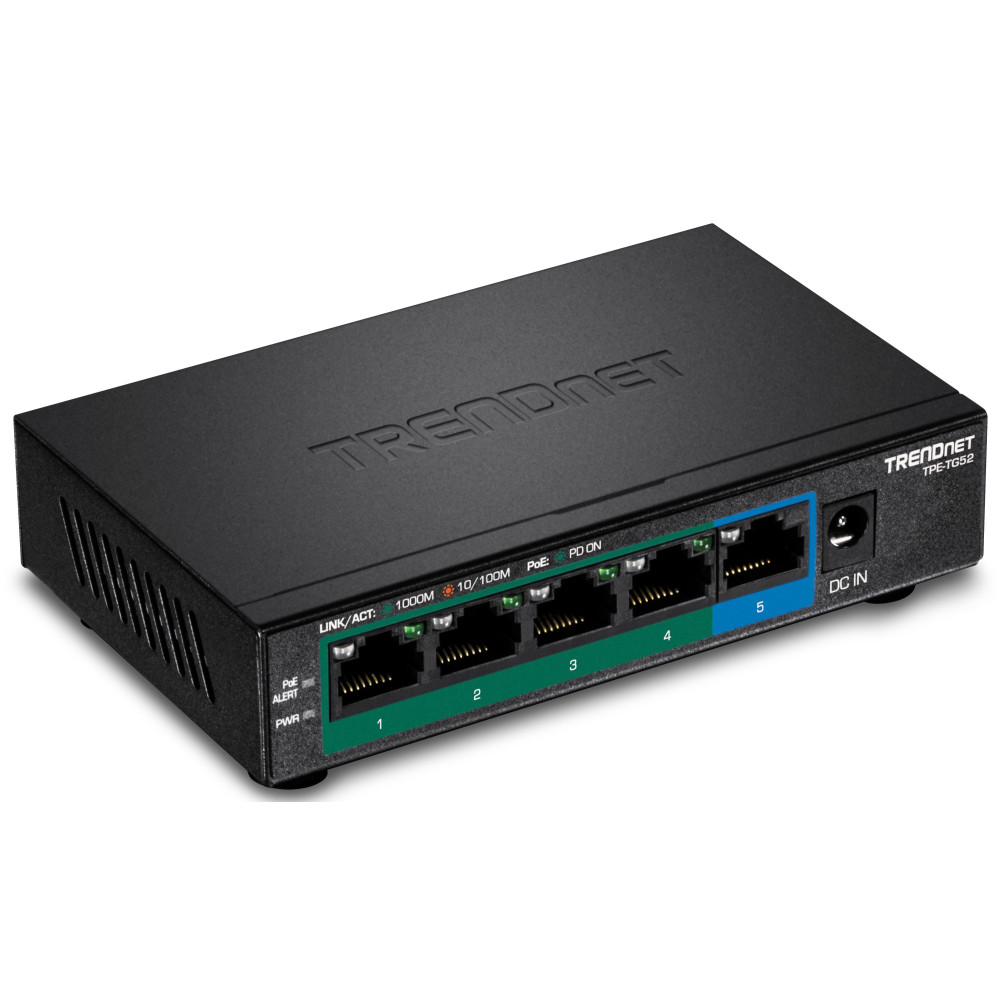

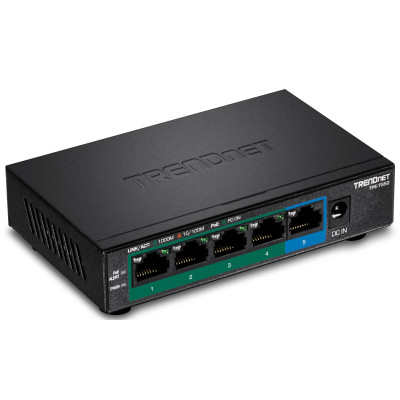

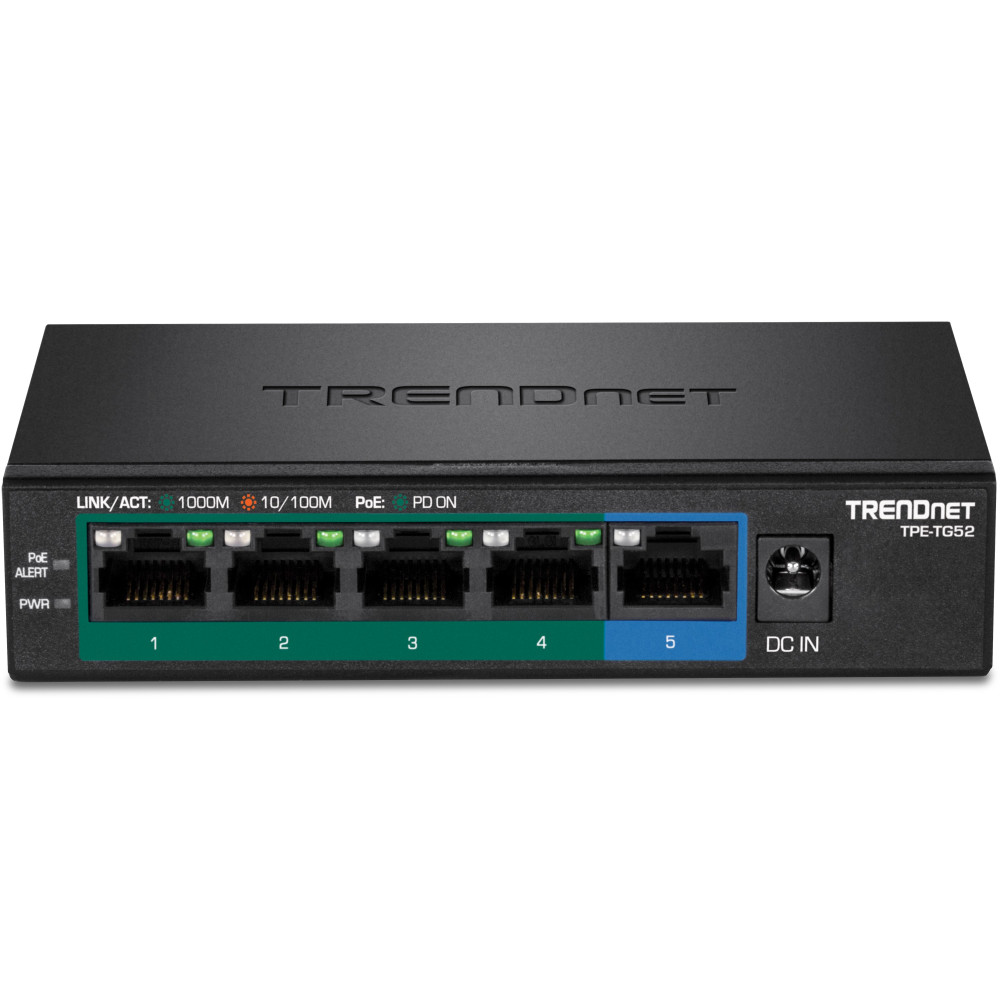

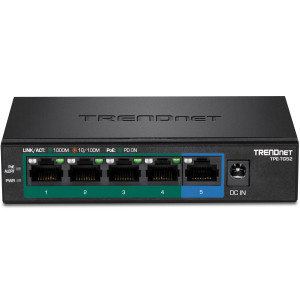

TRENDnet’s TPE-TG52g 5-Port Gigabit PoE+ Switch reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch features four gigabit PoE+ ports and one gigabit port, with a 32W total PoE power budget. The TPE-TG52 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more.
The compact and lightweight housing is well-suited for desktop or wall mount installations, and the fanless design is perfect for quiet environments.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 5 |
| Ethernet Ports | 4 Gigabit PoE+ | 1 Gigabit |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3af, IEEE 802.3at |
| Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit Ethernet: 2000Mbps (full duplex) |
| Jumbo Frame Support | 9 KB |
| MAC Table Size | 2 K |
| Power | |
| Power Consumption | 36 W |
| Input Connection | 100 - 240V AC, 50/60Hz |
| Mechanical | |

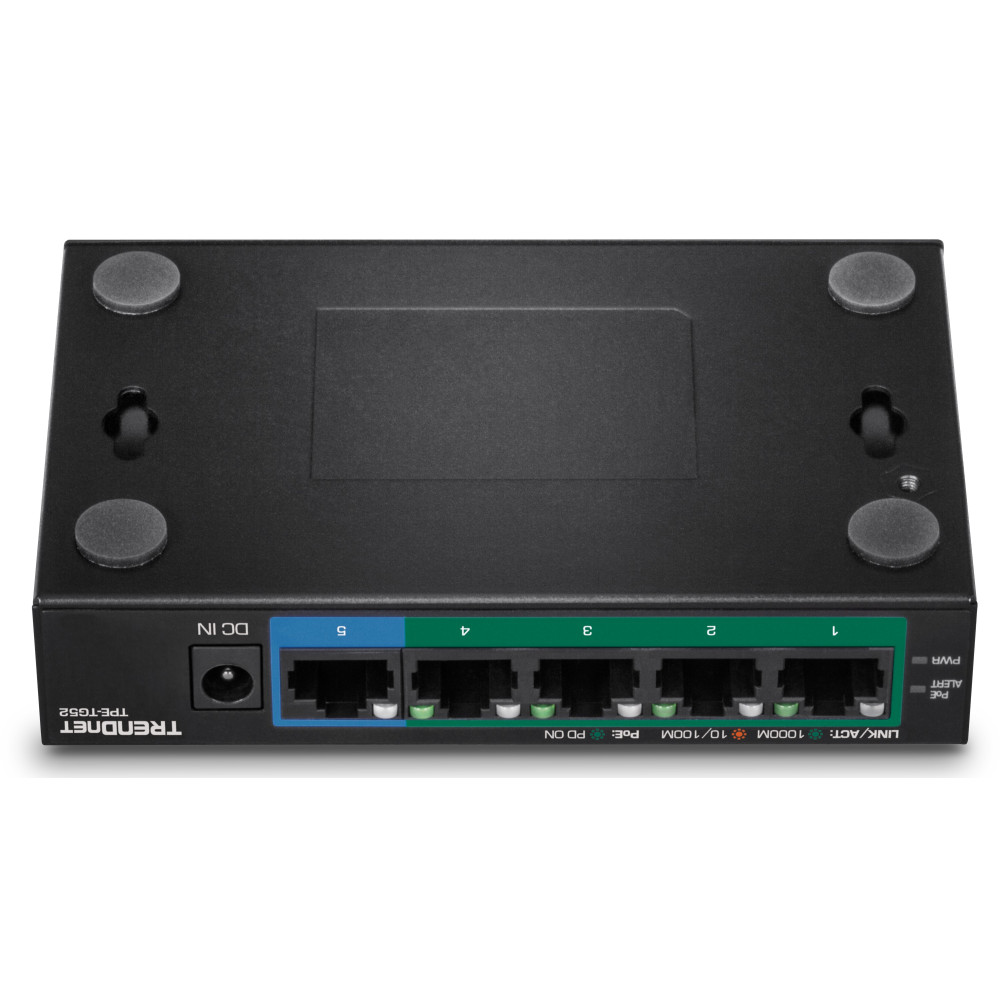

| Mounting | Wall mountable, Desktop |
| Weight | 246g (8.68 oz.) |
| Dimensions | 121 x 75 x 26mm (4.76 x 2.95 x 1 in.) |
| Ratings | |
| Operating Temperature | 0 - 40°C (32 - 104°F) |
| Humidity | 90% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE, LVD |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TPE-TG52/TPE-TG83/TPE-TG84 Quick Installation Guide | 3.43MB |
| TRENDnet TPE-TG52 Datasheet | 754.08KB |
