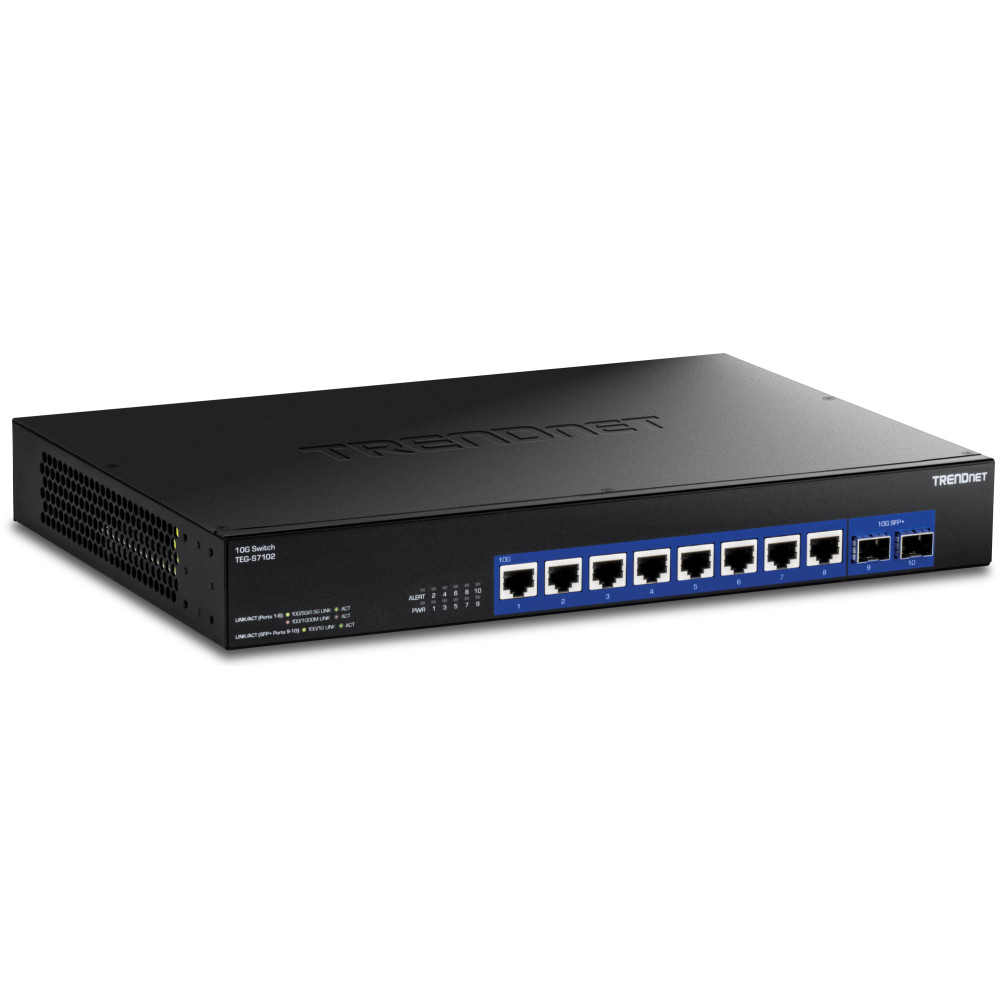

TRENDnet TEG-S7102 10-Port 10G Unmanaged Switch with 2x 10G SFP+ Ports

New TRENDnet TEG-S7102 10-Port Unmanaged 10G Ethernet Switch, 2x 10G SFP+ ports, rack mountable
Model: TEG-S7102
Availability: 3 - 4 Weeks or Less
Standard Shipping & Handling
Qty:

TRENDnet TEG-S7102 10-Port 10 Gigabit Unmanaged Switch with 2x 10G SFP+, Wall Mountable

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s TEG-S5091 9-Port 2.5G unmanaged Switch. This switch comes equipped with eight 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and one 10G SFP+ slot for ultra-fast, long-distance fiber networking. It features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet’s reliable 2.5G Ethernet switch with a 10G SFP+ port is a cost-effective solution to increase your network’s throughput.

Key Features

  • 8 x 10G RJ-45 ports
  • 2 x 10G fiber SFP+ port
  • Backwards compatible with 100/1000BASE-T devices
  • Smart fan design eliminates noise
  • Rackmount design
  • 200Gbps switching capacity
  • IEEE 802.3ae (SFP+) and IEEE 802.3an (RJ-45) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

In the Box

  1. TEG-S7102
  2. Quick Installation Guide
  3. Power cord(1.5 m / 4.9 ft.)
  4. Rackmount kit

Count on the TEG-S7102 Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.

Technology
CategoryEthernet Switch
Total Ports10
Ethernet Ports8 x 10G RJ-45 ports
Fiber Ports2 x 10G SFP+ port
StandardsIEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.1x
Transfer RateGigabit Ethernet: 2000Mbps (full duplex), 2.5G Ethernet: 5Gbps (full duplex), 10 Gigabit Ethernet: 20Gbps (full duplex), 10G SFP+: 20Gbps (full duplex)
Jumbo Frame Support12KB
MAC Table Size32K
Power
Power Consumption40W
Input Voltage90 - 264V AC, 47/63 Hz
Mechanical
EnclosureMetal
MountingRack mountable
Weight2.54kg (5.6 oz.)
Dimensions330 x 230 x 44mm (13 x 9 x 1.73 in.)
Ratings
Operating Temperature0° - 40° C (32 - 104° F)
HumidityMax 90% non-condensing
CertificationsFCC, CE, LVD, ETL
MTBF151,765 hours
WarrantyLifetime
Tags: TEG-S7102
