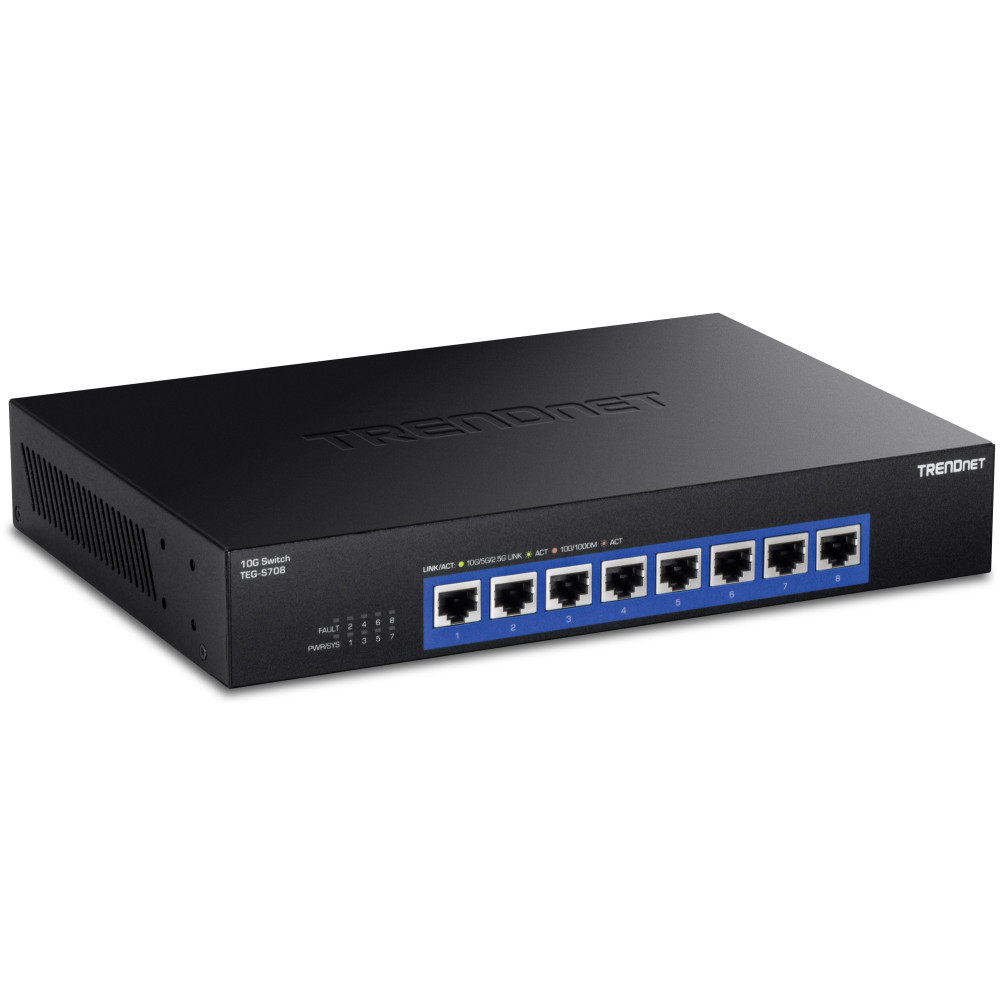

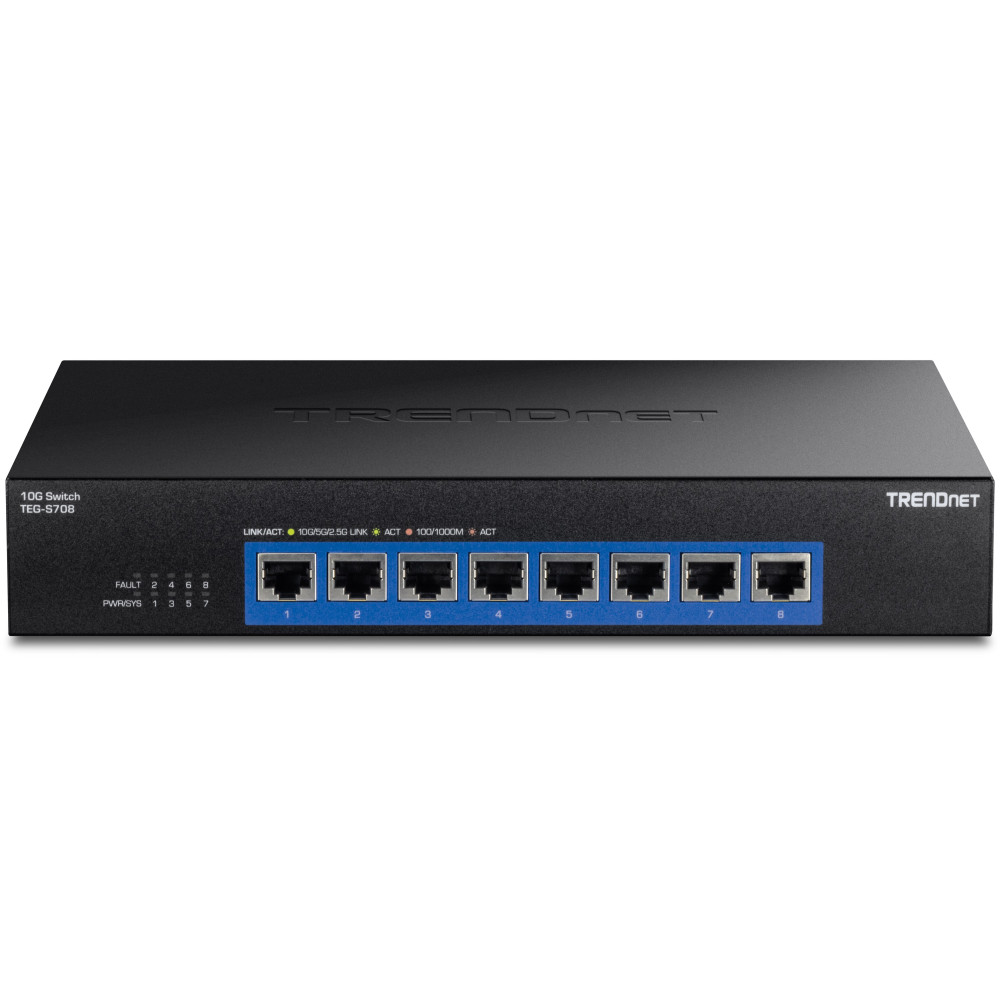

TRENDnet’s 8-Port 10G Unmanaged Switch, TEG-S708, is a multi-gig switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TEG-S708 multi-gig switch offers eight dedicated 10G ports for high-speed network connections with a 160Gbps switching capacity and a sturdy, rack mountable metal housing. It supports 2.5G RJ-45 multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. This 10G switch is a cost-effective switch solution for high-speed 10 Gigabit network connections.
A Smart fan saves energy by auto adjusting the fan speed and use based on cooling needs. With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
Technology | |
Category | Ethernet Switch |
Total Ports | 8 |
Ethernet Ports | 8 10 Gigabit ports |
Standards | IEEE 802.3. IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz |
Transfer Rate | Gigabit: 2000Mbps (full duplex), 2.5 Gigabit: 5Gbps (full duplex), 10 Gigabit: 20Gbps (full duplex) |
Jumbo Frame Support | 12 KB |
MAC Table Size | 16K |
Power | |
Power Consumption | 34.128 W |

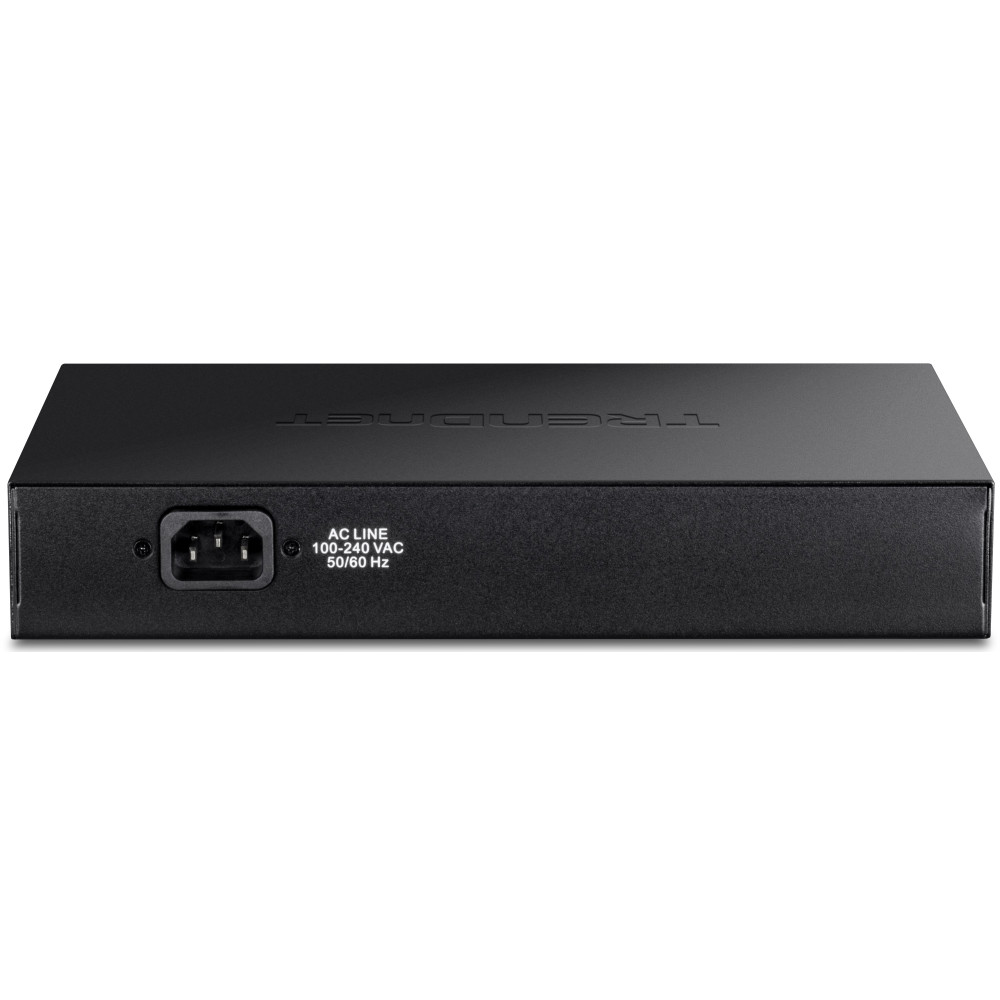

Input Connection | 100 - 240V AC, 50/60 Hz, 2.0A, internal power supply |
Mechanical | |
Mounting | Rack mountable |
Weight | 1.63 kg (3.6 lbs.) |
Dimensions | 264 x 184 x 43mm (10.39 x 7.24 x 1.69 in.) |
Ratings | |
Operating Temperature | 0° - 40° C (32° - 104° F) |
Humidity | 90% non-condensing |
RoHS Compliant | Yes |
Certifications | FCC, CE |
MTBF | 674,176 hours |
Warranty | Lifetime |
Download Name | File Size |
TRENDnet TEG-S708 Datasheet | 2.21MB |
TRENDnet TEG-S708 Quick Installation Guide | 3.88MB |
