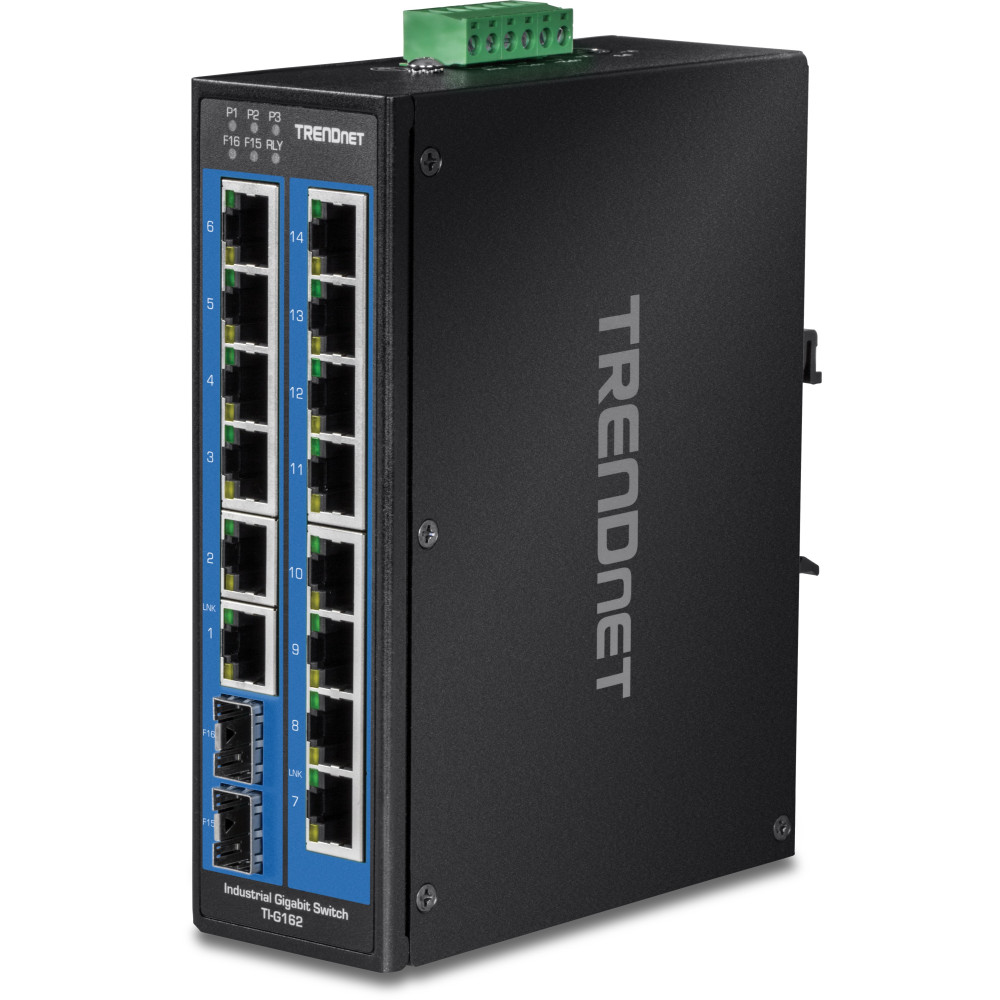

TRENDnet TI-G162 16-Port Industrial Gigabit DIN-Rail Switch with 2 SFP Slots

New TRENDnet TI-G162 16-Port Ethernet Switch, 14 Gigabit ethernet ports, 2 Gigabit SFP slots, 32 Gbps switching capacity, DIN-rail/wall mount
Model: TI-G162
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TI-G162 16-Port Unmanaged Gigabit Ethernet Switch, 32 Gbps Switching Capacity

The TI-G162 16-Port Industrial Gigabit DIN-Rail Switch has fourteen dedicated gigabit ports, plus two gigabit SFP ports that support 1000Base-FX modules for long distance fiber networking applications. It features a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F).

Key Features

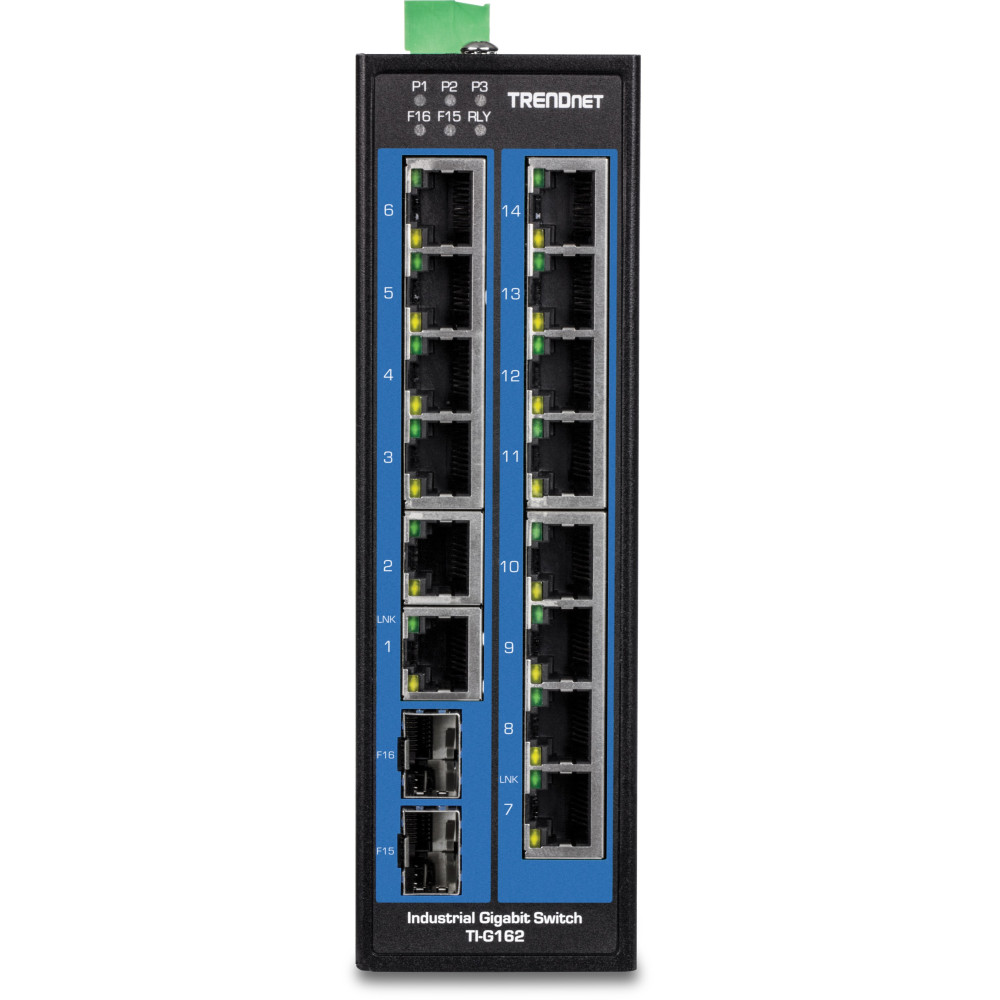

  • 14 Gigabit ports
  • 2 Gigabit SFP slots
  • 32Gbps switching capacity
  • Hardened IP30 rated metal switch

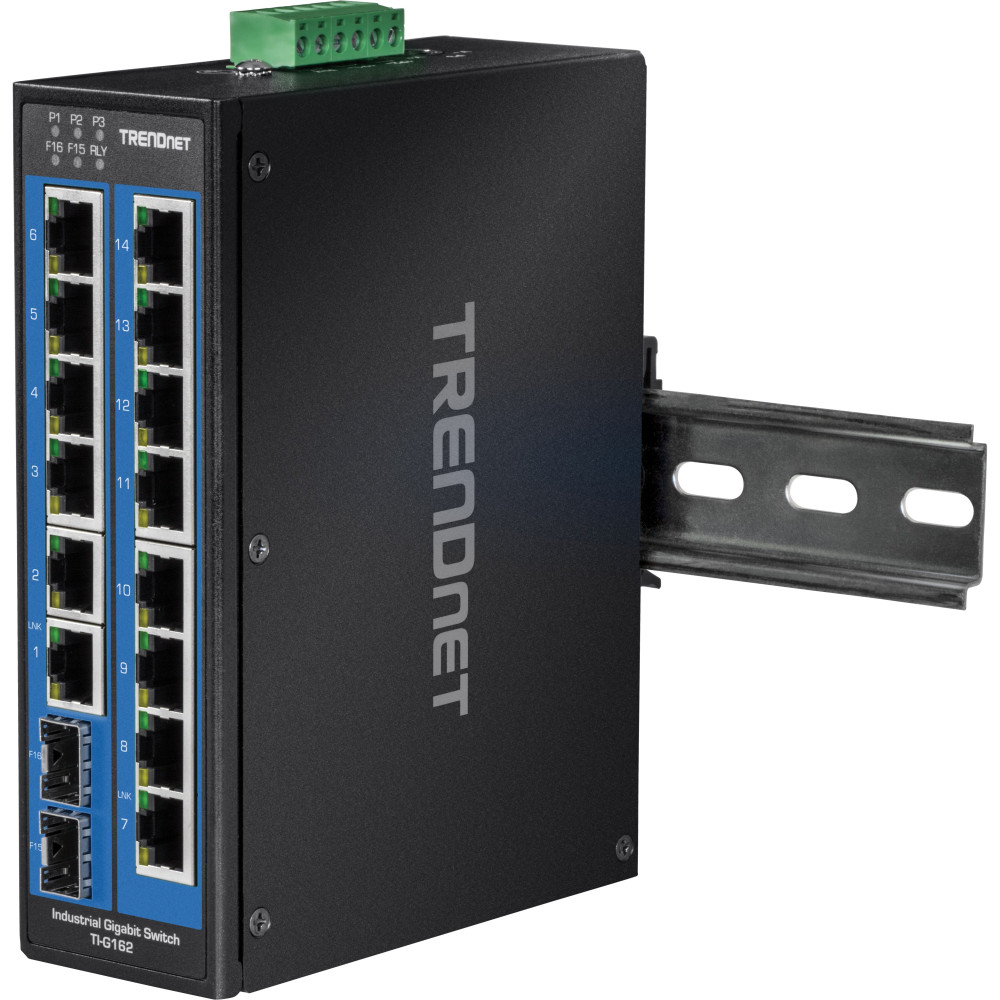

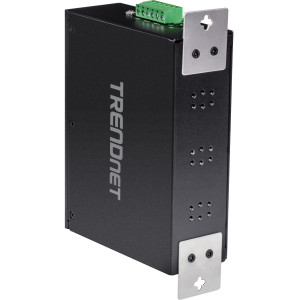

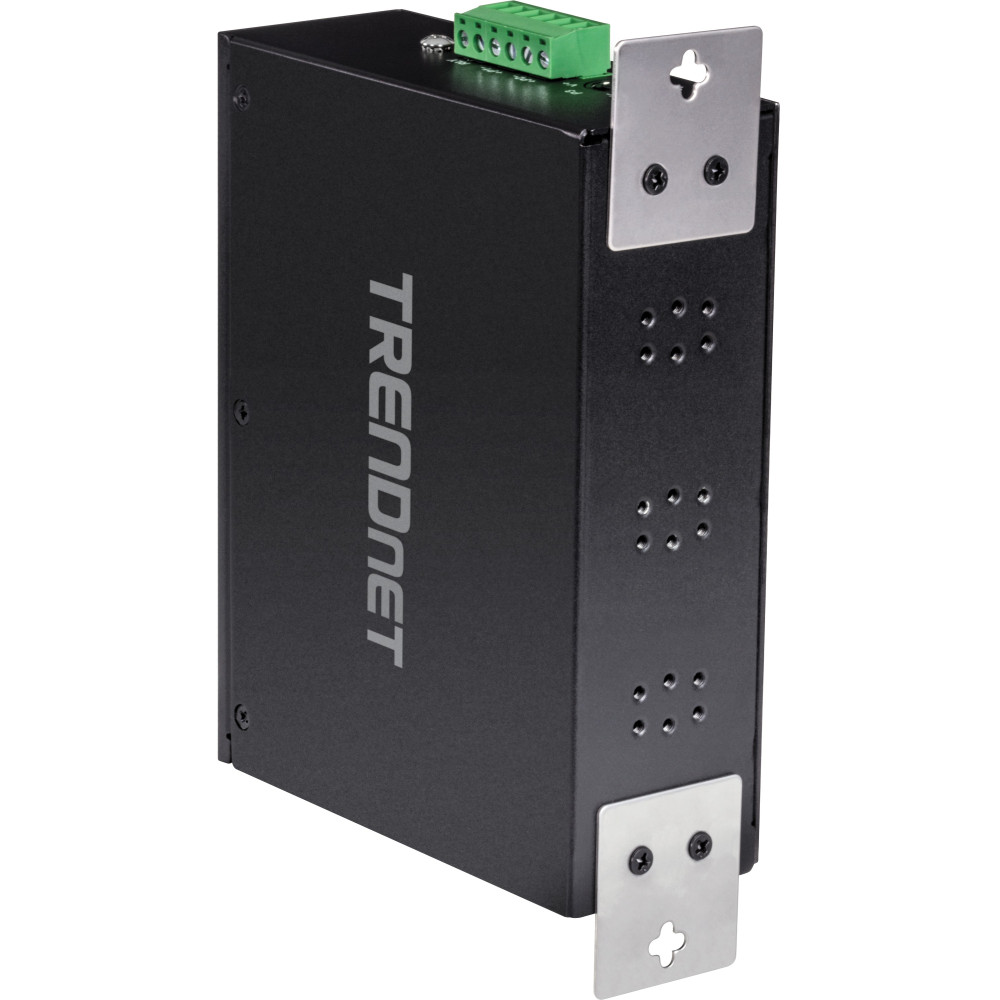

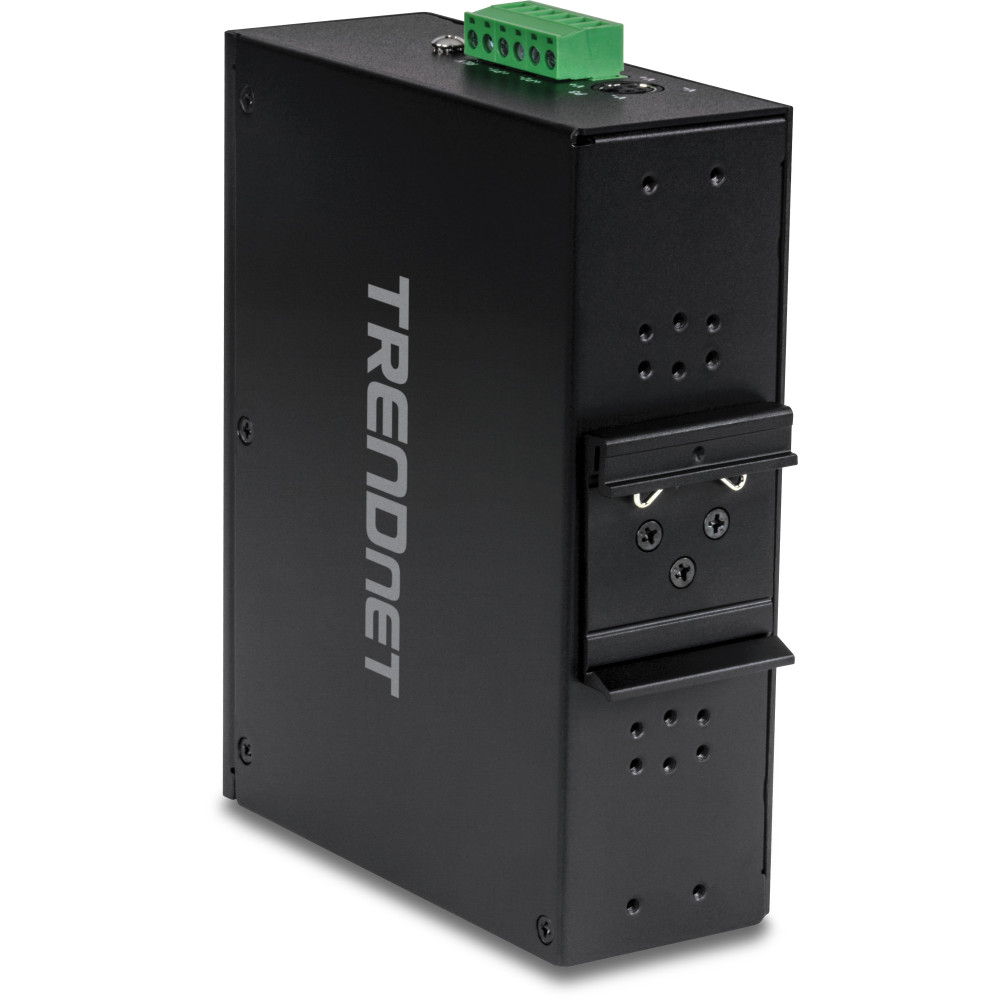

  • Includes DIN-Rail mount and wall mount brackets
  • Wide operating temperature range of -40° - 75°C (-40° - 167°F)
  • Multiple power inputs provide redundant power with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

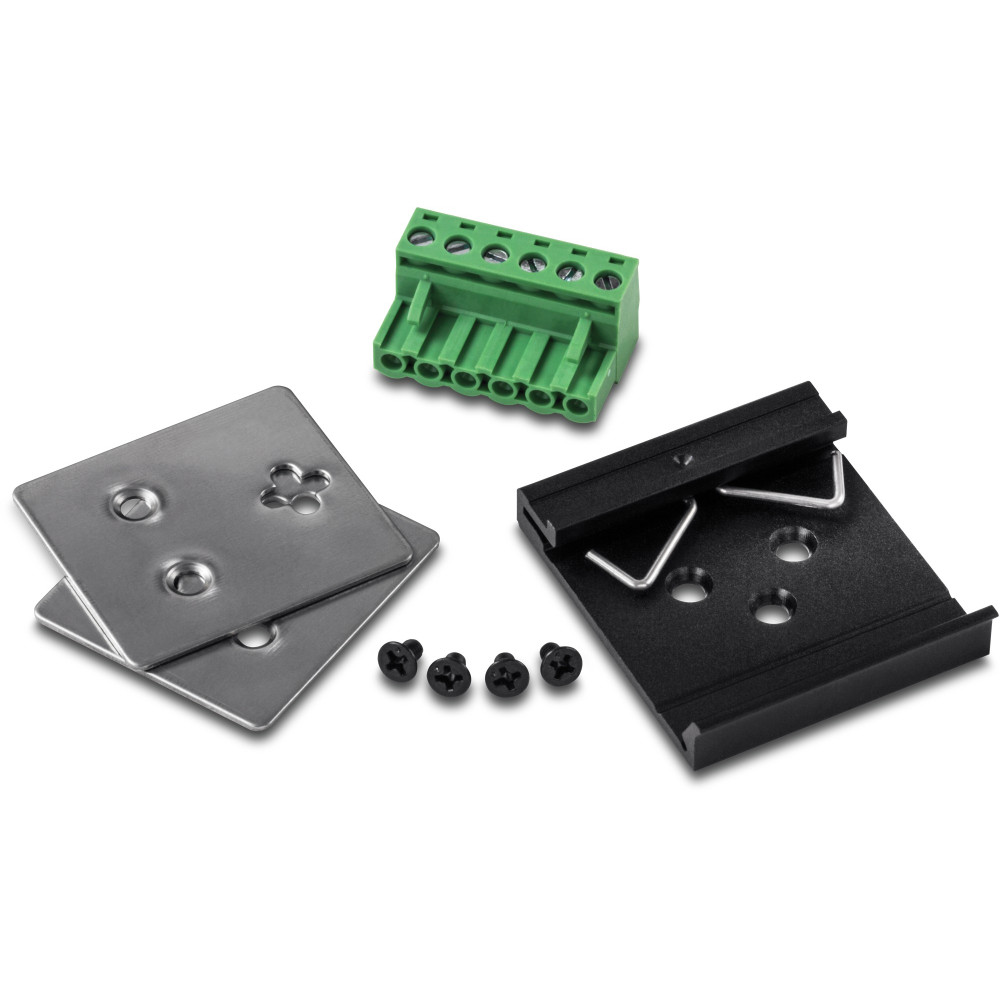

In the Box

  1. TI-G162
  2. Quick Installation Guide
  3. Removable terminal block
  4. DIN-Rail / wall mount kit

Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.

Technology
CategoryEthernet Switch
Total Ports16
Ethernet Ports14 Gigabit (10/100/1000TX
StandardsIEEE 802.3, IEEE 802.3u ,IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
Transfer RateEthernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex), SFP: 2000Mbps (full duplex)
Jumbo Frame Support9KB
MAC Table Size8K
Power
Power Consumption13 W

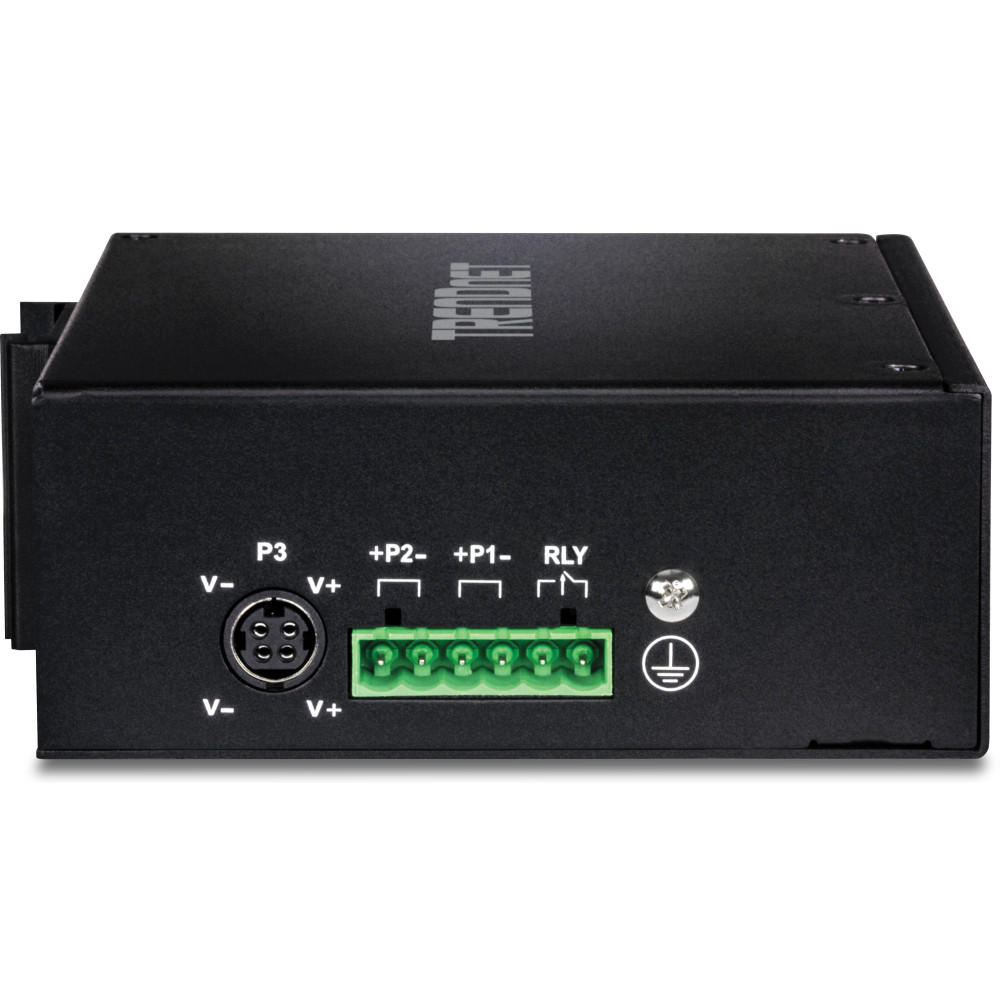

Connection6-pin terminal block
Input Voltage12-56V DC
Surge Protection2kV
Overload ProtectionYes
Mechanical
MountingDIN-rail or wall mount
Shock / VibrationShock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
MaterialIP30 metal case
Weight536g (18.9 oz.)
Dimensions155 x 120 x 48mm (6 x 4.7 x 1.9 in.)
Ratings
Operating Temperature-40° - 75° C (40° - 167° F)
Humidity95% non-condensing
RoHS CompliantYes
CertificationsCE, FCC, MET
MTBF514,167 hrs @ 50° C, 188,310 hrs @ 75° C
WarrantyLifetime
