TRENDnet TEG-S762 6-Port Multi-Gigabit Unmanaged Switch

TRENDnet TEG-S762 6-Port Unmanaged MultiGig Ethernet Switch, 2.5G and 10G ports, wall mountable
Model: TEG-S762
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TEG-S762 6-Port Multi-Gig Unmanaged Switch, 2.5G RJ-45 & 10G RJ-45, Wall Mountable

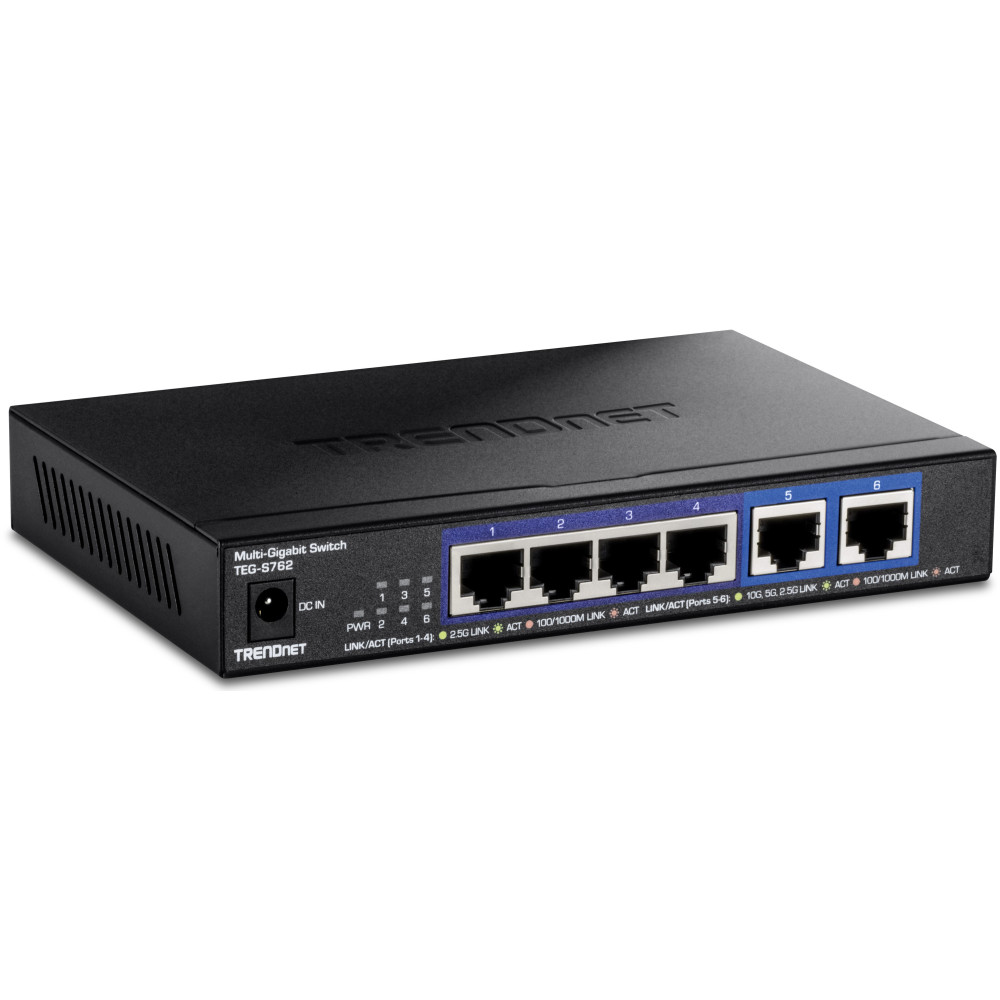

TRENDnet’s TEG-S762 6-Port Multi-Gig Switch is a switch that provides advanced, high-bandwidth performance, ease of use, and reliability. The TEG-S762 multi-gig switch offers two dedicated 10G ports and four dedicated 2.5G ports for high-speed network connections with a 60Gbps switching capacity. It features a sturdy compact metal housing and fanless design. This multi-gig switch is a cost-effective switch solution for high-speed 10 gigabit network connections.

Key Features

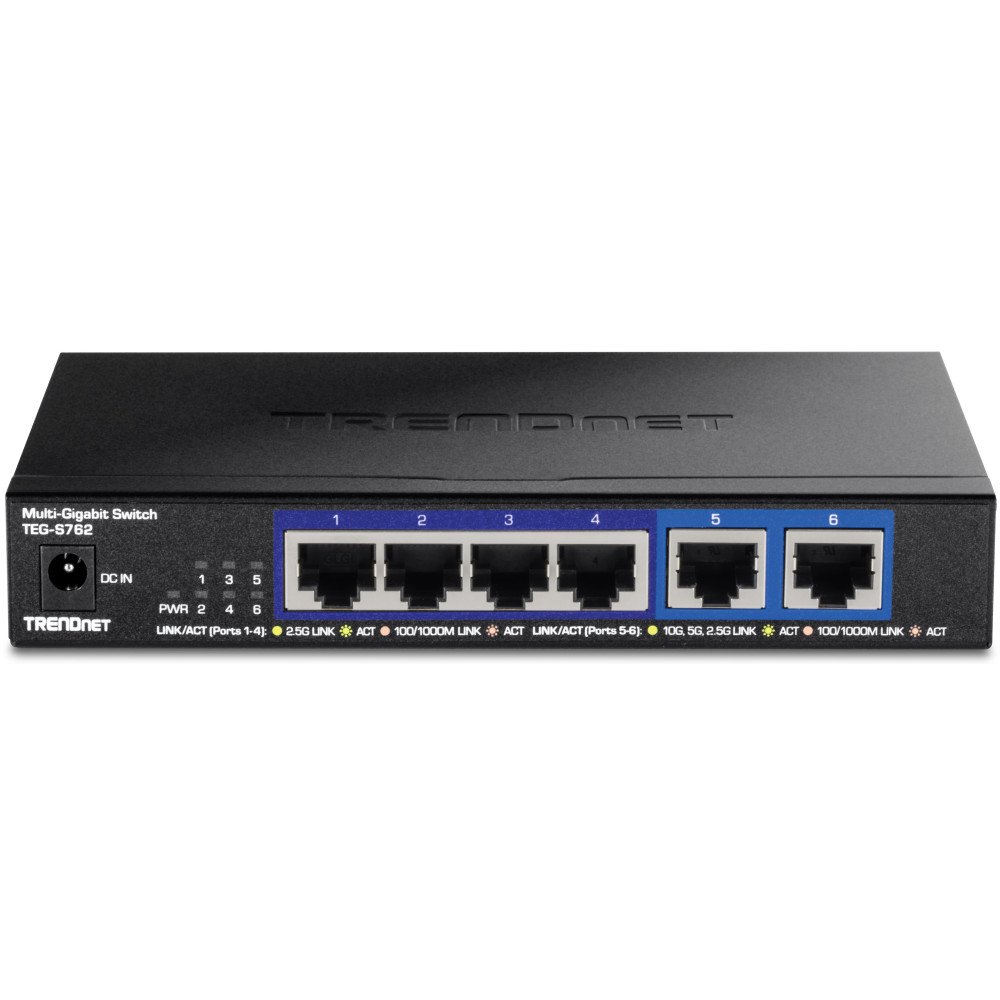

  • 4 x 2.5G RJ-45 ports
  • 2 x 10G RJ-45 ports
  • Compatible with existing Cat5e or better cabling
  • 60Gbps switching capacity

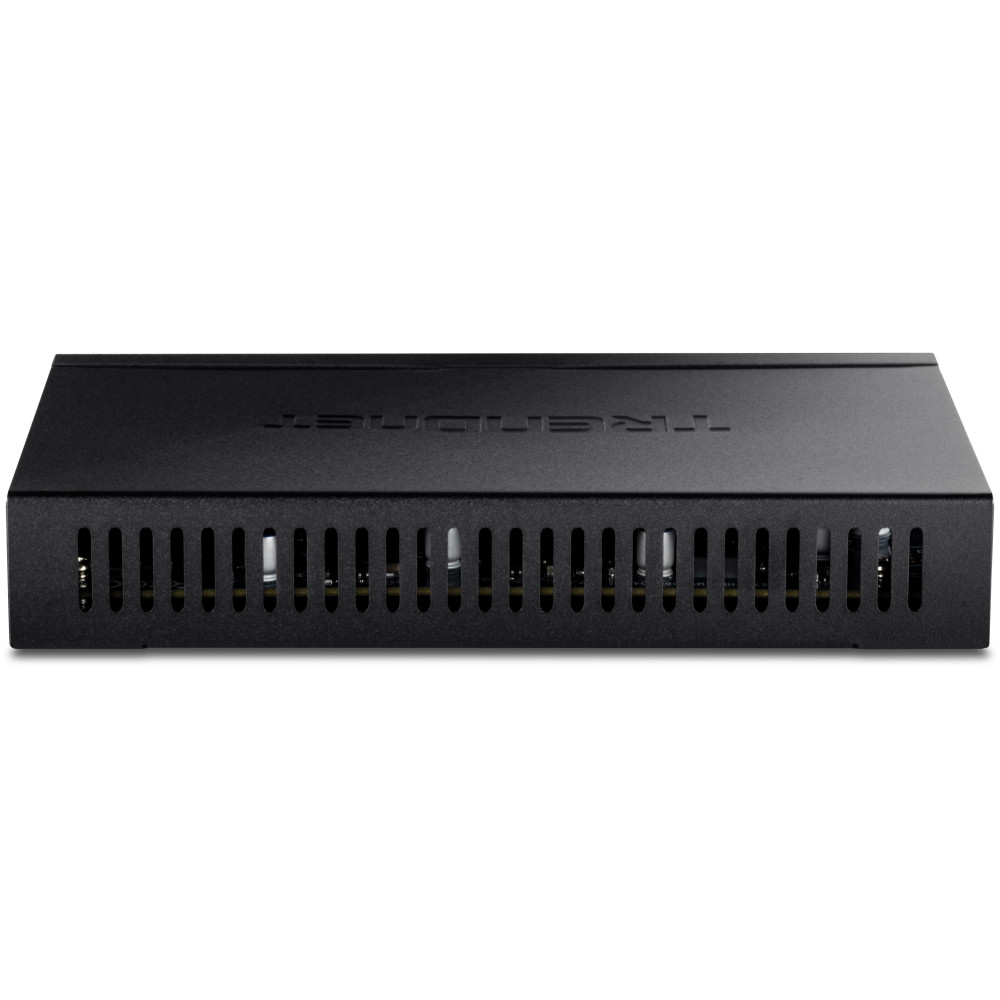

  • Fanless design for silent operation

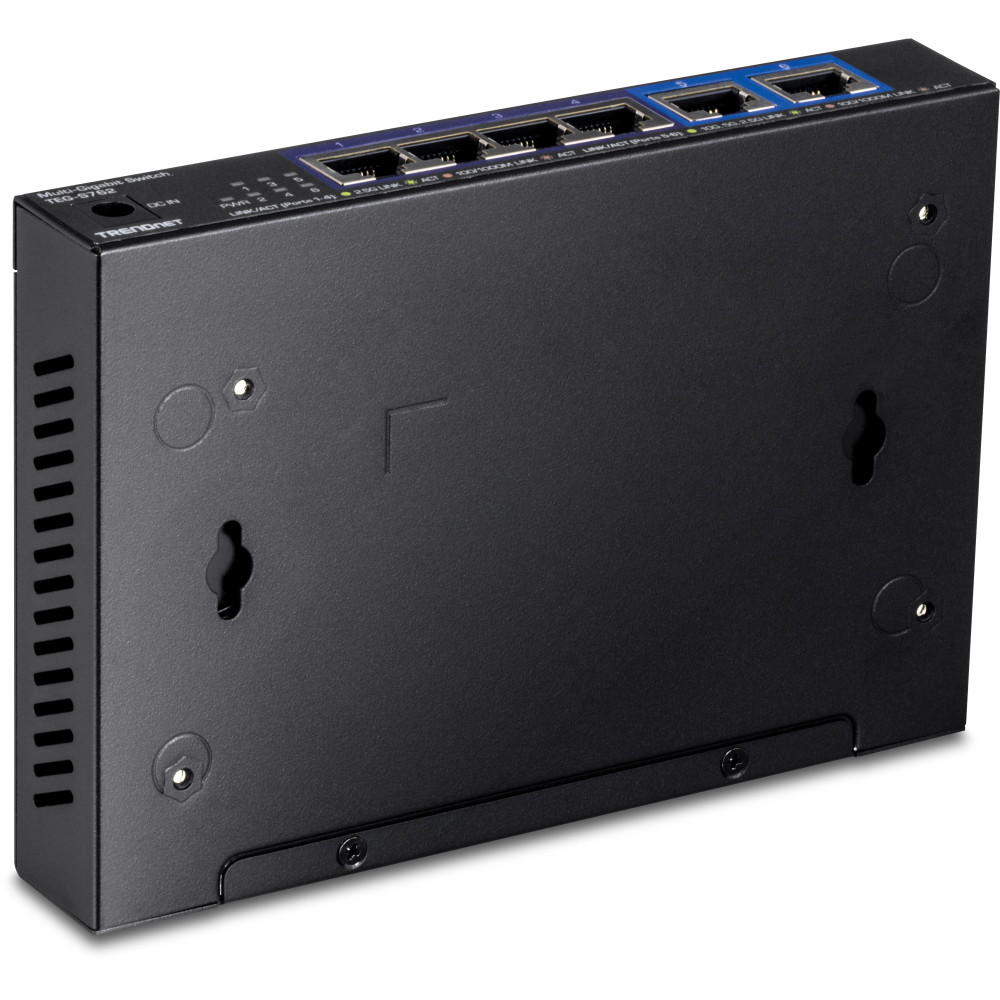

  • Wall mountable
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

In the Box

  1. TEG-S762
  2. Quick Installation Guide
  3. Power adapter (12V, 1A)

Count on the TEG-S762 Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.

Technology
CategoryEthernet Switch
Total Ports6
Ethernet Ports4 x 2.5G, 2x 10G
StandardsIEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.1x
Transfer RateGigabit Ethernet: 2000Mbps (full duplex), 2.5 Gigabit Ethernet: 5Gbps (full duplex), 10 Gigabit Ethernet: 20Gbps (full duplex)
Jumbo Frame Support12KB
MAC Table Size4K
Power
Power Consumption13.37 W
Input Voltage90 - 264V AC, 47/63 Hz
Mechanical
EnclosureMetal
MountingWall mountable
Weight.5kg (1.12 lb.)
Dimensions160 x 110 x 26mm (6.2 x 4.3 x 1 in.)
Ratings
Operating Temperature0° - 40° C (32 - 104° F)
HumidityMax 90% non-condensing
RoHS CompliantYes
CertificationsFCC, CE, LVD
MTBF524,503 hours
WarrantyLifetime
Download NameFile Size
TRENDnet TEG-S762 Datasheet1.46MB
