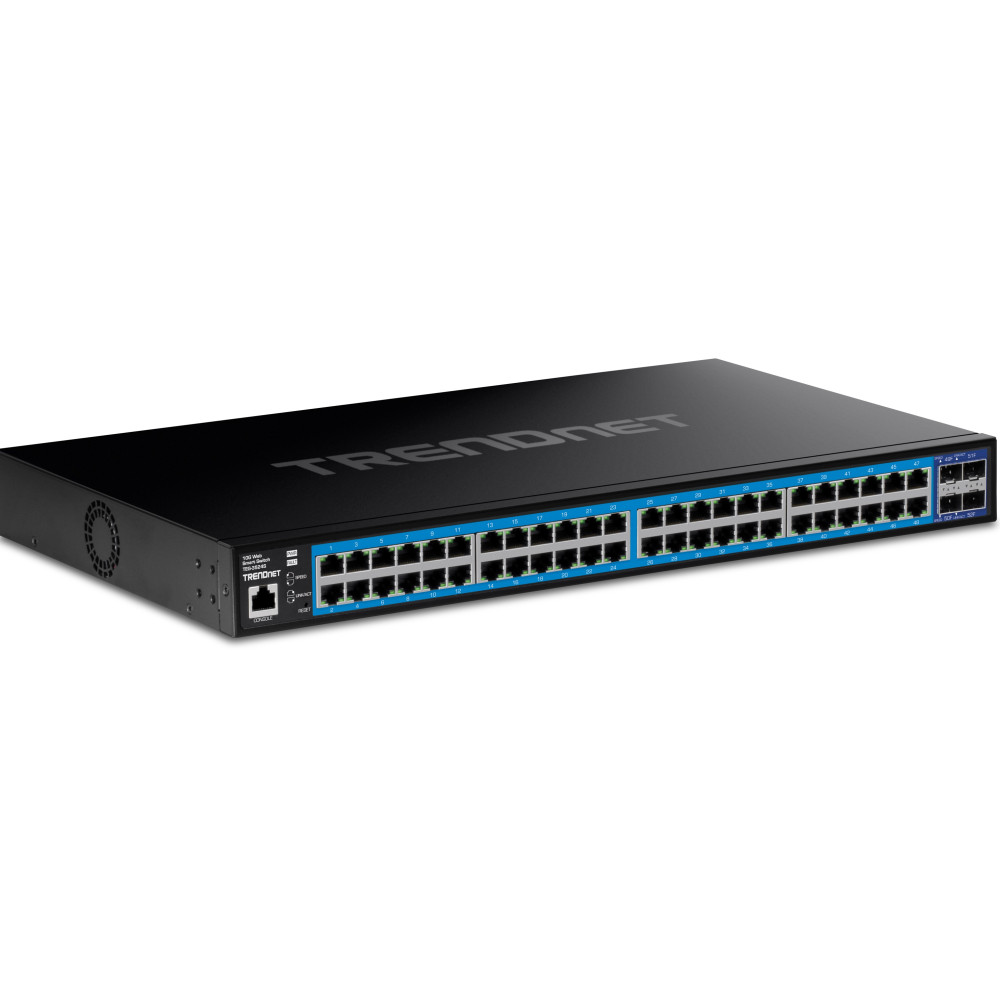

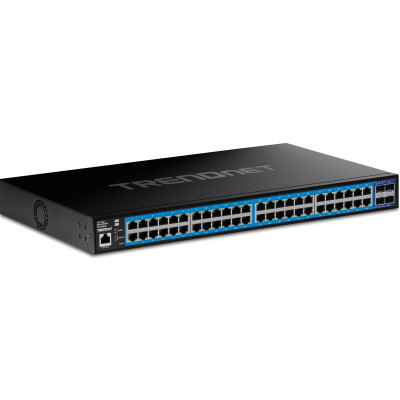

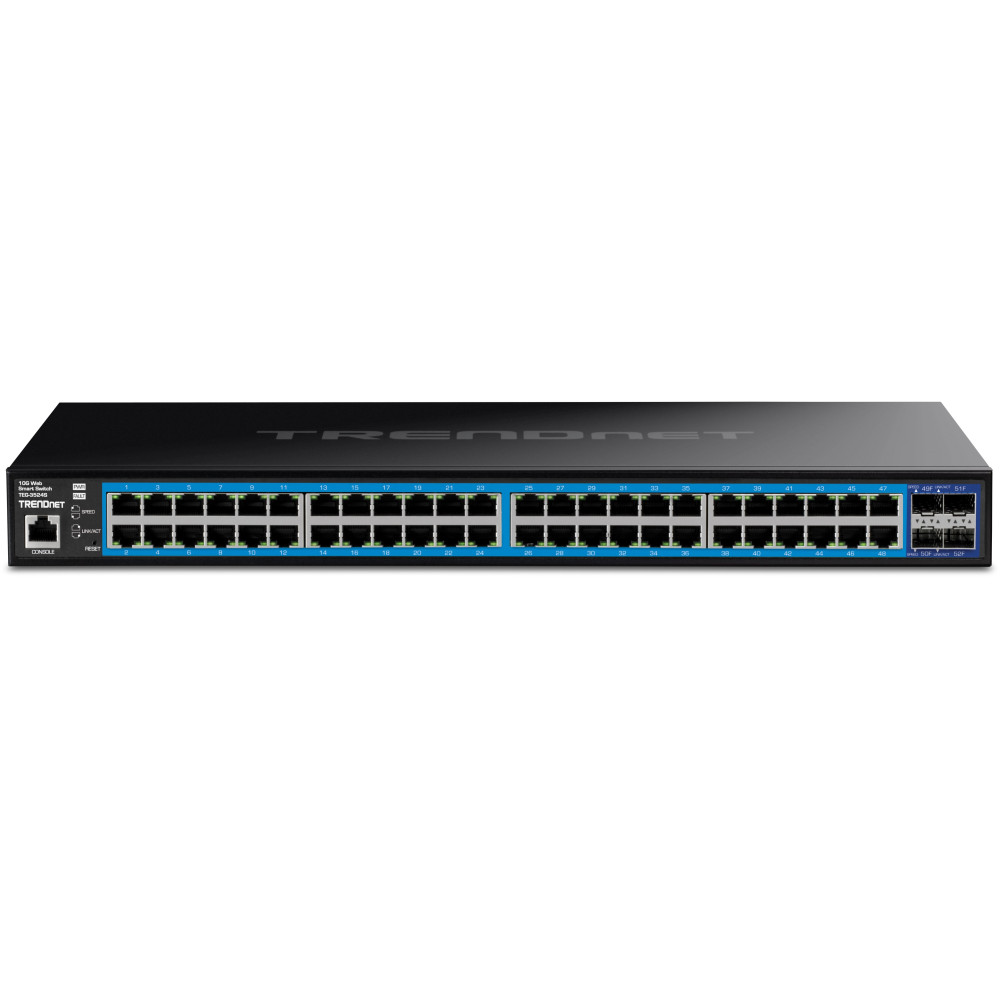

TRENDnet TEG-3524S 52-Port Managed Gigabit Web Smart Switch with 10G SFP+

New TRENDnet TEG-3524S 52-Port Managed Gigabit Ethernet Switch, 4x 10G SFP+ ports, rack mountable
Model: TEG-3524S
Availability: Contact Westward Sales
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TEG-3524S 52-Port Managed Gigabit Web Smart Switch with Quad 10G SFP+ Slots

TRENDnet’s TEG-3524S Gigabit Web Smart Switch offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of today’s SMB networks. This managed switch with SFP+ ports comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this Gigabit managed switch with 10G SFP+ ports a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

This managed switch comes equipped with forty-eight RJ-45 ports that provide gigabit speeds over your existing Cat5e or better cabling. The TEG-3524S also offers four dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The strategic design of the switch lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable managed switch with SFP+ ports offers a cost-effective solution to increase your network’s throughput.

Key Features

  • 48 x Gigabit ports
  • 4 x SFP+ ports
  • Easy-to-use web-based management interface
  • Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
  • Bandwidth control per port
  • Private and Voice VLAN support
  • 176Gbps switching capacity
  • IEEE 802.3ae (SFP+) compliant
  • 1 Smart Fan
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

Count on the TEG-3524S rack-mount Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.

Technology
CategoryEthernet Switch
Total Ports52
Ethernet Ports48 x Gigabit ports
Fiber Ports4 x 10G SFP+ ports
StandardsIEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az
Transfer RateEthernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit Ethernet: 2000Mbps (full duplex), SFP: 2000Mbps (full duplex) SFP+: 20Gbps (full duplex)
Jumbo Frame Support10 KB
MAC Table Size32K
Power
Power Consumption20.85 W
Input Connection100 - 240V AC, 50/60 Hz
Mechanical
MountingRack mountable
Weight3.48kg (7.51 lbs)
Dimensions440 x 255 x 44 mm (17.32 x 10.04 x 1.73 in.)
Ratings
Operating Temperature0° - 50° C (32° - 122° F)
Humidity90% non-condensing
RoHS CompliantYes
CertificationsFCC, CE
MTBF175,750 hours
WarrantyLifetime
