Manufacturer: TRENDnet

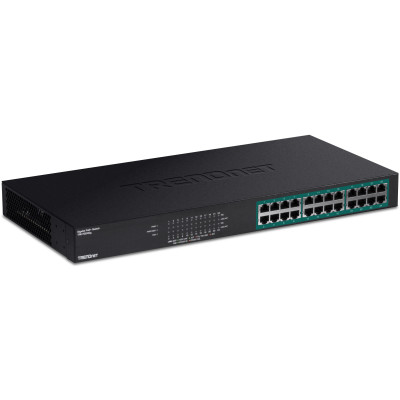

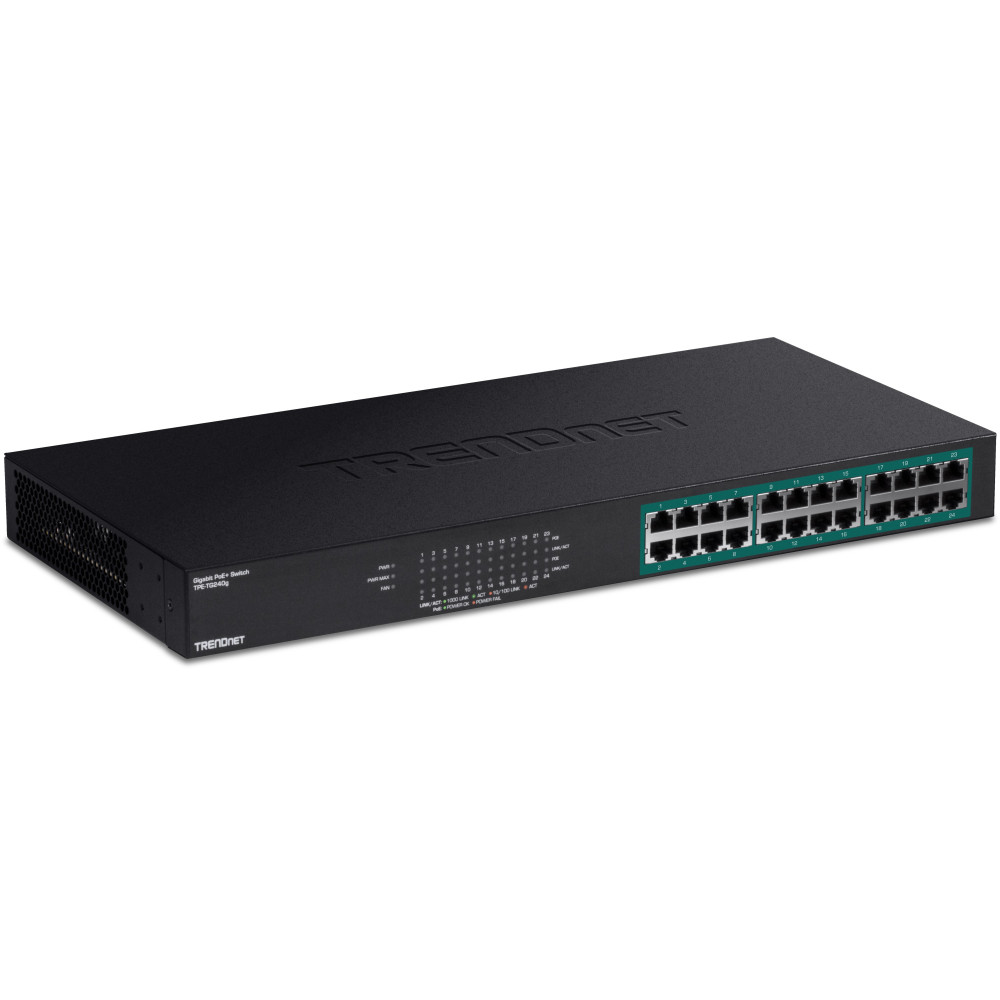

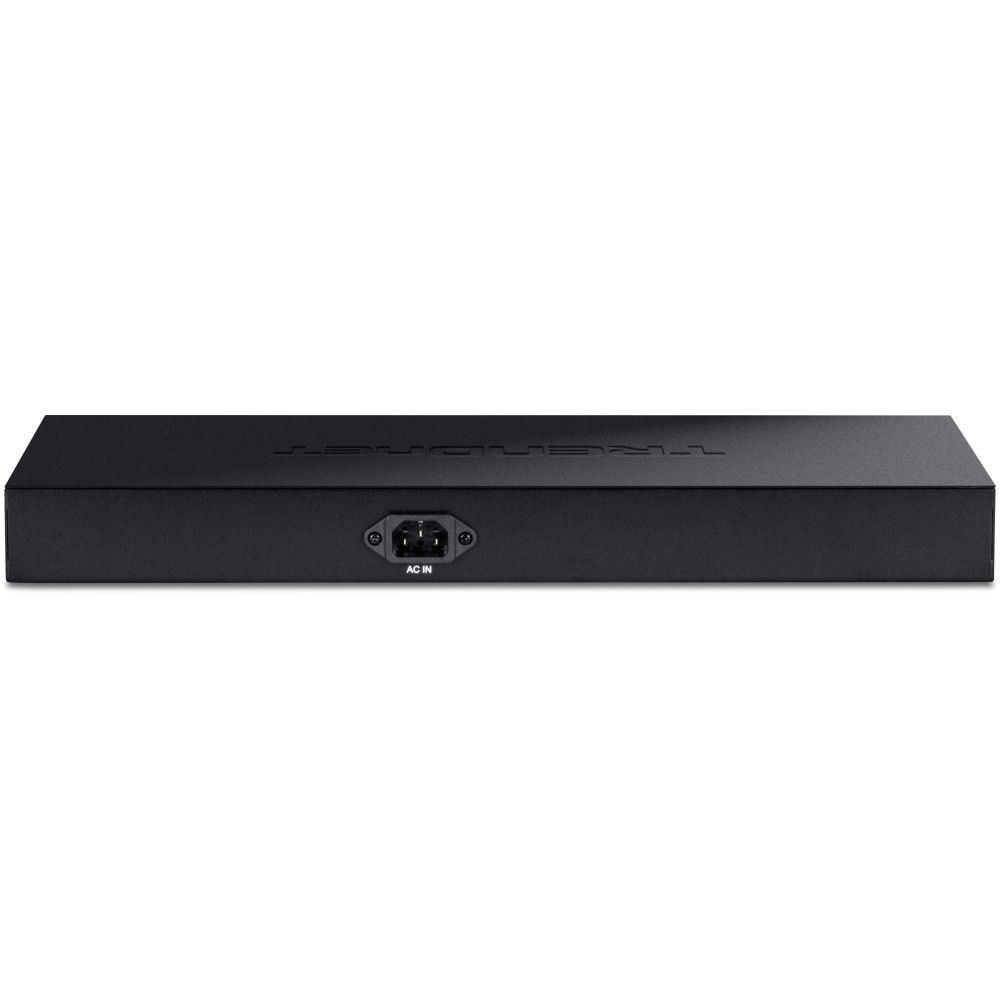

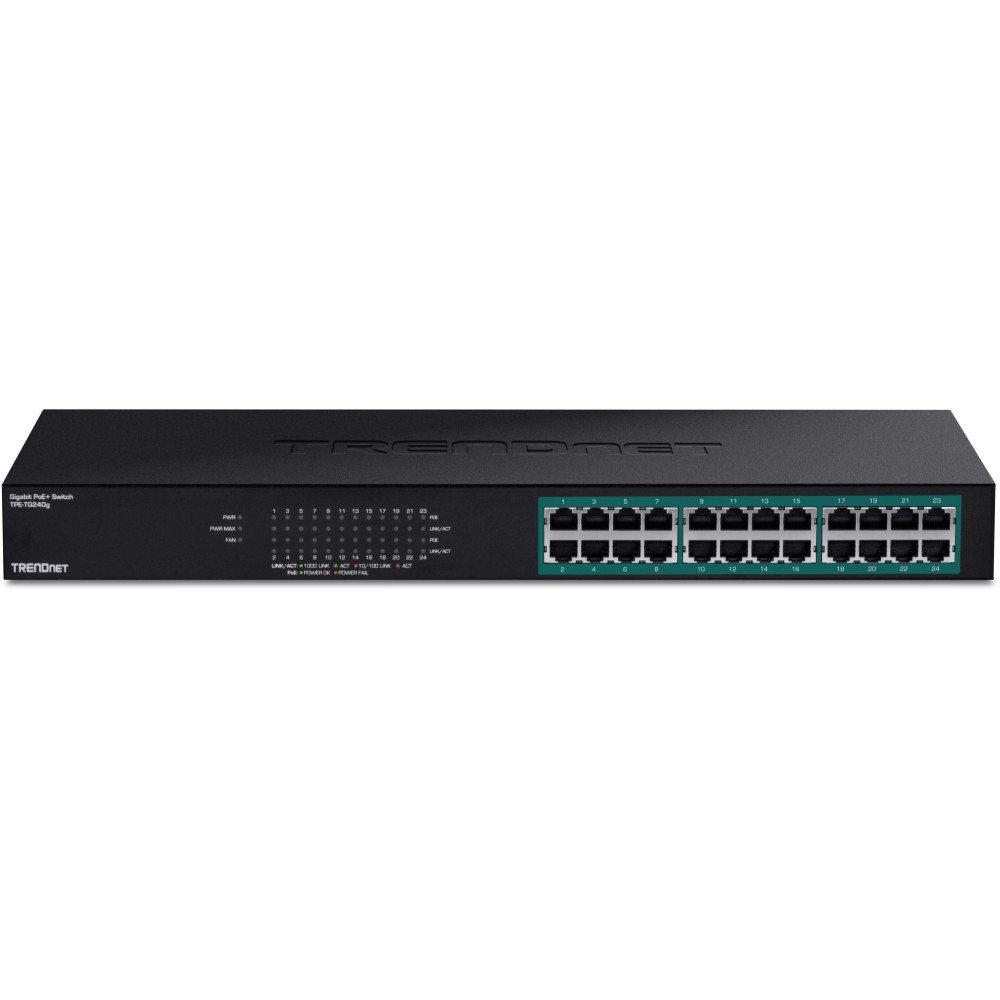

TRENDnet’s TPE-TG240g 24-Port Gigabit PoE+ Switch offers twenty four Gigabit PoE+ ports, a 48Gbps switching capacity, and a PoE power budget of 370 Watts. It supplies 24 Power over Ethernet devices with up to 30W per port of PoE power and data over existing Ethernet cables. With a sturdy metal housing and included rackmount brackets, this unmanaged PoE+ switch is well-suited for 19” 1U rack installations. Network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more can be easily managed.
Embedded GREENnet technology provides cost savings and reduces power consumption by up to 70%, by limiting port power consumption during periods of low link utilization. GREENnet technology works right out of the box with no management requirement.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 24 |
| Ethernet Ports | 24 x Gigabit PoE+ |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit Ethernet: 2000 Mbps (full duplex) |
| Jumbo Frame Support | 10 KB |
| MAC Table Size | 8 K |
| Power | |
| Power Consumption | 36W (no PD) |
| Input Connection | 100 - 240V AC, 50/60Hz |
| Overload Protection | Yes |
| Mechanical | |
| Mounting | 1U 19” rack mountable |
| Weight | 3.45kg (7.6 lbs.) |
| Dimensions | 440 x 210 x 44mm (17.3 x 8.3 x 1.8 in.) |
| Ratings | |
| Operating Temperature | 0 - 40°C (32 - 104°F) |
| Humidity | 90% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE, UL |
| MTBF | 290, 758 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TPE-TG160H/TPE-TG160g/TPE-TG240g Installation Guide | 4.2MB |
| TRENDnet TPE-TG240g Datasheet | 425.2KB |
