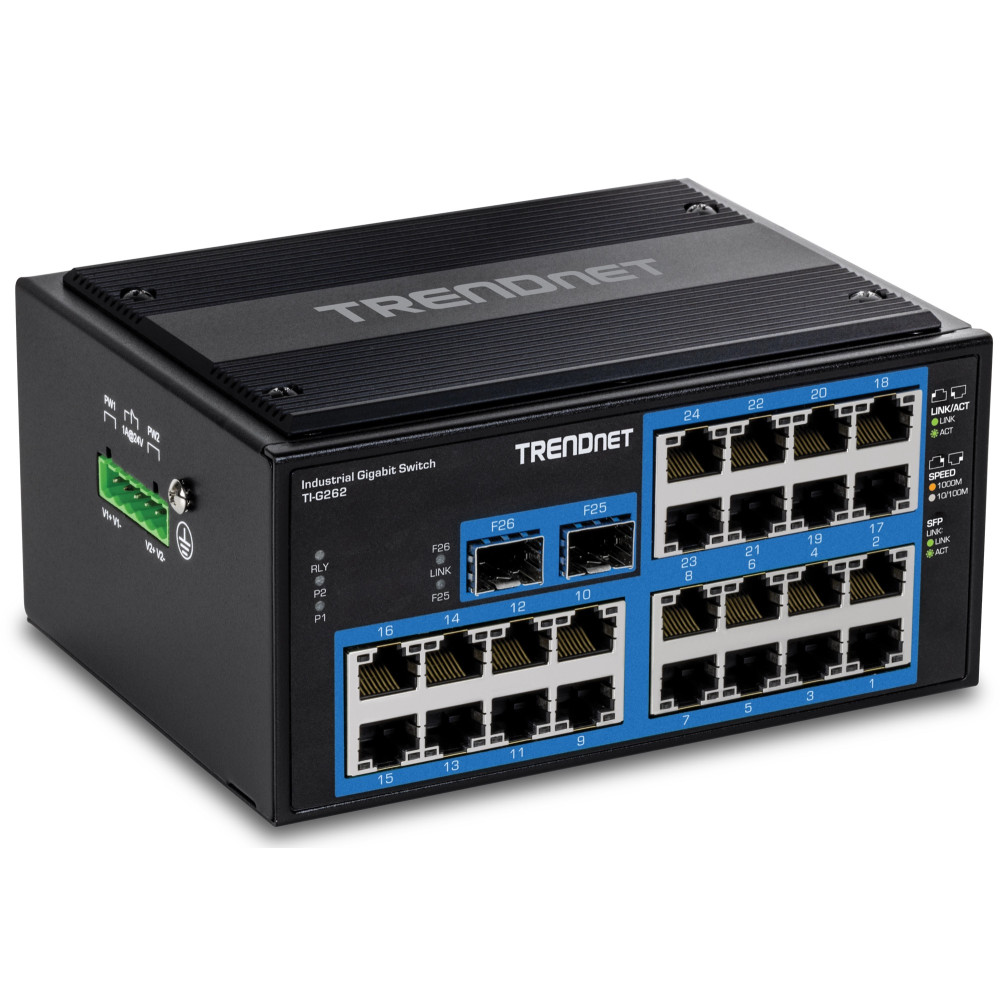

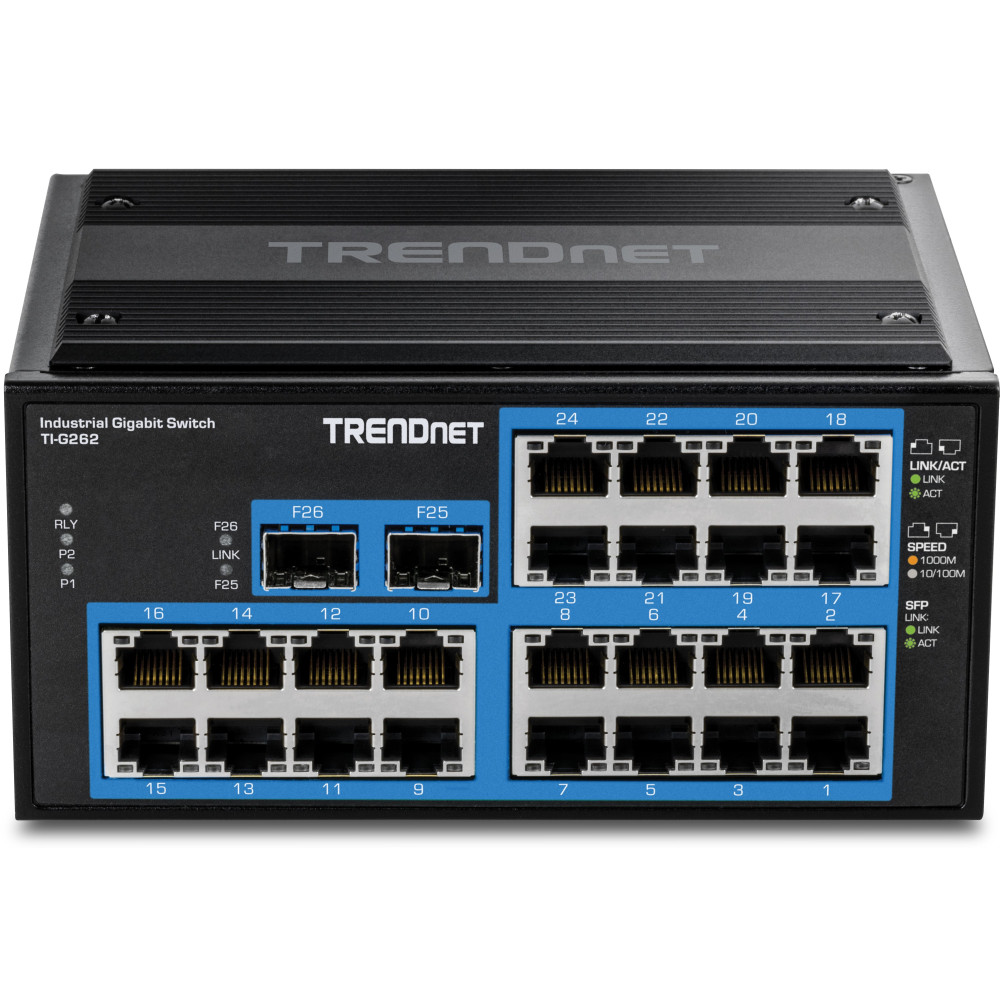

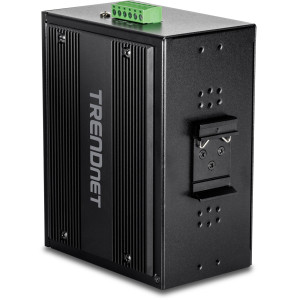

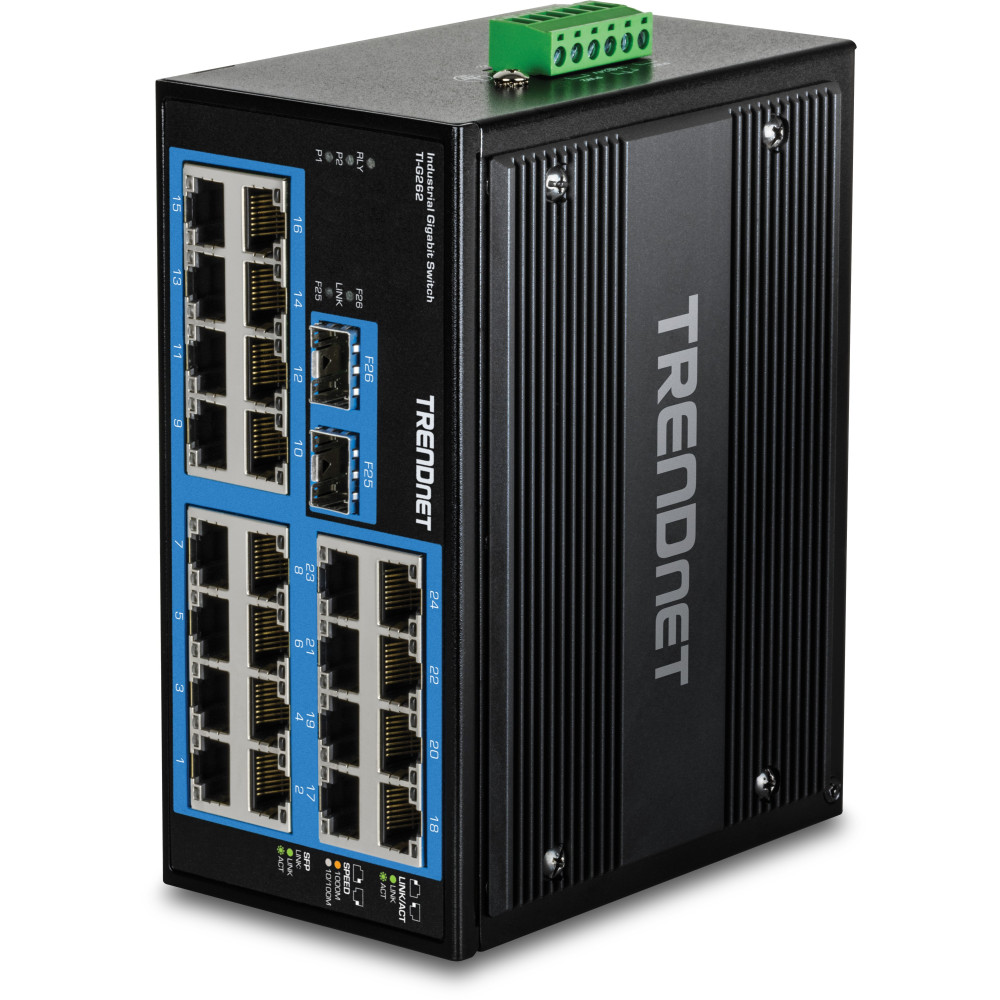

The TI-G262 26-Port Industrial Gigabit DIN-Rail Switch has twenty-four dedicated gigabit ports, plus two gigabit SFP ports that support 1000Base-FX modules for long distance fiber networking applications. It features a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F).
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 26 |
| Ethernet Ports | 24 Gigabit (10/100/1000TX |
| Standards | IEEE 802.3, IEEE 802.3u ,IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex), SFP: 2000Mbps (full duplex) |
| Jumbo Frame Support | 9KB |
| MAC Table Size | 8K |
| Power | |
| Power Consumption | 10.64 W |

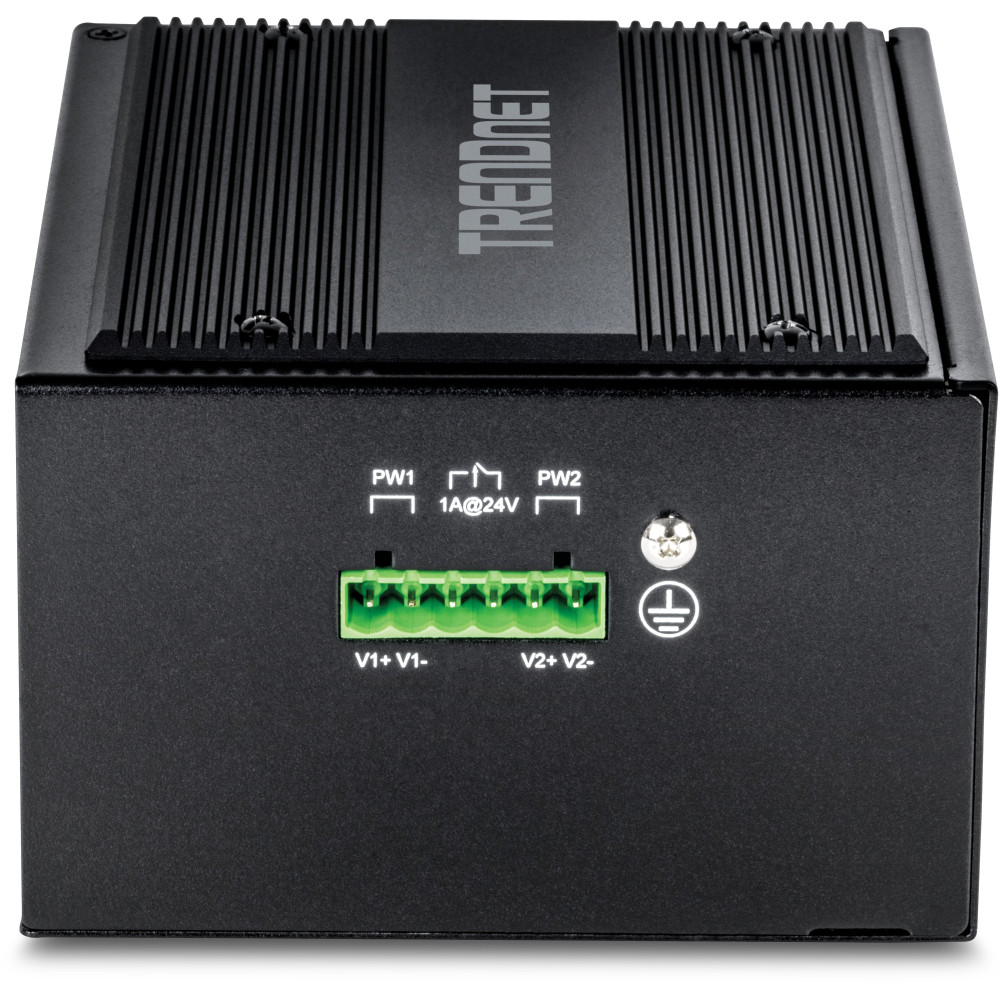

| Connection | 6-pin terminal block |
| Input Voltage | 12-56V DC |
| Surge Protection | 2kV |
| Overload Protection | Yes |
| Mechanical | |

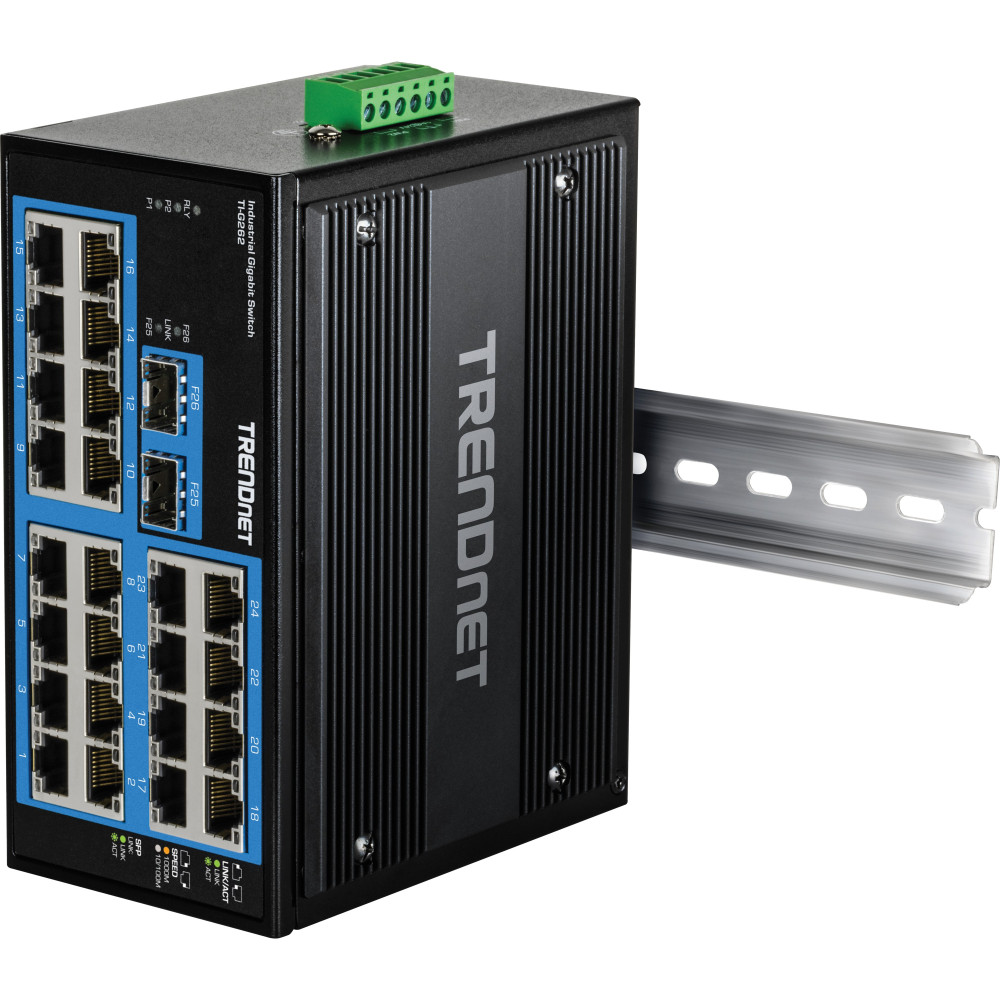

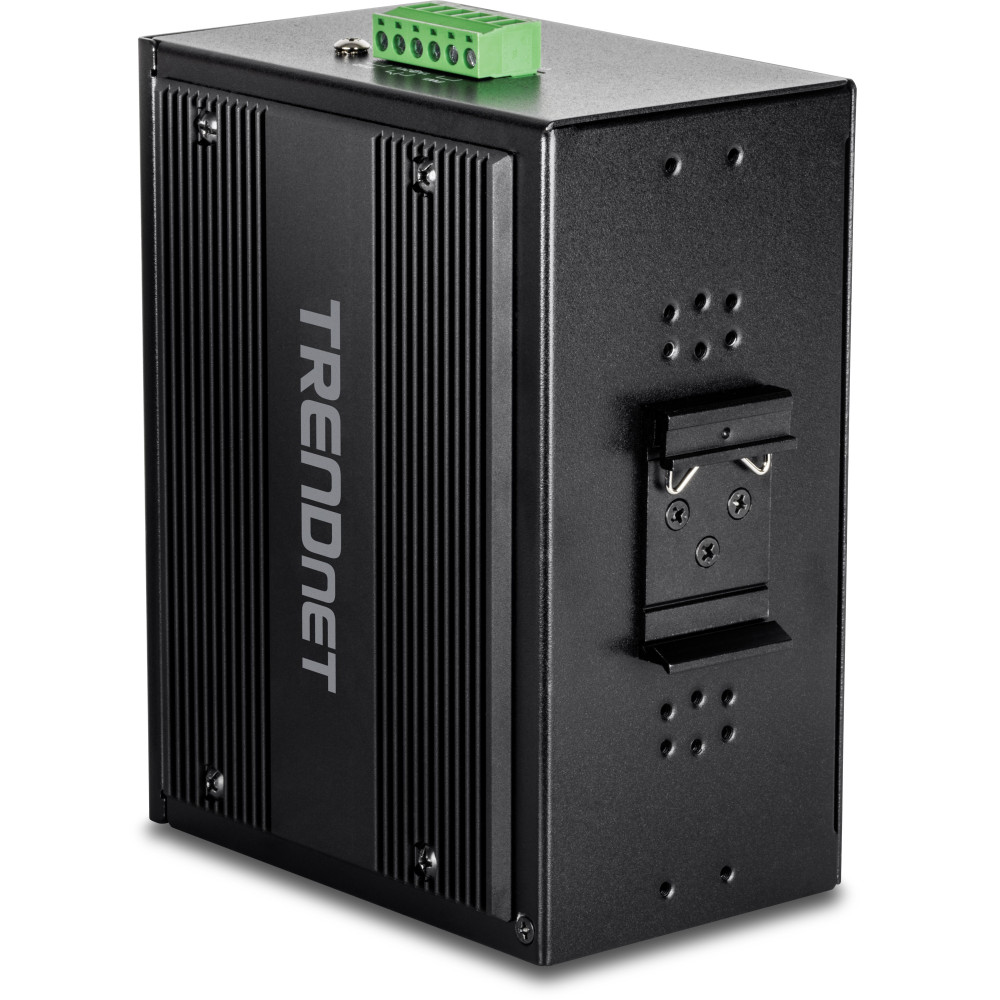

| Mounting | DIN-rail or wall mount |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Material | IP30 metal case |
| Weight | 936g (2.06 lbs.) |
| Dimensions | 163 x 120 x 77mm (6.41 x 4.72 x 3.03 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, FCC, LVD |
| MTBF | 520,000 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TI-G262 Datasheet | 1.13MB |
