TRENDnet TFC-G22SFP 4-Port Unmanaged Gigabit Switch with 2 SFP Ports

New TRENDnet TFC-G22SFP 4-Port Unmanaged Gigabit Ethernet Switch, 2 Gigabit SFP ports for multi/single-mode modules
Model: TFC-G22SFP
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TFC-G22SFP 4-Port Gigabit Unmanaged Switch with 2x Gigabit SFPs, Wall Mountable

The TFC-G22SFP 4-Port Gigabit Switch with SFP Ports provides high-bandwidth performance, ease-of-use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 8Gbps with full-duplex mode. This 4-port switch with SFP ports is ideal to network devices at long distances over fiber connection with its two SFP ports. The wall mountable, fanless design provides installation flexibility.

With a compact and lightweight metal housing design, this gigabit Ethernet switch is well-suited for desktop installations. The fanless design lowers energy consumption and eliminates operating noise. The 4-port switch with SFP ports is compatible with multi-mode and single mode transmissions.

Key Features

  • 2 x 1Gbps RJ-45 ports
  • 2 x 1Gbps SFP ports
  • 8Gbps switching capacity
  • Sturdy metal switch
  • Fanless design
  • SFP port accommodates multimode or single-mode modules
  • Auto-MDIX RJ-45 ports support full-duplex mode
  • NDAA / TAA compliant (U.S. and Canada only)
  • 3-Year warranty

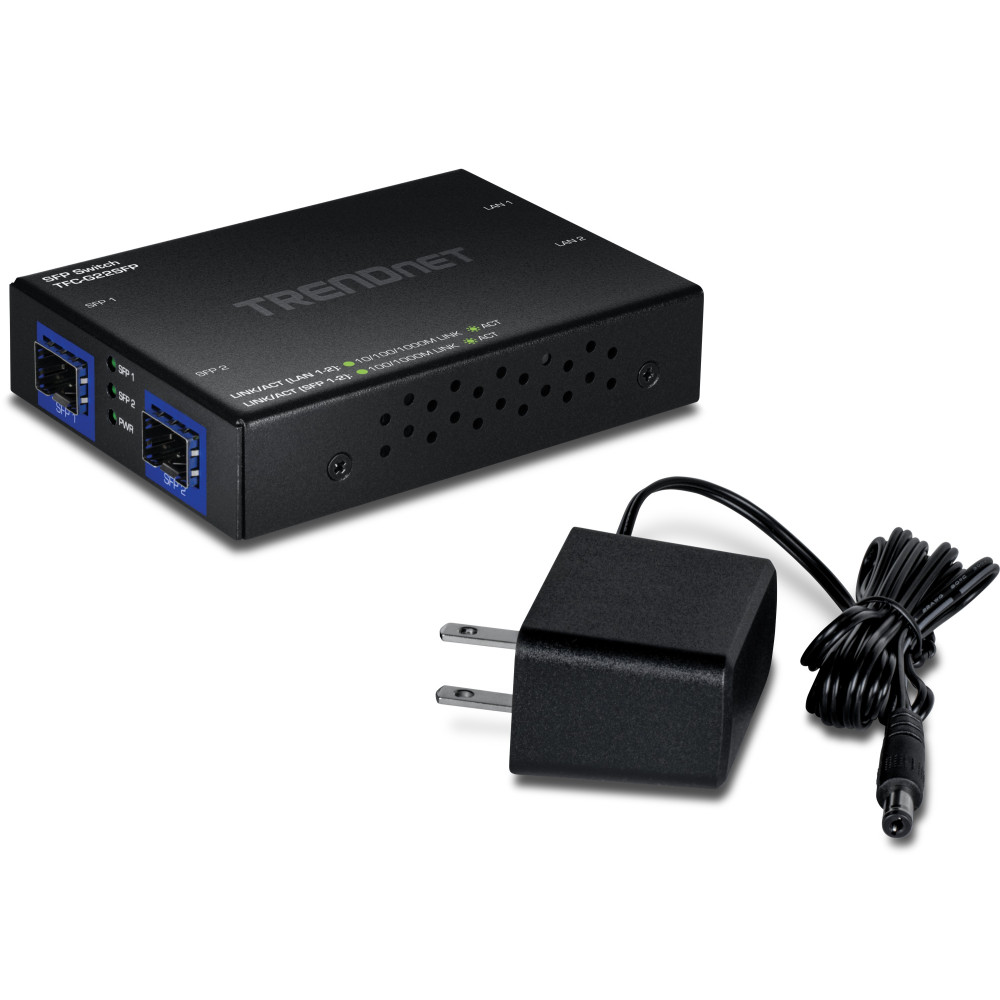

In the Box

  1. TFC-G22SFP
  2. Power adapter (5V DC, 1.5A)

Count on the TFC-G22SFP Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.

Technology
CategoryEthernet Switch
Total Ports4
Ethernet Ports2 Gigabit RJ45 ports
Fiber Ports2 Gigabit SFP port
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az
Transfer RateEthernet: 10Mbps (half duplex) 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex), Gigabit: 2Gbps (full duplex), 100Mbps SFP: 200Mbps (full duplex), Gigabit SFP: 2Gbps (full duplex) Gigabit: 2000Mbps (full duplex)
Jumbo Frame Support9KB
MAC Table Size8K
Power
Power Consumption3.3W
Input Voltage100 - 240V AC, 50/60 Hz
Mechanical
EnclosureMetal
MountingDesktop, Wall mountable
LED IndicatorsPort status
Weight203.5g (0.45 lbs.)
Dimensions101 x 75 x 22.6mm (3.97 x 2.95 x 0.89 in.)
Ratings
Operating Temperature0° - 50° C (32 - 122° F)
HumidityMax 90% non-condensing
RoHS CompliantYes
CertificationsFCC, CE, LVD
MTBF770,000 hours @ 25° C
Warranty3 year
