Manufacturer: TRENDnet

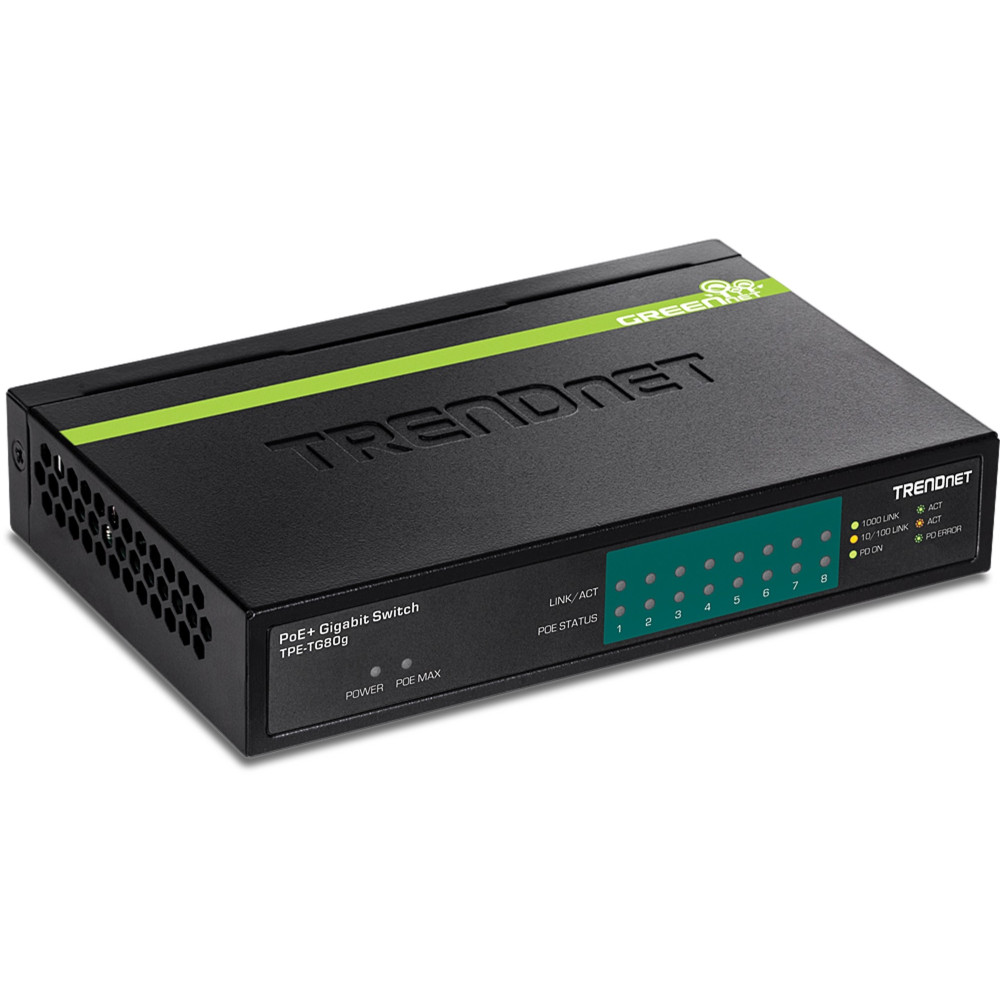

TRENDnet’s TPE-TG80g 8-Port Gigabit GREENnet PoE+ Switch offers eight Gigabit PoE+ ports (30 Watts/port), a 16Gbps switching capacity, and a PoE power budget of 123 Watts. Plug and Play this sturdy metal switch for reliable high speed PoE networking. With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.
Embedded GREENnet technology provides cost savings and reduces power consumption by up to 70%, by limiting port power consumption during periods of low link utilization. GREENnet technology works right out of the box with no management requirement.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 8 |
| Ethernet Ports | 8 x Gigabit PoE+ |
| Standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit Ethernet: 2000 Mbps (full duplex) |
| Jumbo Frame Support | 9 KB |
| MAC Table Size | 4 K |
| Power | |
| Power Consumption | 5.3 W |
| Input Connection | 100 - 240V AC, 50/60Hz |
| Output Connection | 54V DC, 2.77A |
| Mechanical | |
| Mounting | Desktop |
| Weight | 400g (14 oz.) |
| Dimensions | 150 x 96 x 28mm (5.9 x 3.8 x 1.1 in.) |
| Ratings | |
| Operating Temperature | 0 - 45°C (32 - 113°F) |
| Humidity | 90% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TPE-TG80g Datasheet | 1.58MB |
| TRENDnet TPE-TG80g/TPE-TG80g/TPE-TG50g Quick Installation Guide | 3.69MB |
