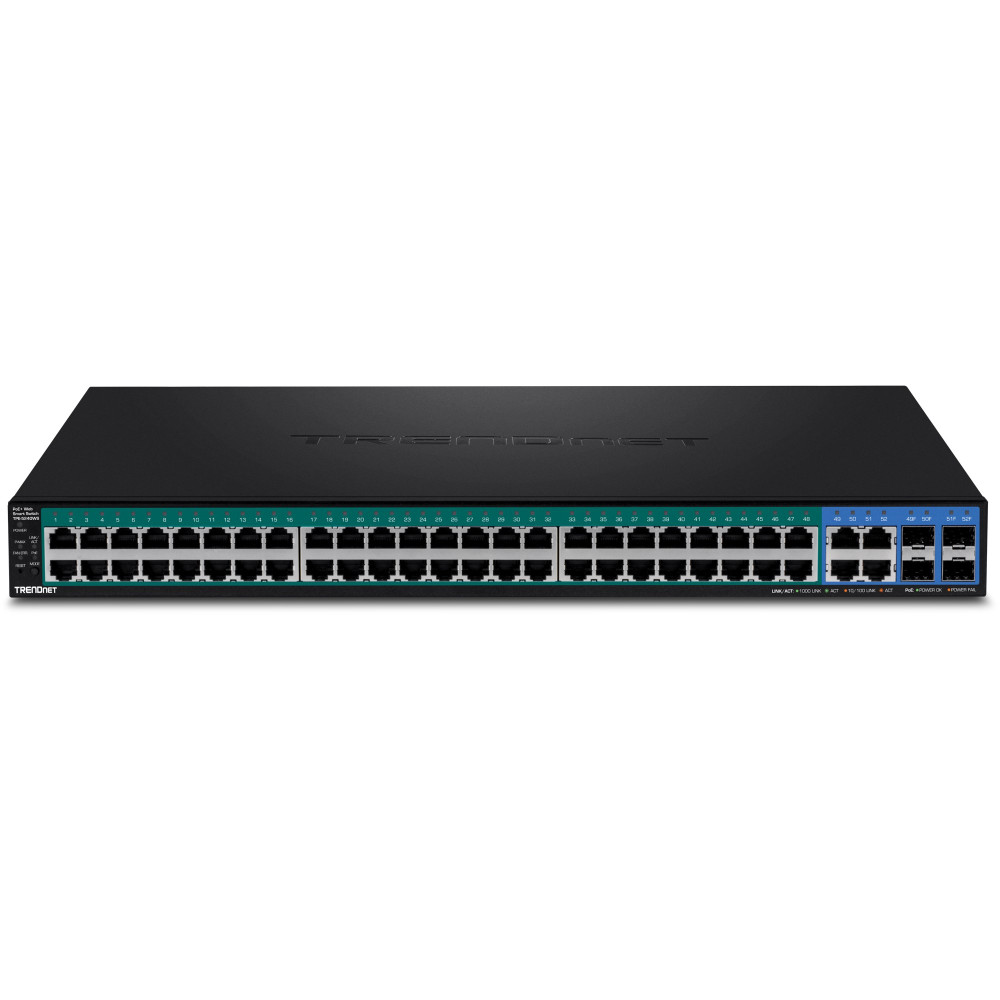

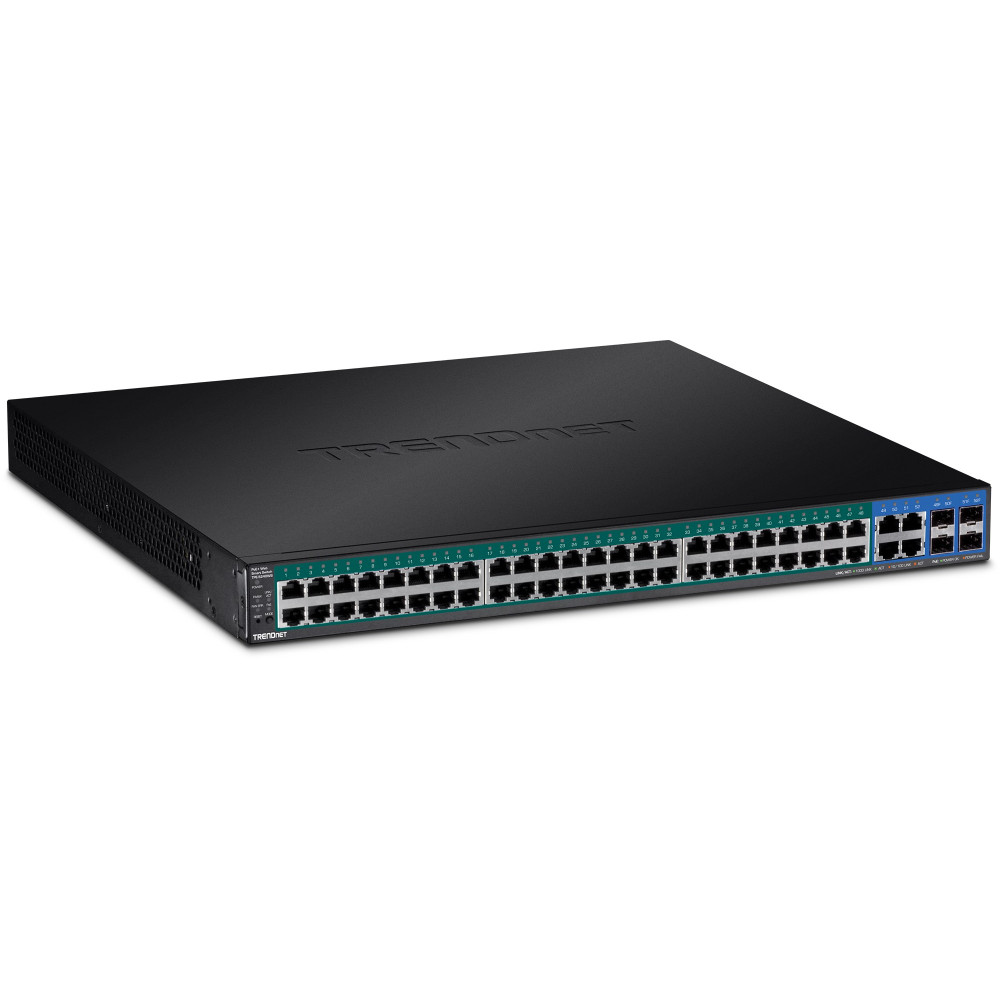

TRENDnet’s TPE-5240WS Gigabit Web Smart Switch offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet’s web smart managed switch also features 4 shared Gigabit ports (RJ-45 or SFP) to support long-distance fiber networking applications.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Web Smart PoE+ Managed Switch by delivering up to 30W per port of PoE power and data over existing Ethernet cables. The TPE-5240WS power budget is 370W. With PoE technology, users only need one set of cables to deliver both data and power. With the TPE-5240WS PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, and access controls can be easily managed.
TRENDnet Hive is a cloud management platform that provides a centralized cloud-based, remote network management solution for TRENDnet network devices. The TRENDnet Hive cloud networking solution offers better overall visibility of your network devices from a single intuitive and easy-to-use cloud interface. Advanced features supported with the Hive cloud networking solution include event and device hardware monitoring, traffic statistics, notification alerts, and troubleshooting tools. With the TRENDnet Hive network cloud manager, network device provisioning can be more easily accomplished through scheduled or immediate deployment of batch firmware and configuration updates. Reduce the time, complexity, and management costs of your network with the reliable TRENDnet Hive cloud networking solution.
Easily manage and configure the TPE-5240WS Managed Switch remotely by updating the switch to the latest firmware for access to TRENDnet Hive.This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service. With the purchase of each compatible device the first year of TRENDnet Hive for 'Consumers and End Users' is free or you can upgrade to TRENDnet Hive Pro for 'Integrators and Partners' for a nominal annual fee.
The TPE-5240WS gives you complete control over your network. It doesn’t just provide management that can be extended to plug-and-play equipment, it has the power and versatility to enable you to customize your network in the most efficient way possible. At the center of your operation, you want a switch that can handle virtually anything. Talk to us today. We’ll help you make the most of PoE options and other network enhancements to help cut unnecessary equipment and cables while improving overall network performance and capacity.
Technology | |
Category | Ethernet Switch (PoE) |
Total Ports | 52 |
Ethernet Ports | 48 x Gigabit PoE+ ports |
Fiber Ports | 4 x shared Gigabit ports (RJ-45/SFP) |
Standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit Ethernet: 2000 Mbps (full duplex) |
Jumbo Frame Support | 10 KB |
MAC Table Size | 16 K |
Network Management | |
Cloud Protocols | TRENDnet Hive or TRENDnet Hive Pro |
Power | |
Power Consumption | 479 W |

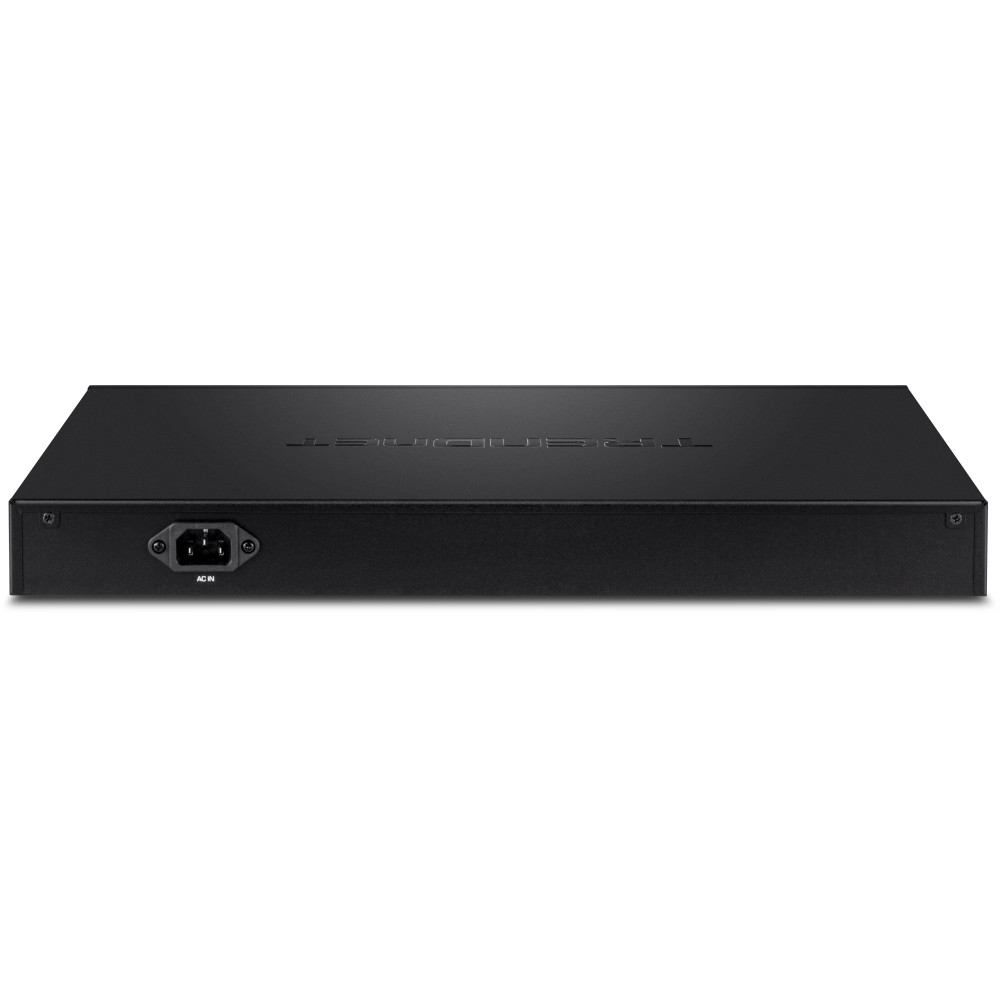

Input Connection | 100 - 240V AC, 50/60Hz, internal power supply |
Mechanical | |
Mounting | Rack mountable |
Weight | 6.12 kg (13.5 lbs) |
Dimensions | 440 x 430 x 44mm (17.3 x 17 x 1.74 in.) |
Ratings | |
Operating Temperature | -5 - 50°C (23 - 122°F) |
Humidity | 95% non-condensing |
RoHS Compliant | Yes |
Certifications | FCC, CE |
MTBF | 239,897 hours |
Warranty | Lifetime |
Download Name | File Size |
TRENDnet PoE Web Smart Switch Series User's Guide | 5.13MB |
TRENDnet Hive User's Guide | 2.45MB |
TRENDnet PoE Web Smart Switch Series Quick Installation Guide | 5.42MB |
TRENDnet TPE-5240WS Datasheet | 629.55KB |
