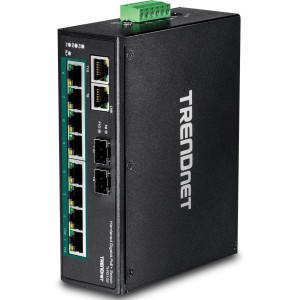

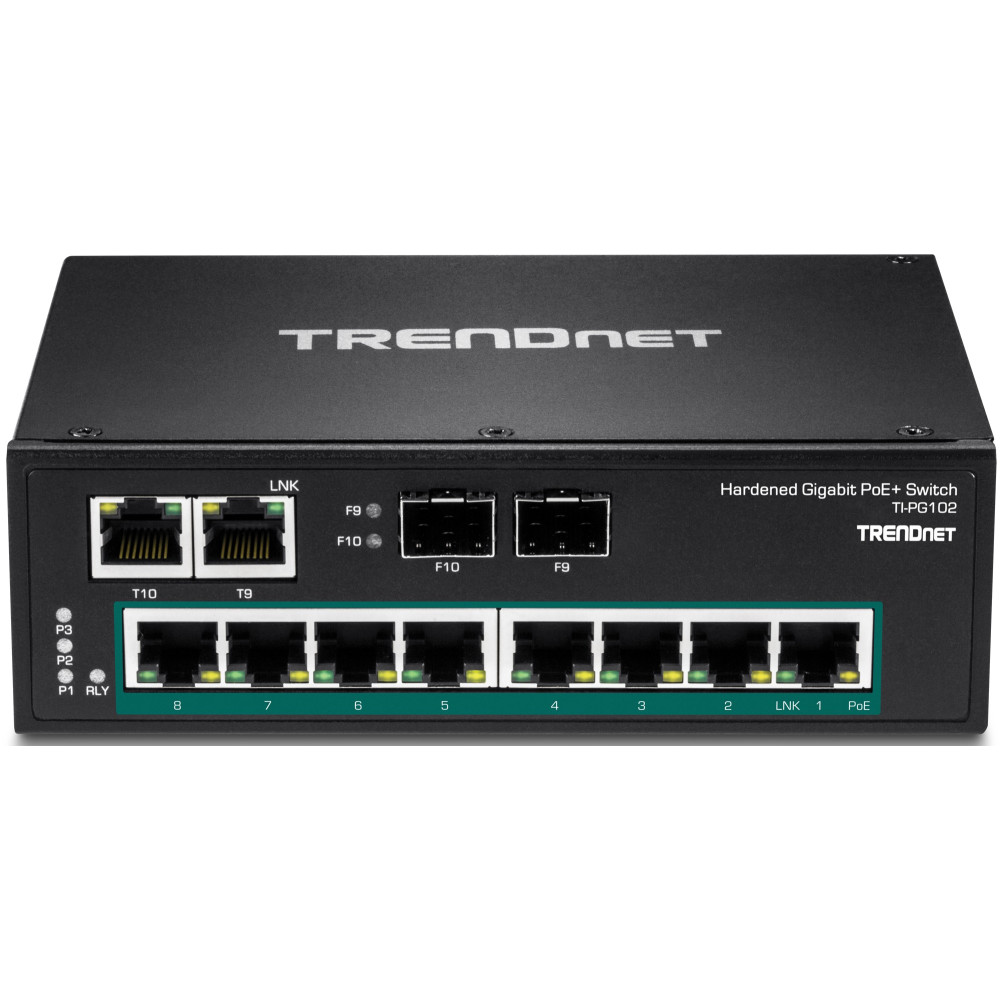

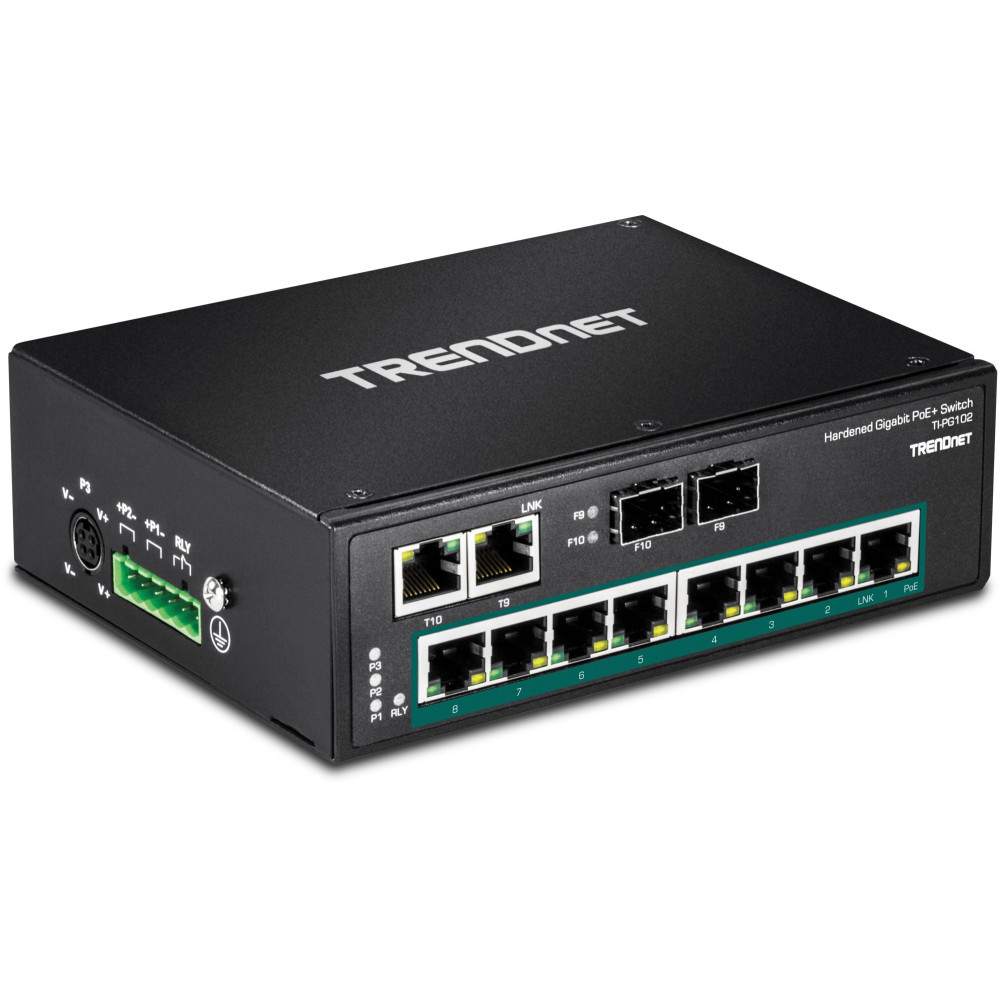

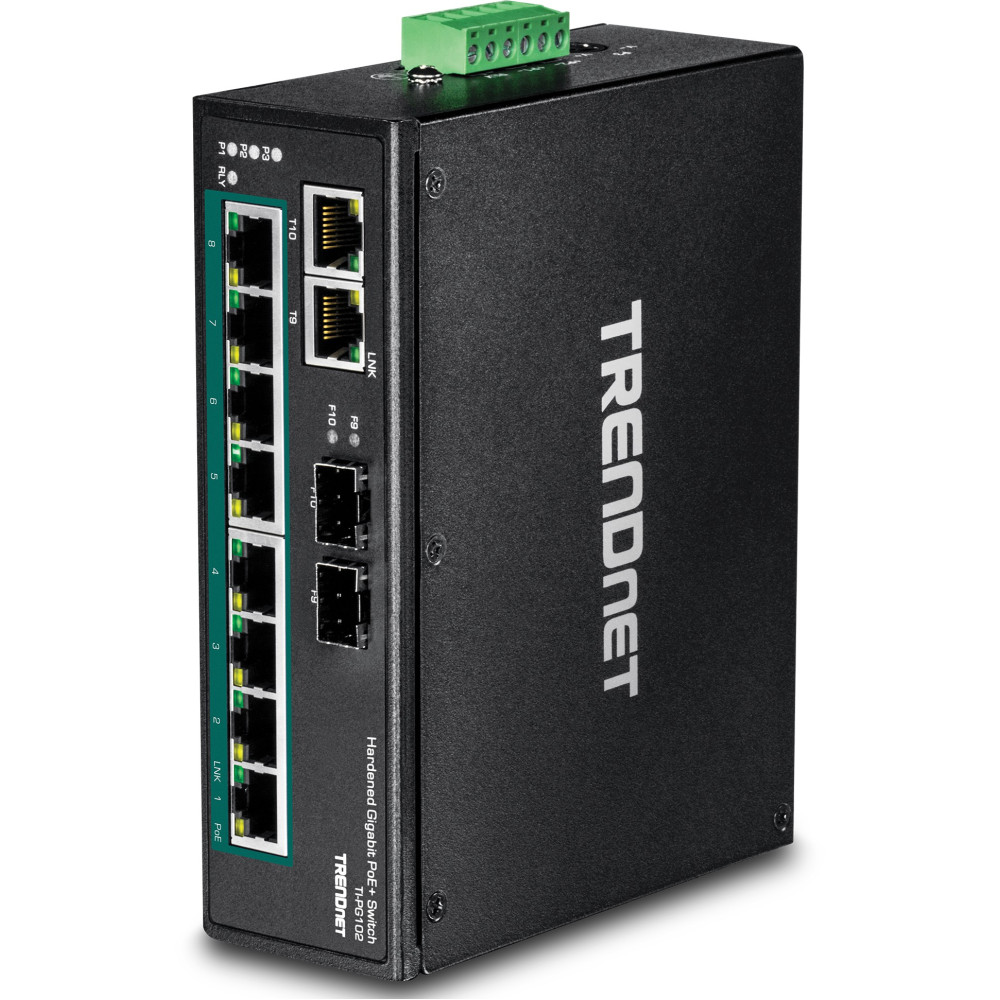

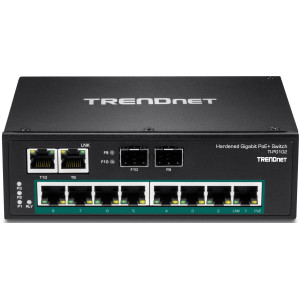

The TI-PG102 10-Port Industrial Gigabit PoE+ DIN-Rail Switch has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 10 |
| Ethernet Ports | 10 Gigabit (10/100/1000TX) - includes 2 shared SFP |
| Standards | IEEE 802.3, IEEE 802.3u ,IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex) |
| Jumbo Frame Support | 10KB |
| MAC Table Size | 16K |
| Power | |
| Power Consumption | 5.67 W max. (without PD) |

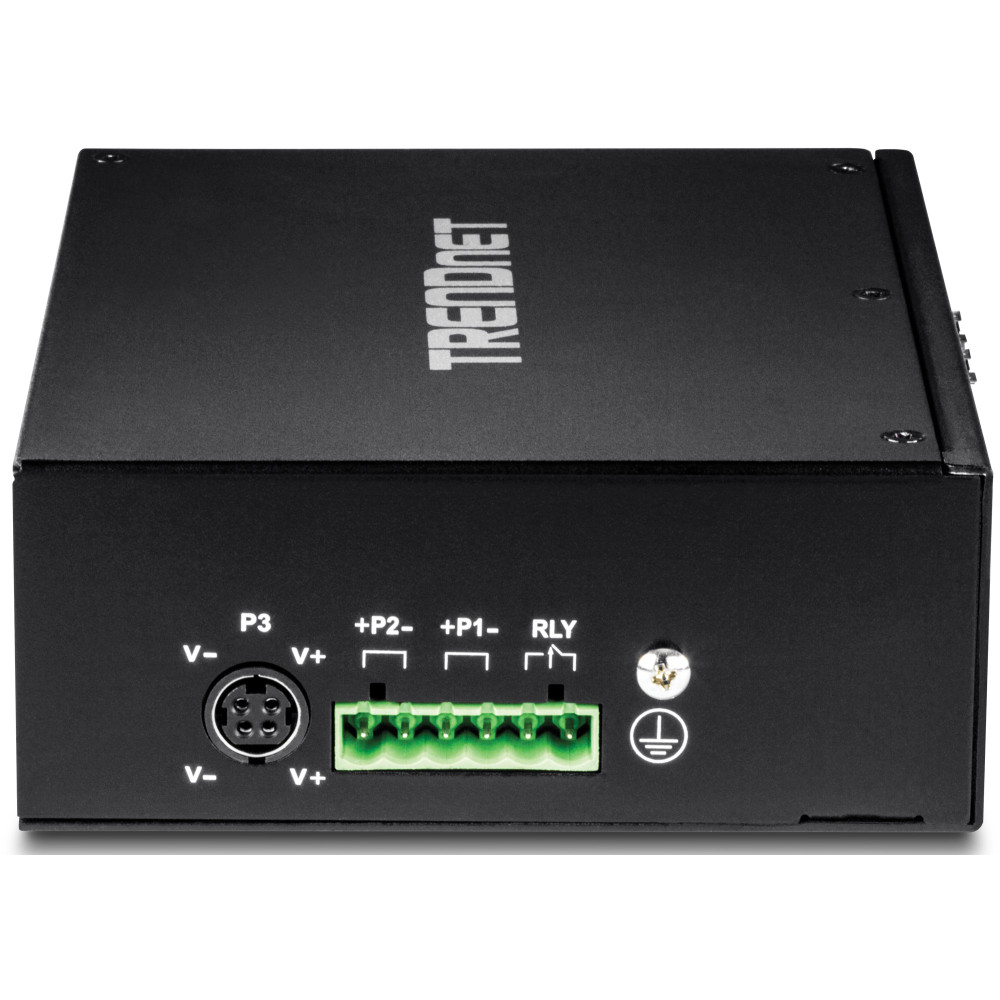

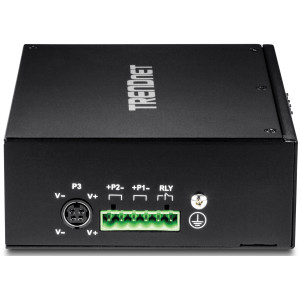

| Connection | 6-pin terminal block |
| Input Voltage | 48-56V DC |
| Overload Protection | Yes |
| Mechanical | |

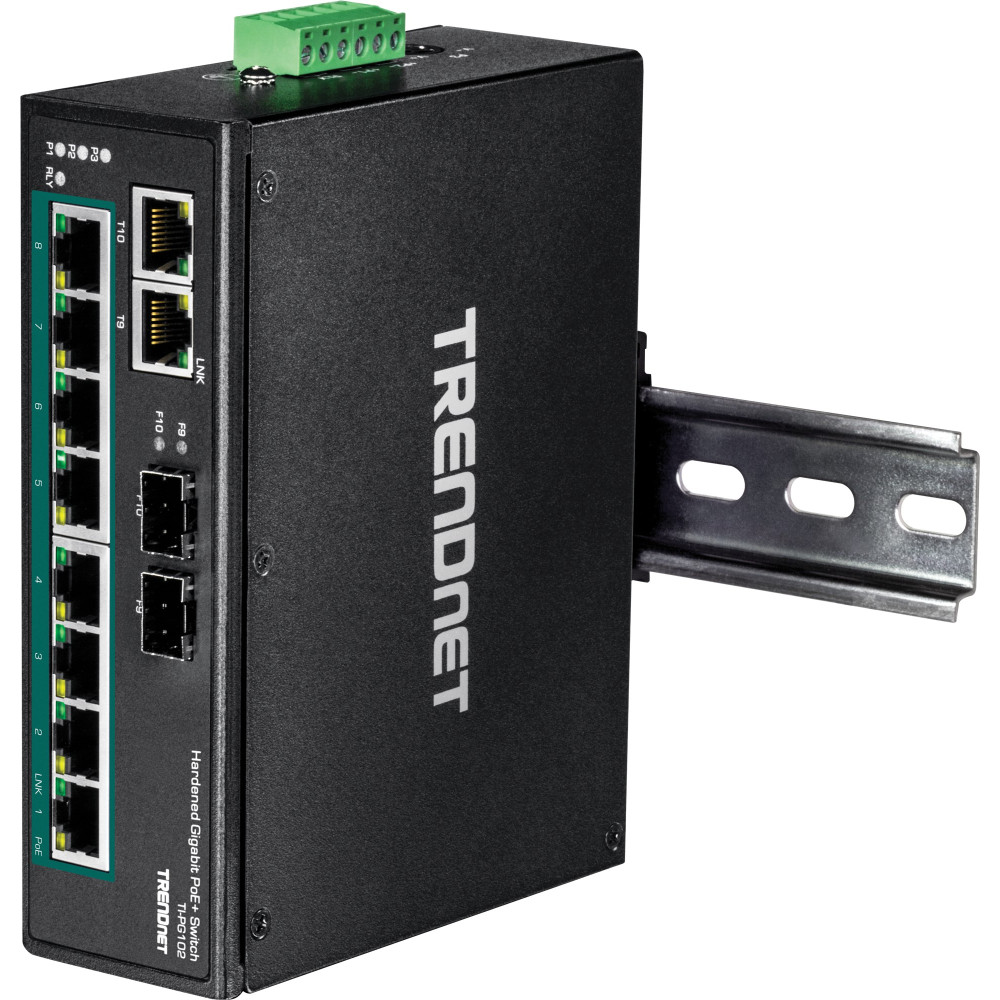

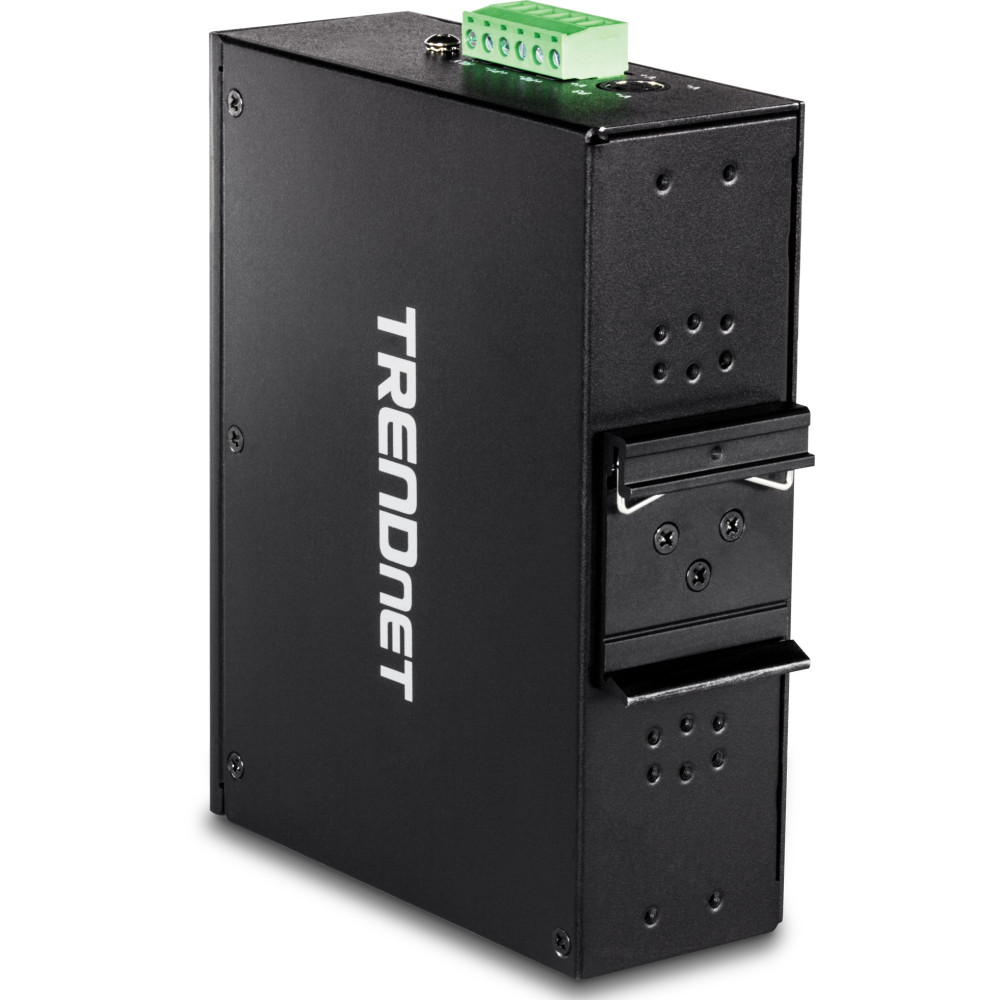

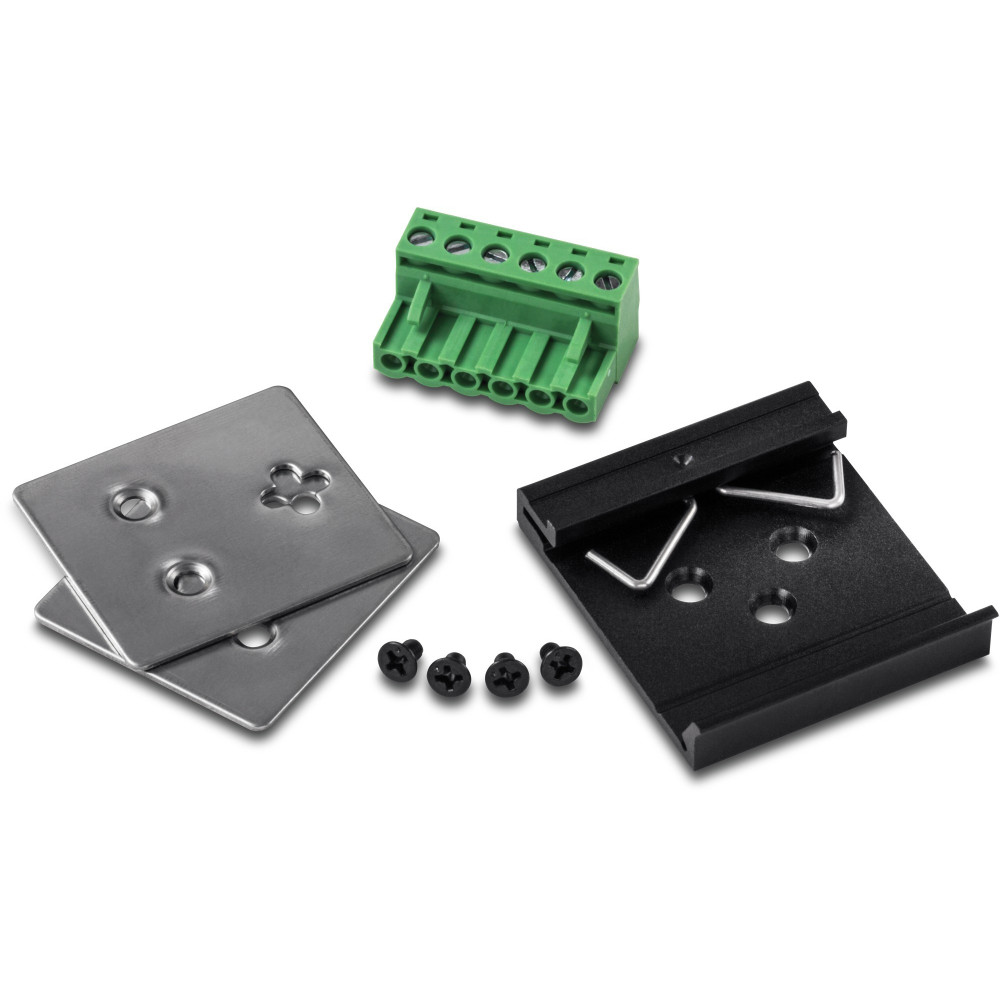

| Mounting | DIN-rail or wall mount |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Material | IP30 metal case |
| Weight | 445g (1 lbs.) |
| Dimensions | 155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, FCC |
| MTBF | 510,400 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TI-G102 Datasheet | 1.41MB |
| TRENDnet PoE Unmanaged Industrial Switch QIG | 5.58MB |
