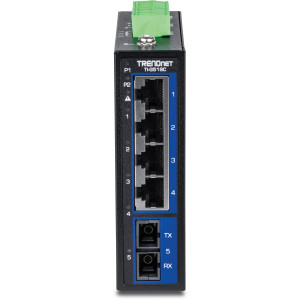

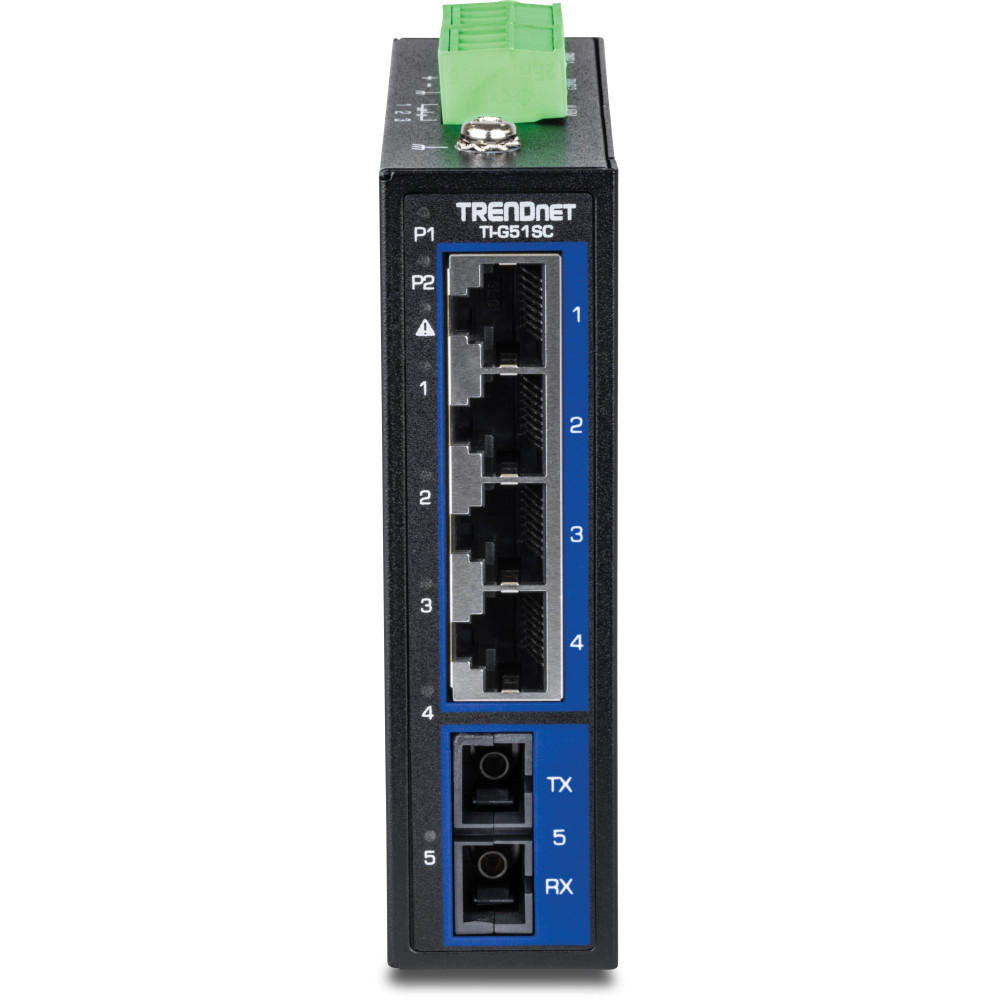

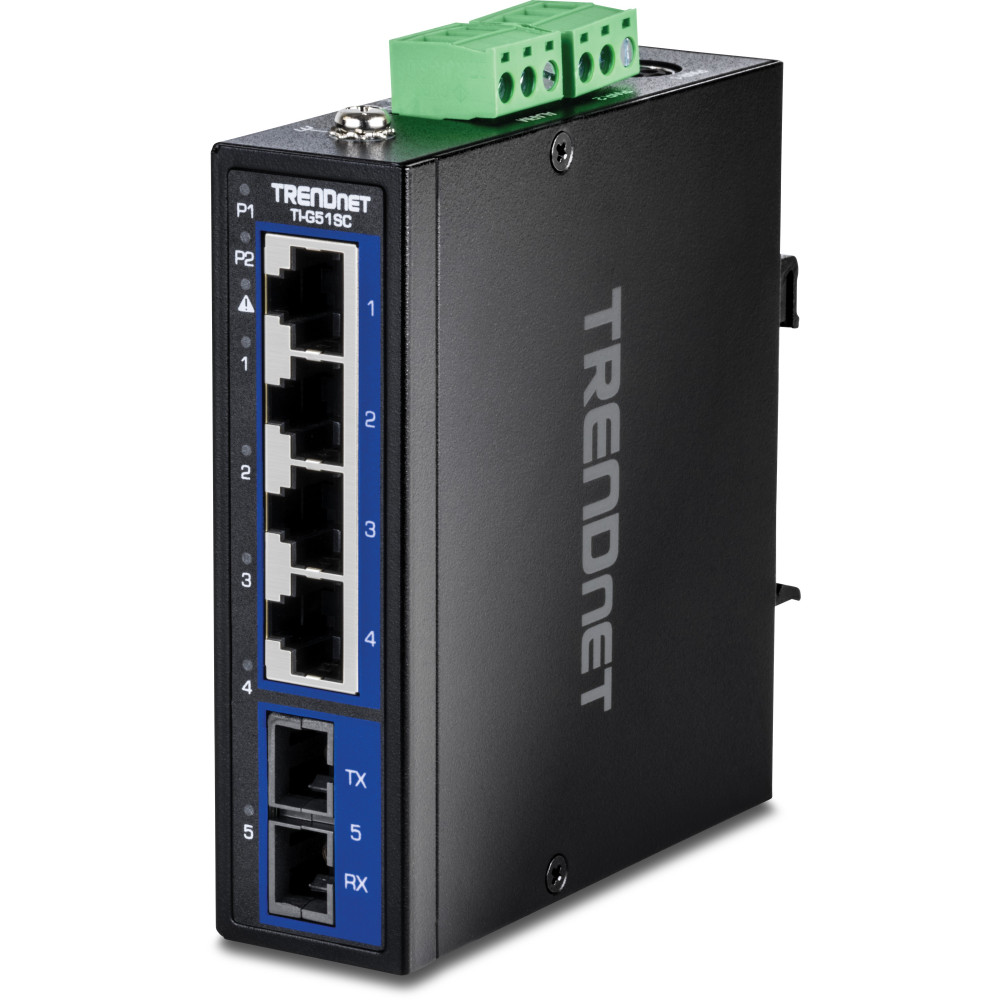

The TI-G51SC 5-Port Industrial Gigabit DIN-Rail Switch with Muti-Mode SC port features a rugged IP30 rated metal enclosure and is designed to work in the harshest networking environments. This industrial switch with a fiber port is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures of industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and a gigabit multi-mode SC port for long-distance fiber networking applications up to 550 meters.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 5 |
| Ethernet Ports | 4 Gigabit |
| Fiber Ports | 1 SC multi-mode fiber port |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2Gbps (full duplex), Fiber: 2Gbps (full duplex) |
| Jumbo Frame Support | 9KB |
| MAC Table Size | 2K |
| Power | |
| Power Consumption | 3.6 W |

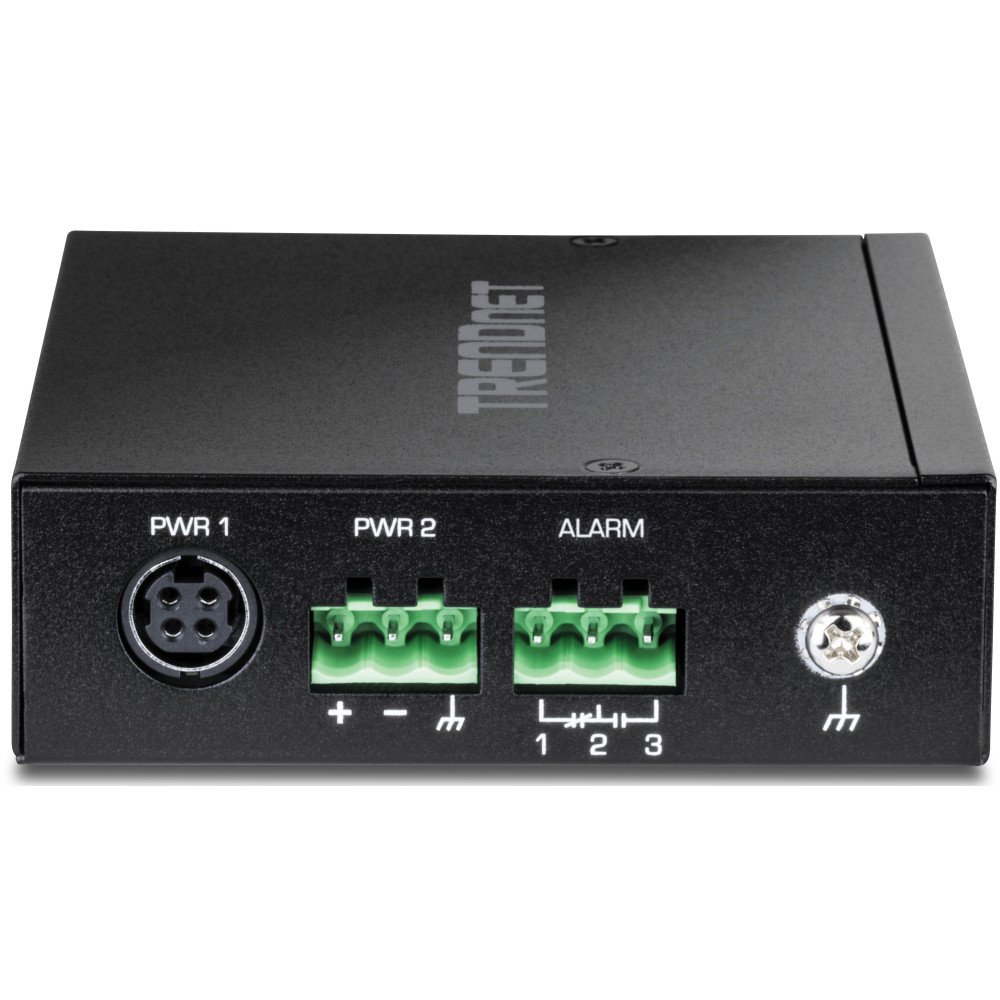

| Connection | 2x3-pin terminal block |
| Input Voltage | 9-60V DC |
| Overload Protection | Yes |
| Mechanical | |

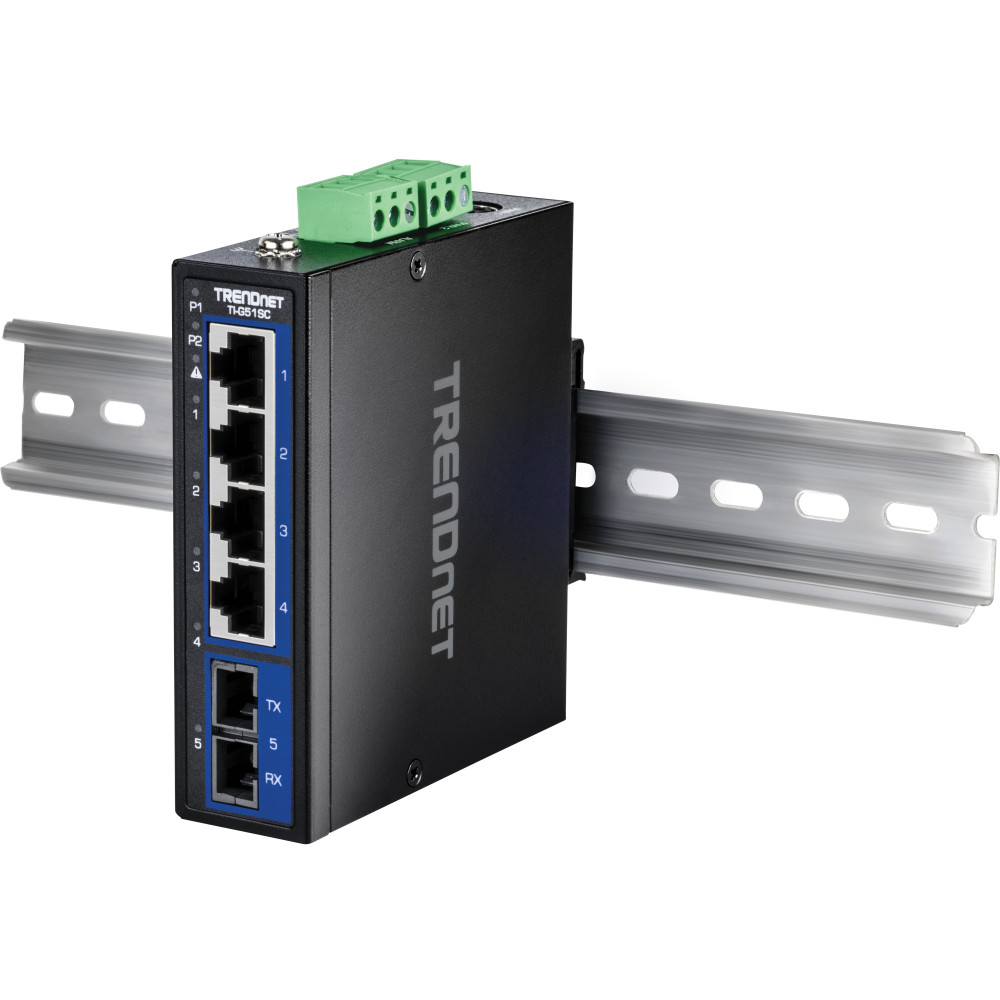

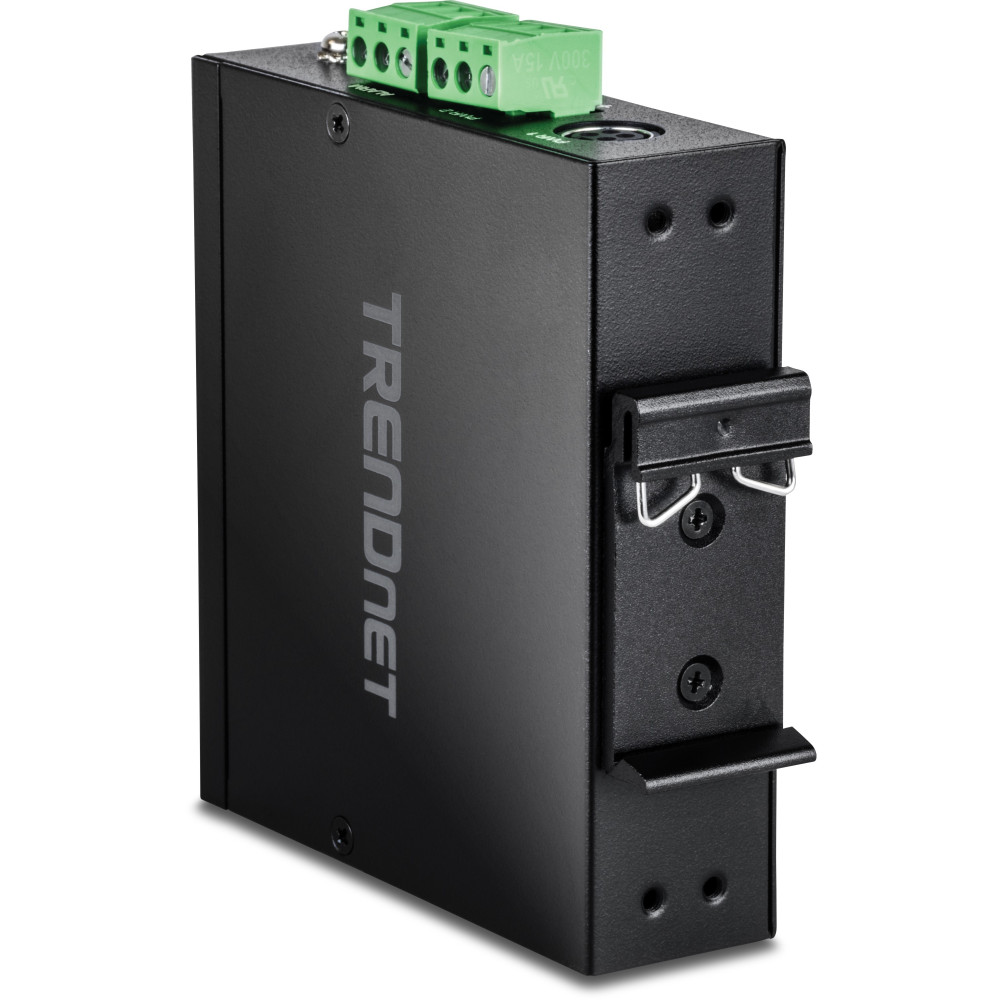

| Mounting | DIN-rail or wall mount |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Material | IP30 metal case |
| Weight | 292g (0.64 oz.) |
| Dimensions | 99 x 90 x 28mm (3.89 x 3.54 x 1.10 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, FCC, LVD |
| MTBF | 71,955 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TI-G51SC Datasheet | 730.28KB |
| TRENDnet TI-G51SC Quick Installation Guide | 2.98MB |
