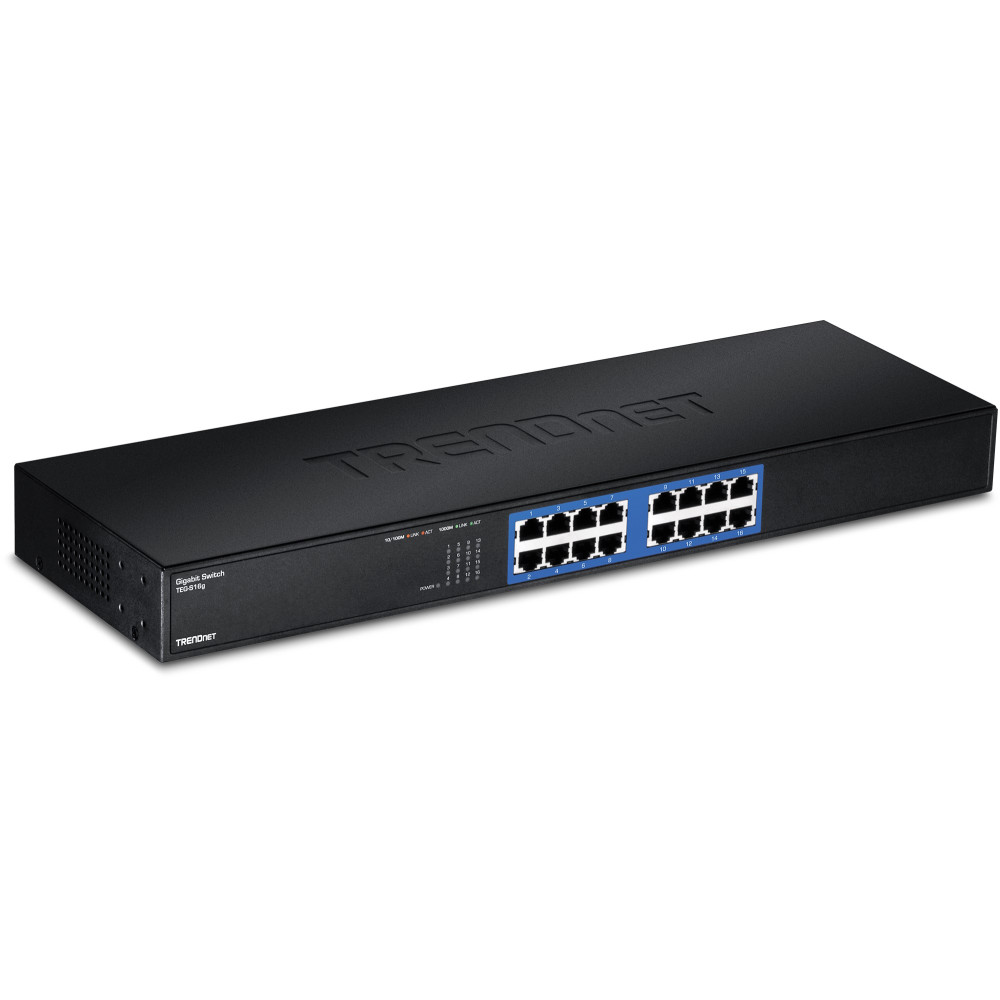

The TEG-S16g GREENnet Switch provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.
Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32 Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.
Technology | |
Category | Ethernet Switch |
Total Ports | 16 |
Ethernet Ports | 16 Gigabit ports |
Standards | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet |
Transfer Rate | Ethernet: 10 Mbps / 20 Mbps (half / full-duplex), Fast Ethernet: 100 Mbps / 200 Mbps (half / full-duplex), Gigabit Ethernet: 2000 Mbps (full-duplex) |
Jumbo Frame Support | 10 KB |
Power | |
Input Connection | 100 - 240V AC, 50/60Hz, internal power |
Mechanical | |
Mounting | Rackmount |
LED Indicators | Power, link, and activity |
Weight | 1.8 kg (3.8 lbs.) |
Dimensions | 440 x 140 x 44 mm (17.3 x 5.5 x 1.75 in.) |
Ratings | |
Operating Temperature | 0° - 40° C (32° - 104° F) |
Storage Temperature | -10° - 70° C (14° - 158° F) |
Humidity | 90% non-condensing |
Certifications | FCC, CE |
Warranty | Lifetime |
Download Name | File Size |
TRENDnet TEG-S16Dg/TEG-S16g/TEG-S24Dg/TEG-S24g QIG | 4.38MB |
TRENDnet TEG-S16g Datasheet | 649.33KB |
