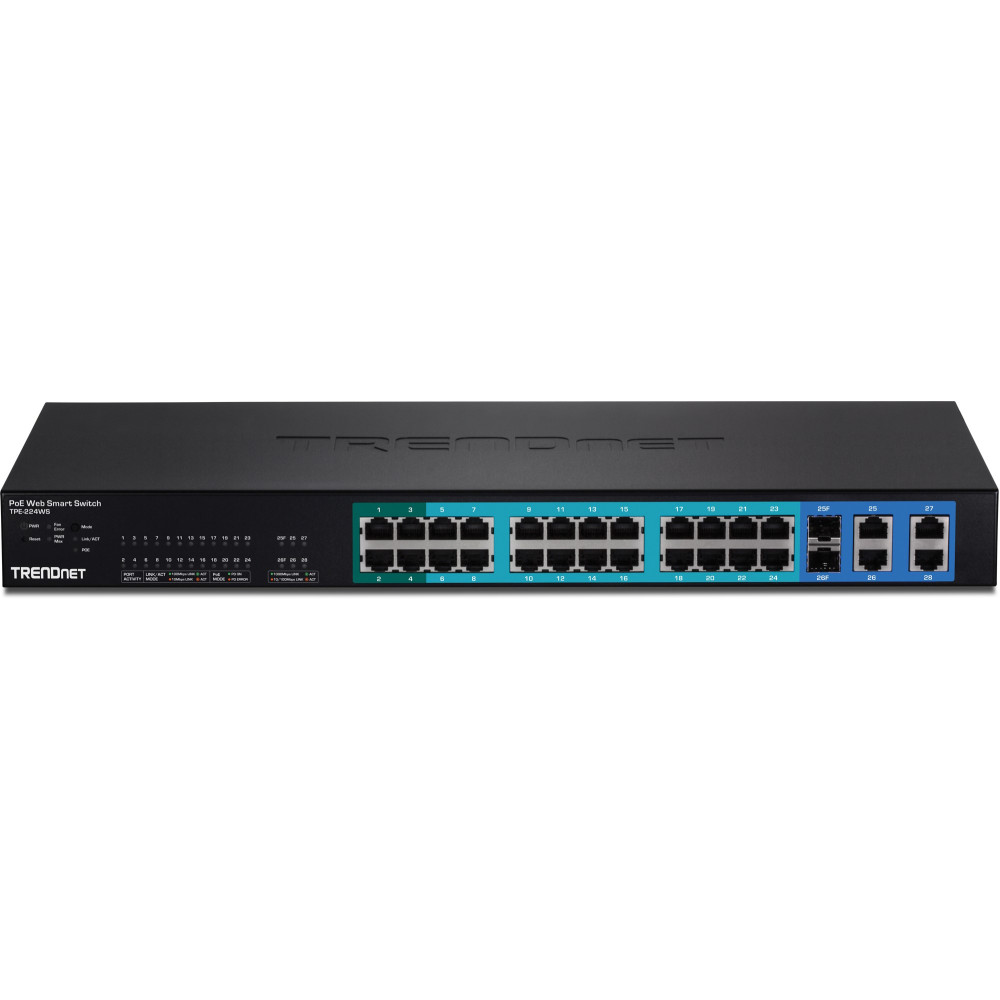

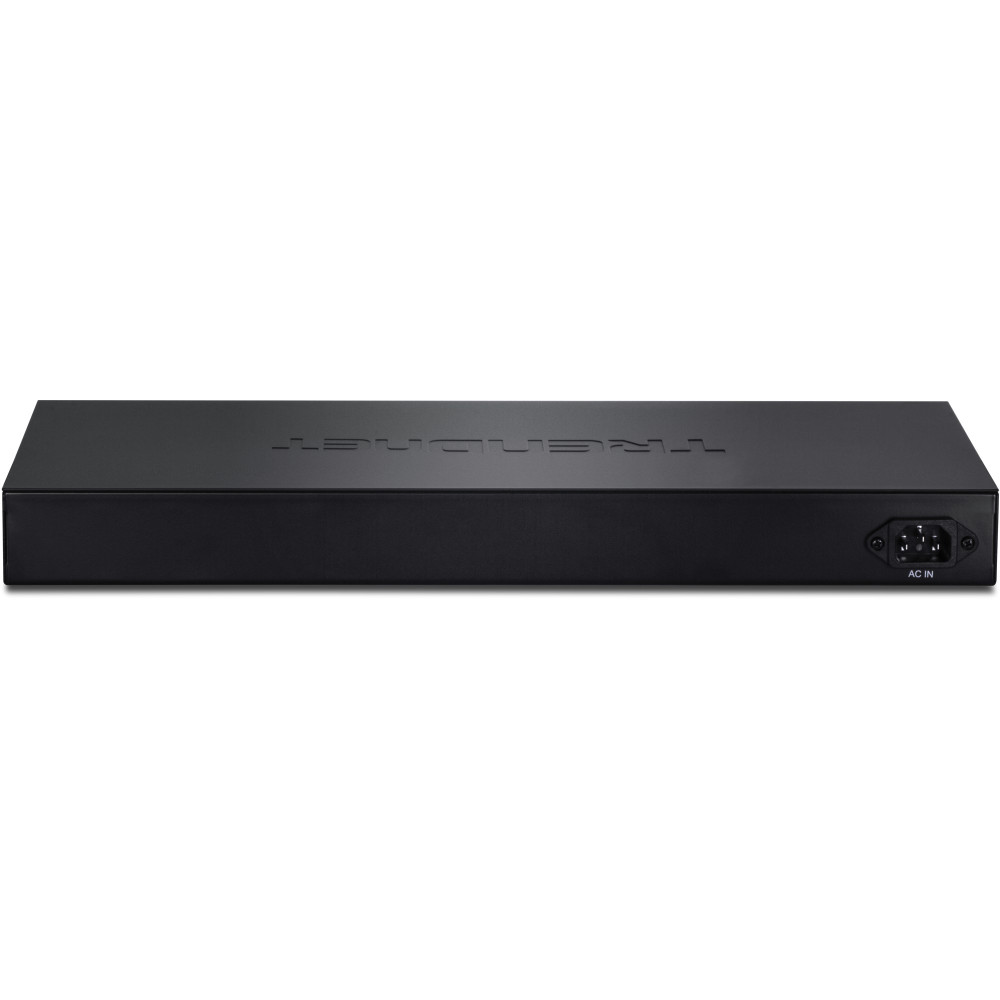

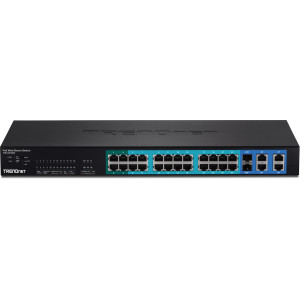

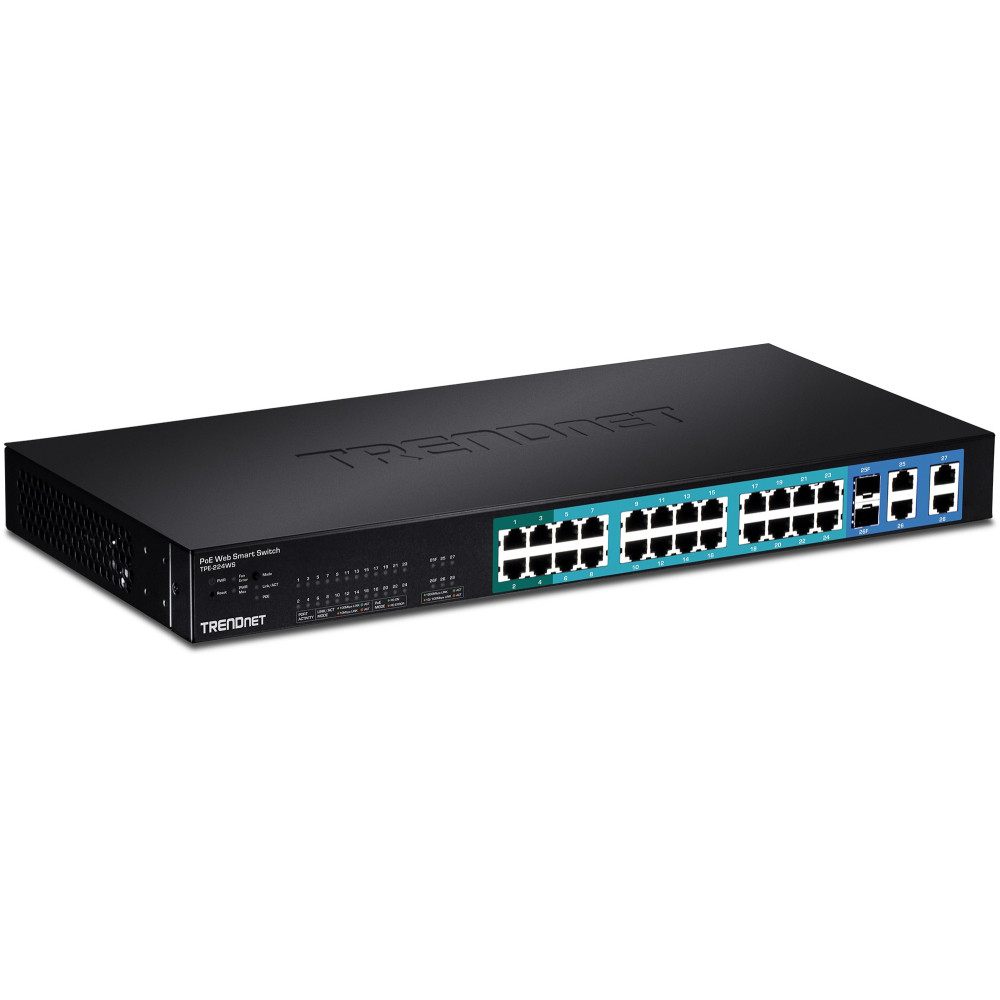

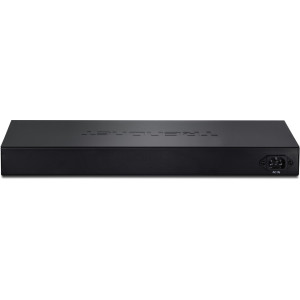

TRENDnet’s TPE-224WS 10/100 Mbps Web Smart PoE+ Switch offers 24 x 10/100 Mbps PoE ports (Ports 1-4 support PoE+), 2 x Gigabit ports, 2 x shared Gigabit ports (RJ-45 or SFP), and a PoE Power budget of 193W. This IPv6 ready switch offers advanced traffic management, troubleshooting, access control, energy saving GREENnet, and monitoring features at a reduced cost.
Embedded GREENnet technology provides cost savings and reduces power consumption by up to 70%, by limiting port power consumption during periods of low link utilization. GREENnet technology works right out of the box with no management requirement.
The TPE-224WS gives you complete control over your network. It doesn’t just provide management that can be extended to plug-and-play equipment, it has the power and versatility to enable you to customize your network in the most efficient way possible. At the center of your operation, you want a switch that can handle virtually anything. Talk to us today. We’ll help you make the most of PoE options and other network enhancements to help cut unnecessary equipment and cables while improving overall network performance and capacity.
Technology | |
Category | Ethernet Switch (PoE) |
Total Ports | 28 |
Ethernet Ports | 20 x PoE ports, 4 x PoE+ ports |
Fiber Ports | 2 x shared Gigabit ports (RJ-45/SFP) |
Standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af (15.4 W / port), IEEE 802.3at (30 W / port), IEEE 802.3az |
Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit Ethernet: 2000 Mbps (full duplex) |
MAC Table Size | 8 K |
Power | |
Power Consumption | 239.7 W |
Input Connection | 100 - 240V AC, 50/60Hz, internal power supply |
Mechanical | |
Mounting | Rack mountable |
Weight | 3.26 kg (7.18 lbs) |
Dimensions | 440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.) |
Ratings | |
Operating Temperature | -5 - 50°C (23 - 122°F) |
Humidity | 90% non-condensing |
RoHS Compliant | Yes |
Certifications | FCC, CE, UL |
MTBF | 283,830 hours |
Warranty | Lifetime |
Download Name | File Size |
TRENDnet TPE-224WS Datasheet | 4.78MB |
TRENDnet TPE-224WS Quick Installation Guide | 1.41MB |
TRENDnet TPE-224WS User's Guide | 3.52MB |
