The TEG-S80g 8-Port Gigabit GREENnet Mini Switch provides high-bandwidth performance, ease-of-use, and reliability, all from a tiny and durable metal enclosure, while reducing power consumption. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.
This space-saving metal mini network switch is designed to fit into any desktop setup, and is small enough to fit into your pocket. The small network switch is ideal for both a minimalist desk setup or a desk packed with gear. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy mini switch for reliable high-speed network connectivity.
Technology | |
Category | Ethernet Switch |
Total Ports | 8 |
Ethernet Ports | 8 Gigabit ports |
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az |
Transfer Rate | Ethernet: 10 Mbps / 20 Mbps (half / full-duplex), Fast Ethernet: 100 Mbps / 200 Mbps (half / full-duplex), Gigabit Ethernet: 2000 Mbps (full-duplex) |
Jumbo Frame Support | 9 KB |
MAC Table Size | 4 K |
Power | |
Power Consumption | 3.2 W |
Input Connection | 100 - 240V AC, 50/60Hz |
Mechanical | |

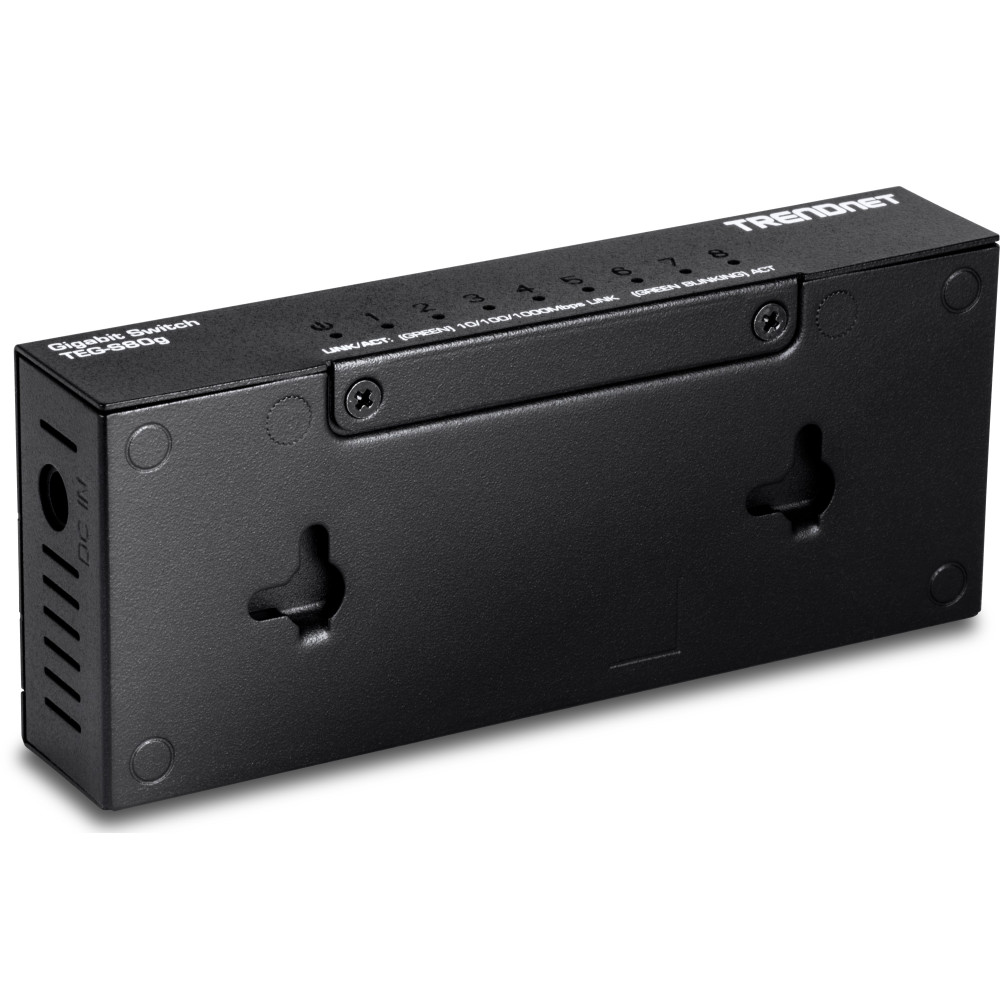

Mounting | Desktop or wall mount |
LED Indicators | Port status |
Weight | 0.176 kg (0.388 lbs.) |
Dimensions | 126 x 51.8 x 24mm (4.96 x 2.04 x 0.94 in.) |
Ratings | |
Operating Temperature | 0° - 40° C (32° - 104° F) |
Humidity | 90% non-condensing |
Certifications | FCC, CE, LVD |
Warranty | Lifetime |
Download Name | File Size |
TRENDnet TEG-S50g/TEG-S80g/TEG-S82g Quick Installation Guide | 3.65MB |
TRENDnet TEG-S80g Datasheet | 3.65MB |
