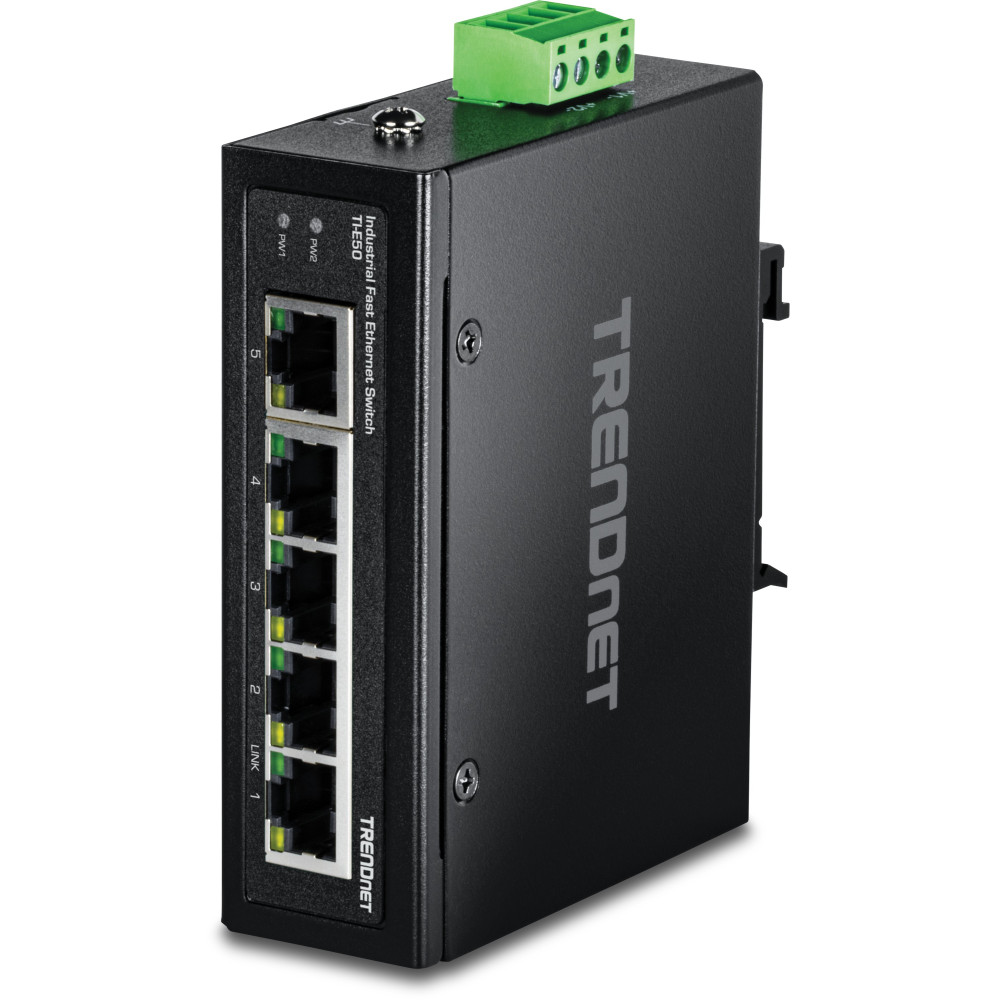

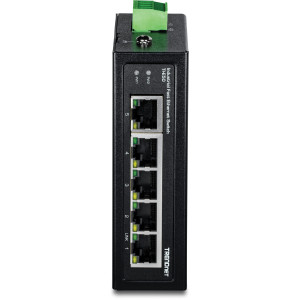

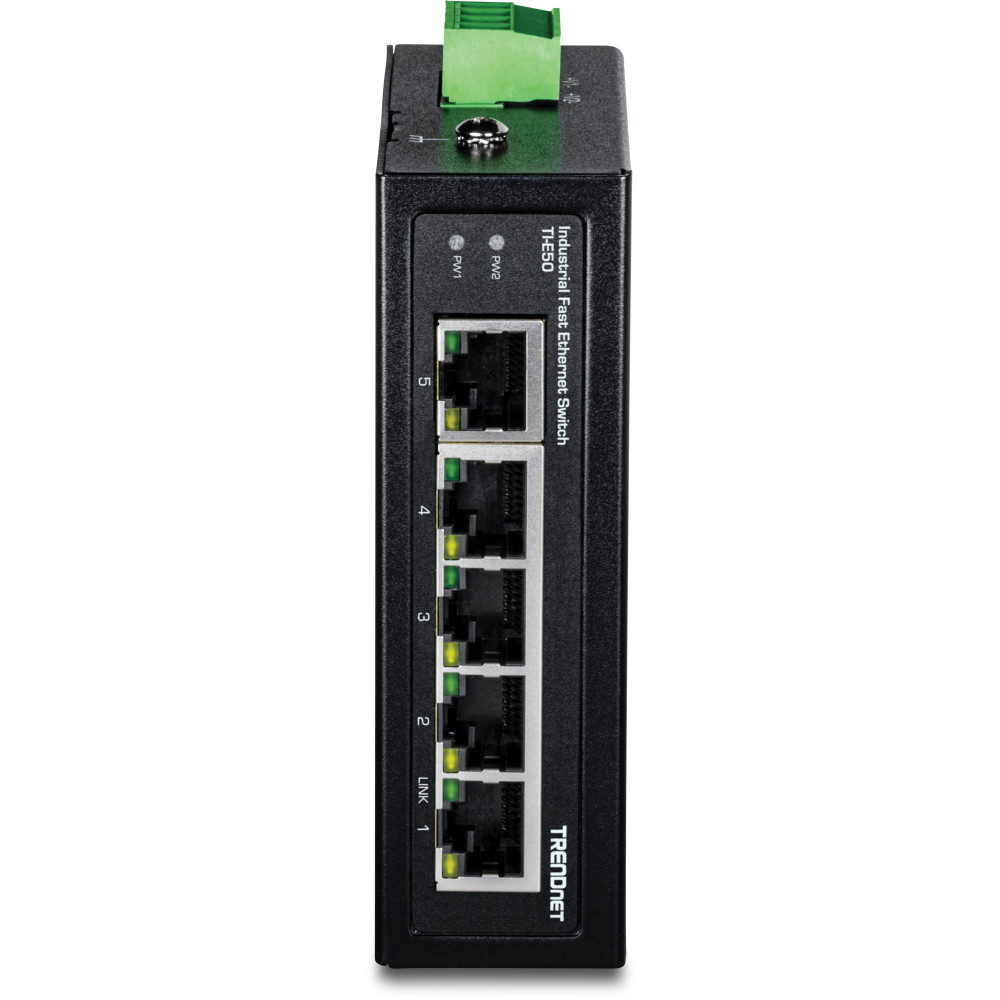

The TI-E50 5-Port Industrial Fast Ethernet DIN-Rail Switch features a rugged IP50 rated aluminum enclosure. The industrial Ethernet switch is designed to withstand high levels of vibration and shock, while operating in both low and high temperatures for industrial environments within a -40° - 75° C (40° - 167° F) extreme temperature range. Redundant power inputs with overload current protection minimizes network downtime.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 5 |
| Ethernet Ports | 5 Fast (10/100TX) |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) |
| MAC Table Size | 1K |
| Power | |
| Power Consumption | 1.68 W |

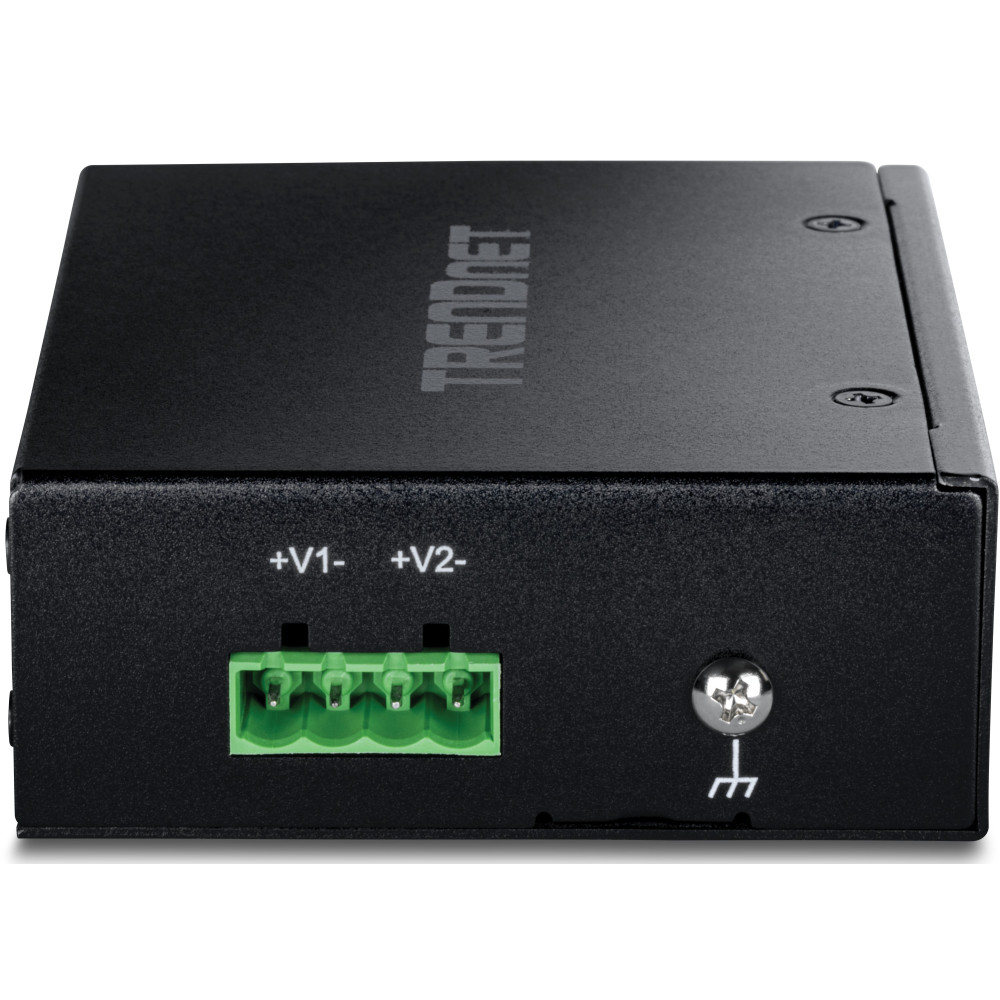

| Connection | 4-pin terminal block |
| Input Voltage | 12-56V DC |
| Overload Protection | Yes |
| Mechanical | |

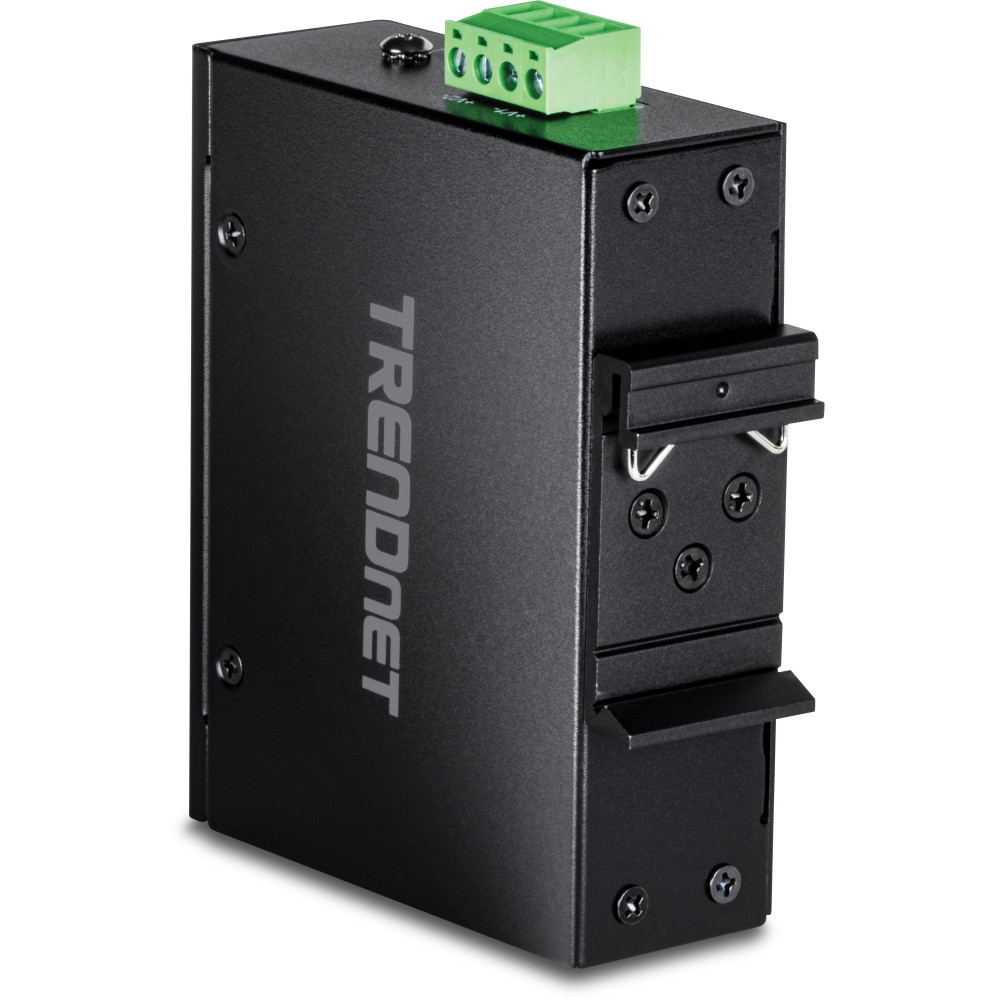

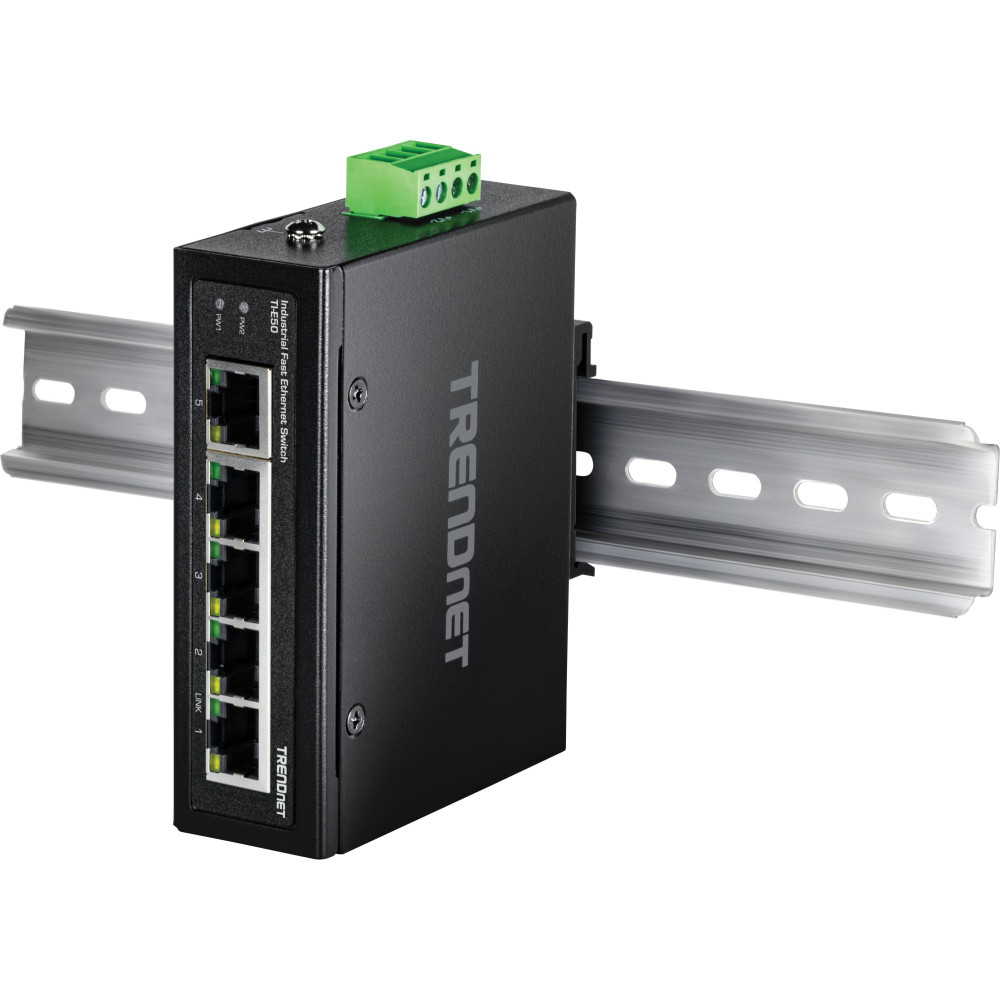

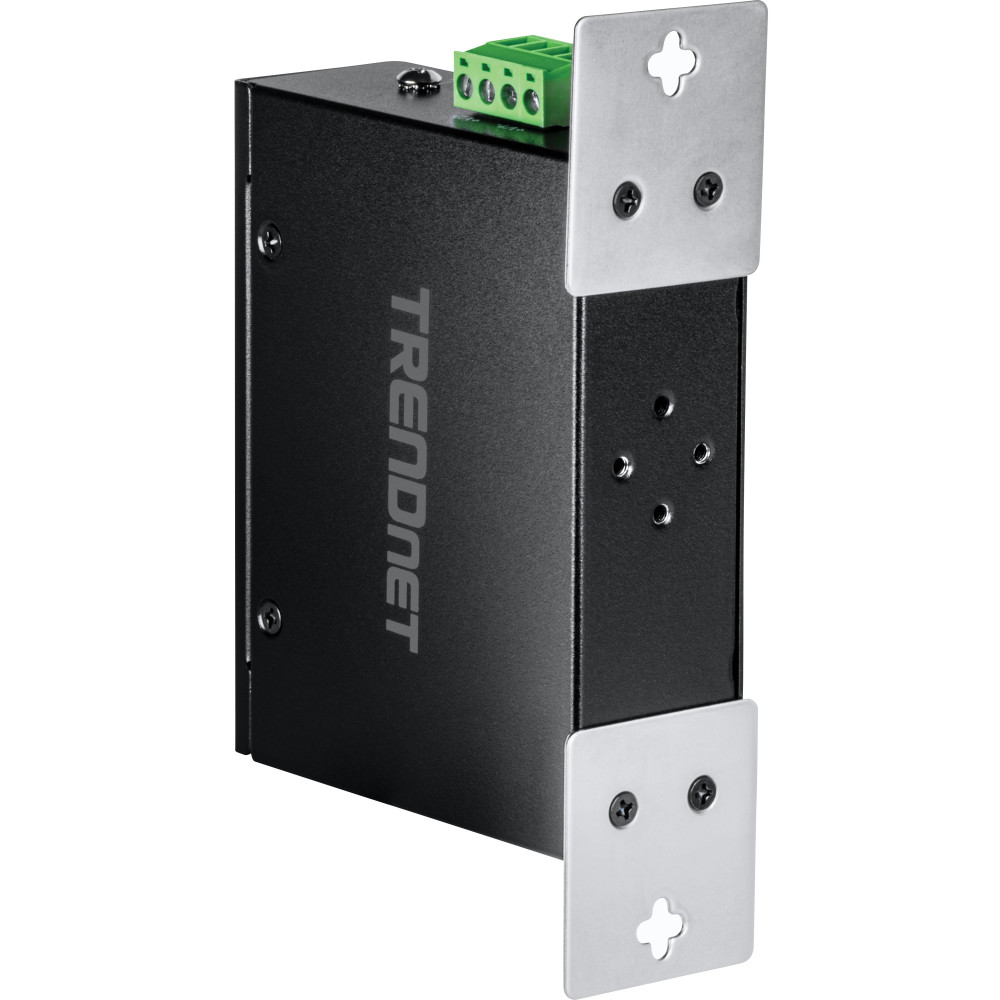

| Mounting | DIN-rail or wall mount |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Material | IP50 aluminum case |
| Weight | 160g (5.7 oz.) |
| Dimensions | 103.5 x 81.5 x 32mm (4 x 3.2 x 1.2 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, FCC, LVD, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
| MTBF | 580,159 hours @ 25° C |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TI-E50 Datasheet | 3.56MB |
| TRENDnet Unmanaged IP50 Switch Quick Installation Guide | 8.02MB |
