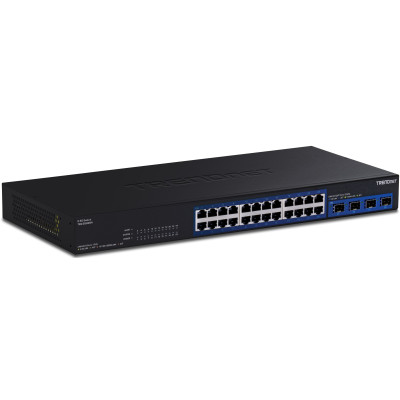

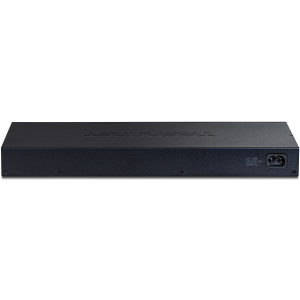

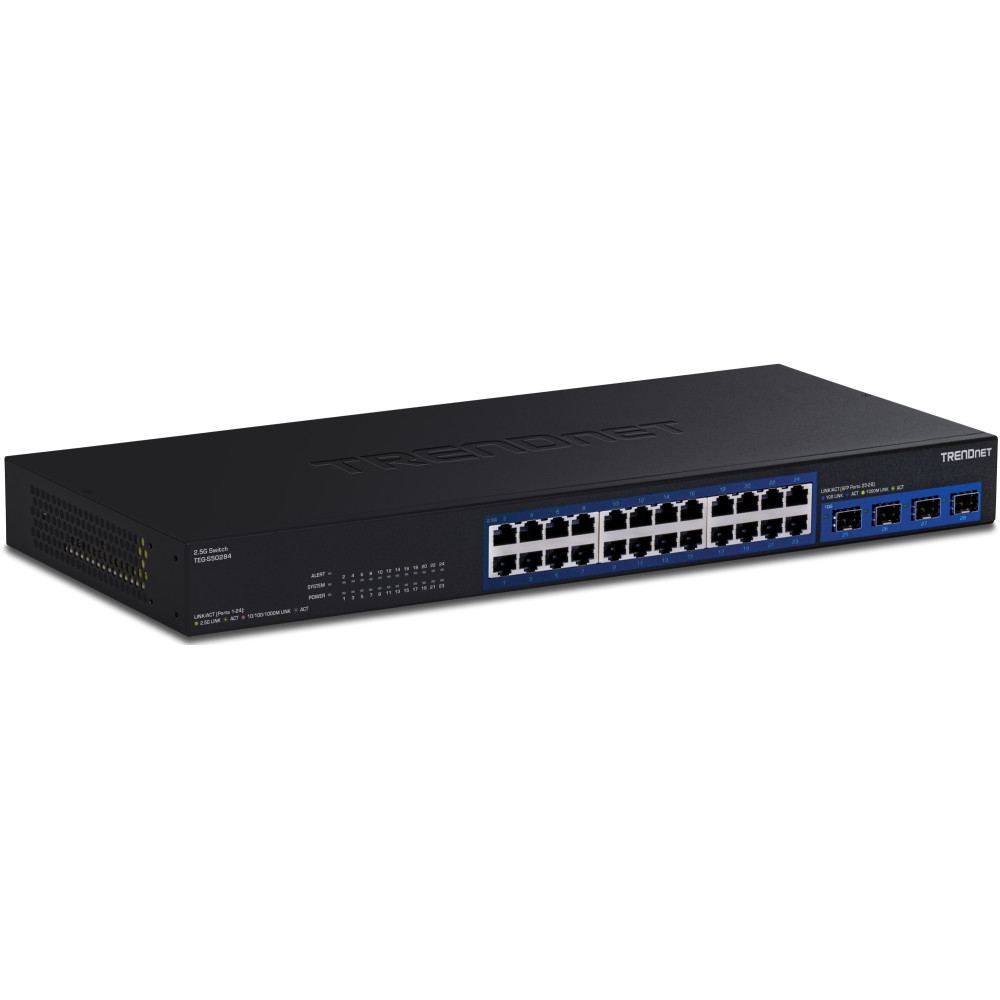

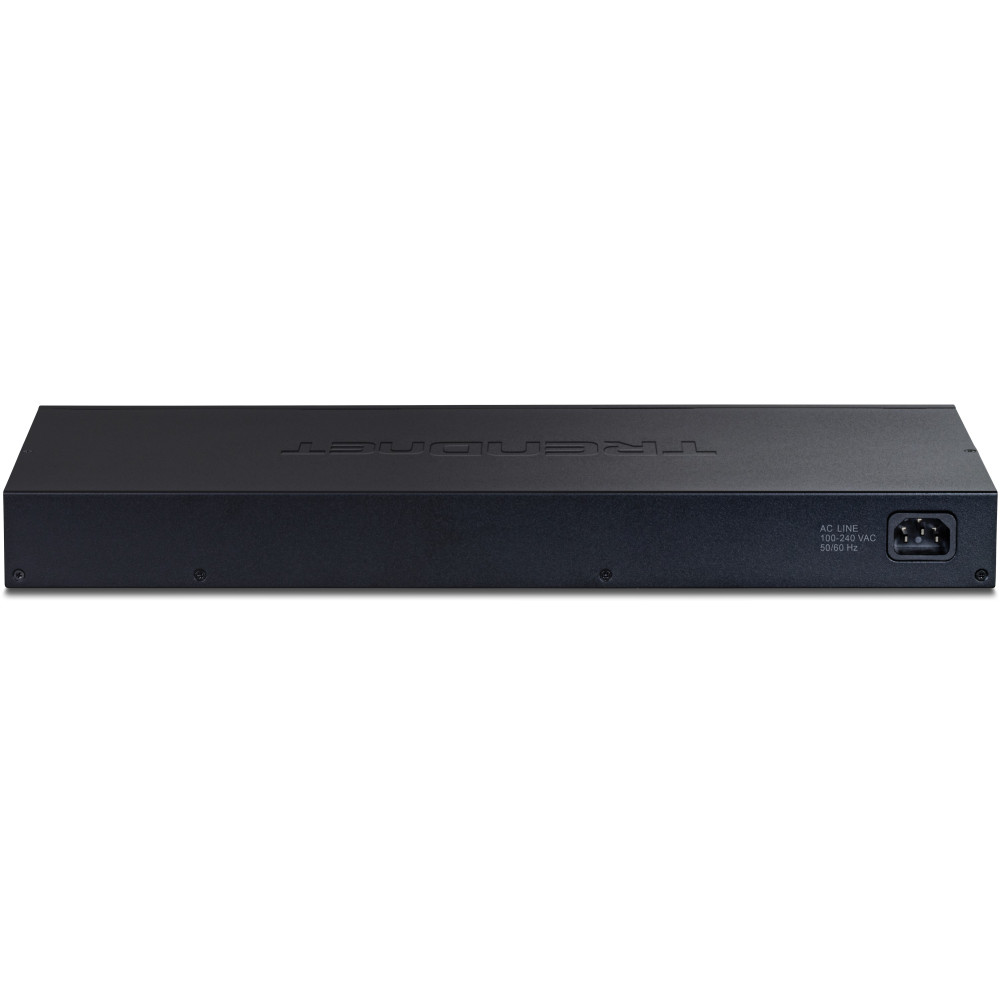

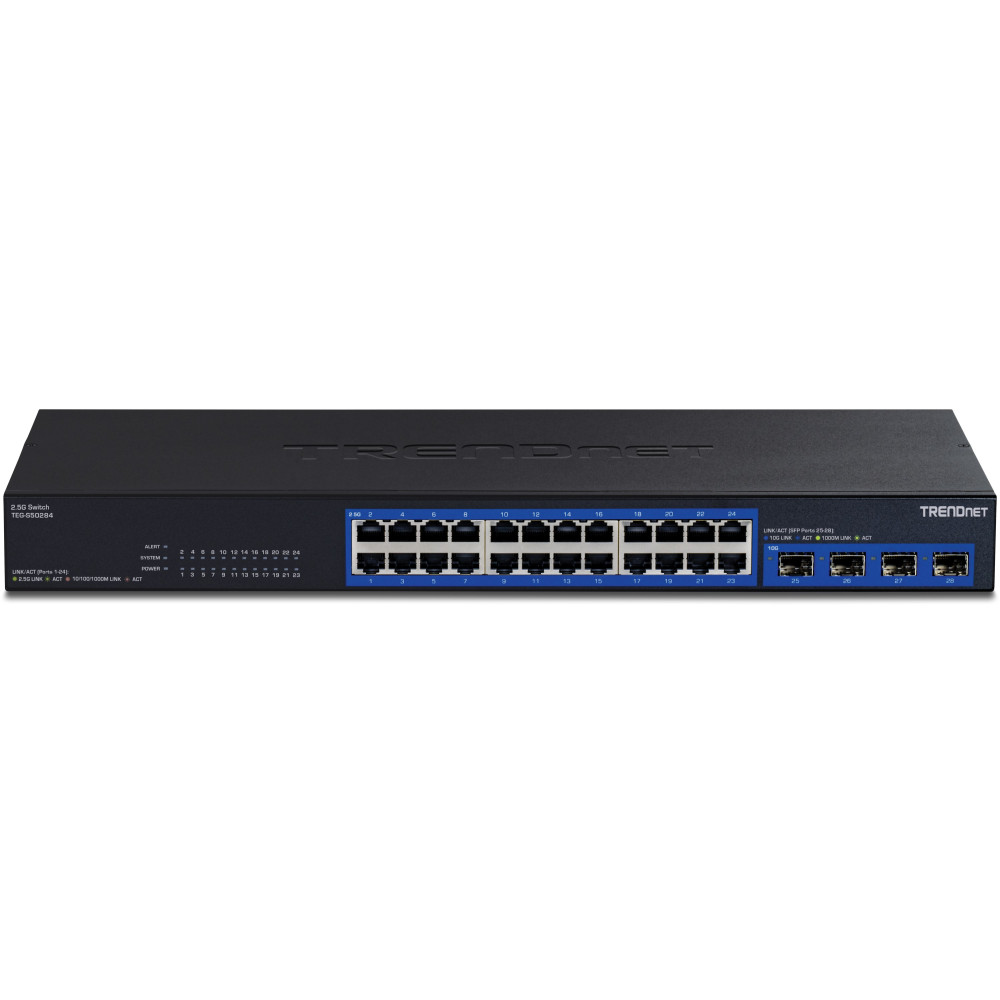

TRENDnet TEG-S50284 28-Port Unmanaged 2.5G Ethernet Switch w/10G SFP+ Ports

New TRENDnet TEG-S50284 28-Port Unmanaged 2.5 Gigabit Ethernet Switch, 4x 10G SFP+ ports, rack or wall mount
Model: TEG-S50284
Availability: Contact Westward Sales
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TEG-S50284 28-Port Unmanaged 2.5 Gigabit Ethernet Switch with Quad 10G SFP+ Slots

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s TEG-S50284 28-Port 2.5G Switch with 10G SFP+ Ports. This multi-gigabit network switch comes equipped with 2.5GBASE-T RJ-45 and 10G fiber SFP+ ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e cabling or 10Gbps over fiber cabling. No configuration is needed. Simply connect network devices to the 20-port multi-gig switch.

This high-speed switch features a durable metal enclosure, and the smart fans lower energy consumption by auto adjusting fan speed based on the switch’s cooling needs. The included rackmount brackets are well-suited for 19” 1U rack installations. TRENDnet’s reliable 2.5G switch is a cost-effective solution to increase your network’s throughput.

Key Features

  • 24 x 2.5G RJ-45 ports
  • 4 x 10G SFP+ ports
  • Compatible with existing Cat5e or better cabling
  • Smart fans auto adjusts the fan speed based on cooling needs
  • Rack mountable or wall mountable for installation flexibility
  • 200Gbps switching capacity
  • IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

Any industry that requires 10G fiber communication should be trending towards the necessary equipment to support it. Speak with one of our network experts today, and we’ll help you map an affordable transition that puts power where you need it most.

Technology
CategoryEthernet Switch
Total Ports28
Ethernet Ports24 x 2.5G RJ-45 ports (10Mbps/100Mbps/ 1Gbps/2.5Gbps)
Fiber Ports4 x 10G SFP+ ports (1Gbps/10Gbps)
StandardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz
Transfer RateEthernet: 10Mbps (half duplex) 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex), Gigabit: 2Gbps (full duplex), 2.5 Gigabit: 5Gbps (full duplex), Gigabit SFP: 2Gbps (full duplex), 10G SFP+: 20Gbps (full duplex)
Jumbo Frame Support12 KB
MAC Table Size32K
Power
Power Consumption38.88 W
Input Connection90 - 264V AC, 47/63 Hz
Mechanical
MountingRackmount or Wall Mount
Weight2.89kg (6.37lbs)
Dimensions440 x 196 x 44 mm (17.36 x 7.71 x 1.73 in.)
Ratings
Operating Temperature0° - 50° C (32° - 122° F)
Humidity90% non-condensing
RoHS CompliantYes
CertificationsFCC, CE, LVD
MTBF426,000 hours @ 25° C
WarrantyLifetime
Download NameFile Size
TRENDnet TEG-S50284 Datasheet2.74MB
