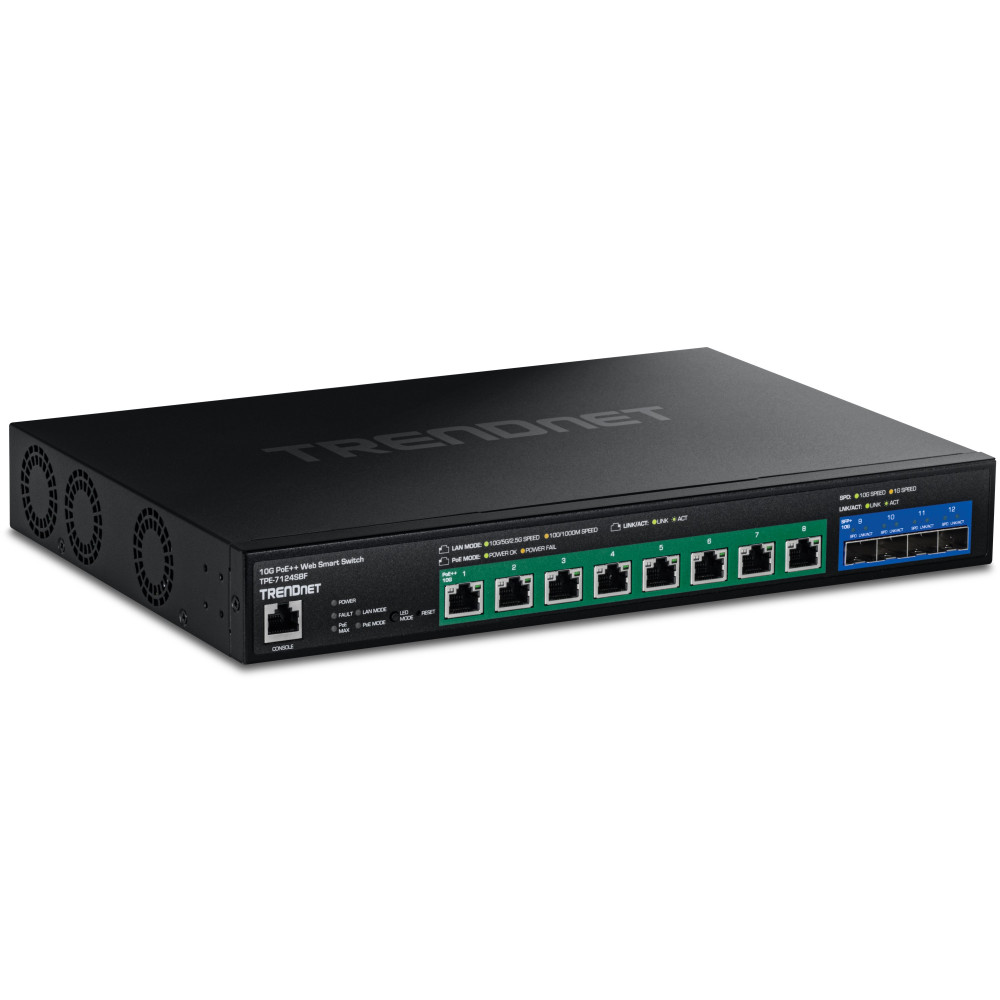

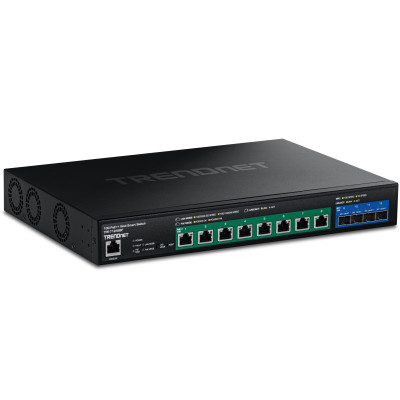

TRENDnet’s TPE-7124SBF 12-Port 10G PoE++ Web Smart Switch (720W) offers advanced traffic management controls to meet the evolving demands of SMB networks. This 10G managed PoE++ switch comes with an intuitive web-based interface. Management features include LACP to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to this 10G managed PoE++ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.
The TPE-7124SBF switch also features eight 10GBASE-T PoE++ ports, and four 10G fiber SFP+ ports for long-distance, high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s 10G PoE++ switch by delivering up to 90W per port of PoE power and data over existing Ethernet cables. Easily network PoE devices with a 720W PoE budget to devices, such as high-power wireless access points, LED lighting, digital signage, IPTV decoders, access controls, cameras, and more with this high-power 10G managed PoE++ switch.
Any industry that requires 10G fiber communication should be trending towards the necessary equipment to support it. Speak with one of our network experts today, and we’ll help you map an affordable transition that puts power where you need it most.
Technology | |
Category | Ethernet Switch (PoE) |
Total Ports | 12 |
Ethernet Ports | 8 x 10G ports |
Fiber Ports | 4 x 10G SFP+ ports |
Standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt |
Transfer Rate | Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit Ethernet: 2Gbps (full duplex), 2.5G Ethernet: 5Gbps (full duplex), 10G Ethernet: 20Gbps (full duplex), SFP: 2Gbps (full duplex), SFP+: 20Gbps (full duplex) |
Jumbo Frame Support | 10 KB |
MAC Table Size | 32 K |
Power | |
Power Consumption | 57.4 W |
Input Connection | 100 - 240V AC, 50/60 Hz |
Mechanical | |
Mounting | Rack mountable |
Weight | 2.875kg (6.33 lbs) |
Dimensions | 330 x 228 x 44mm (12.99 x 8.98 x 1.73 in.) |
Ratings | |
Operating Temperature | 0° - 50° C (32° - 122° F) |
Humidity | 90% non-condensing |
RoHS Compliant | Yes |
Certifications | FCC, CE, UL |
MTBF | 161,000 hours @ 25° C |
Warranty | Lifetime |
Download Name | File Size |
TRENDnet TPE-7124SBF Datasheet | 2.23MB |
TRENDnet TPE-7124SBF Quick Installation Guide | 6.59MB |
