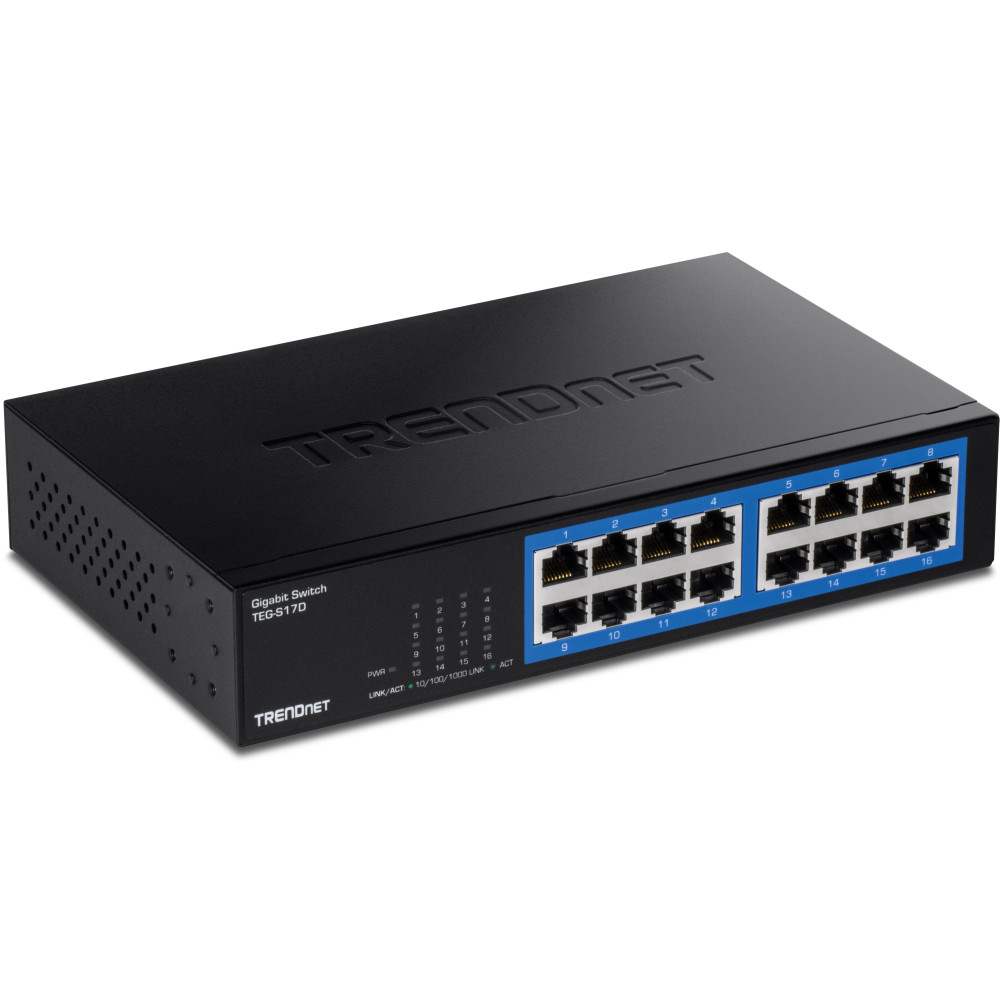

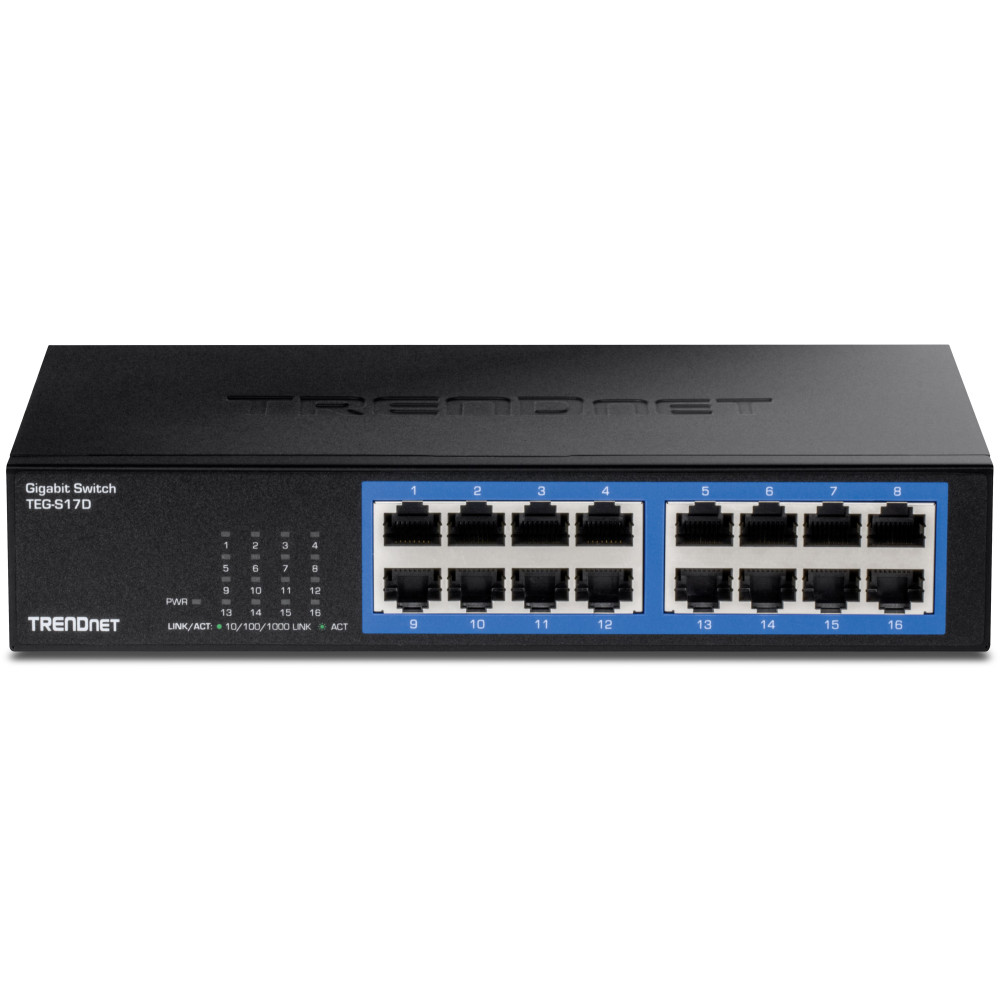

The TEG-S17D 16-Port Gigabit Switch provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and play this switch for reliable high-speed network connectivity.
With a compact and lightweight metal housing design, this gigabit Ethernet switch is well-suited for desktop or rackmount installations. The fanless design lowers energy consumption and eliminates operating noise.
Count on the TEG-S17D Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 16 |
| Ethernet Ports | 16 Gigabit ports |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex) |
| Jumbo Frame Support | 9KB |
| MAC Table Size | 8K |
| Power | |
| Power Consumption | 9.19 W |
| Input Voltage | 100 - 240V AC, 50/60 Hz, 0.2A |
| Mechanical | |
| Enclosure | Metal |

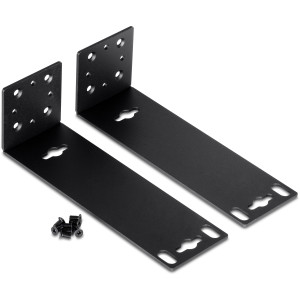

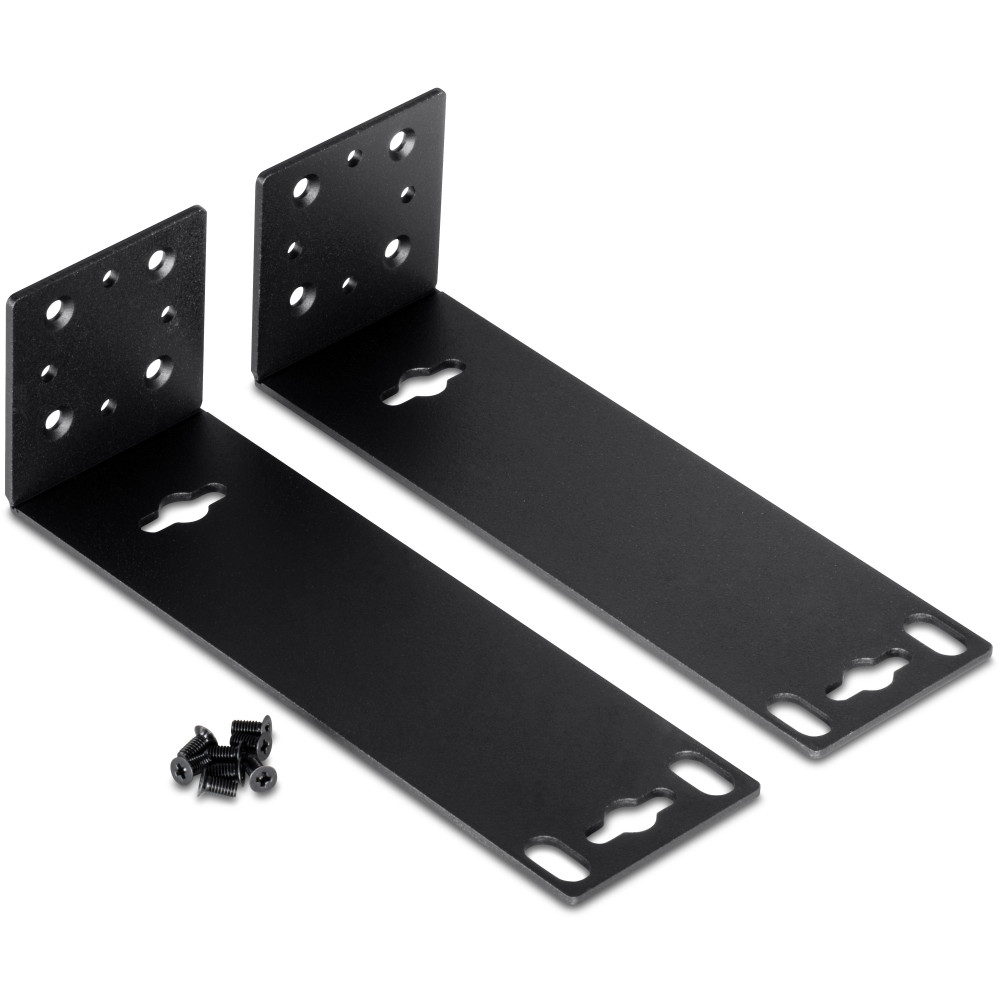

| Mounting | Desktop or rackmount |
| LED Indicators | Power, link, and activity |
| Weight | 414g (14.6 oz.) |
| Dimensions | 216 x 132 x 43mm (8.5 x 5.20 x 1.69 in.) |
| Ratings | |
| Operating Temperature | 0° - 40° C (32 - 104° F) |
| Humidity | Max 90% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE, ETL |
| MTBF | 1,1121,721 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TEG-S17D Datasheet | 988.69KB |
| TRENDnet TEG-S25/TEG-S25D/TEG-S17/TEG-S17D QIG | 3.83MB |
