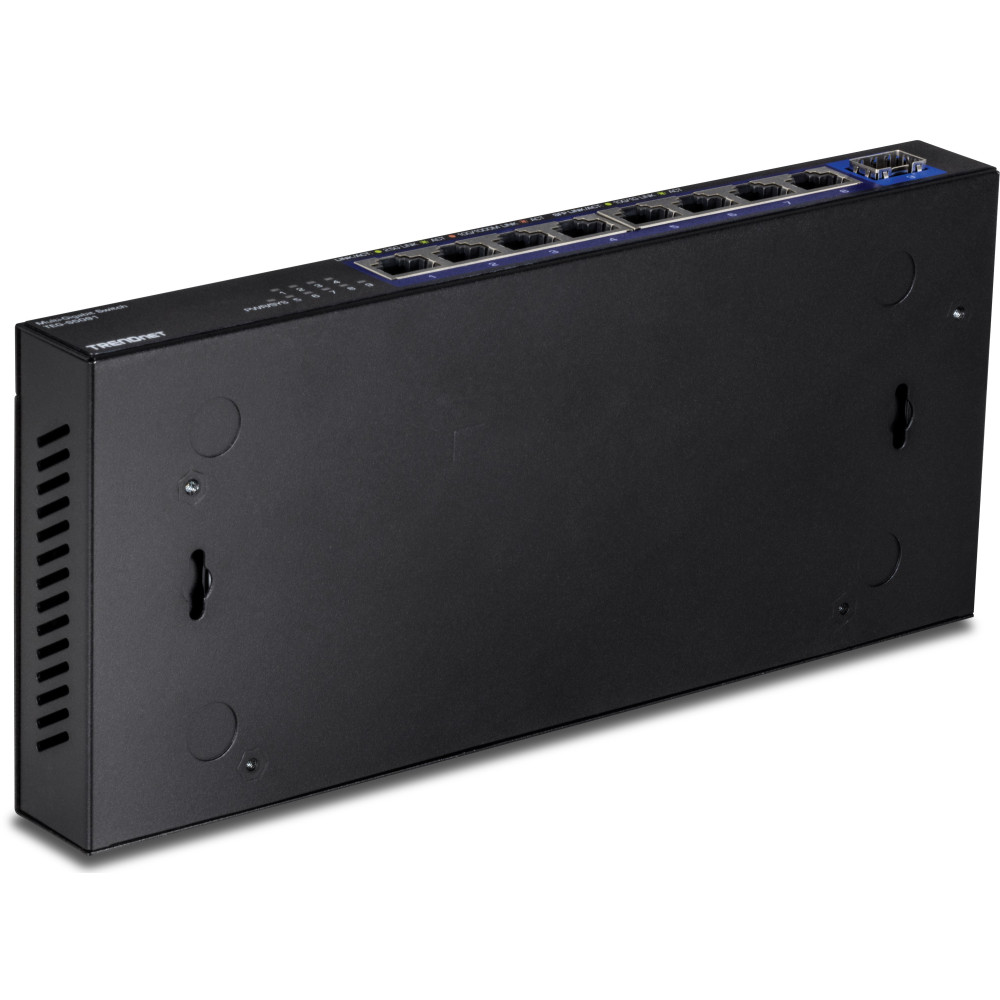

TRENDnet TEG-S5091 9-Port 2.5G Unmanaged Switch with 10G SFP+ Port

TRENDnet TEG-S5091 9-Port Unmanaged 2.5G Ethernet Switch, 10G SFP+ port, wall mountable
Model: TEG-S5091
Availability: 3 - 4 Weeks or Less
Standard Shipping & Handling
Qty:

TRENDnet TEG-S5091 9-Port 2.5 Gigabit Unmanaged Switch with 1x 10G SFP+, Wall Mountable

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s TEG-S5091 9-Port 2.5G unmanaged Switch. This switch comes equipped with eight 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and one 10G SFP+ slot for ultra-fast, long-distance fiber networking. It features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet’s reliable 2.5G Ethernet switch with a 10G SFP+ port is a cost-effective solution to increase your network’s throughput.

Key Features

  • 8 x 2.5G RJ-45 ports
  • 1 x 10G fiber SFP+ port
  • Compatible with existing Cat5e or better cabling
  • Backward compatible Ethernet speeds of 1000Mbps
  • Backward compatible SFP speeds of 1000Mbps
  • Fanless design eliminates noise
  • Wall mountable for installation flexibility
  • 60Gbps switching capacity
  • IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

In the Box

  1. TEG-S5091
  2. Quick Installation Guide
  3. Power adapter (12V DC, 1A)

Count on the TEG-S5091 Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.

Technology
CategoryEthernet Switch
Total Ports9
Ethernet Ports8 x 2.5G RJ-45 ports
Fiber Ports1 x 10G SFP+ port
StandardsIEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz
Transfer RateGigabit: 2000Mbps (full duplex), 2.5 Gigabit: 5Gbps (full duplex), SFP: 2Gbps (full duplex), SFP+ 20Gbps (full duplex)
Jumbo Frame Support12KB
MAC Table Size4K
Power
Power Consumption9.5W
Input Voltage100 – 240V AC, 50/60 Hz, 0.5A
Mechanical
EnclosureMetal
MountingWall mountable
Weight414g (14.6 oz.)
Dimensions240 x 105 x 27mm (8.03 x 4.13 x 1.06 in.)
Ratings
Operating Temperature0° - 40° C (32 - 104° F)
HumidityMax 90% non-condensing
CertificationsFCC, CE
MTBF674,176 hours
WarrantyLifetime
Tags: TEG-S5091
