TRENDnet TI-PF11SFP Industrial SFP to Gigabit PoE+ Media Converter

TRENDnet TI-PF11SFP Industrial Gigabit SFP Media Converter, IP30, DIN rail or wall mount
Model: TI-PF11SFP
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

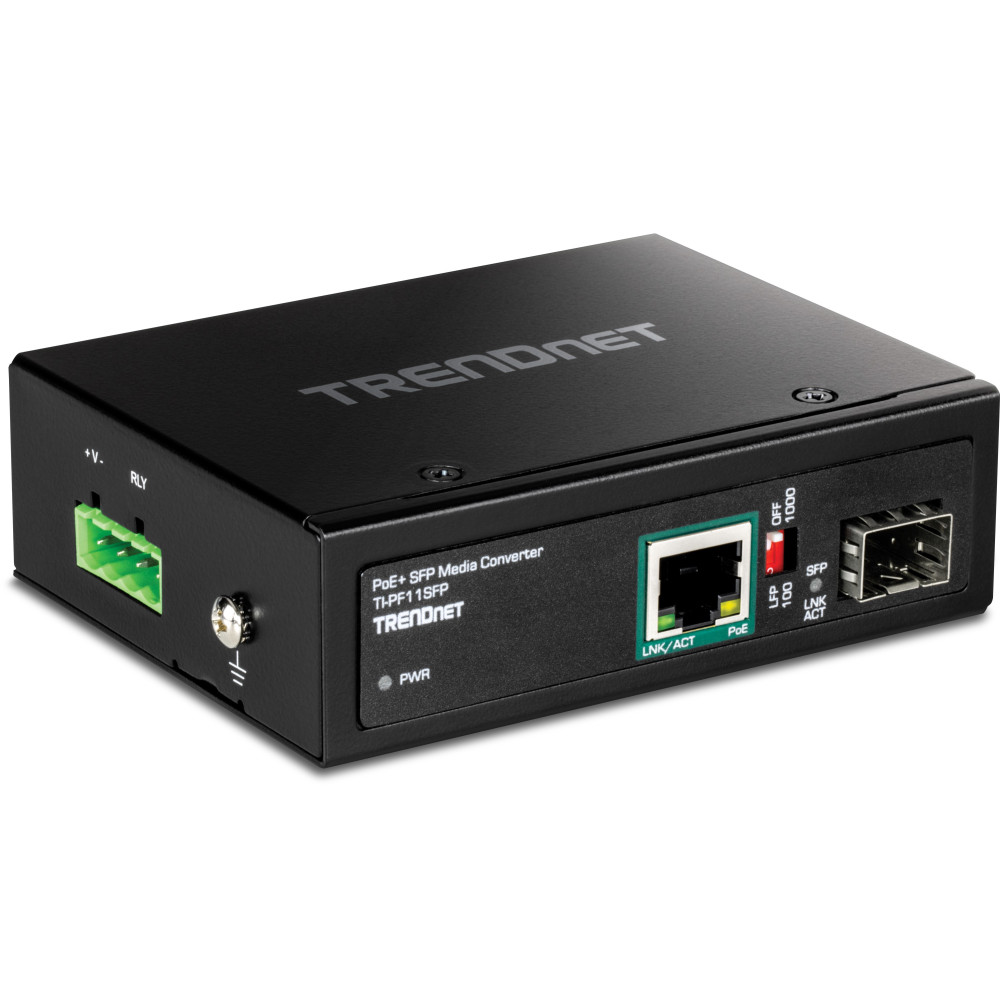

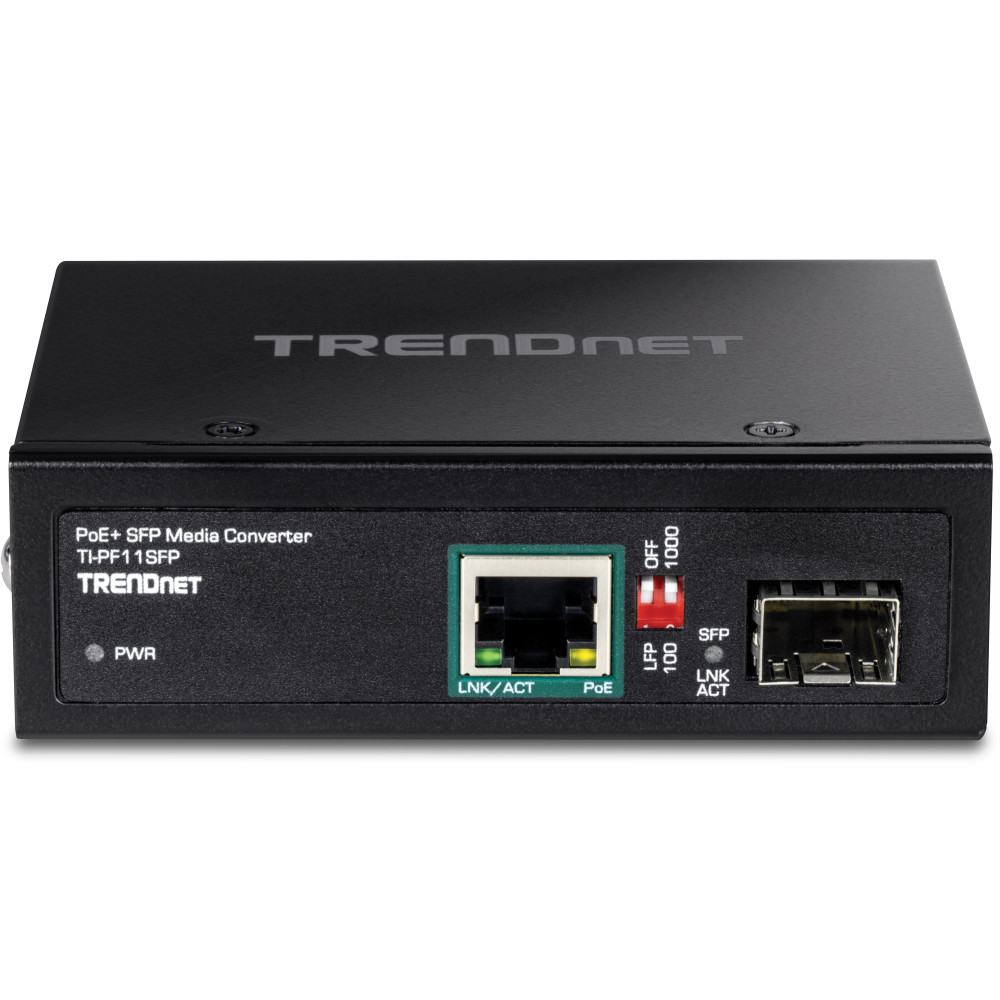

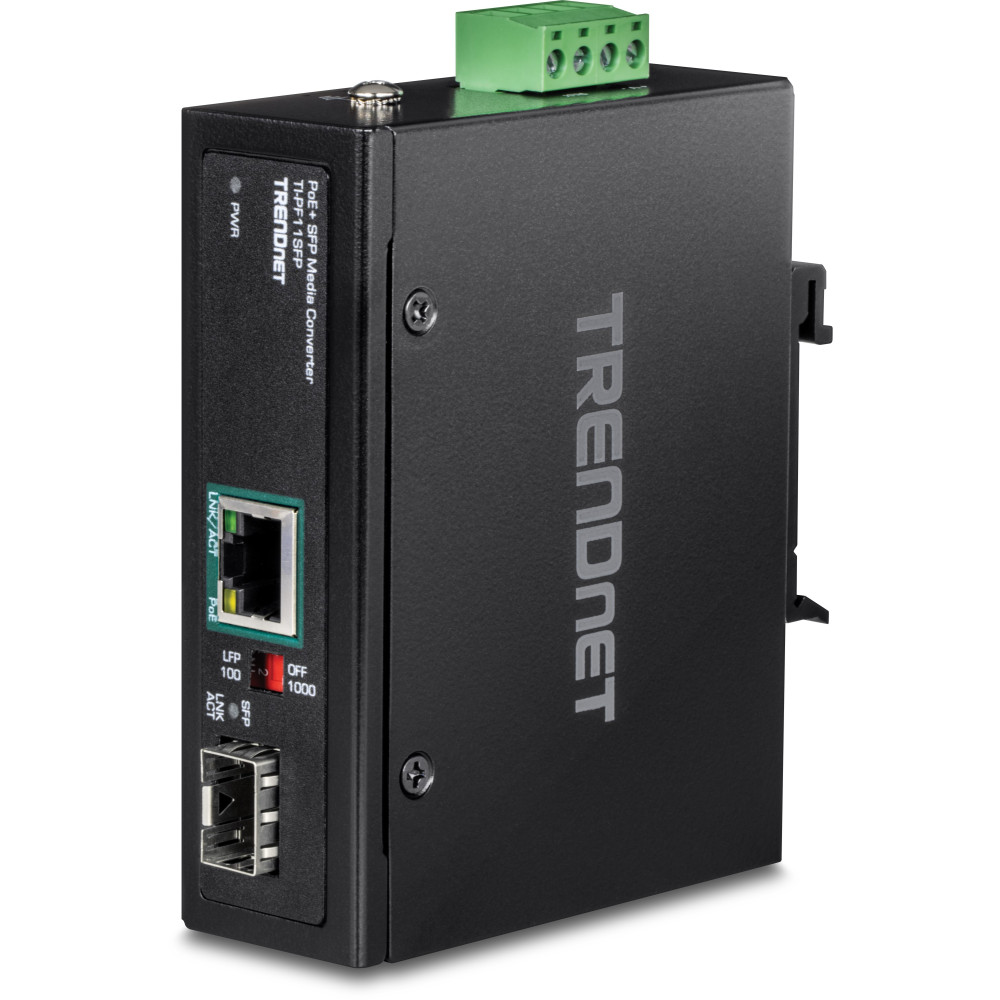

TRENDnet TI-PF11SFP Industrial SFP to Gigabit PoE+ Media Converter, DIN-Rail/Wall Mount

TRENDnet’s TI-PF11SFP Industrial SFP to Gigabit PoE+ Media Converter converts fiber to copper while providing power to PoE and PoE+ compliant devices, such as IP cameras, VoIP phones, and wireless access points. With an operating temperature range of -40° - 75 °C (-40° - 167 °F), the hardened IP30 rated housing is suitable for extreme industrial environments. Dual power inputs with overload current protection minimizes downtime.

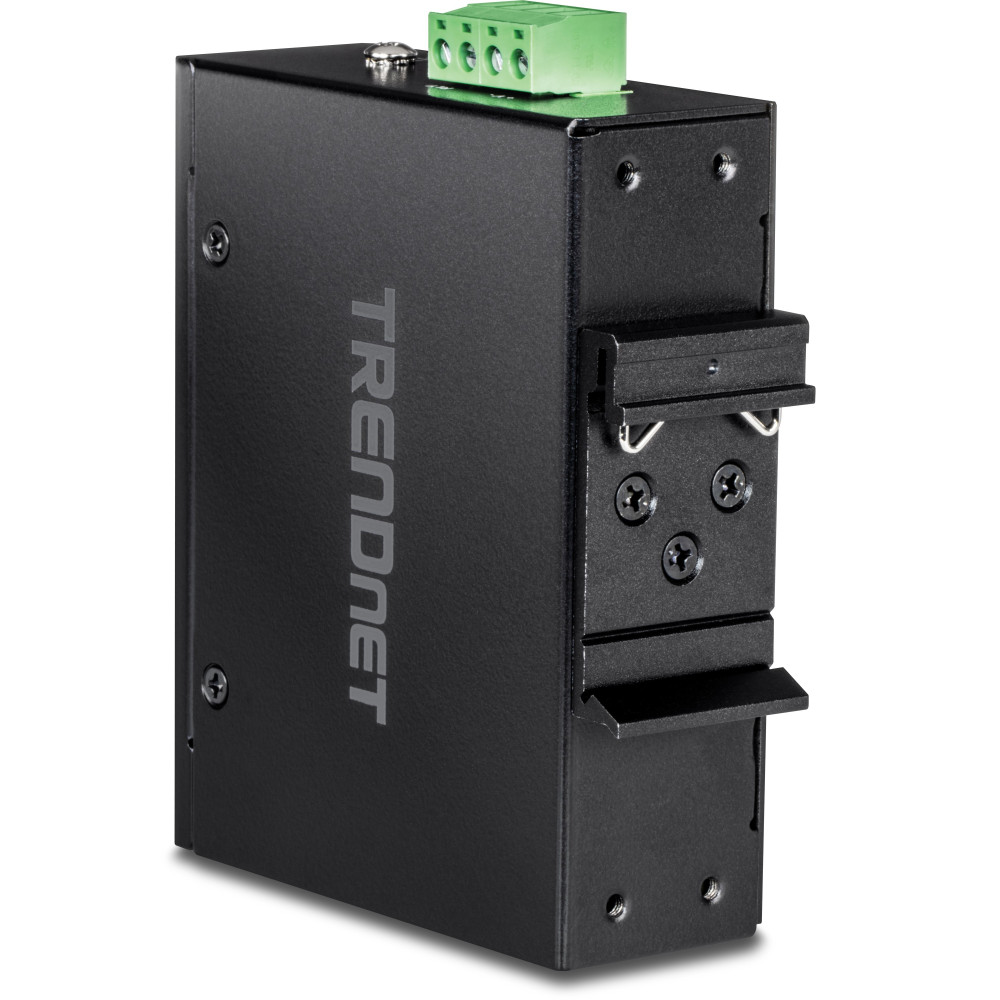

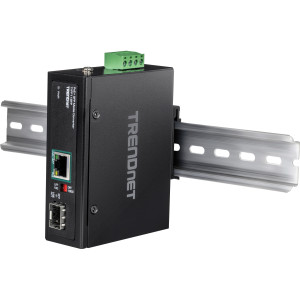

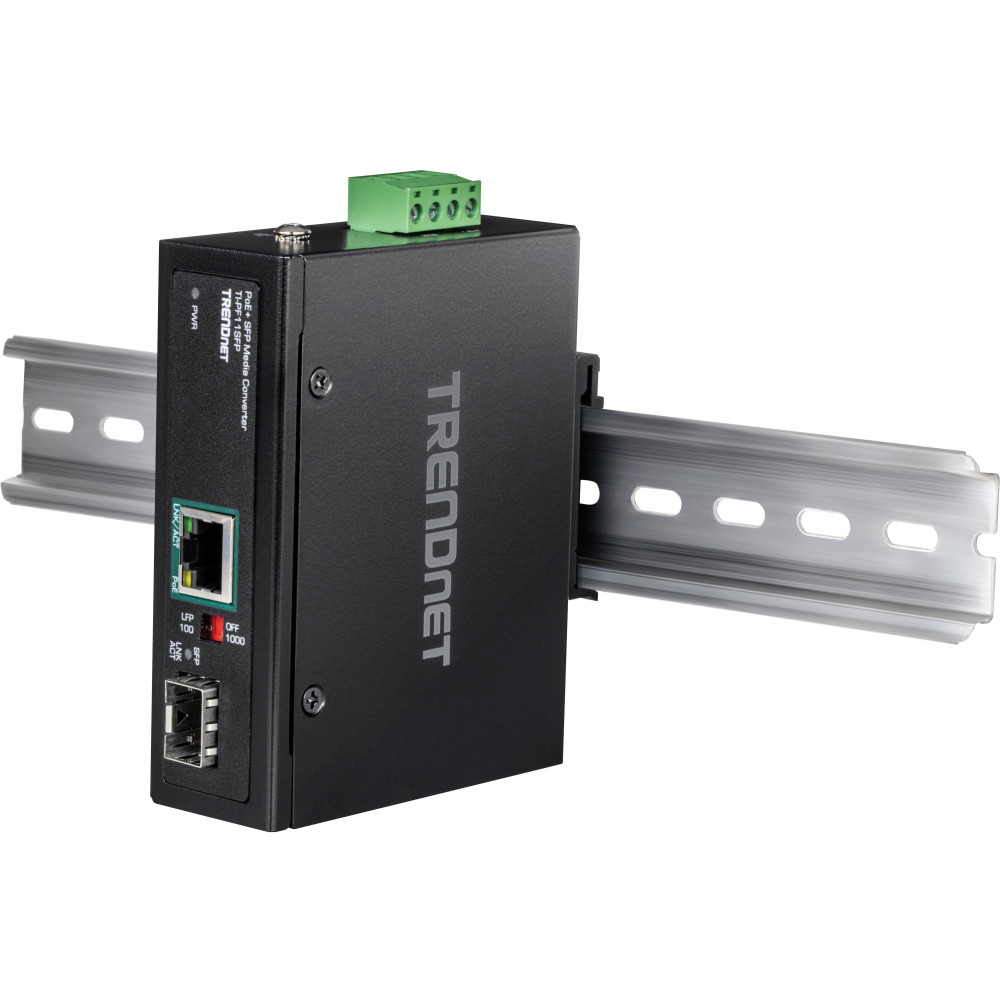

The TI-PF11SFP includes DIN-Rail mount and wall mount hardware.

Key Features

  • Hardened IP30 rated SFP to Gigabit PoE+ converter
  • SFP port accommodates Multi or Single Mode fiber
  • Up to 40 km fiber networking distances with the TI-MGBS40 SFP module
  • Provides up to 30W for PoE and PoE+ compliant devices
  • Includes DIN-rail and wall mounts
  • Wide operating temperature range -40 to 75 °C (-40 to 167 °F)
  • Dual power inputs with overload current protection
  • Powers supply sold separately (model SDR-120-48)
  • NDAA / TAA compliant (U.S. and Canada only)
  • 3-year Warranty

In the Box

  1. TI-PF11SFP
  2. Removable terminal block
  3. DIN-Rail and wall mount kit
Technology
CategoryMedia Converter
Media Converter TypeFiber to Gigabit Ethernet
Total Ports2
Ethernet Ports1 Gigabit (10/100/1000TX)
Fiber Ports1 Gigabit SFP ports
Fiber InterfaceSFP Slot
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Jumbo Frame Support16KB
MAC Table Size1K
Power
Power Consumption2 watts (without PoE) @ 48V DC

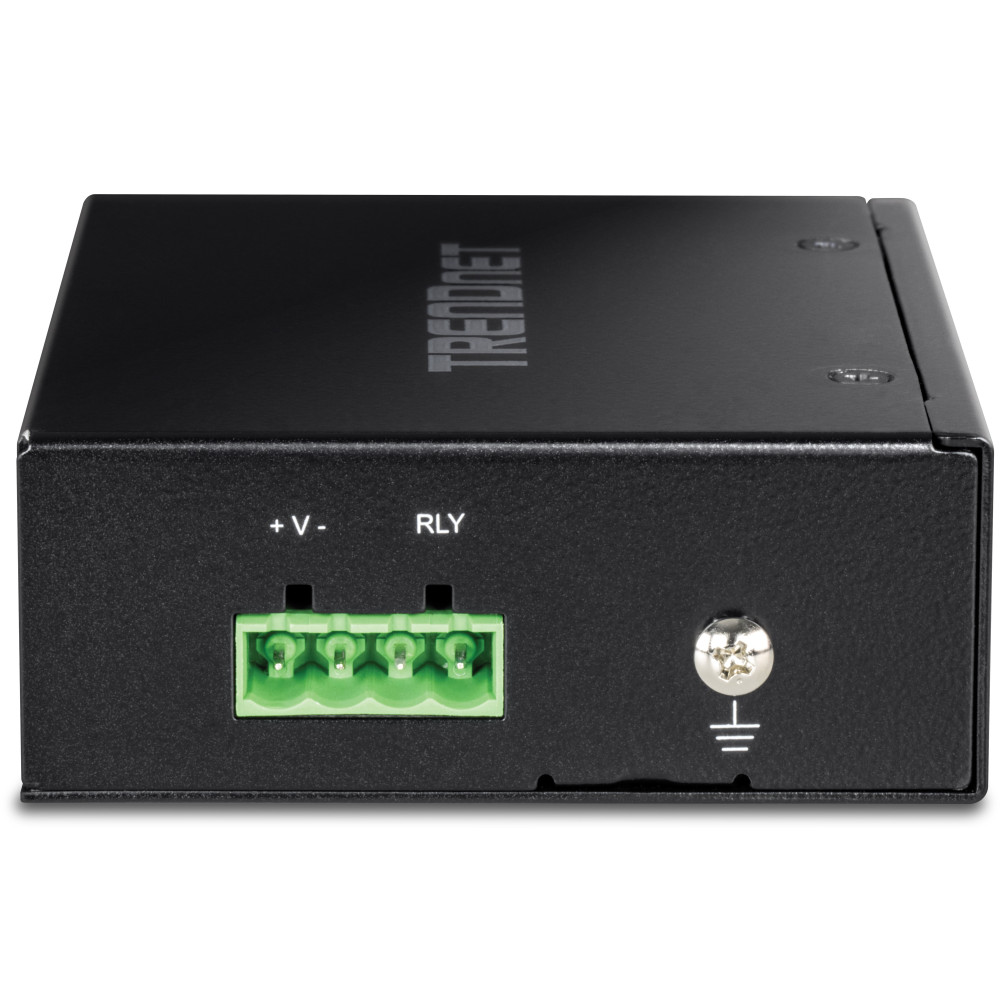

Connection4-pin terminal block
Input Voltage48 - 56V DC
Mechanical
EnclosureIP30 Metal case
MountingDIN Rail, Wall Mount
Shock / VibrationShock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
Weight154g (5.4 oz.)
Dimensions104 x 81 x 32 mm (4 x 3.2 x 1.2 in.)
Ratings
Operating Temperature-40° - 75° C (-40° - 167° F)
Humidity95% non-condensing
RoHS CompliantYes
CertificationsCE, FCC, LVD
MTBF557,082 hours
Warranty3 year
Download NameFile Size
TRENDnet TI-PF11SFP Datasheet717.83KB
