Manufacturer: TRENDnet

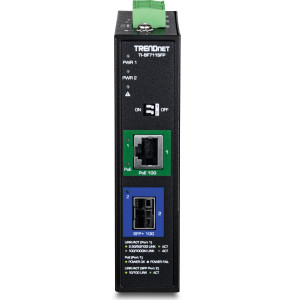

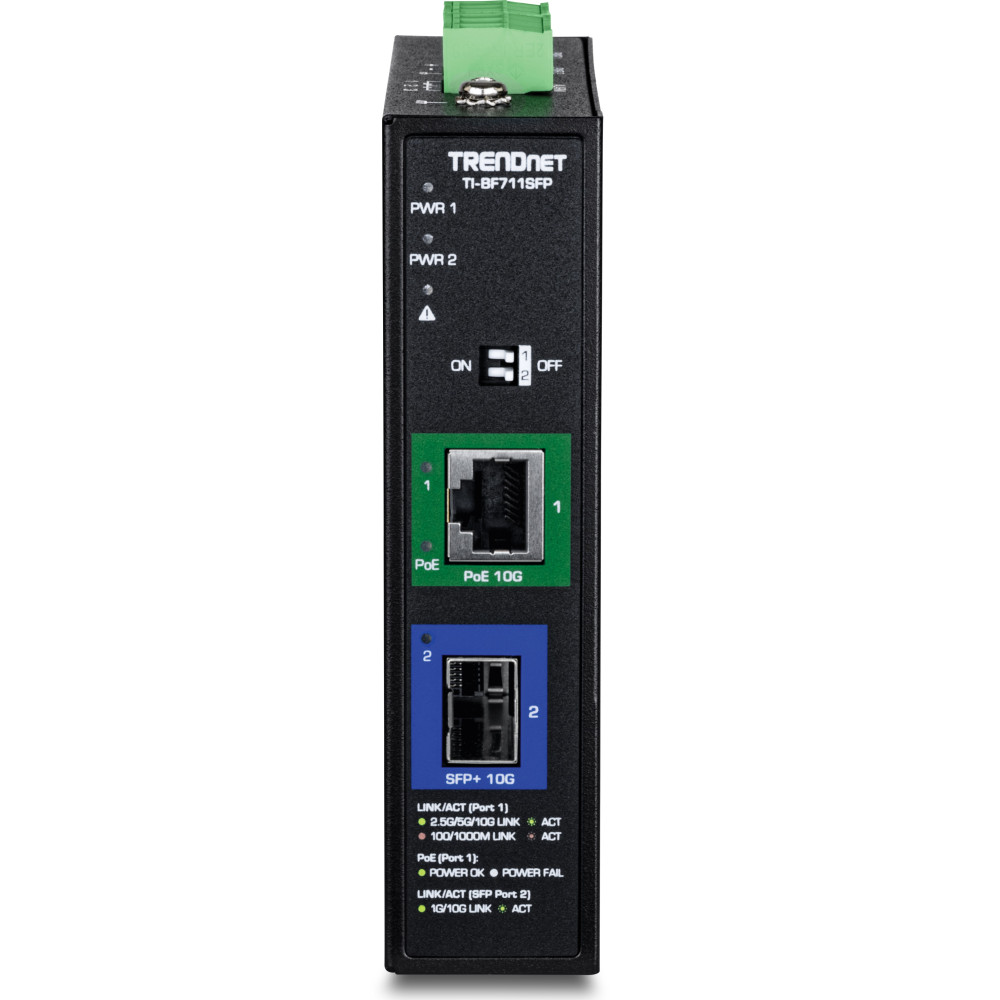

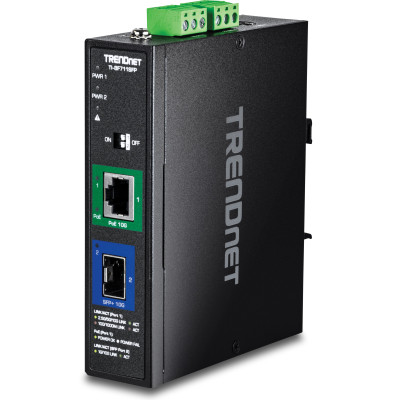

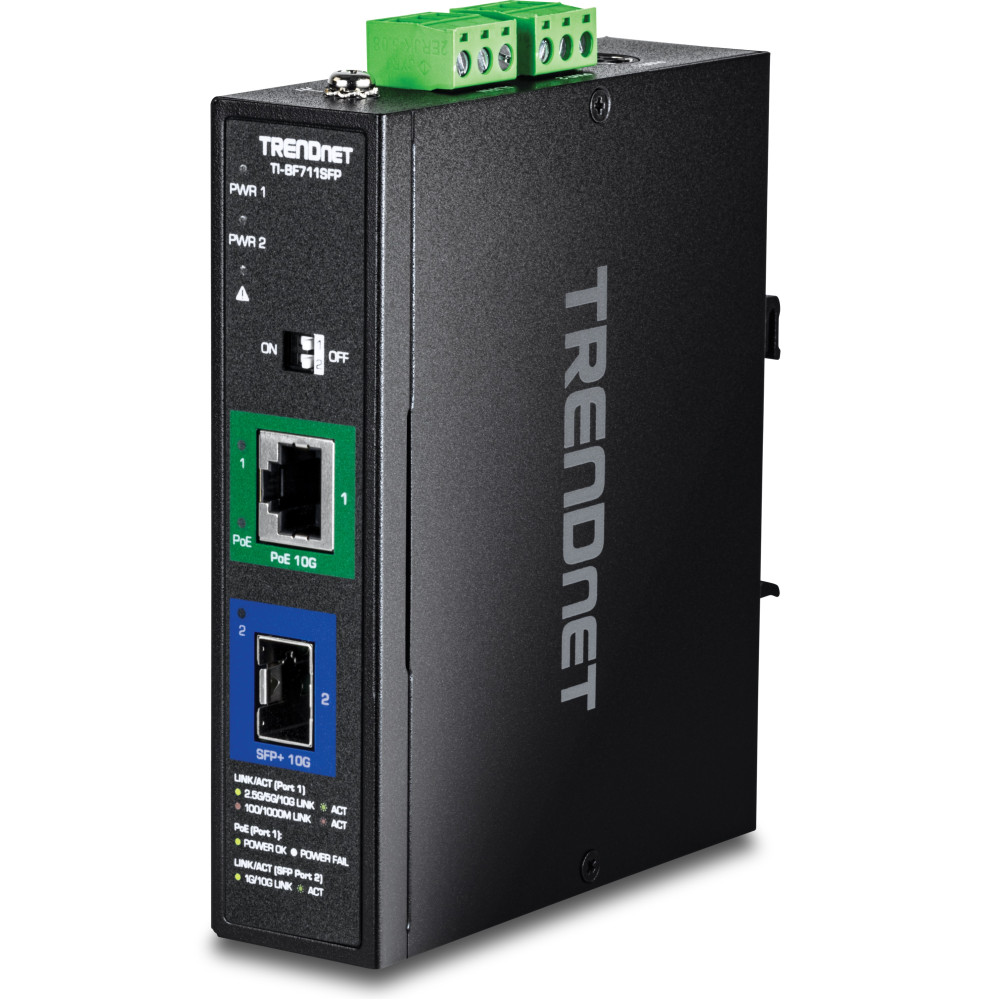

TRENDnet’s TI-BF711SFP Industrial 10G SFP+ to 10G PoE++ Media Converter converts a long-distance fiber connection to a copper connection, while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras, VoIP phones, and wireless access points. With an operating temperature range of -40° - 75° C (-40° - 167° F), the industrial PoE++ media converter features a hardened IP50 rated metal housing suitable for tough, industrial environments. The industrial PoE++ media converter’s rugged design also provides protection from shock, freefall, and vibration.

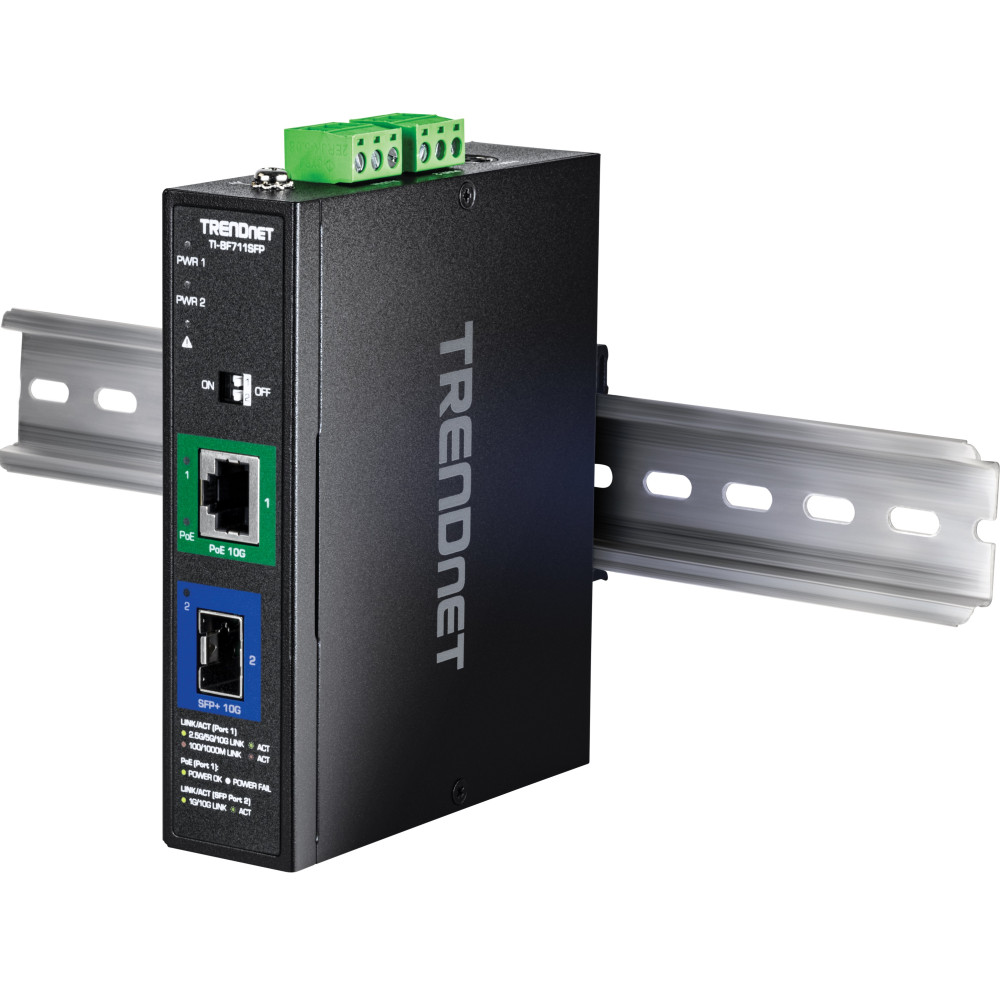

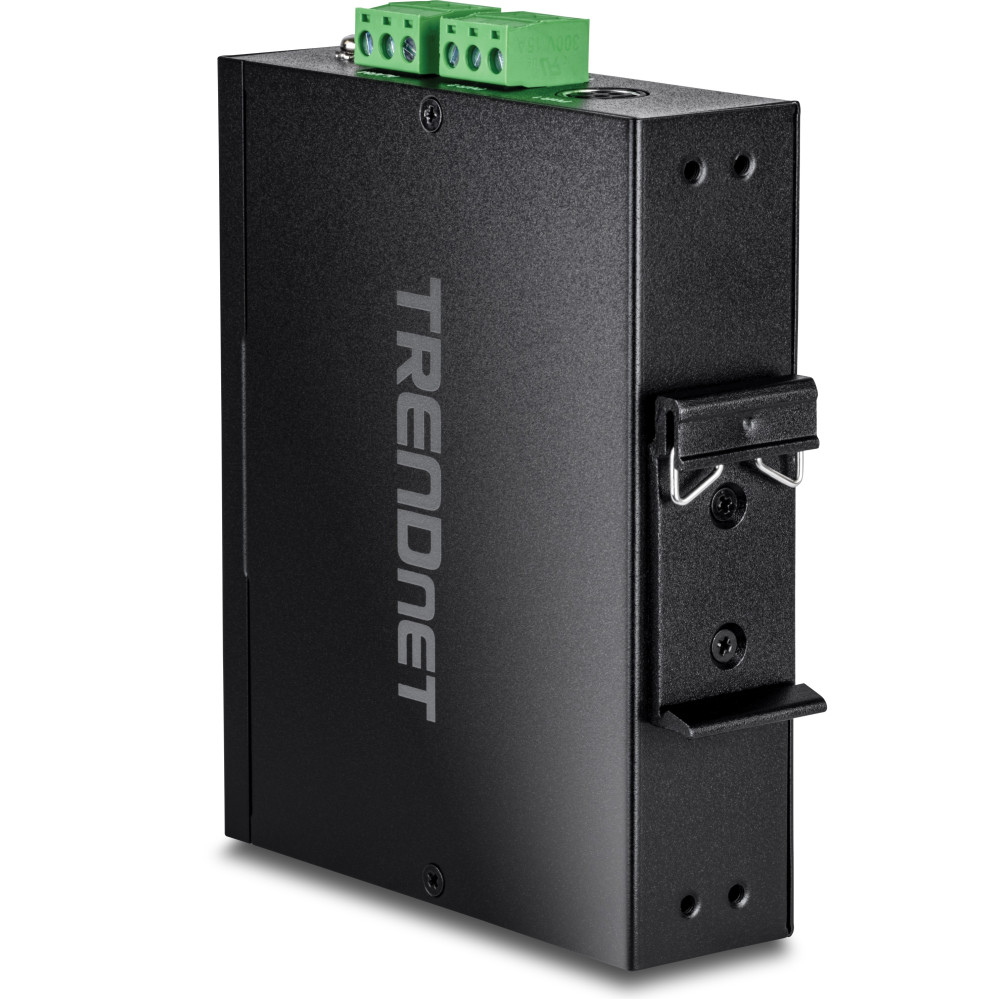

The rugged media converter includes DIN-Rail mount and wall mount hardware.
| Technology | |
| Category | Media Converter |
| Media Converter Type | Fiber to 10G Ethernet |
| Total Ports | 2 |
| Ethernet Ports | 10 Gigabit |
| Fiber Ports | 10G SFP+ Slot |
| Fiber Interface | 10G SFP+ Slot |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Jumbo Frame Support | 12KB |
| MAC Table Size | 4K |
| Power | |
| Power Consumption | 8W (without PoE) @ 56V DC |

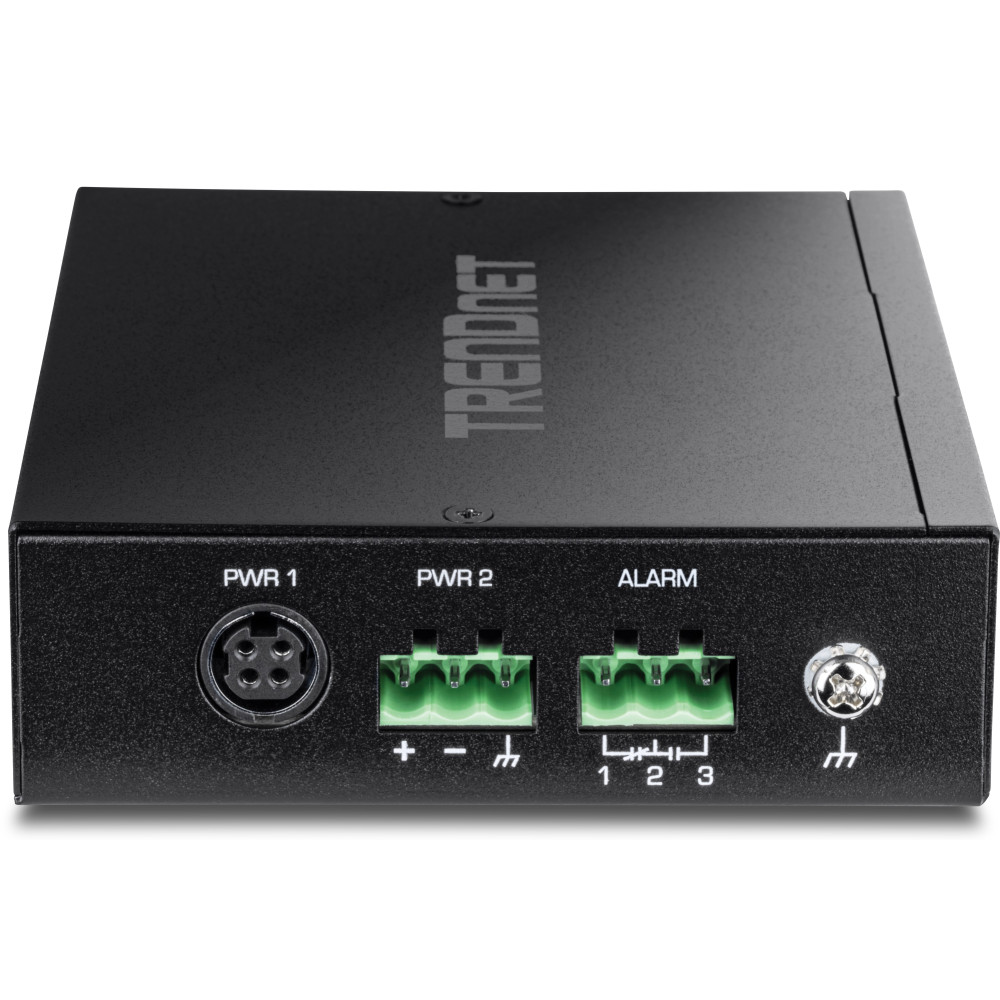

| Connection | 3-pin terminal blocks |
| Input Voltage | 48 - 57V DC |
| ESD Protection | 6kV |
| Surge Protection | 2kV |
| Mechanical | |
| Enclosure | IP50 Metal case |
| Mounting | DIN Rail, Wall Mount |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-31), Vibration (IEC 60068-2-6) |
| Weight | 476g (16.8 oz.) |
| Dimensions | 120 x 98 x 30 mm (4.7 x 3.9 x 1.2 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (-40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, FCC, LVD, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
| MTBF | 1,873,755 hours @ 25° C |
| Warranty | 3 year |
| Download Name | File Size |
| TRENDnet Industrial Fiber Media Converters Installation Guide | 8.33MB |
| TRENDnet TI-BF711SFP Datasheet | 3.14MB |
