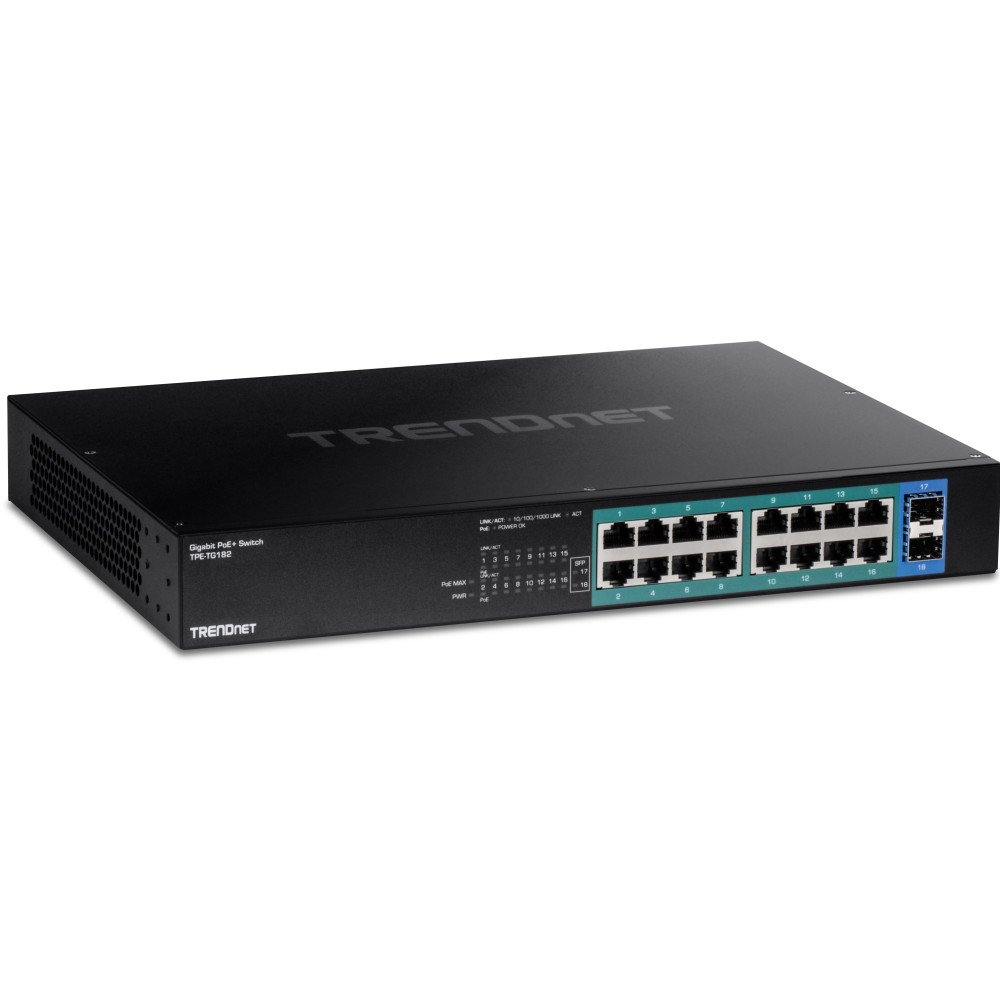

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's TPE-TG182 Unmanaged Gigabit PoE+ switch by delivering up to 30W per port of PoE+ power and data over existing Ethernet cables. Easily network PoE devices, such as high-power wireless access points, PTZ cameras, digital signage, IPTV decoders, and access controls with this reliable gigabit PoE+ switch with SFP support.
The TPE-TG182 provides high-bandwidth performance, ease of use, and reliability. The IEEE 802.3at compliant switch conveniently features a sturdy 1U 19” rack-mountable metal housing with mounting brackets included.
Count on the TPE-TG182 rack-mount PoE+ Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 18 |
| Ethernet Ports | 16 x Gigabit PoE+ ports |
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3at, 802.3af |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex), SFP: 2000Mbps (full duplex) |
| Jumbo Frame Support | 10KB |
| MAC Table Size | 8K |
| Power | |
| PoE Power Output | Maximum 30 watts per PoE port |
| Power Consumption | 40W (no PD) |
| Input Voltage | 100 - 240V AC, 50/60Hz |
| Overload Protection | Yes |
| Mechanical | |
| Enclosure | Metal |
| Mounting | Rack mountable |
| Weight | 2.5kg (5.68 lbs.) |
| Dimensions | 324 x 230 x 44mm (12.75 x 9 x 1.8 in.) |
| Ratings | |
| Operating Temperature | 0° - 40° C (32° - 104° F) |
| Humidity | Max 90% non-condensing |
| Certifications | FCC, CE, ETL |
| MTBF | 659,157 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TPE-TG182 Datasheet | 934.73KB |
| TRENDnet TPE-TG182/TPE-TG262 Quick Installation Guide | 3.43MB |
