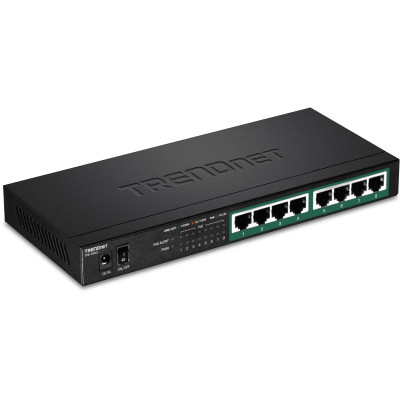

TRENDnet's TPE-TG83 8-Port Gigabit PoE+ Switch reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch provides eight gigabit PoE+ ports with a total PoE power budget of 65W. The TPE-TG83 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.
Count on the TPE-TG83 wall-mount PoE+ Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.
Technology | |
Category | Ethernet Switch (PoE) |
Total Ports | 8 |
Ethernet Ports | 8 x Gigabit PoE+ ports |
Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3p, 802.3x, 802.3af, 802.3at |
Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex) |
Jumbo Frame Support | 9KB |
MAC Table Size | 4K |
Power | |
PoE Power Output | Maximum 30 watts per PoE port |
Power Consumption | 71 W |
Output Voltage | 55V DC, 1.3A |
Input Voltage | 100 - 240V AC, 50/60Hz |
Mechanical | |
Enclosure | Metal |
Mounting | Wall mountable |
Weight | 580g (20.45 ounces) |
Dimensions | 240 x 105 x 27mm (9.45 x 4.13 x 1.1 in.) |
Ratings | |
Operating Temperature | 0° - 40° C (32° - 104° F) |
Humidity | Max 90% non-condensing |
Certifications | FCC, CE, LVD |
Warranty | Lifetime |
Download Name | File Size |
TRENDnet TPE-TG83 Datasheet | 429.58KB |
TRENDnet TPE-TG52/TPE-TG83/TPE-TG84 Quick Installation Guide | 3.43MB |
