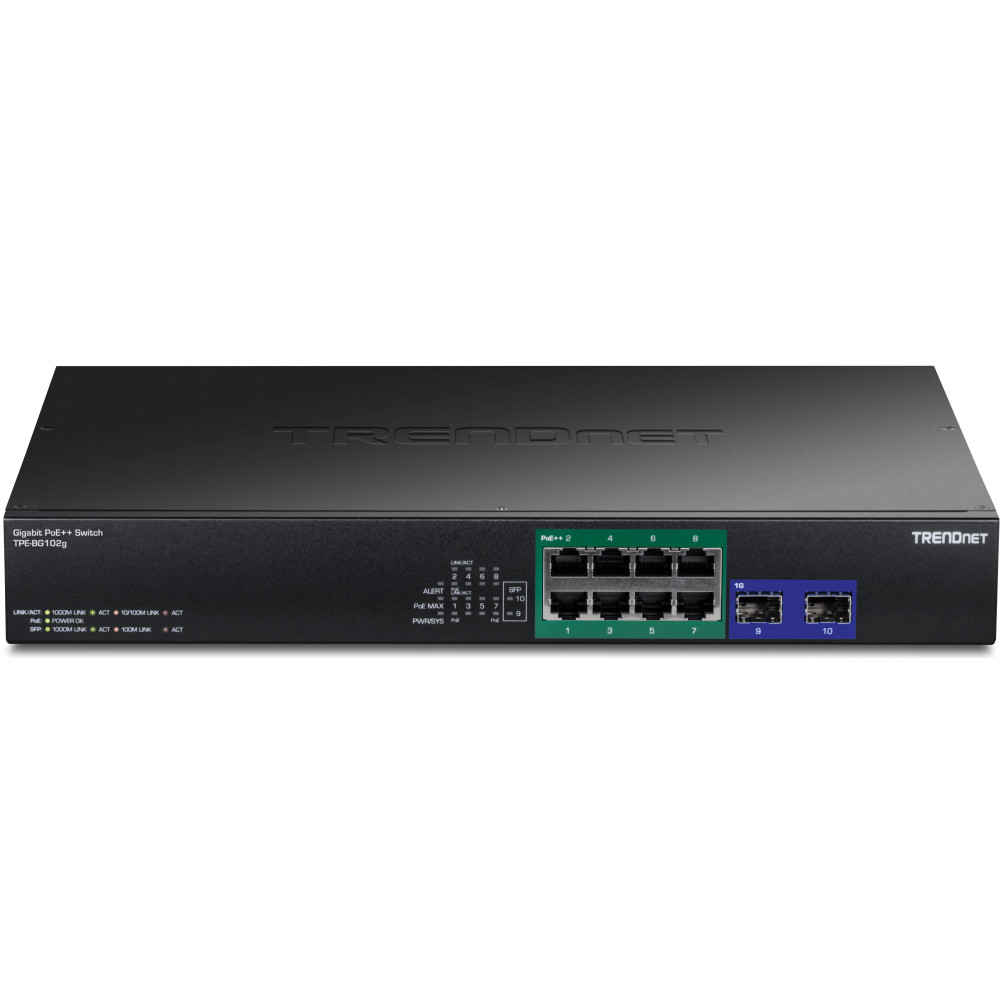

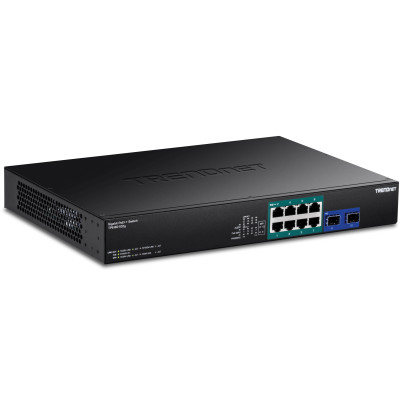

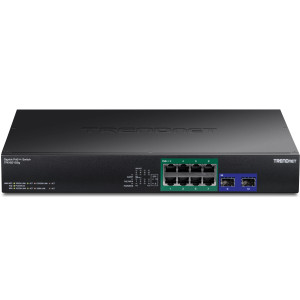

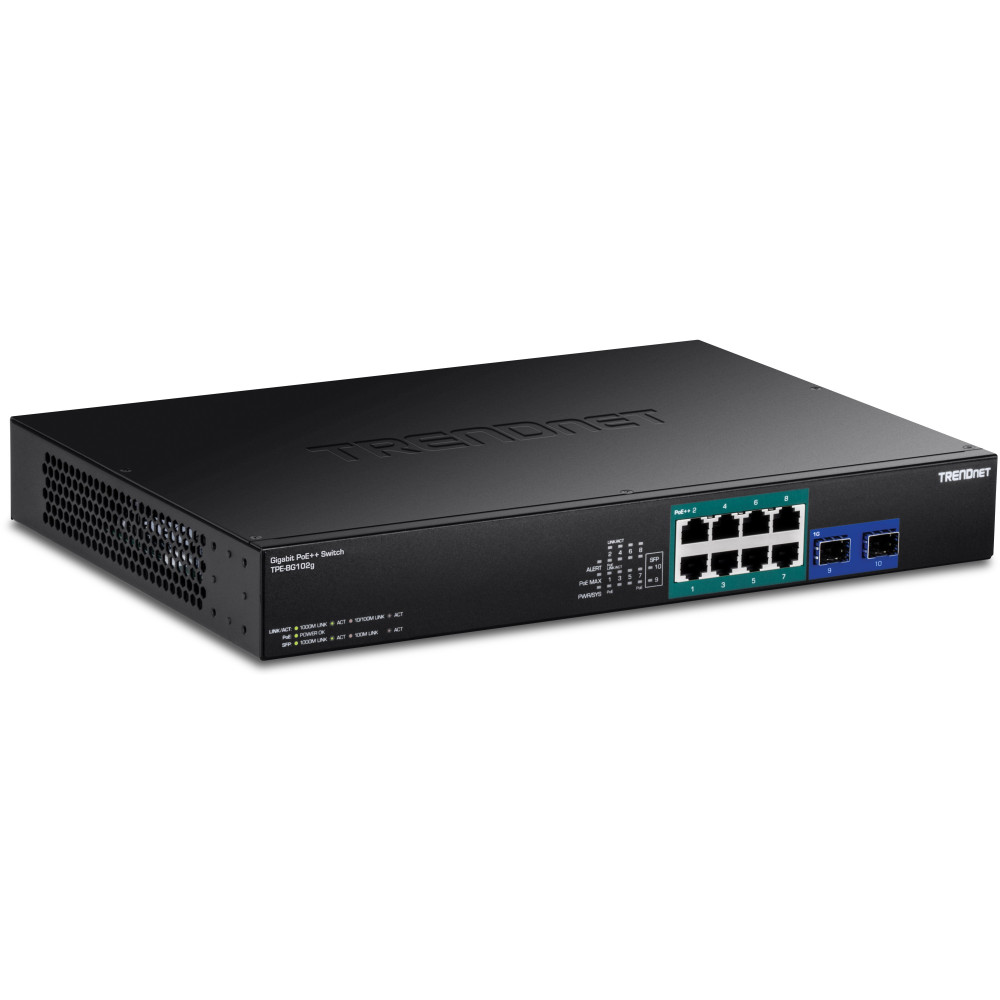

TRENDnet’s TPE-BG102g Unmanaged Gigabit 4PPoE Switch provides high bandwidth performance, ease of use, and reliability. This IEEE 802.3bt compliant switch features a sturdy 1U 19” rack mountable metal housing with mounting brackets included. This high power PoE++ switch also offers 2 Gigabit SFP slots for long distance fiber network applications. The Smart fan saves energy by auto-adjusting the fan speed and use based on cooling needs.
Installers and integrators can save on equipment costs and reduce installation time with the TPE-BG102g switch by delivering up to 95W per port of PoE++ power and data over existing ethernet cables. This switch provides power to the PoE device within a few seconds of the switch receiving power. There is no need to wait for the switch to fully boot up. Easily network PoE devices such as high-power wireless access points, PTZ cameras, digital signage, IPTV decoders, access controls, and more with this high power PoE++ switch.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
Technology | |
Category | Ethernet Switch (PoE) |
Total Ports | 10 |
Ethernet Ports | 8x Gigabit PoE++ ports |
Fiber Ports | 2x Gigabit SFP |
Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3at, 802.3af, 802.3bt |
Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex), Fiber: 2000Mbps (full duplex) |
Jumbo Frame Support | 9KB |
MAC Table Size | 8K |
Power | |
PoE Power Output | Maximum 95 watts per PoE port |
Power Consumption | 280W |

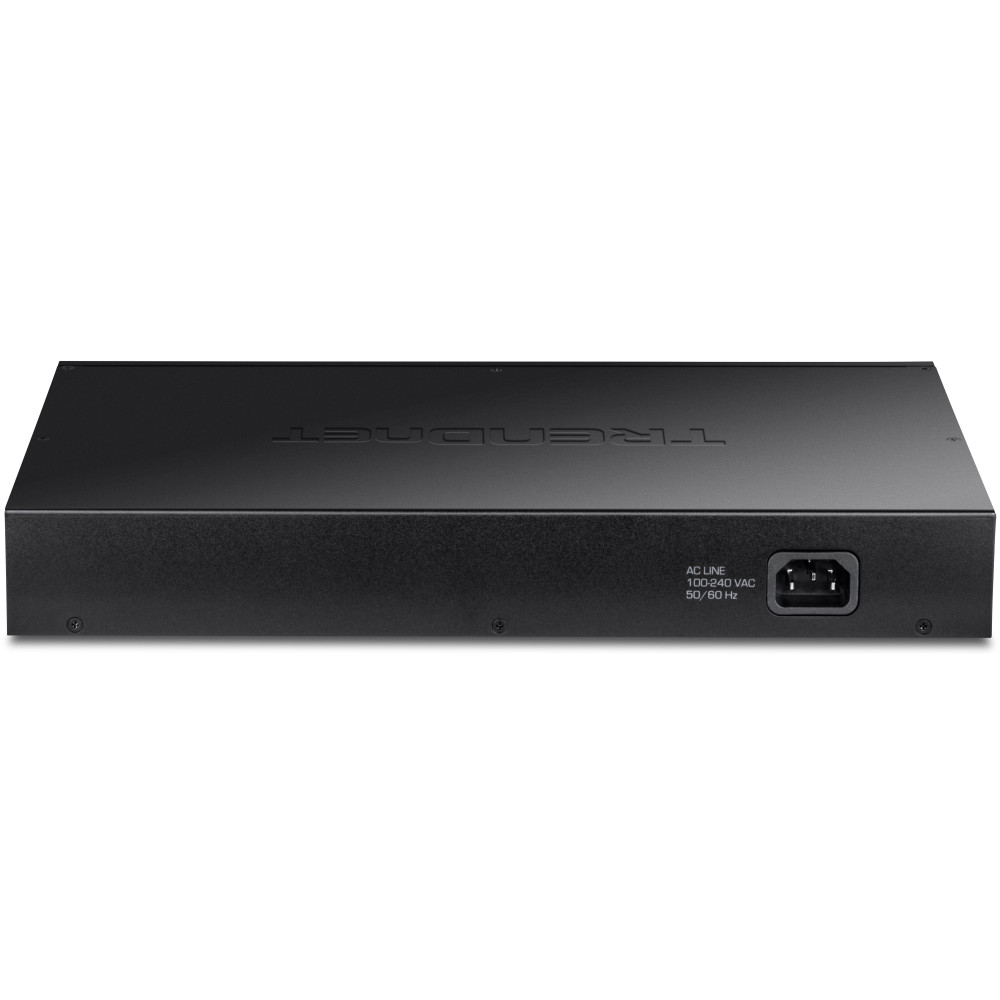

Input Voltage | 100 - 240V AC, 50/60Hz, 2.8A internal power supply |
Mechanical | |
Enclosure | Metal |
Mounting | Rackmount |
Cooling | Smart fan |
Weight | 2.4kg (5.3 lbs.) |
Dimensions | 330 x 230 x 44mm (13 x 9.0 x 1.7 in.) |
Ratings | |
Operating Temperature | 0° - 40° C (32° - 104° F) |
Humidity | Max 90% non-condensing |
RoHS Compliant | Yes |
Certifications | FCC, CE, ETL |
MTBF | 427,588 hours |
Warranty | Lifetime |
Download Name | File Size |
TRENDnet TPE-BG102g Datasheet | 2.89MB |
TRENDnet TPE-BG102g/TPE-BG182g Quick Installation Guide | 4.19MB |
