Manufacturer: TRENDnet

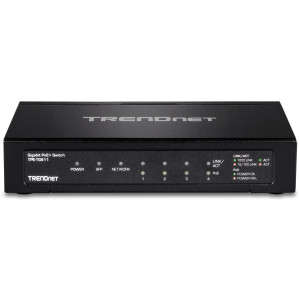

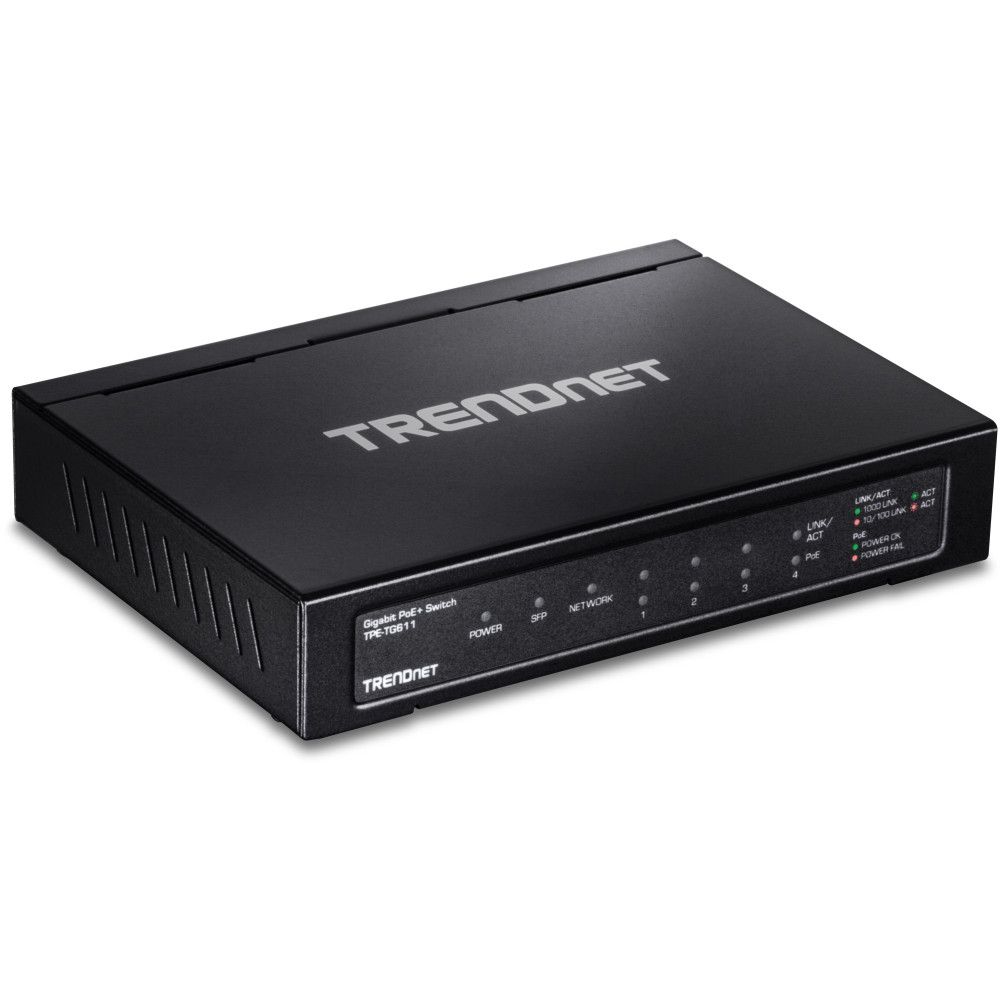

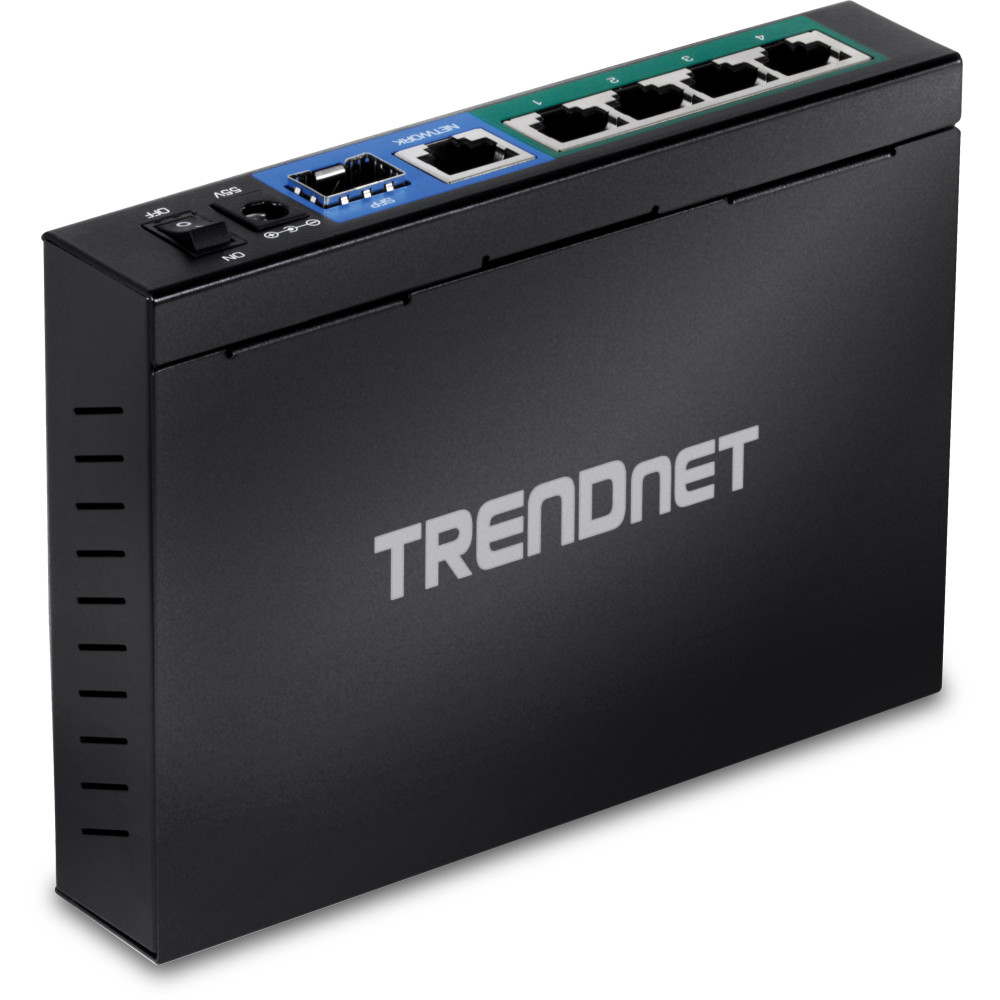

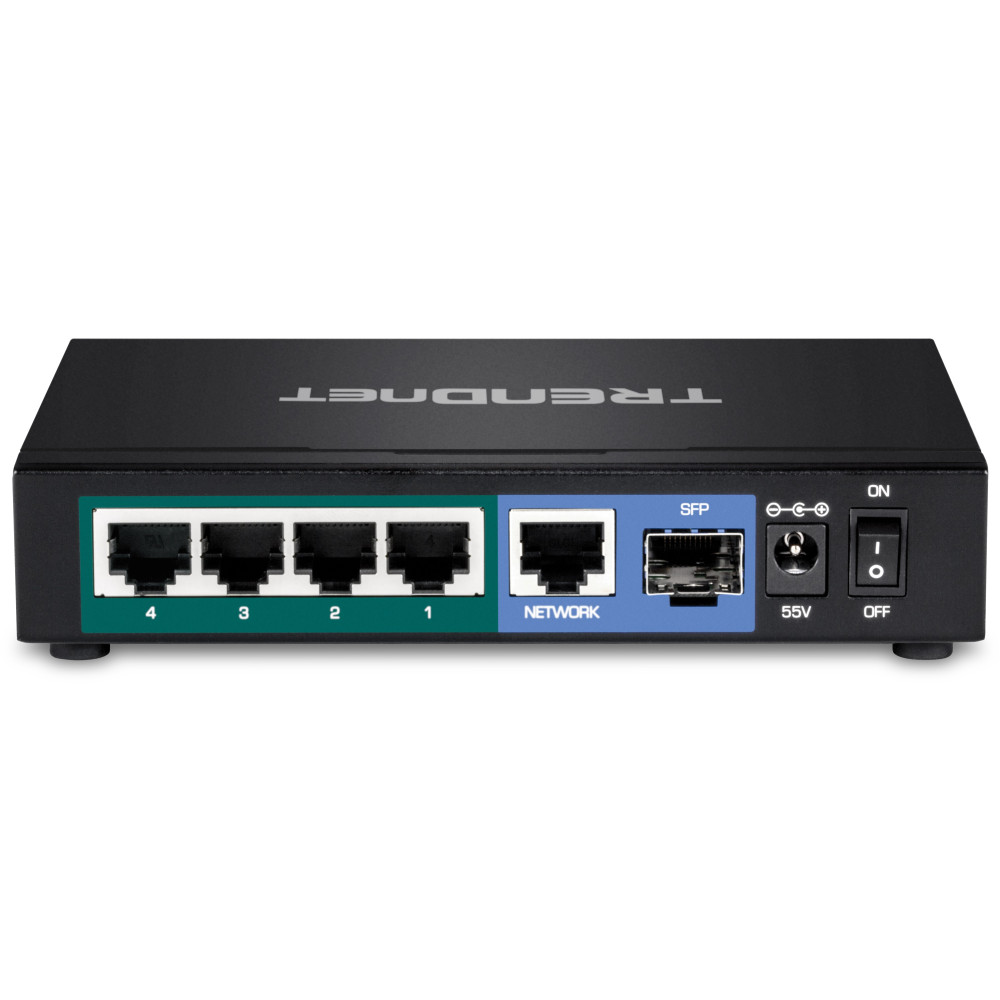

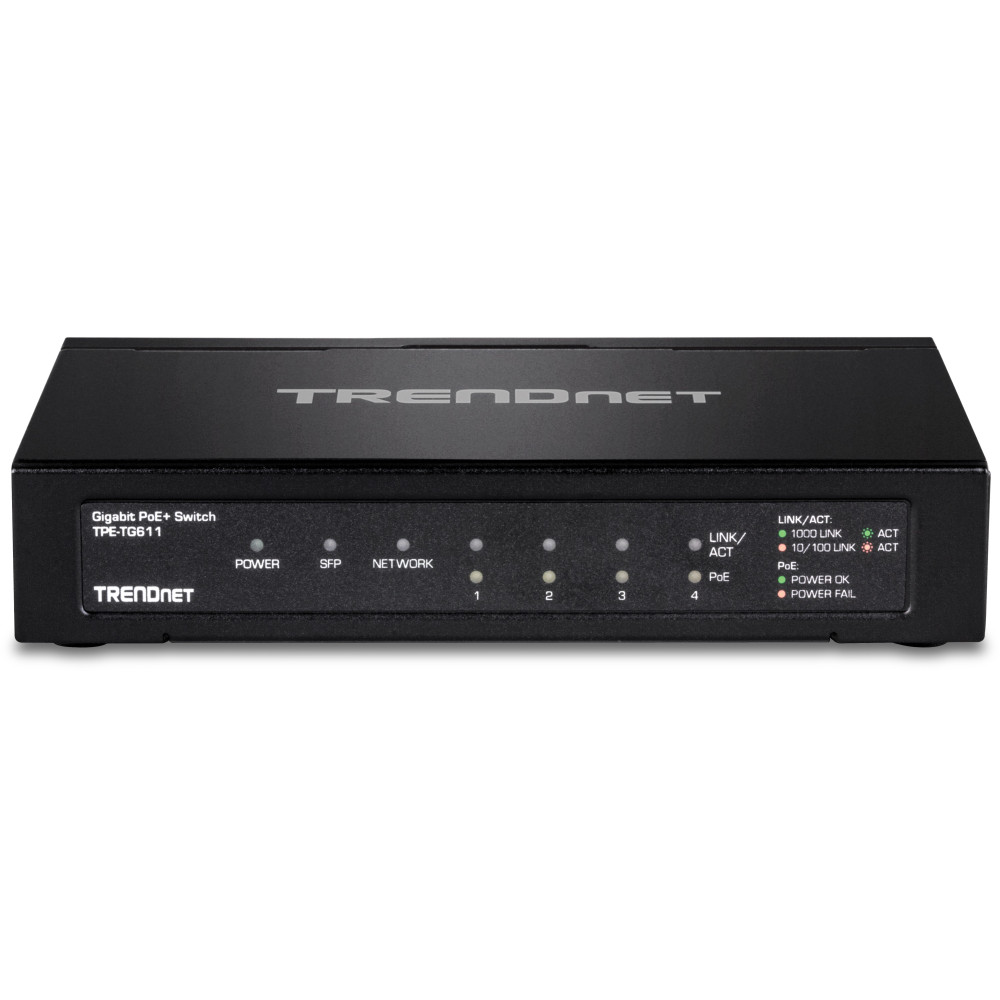

TRENDnet's TPE-TG611 6-Port Gigabit PoE+ Switch reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This small network switch with SFP support provides four gigabit PoE+ ports with a total PoE power budget of 65W, one gigabit port, and one SFP slot for fiber applications. With PoE technology, users only need one set of cables to deliver both data and power.
The small network switch with SFP support allows you to network PoE devices such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. The added SFP slot supports both single mode and multi-mode fiber SFP modules for long-distance fiber networking applications.
With a compact and lightweight housing design, this compact switch is well-suited for desktop installations. Its fanless design is perfect for quiet environments that require silent operation.
Count on the TPE-TG611 PoE+ Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 6 |
| Ethernet Ports | 4 x Gigabit PoE+ ports, 1 x Standard Gigabit |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex) |
| Jumbo Frame Support | 9KB |
| MAC Table Size | 2K |
| Power | |
| PoE Power Output | Maximum 30 watts per PoE port |
| Power Consumption | 71.5 W |
| Output Voltage | 55V DC, 1.3A |
| Input Voltage | 100 - 240V AC, 50/60Hz |
| Mechanical | |
| Enclosure | Metal |

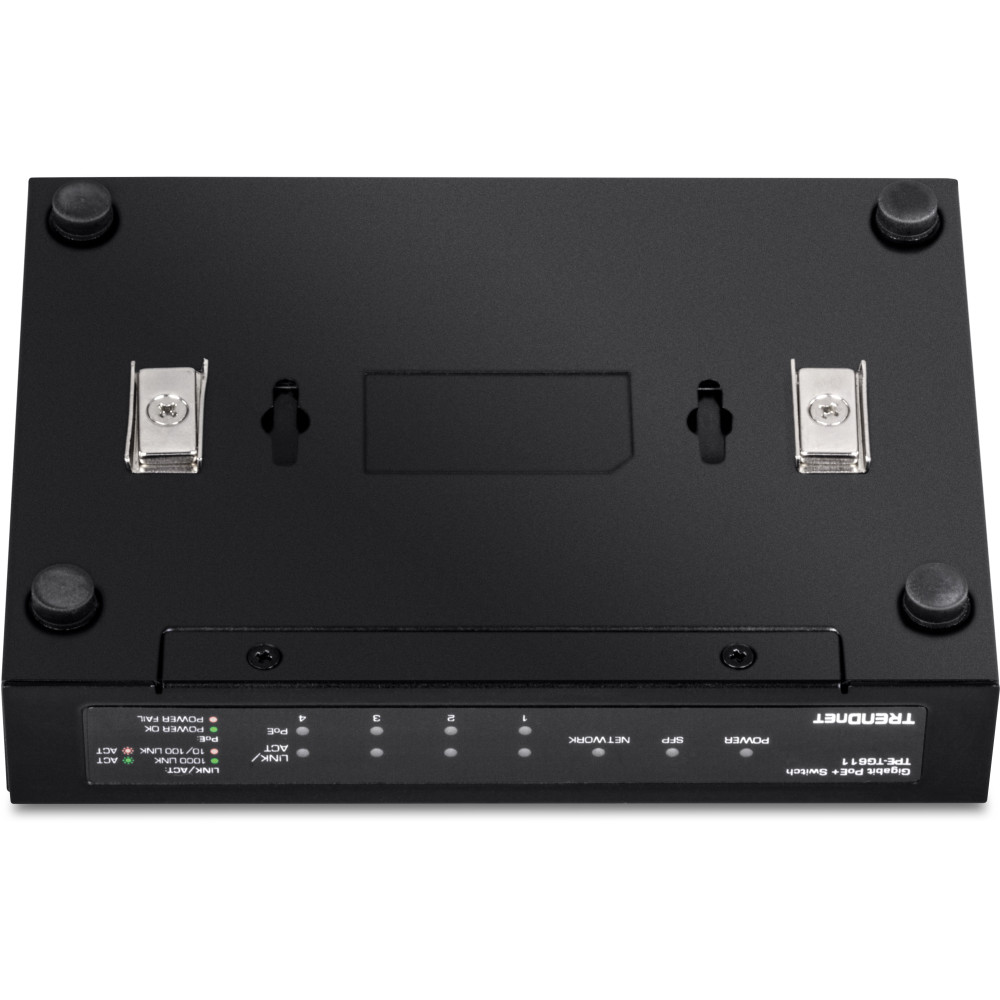

| Mounting | Wall mountable, magnetic mount |
| Weight | 456g (16.1 ounces) |
| Dimensions | 193 x 84 x 26mm (7.6 x 3.3 x 1.02 in.) |
| Ratings | |
| Operating Temperature | 0° - 40° C (32° - 104° F) |
| Humidity | Max 90% non-condensing |
| Certifications | FCC, CE |
| MTBF | 1,401,356 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TPE-TG611 Datasheet | 696.62KB |
| TRENDnet TPE-TG611 Quick Installation Guide | 3.3MB |
