Manufacturer: TRENDnet

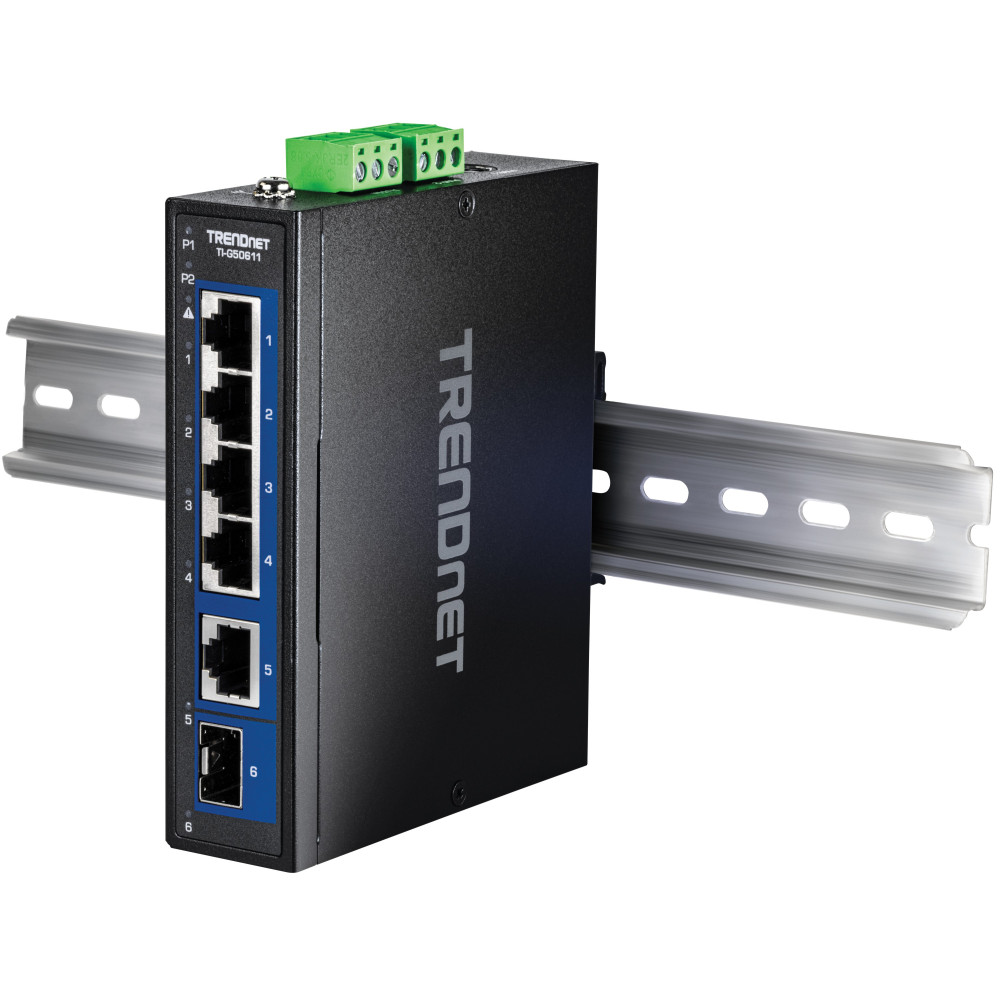

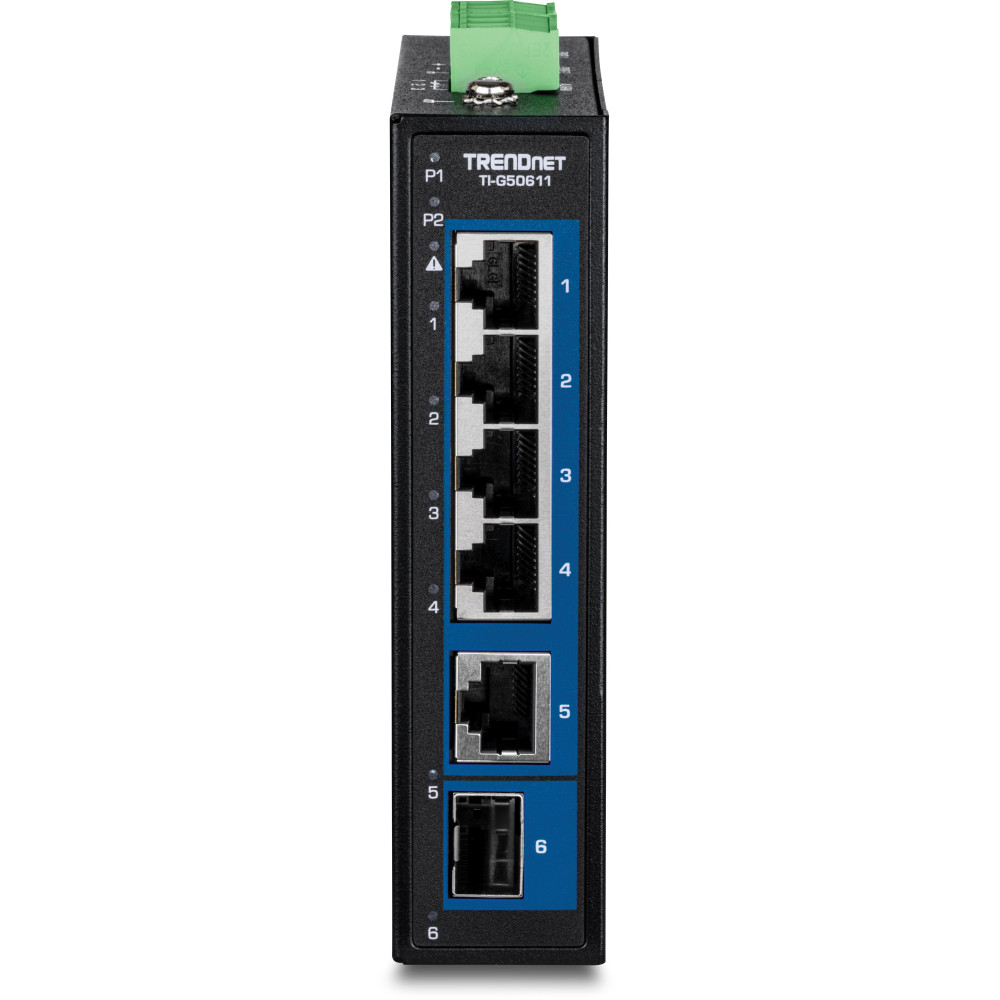

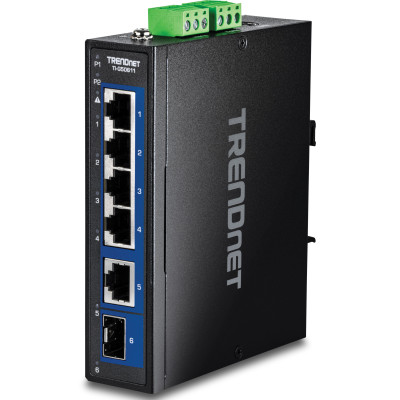

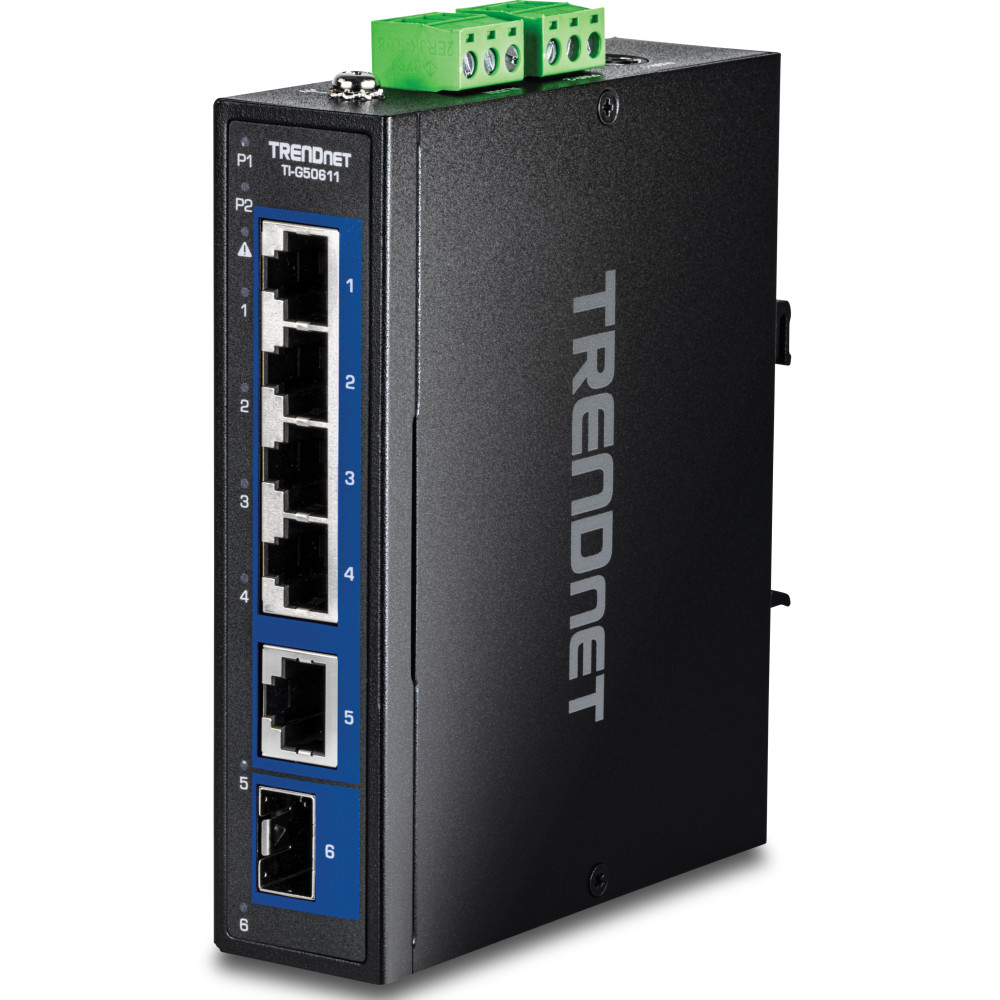

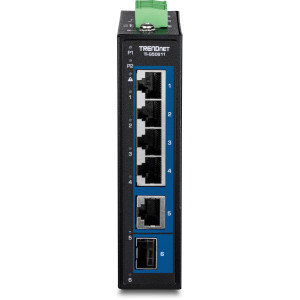

TRENDnet’s TEG-G50611 6-Port Industrial 2.5G DIN-Rail Switch with one 10G Port features a rugged IP50 rated metal enclosure and is designed to work in the harshest networking environments. This industrial multi-gigabit switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection, and a power failure alarm relay minimize network downtime. This multi-gig DIN-Rail network switch features 2.5G and 10G copper ports for high-speed device connections, and a 10G SFP+ port for backbone fiber networking applications.
Any industry that requires 10G fiber communication should be trending towards the necessary equipment to support it. Speak with one of our network experts today, and we’ll help you map an affordable transition that puts power where you need it most.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 6 |
| Ethernet Ports | 4 2.5G ports, 1 10G port |
| Fiber Ports | 1 10G SFP+ ports |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit Ethernet: 2000Mbps (full duplex), 2.5G Ethernet: 5Gbps (full duplex), 10G Ethernet: 20Gbps (full duplex), 10G SFP+: 20Gbps (full duplex) |
| Jumbo Frame Support | 12 KB |
| MAC Table Size | 4 K |
| Power | |
| Power Consumption | 12.8 W |

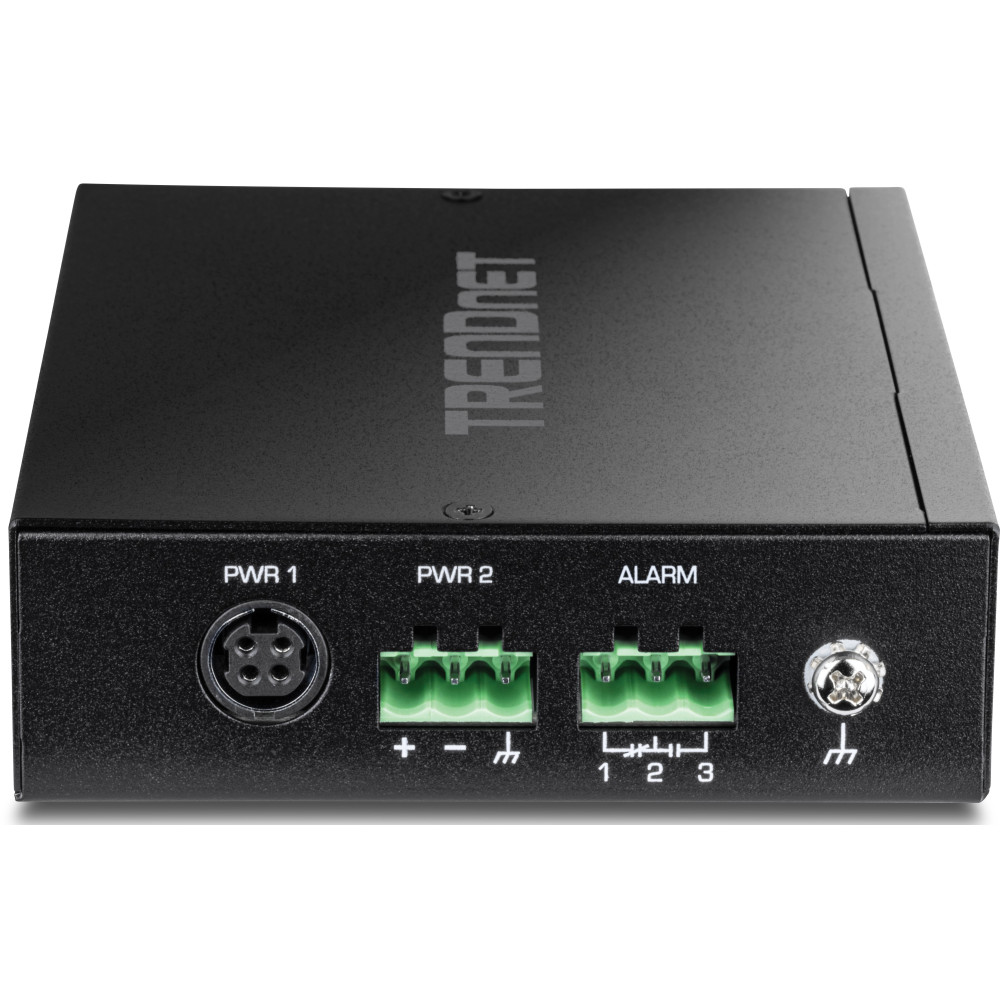

| Input Connection | 9 - 60V DC |
| Mechanical | |

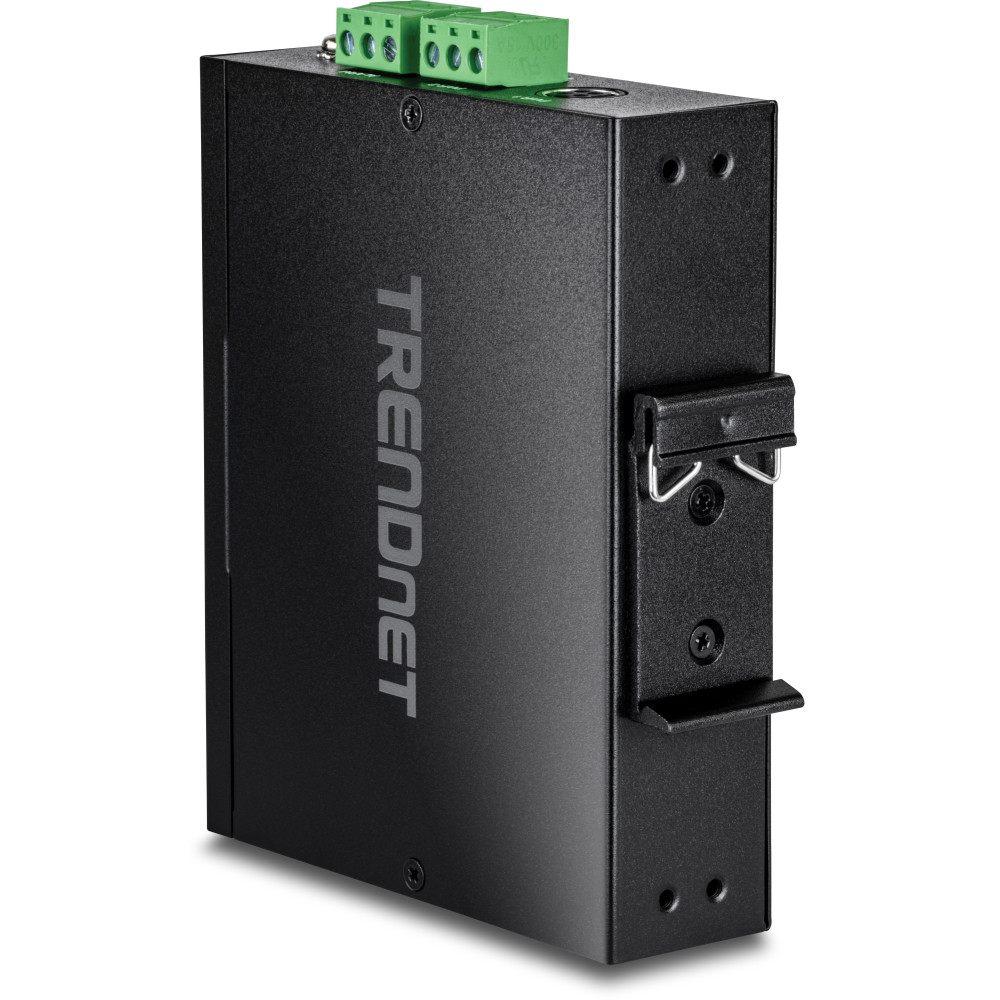

| Mounting | DIN-rail or wall mount |
| Weight | 496g (17.5 oz.) |
| Dimensions | 120 x 98 x 30mm (4.7 x 3.9 x 1.2 in.) |
| Ratings | |
| Operating Temperature | - 40° - 75° C (-40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE, LVD |
| MTBF | 798,907 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TI-G50611 Datasheet | 1.47MB |
| TRENDnet TI-G5062 / G50611 / G5091 Quick Installation Guide | 4.38MB |
