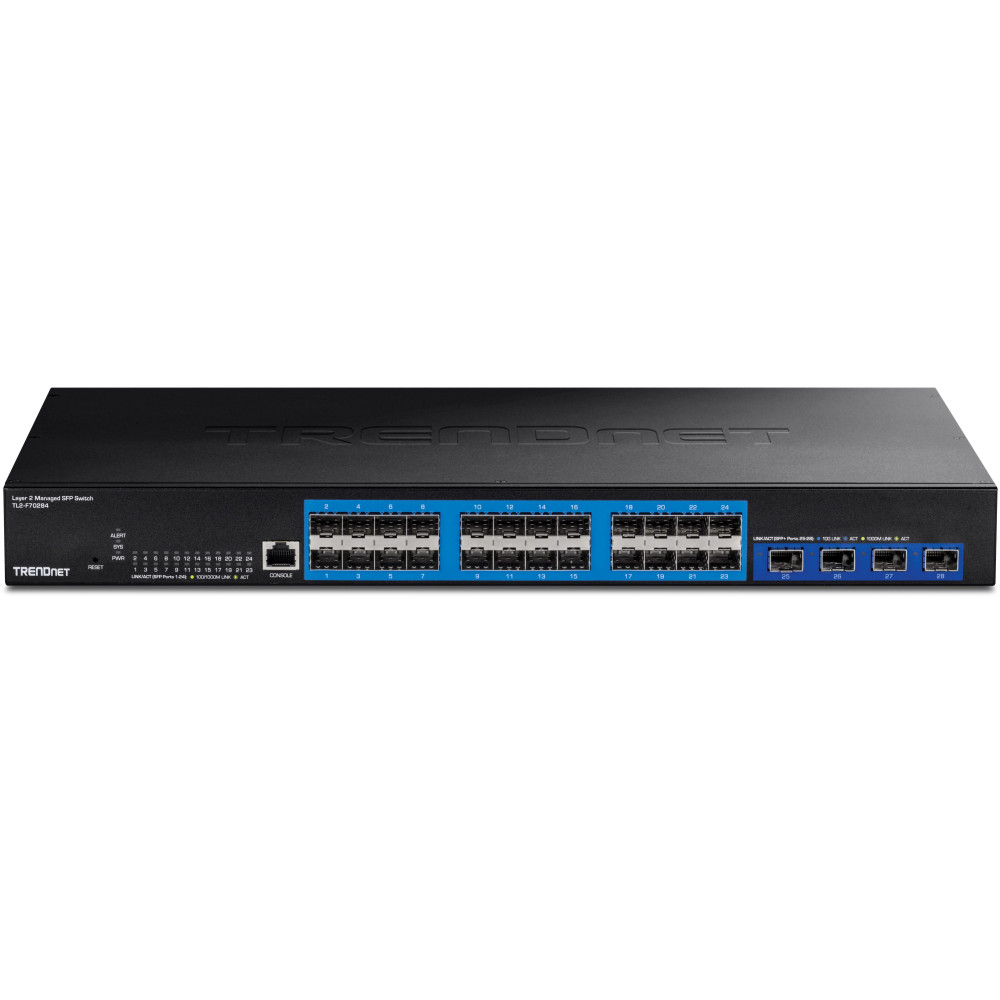

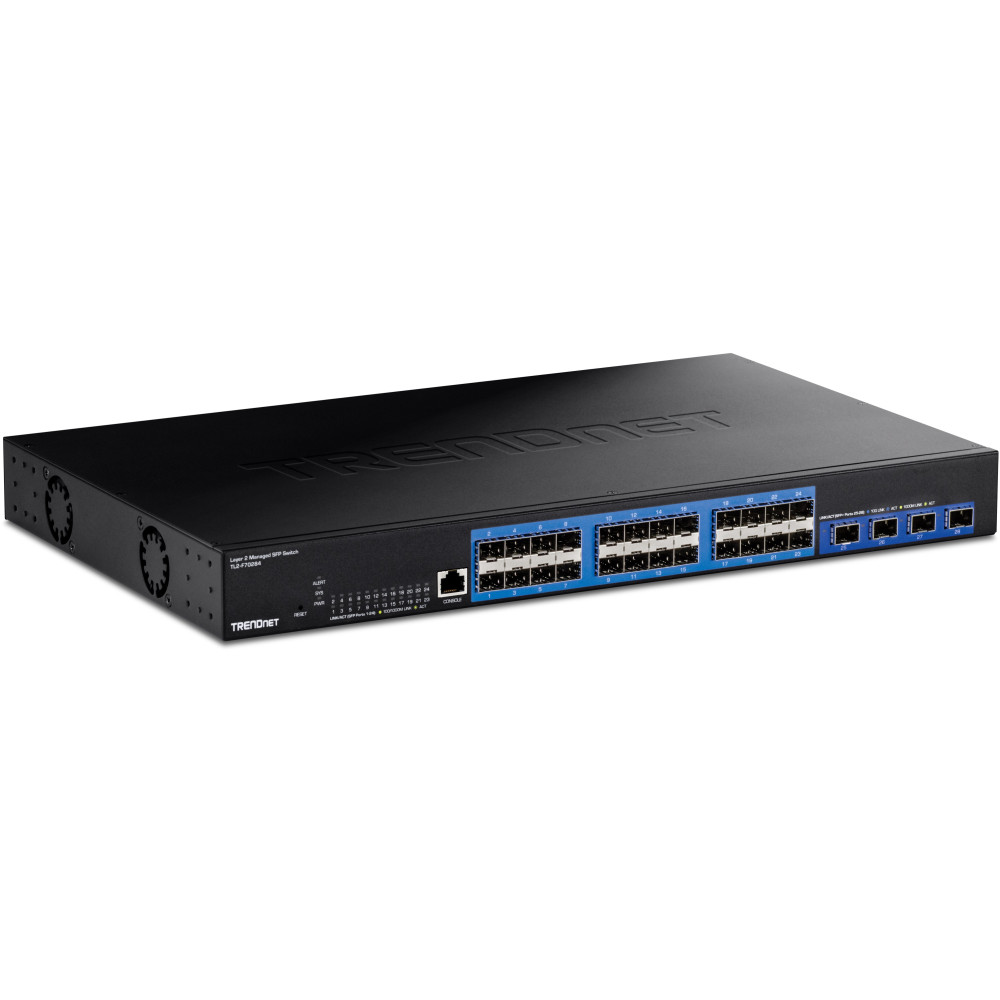

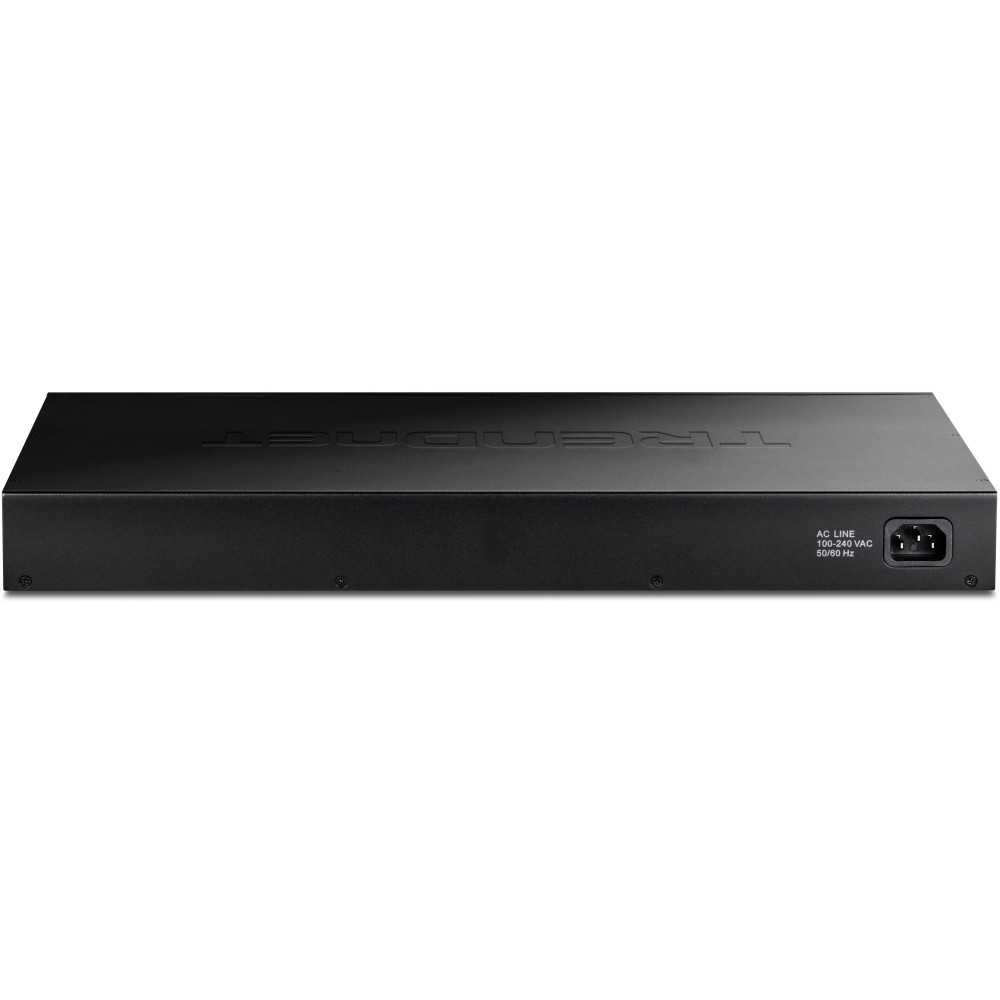

TRENDnet TL2-F70284 28-Port Layer 2 Managed SFP Switch with 10G SFP+ Ports

TRENDnet TL2-F70284 28-Port L2 Managed SFP Switch with Four 10G SFP+ Slots

TRENDnet's TL2-F70284 28-Port Layer 2 Managed SFP Switch with 10G SFP+ ports offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed SFP switch comes with an intuitive web-based interface. Advanced management features on this managed SFP switch include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring; it is fully manageable through the console port, making the TL2-F70284 a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to the SFP switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to minimize network traffic, as well as optimize IP surveillance system performance.

TRENDnet’s TL2-F70284 Layer 2 Managed SFP Switch features four 10GSFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.

Key Features

• 24 x Gigabit SFP ports (100Mbps/1Gbps)
• 4 x 10G SFP+ ports (1Gbps/10Gbps)
• Supports 100Mbps/1Gbps link speeds on Gigabit SFP ports
• Support 1Gbps/10Gbps link speeds on 10G SFP+ ports
• Web-based and CLI management
• Supports IPv6, LACP, VLAN, and IGMP Snooping
• 802.1Q tagged-based VLAN, GVRP, and Voice VLAN support
• QoS with queue scheduling support
• Supports inter-VLAN routing and IPv4/IPv6 static routing
• Smart fans
• 128Gbps switching capacity
• Supports TRENDnet’s RJ-45 copper and fiber SFP modules
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty

In the Box

1. TL2-F70284
2. Quick Installation Guide
3. Power cord
4. RJ-45 to RS-232 console cable (1.5m / 5 ft.)
5. Rackmount kit
