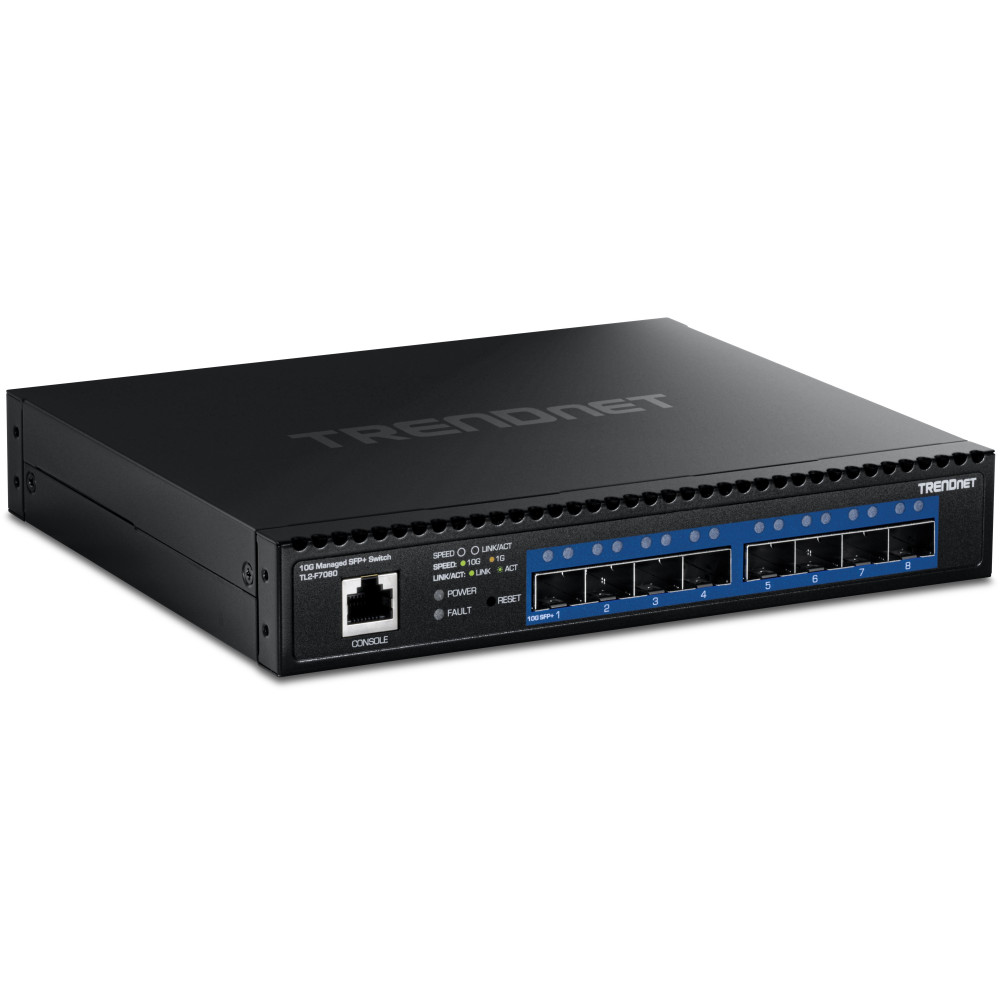

TRENDnet TL2-F7080 8-Port 10G Layer 2 Managed SFP+ Switch

TRENDnet TL2-F7080 8-Port 10G SFP+ Layer 2 Managed Switch, 1Gbps / 10Gbps Link Speeds

TRENDnet's TL2-F7080 8-Port 10G Layer 2 Managed SFP+ Switch offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced management features on this ultra-fast SFP+ switch include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to this switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.

TRENDnet’s 10G SFP+ switch features eight 10GSFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.

Key Features

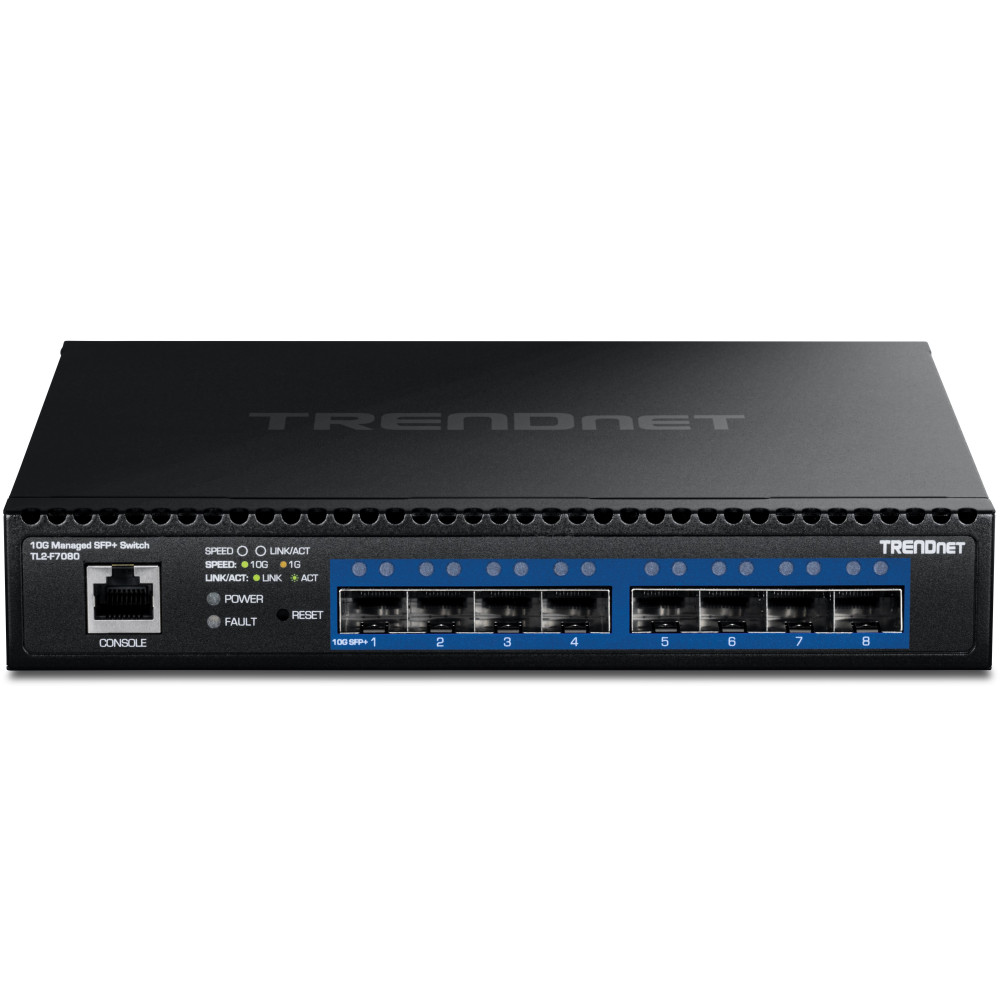

• 8 x 10G SFP+ slots
• Support 1Gbps / 10Gbps link speeds
• Web-based management
• CLI management
• Supports IPv6, LACP, VLAN, and IGMP Snooping
• 802.1Q tagged-based VLAN, GVRP, and Voice VLAN support
• QoS with queue scheduling support
• Supports inter-VLAN routing and IPv4/IPv6 static routing
• 160Gbps switching capacity
• Supports 10GBASE-X / 1000BASE-FX SFP fiber modules
• Smart fan
• Save rack space by mounting 2 x TL2-F7080 into 1U space with the optional ETH-F72 dual mount bracket (see Accessories tab)
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty

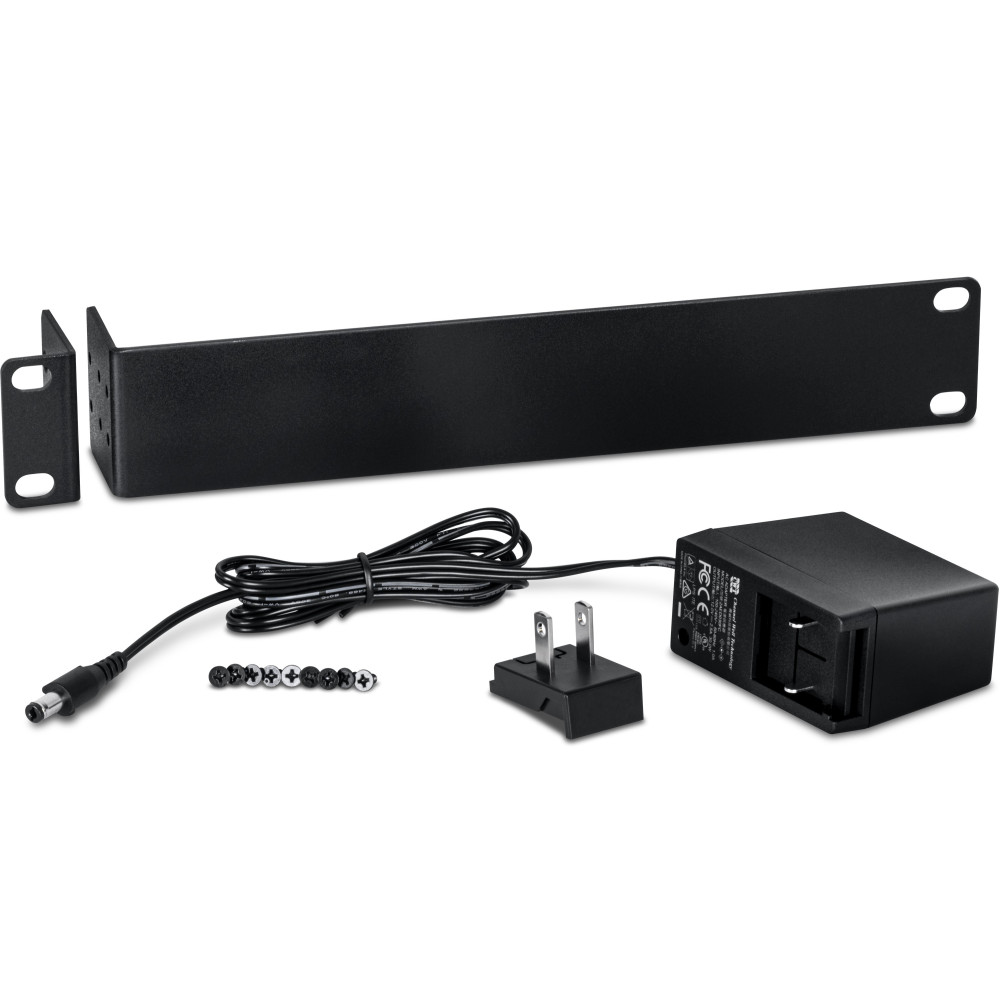

In the Box

1. TL2-F7080
2. Power adapter (12V DC, 2.5A)
3. RJ45 to RS-232 console cable (1.5m / 5 ft.)
4. Rackmount kit
