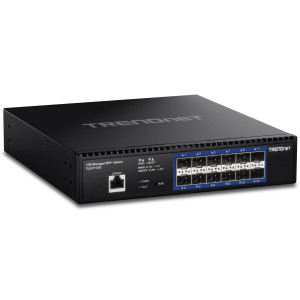

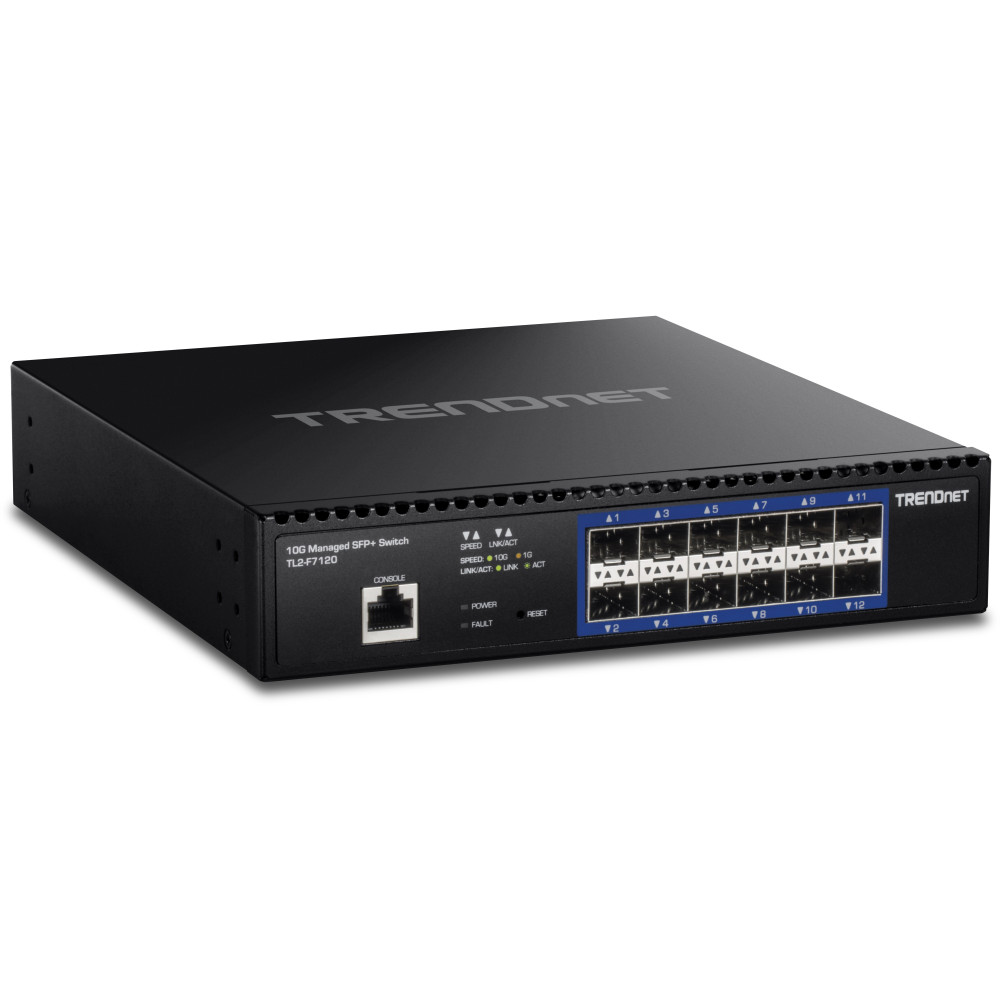

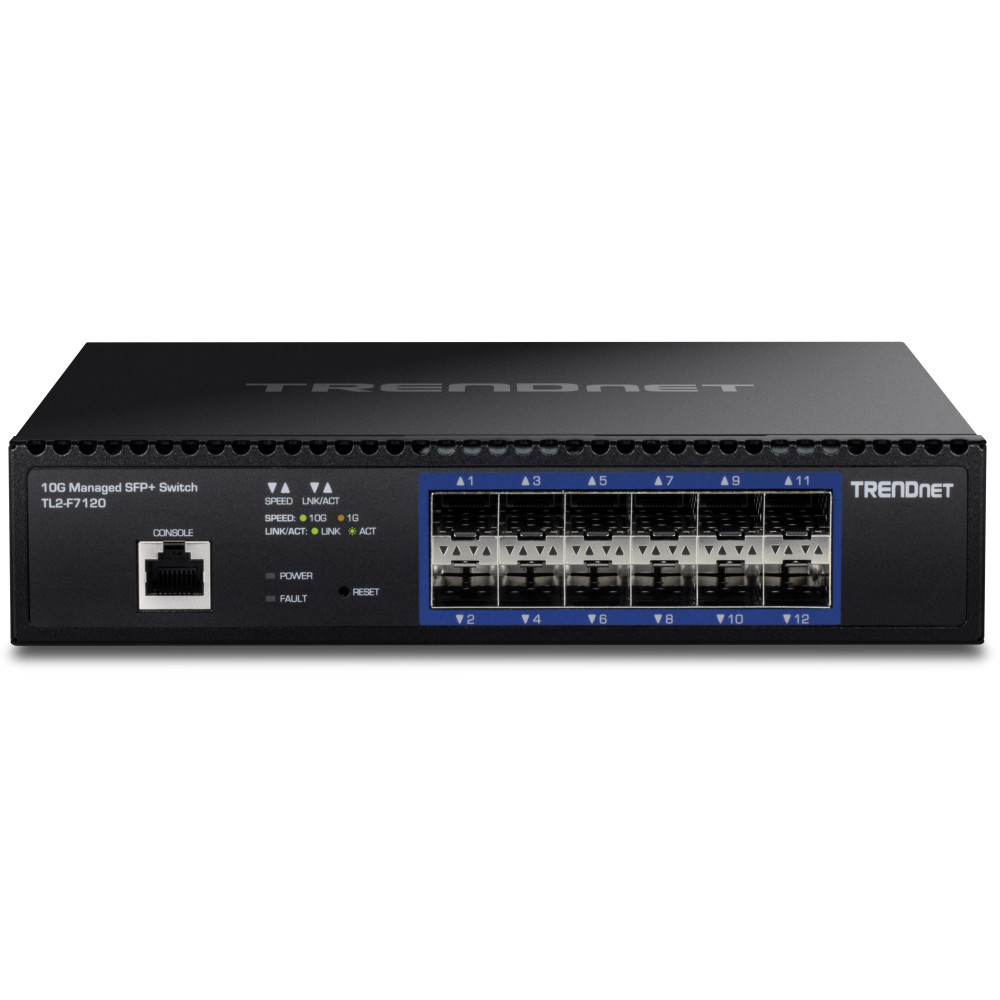

TRENDnet TL2-F7120 12-Port 10G Layer 2 Managed SFP+ Switch

TRENDnet TL2-F7120 12-Port 10G SFP+ Layer 2 Managed Switch, 1Gbps / 10Gbps Link Speeds

TRENDnet's TL2-F7120 12-Port 10G Layer 2 Managed SFP+ Switch offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced management features on this ultra-fast 10G SFP+ switch include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to this 10G managed SFP+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.

TRENDnet’s 10G SFP+ switch features 12 x 10GSFP+ slots for high-speed network uplinks or downlink NAS/access server connections, providing a cost-effective solution in adding 10G link capability to an SMB network.

The TL2-F7120 is one of TRENDnet's most advanced network switches; it’s fully configurable, offers flexible management features, and streamlines the deployment of network configurations to multiple switches. The modular design allows users to save on equipment costs, but still leaves room for growth as needed.

Key Features

• 12 x 10G SFP+ slots
• Support 1Gbps / 10Gbps link speeds
• Web-based management
• CLI management
• Supports IPv6, LACP, VLAN, and IGMP Snooping
• 802.1Q tagged-based VLAN, GVRP, and Voice VLAN support
• QoS with queue scheduling support
• Supports inter-VLAN routing and IPv4/IPv6 static routing
• 240Gbps switching capacity
• Supports 10GBASE-X / 1000BASE-FX SFP fiber modules
• Smart fan
• Save rack space by mounting 2 x TL2-F7120 into 1U space with the optional ETH-F71 dual mount bracket (see Accessories tab)
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty

TL2-F7120 Overview

In the Box

1. TL2-F7120
2. Quick Installation Guide
3. Power cord
4. RJ-45 to RS-232 console cable (1.5m / 5 ft.)
5. Rackmount kit
