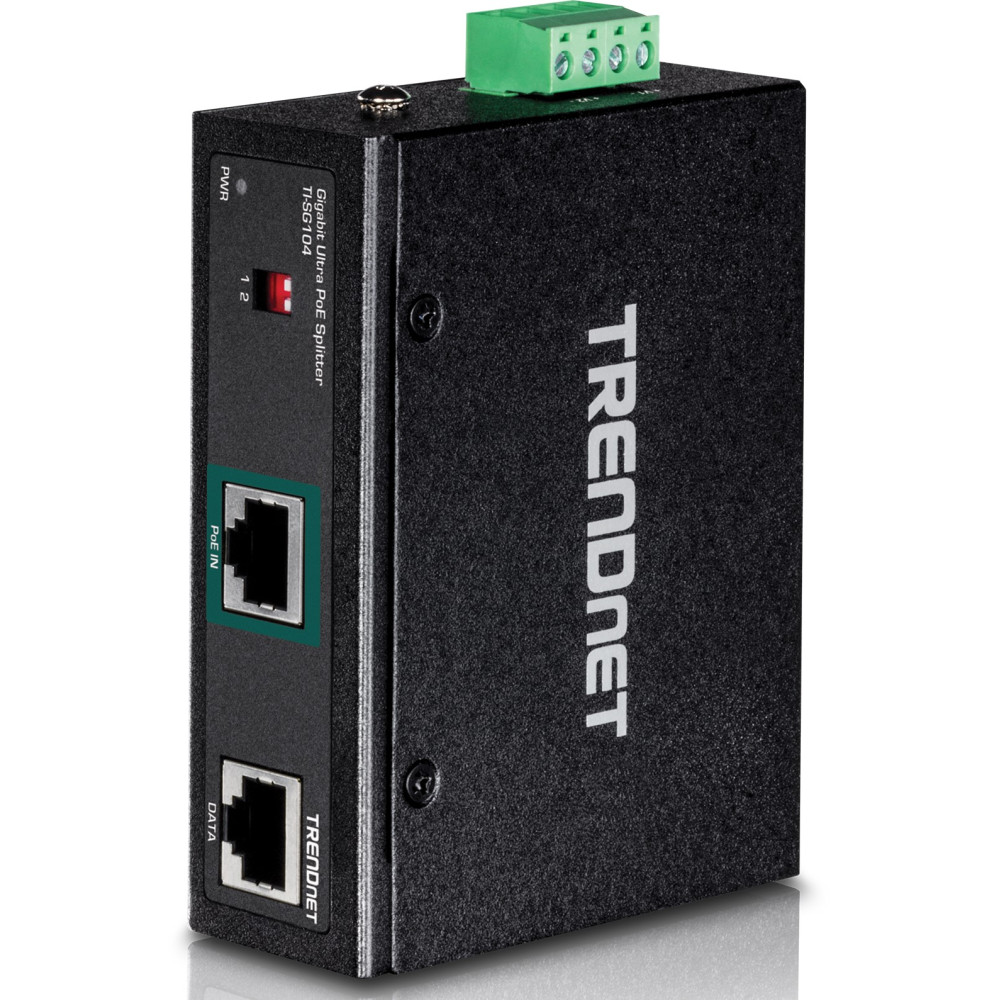

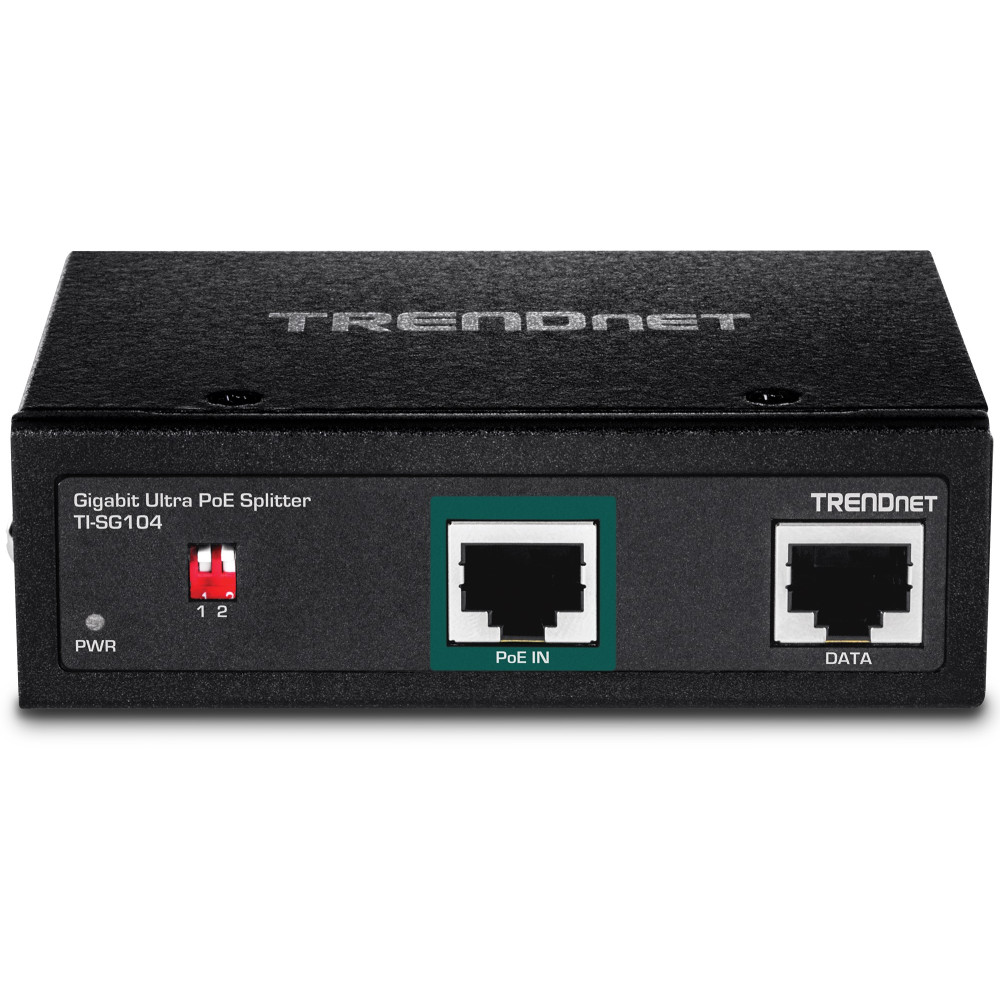

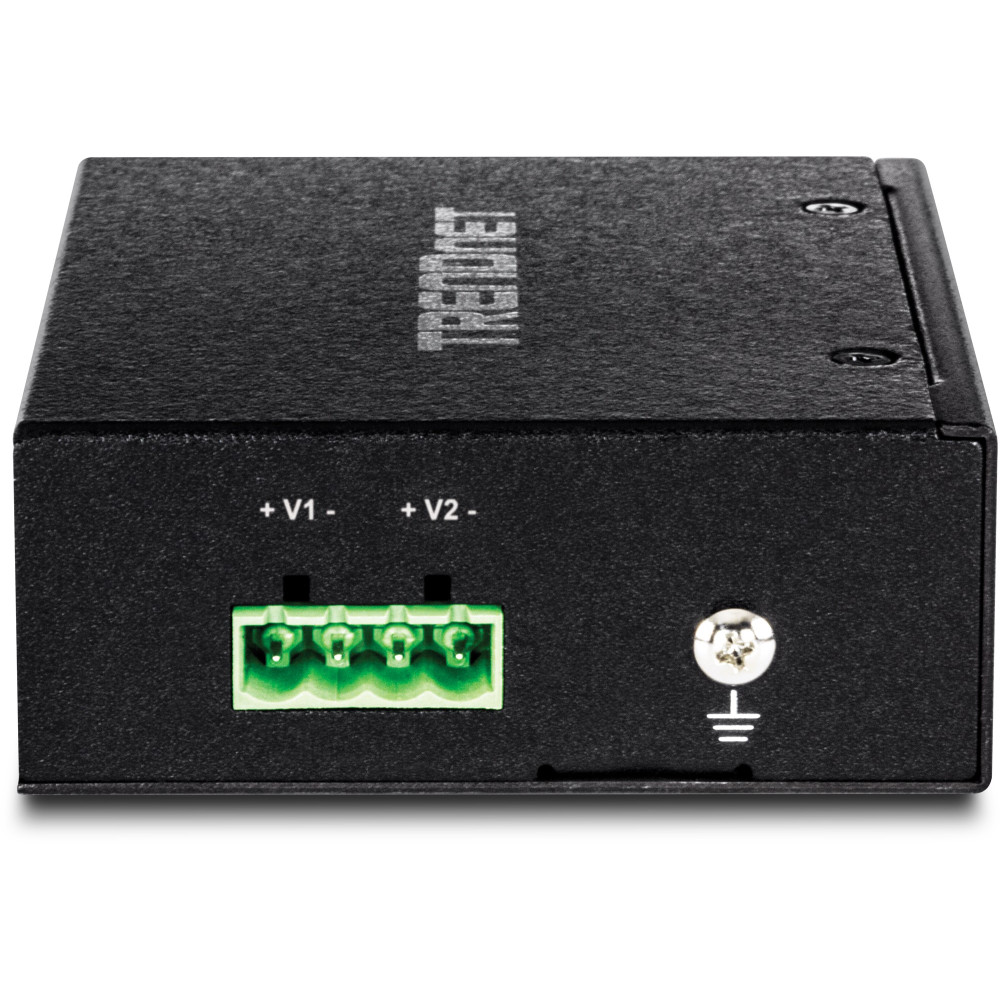

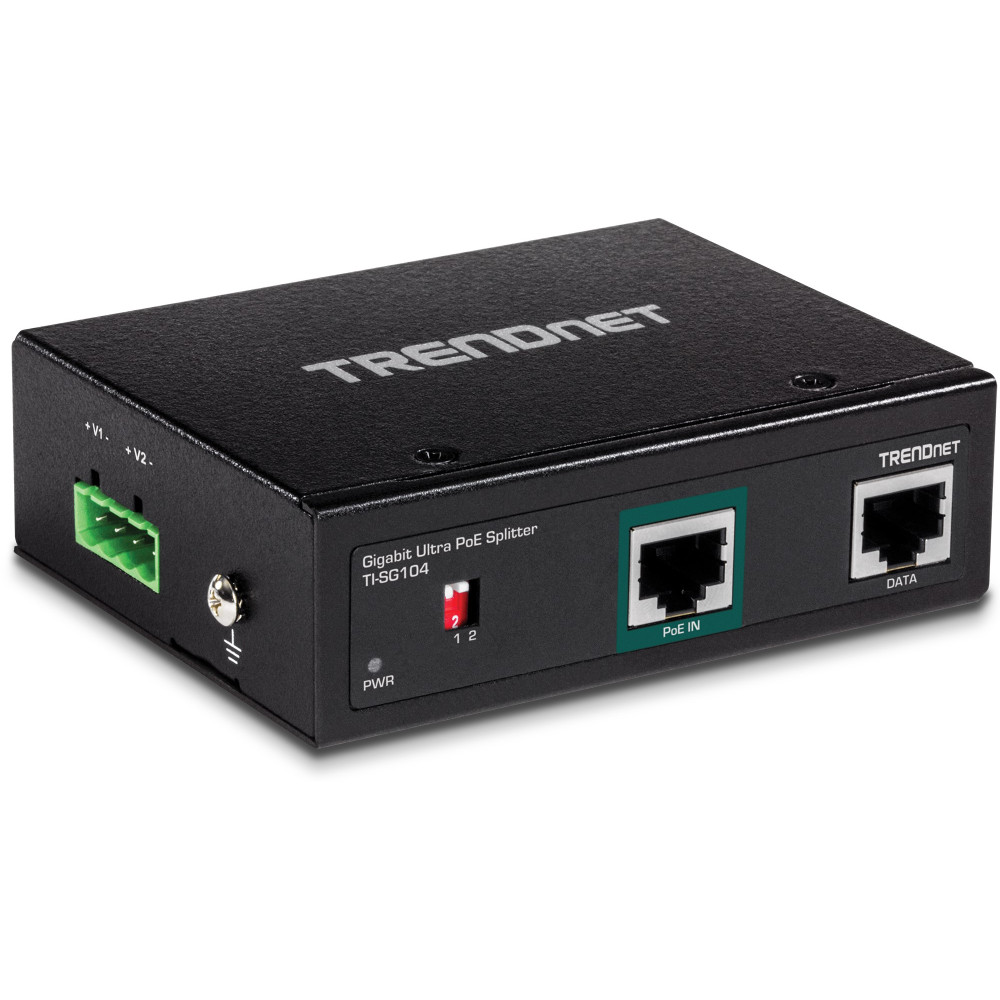

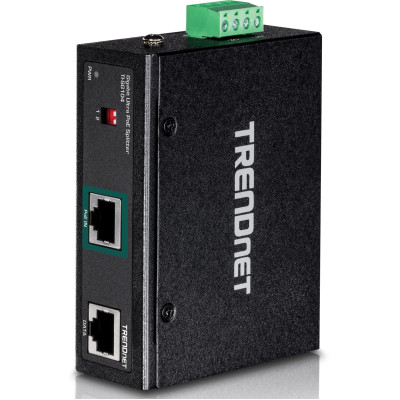

TRENDnet's TI-SG104 Industrial Gigabit UPoE PoE Splitter networks a non-PoE device by using a Gigabit Ultra PoE connection and splitting it into separate power and gigabit data sources. The industrial gigabit UPoE splitter can power to up to two devices from a single UPoE source. A convenient DIP switch adjusts output power to 12V, 16V, 24V, or 48V in order to match power requirements for non-PoE devices. The UPoE splitter's dual DC power output provides greater device compatibility.
| Technology | |
| Category | PoE Injector & Splitter |
| Total Ports | 2 |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3af, IEEE 802.3at, IEEE 802.3bt compatible |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex) |
| Power | |
| Power Consumption | 7 W (splitter) |
| Output Voltage | DC Output: 48V (1.25A), 24V (2.3A), 16V (2.3A), 12V (2.3A) |
| Mechanical | |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Weight | 172g (6 oz.) |
| Dimensions | 104 x 82 x 32mm (4.1 x 3.2 x 1.2 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (-40° - 167° F) |
| Humidity | Max 95% non-condensing |
| Certifications | FCC, CE |
| Warranty | 3 Year |
