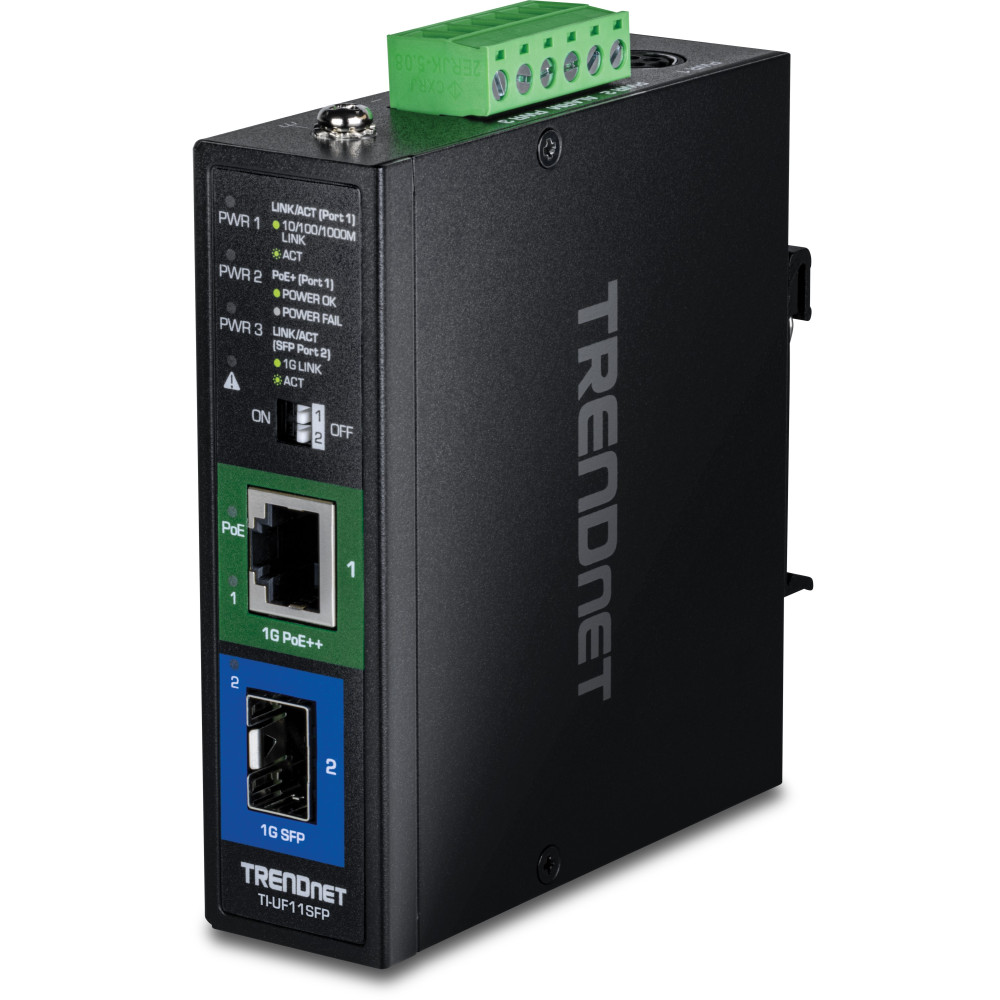

TRENDnet TI-UF11SFP Industrial SFP to Gigabit PoE++ Media Converter (95W)

New TRENDnet TI-UF11SFP Industrial SFP to Gigabit PoE++ Media Converter, IP50, DIN rail or wall mount, Multi or single mode fiber
Model: TI-UF11SFP
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TI-UF11SFP Industrial SFP to Gigabit PoE++ Media Converter, Single or Multi-Mode Fiber

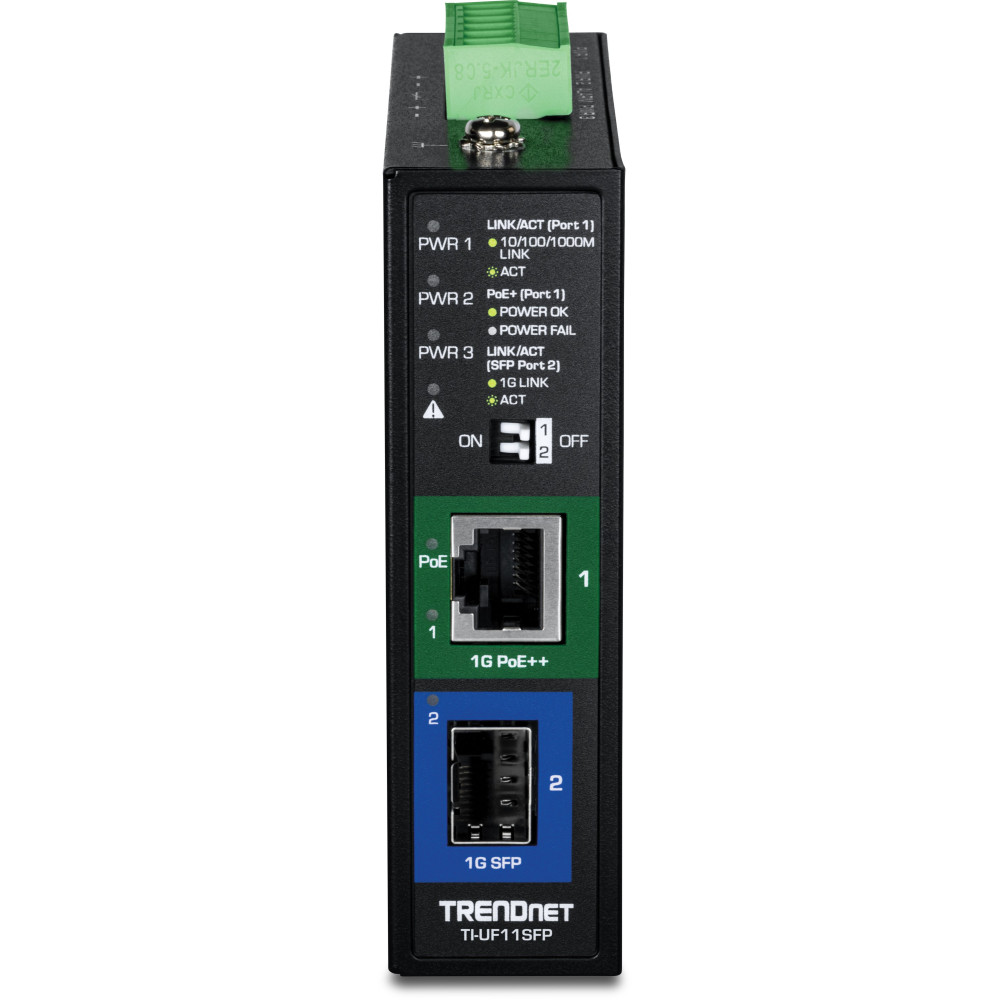

TRENDnet’s TI-UF11SFP Industrial SFP to Gigabit PoE++ Media Converter (95W) converts a long-distance fiber connection to a copper connection while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras, VoIP phones, and wireless access points. This PoE++ media converter is IP50 rated with hardened components for extreme industrial environments and an operating temperature range of -40°- 75° C (-40° - 167° F). The front panel DIP switches control Link Fault Pass Through (LFPT), and setting the device to switch/converter mode. The industrial PoE++ media converter’s rugged design also provides protection from shock, freefall, and vibration.

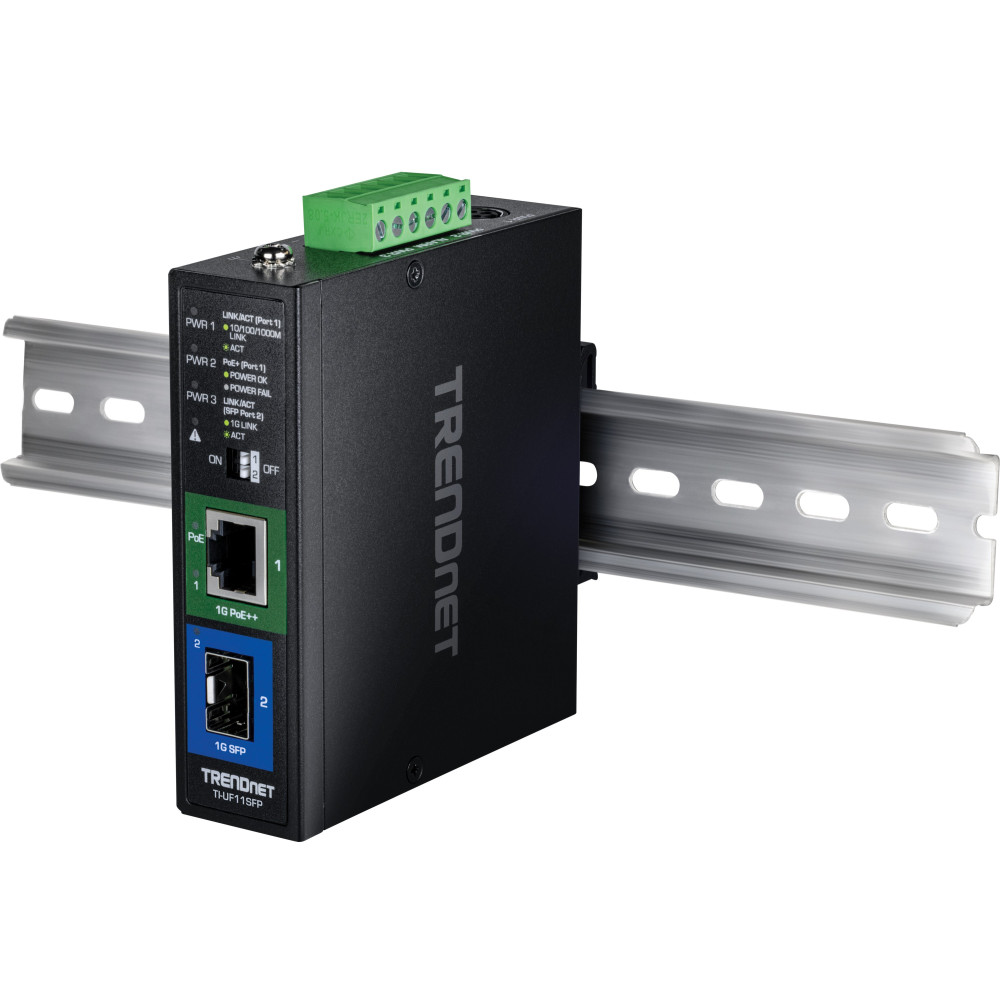

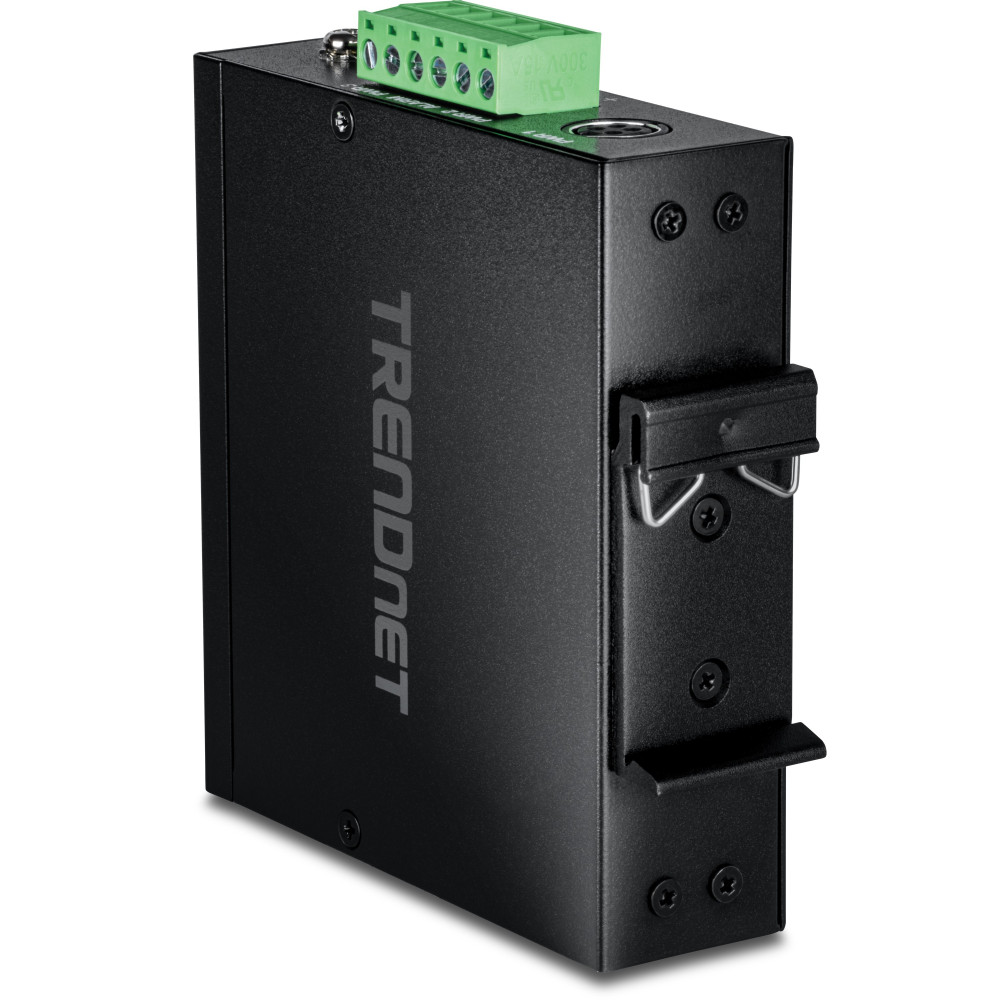

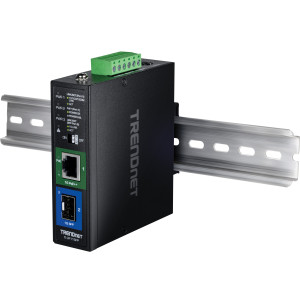

The rugged media converter includes DIN-Rail mount and wall mount hardware.

Key Features

  • 1 x Gigabit SFP port
  • 1 x Gigabit PoE++ RJ45 port
  • Provides up to 95W for PoE, PoE+, and PoE++ compliant devices
  • SFP port accommodates Multi or Single Mode fiber modules
  • Up to 80km fiber networking distances with the TEG-MGBS80 SFP module
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • Overload current protection
  • 6kV RJ45 surge protection
  • Includes DIN-Rail and wall mounts
  • Power supply sold separately (model: TI-S15052)
  • NDAA / TAA compliant (U.S. and Canada only)
  • 3 year warranty

In the Box

  1. TI-UF11SFP
  2. Removable terminal block
  3. DIN-Rail / wall mount kit
Technology
CategoryMedia Converter
Media Converter TypeFiber to Gigabit Ethernet
Total Ports2
Ethernet Ports1 Gigabit (10/100/1000TX)
Fiber InterfaceSFP Slot
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Jumbo Frame Support16 KB
Power
Power Consumption3.1 W

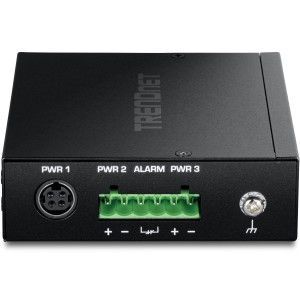

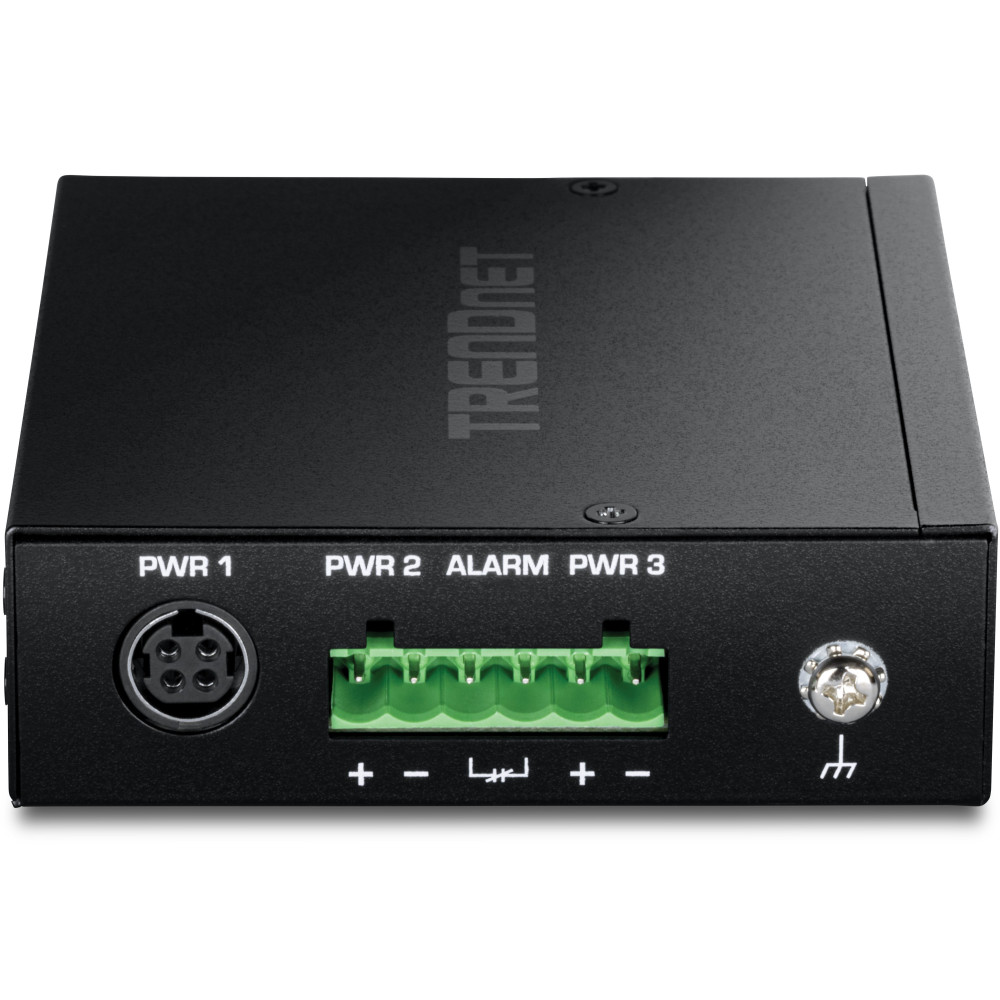

Connection6-pin terminal block
Mechanical
EnclosureIP50 Metal case
MountingDIN Rail, Wall Mount
Shock / VibrationIEC 60068-2-27, IEC 60068-2-31, IEC 60068-2-6
Weight306g (10.79 oz.)
Dimensions99 x 90 x 28mm (3.9 x 3.5 x 1.1 in.)
Ratings
Operating Temperature-40° - 75° C (-40° - 167° F)
Humidity95% non-condensing
RoHS CompliantYes
CertificationsCE, FCC, LVD, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
MTBF2,320,000 hours @ 25° C
Warranty3 year
