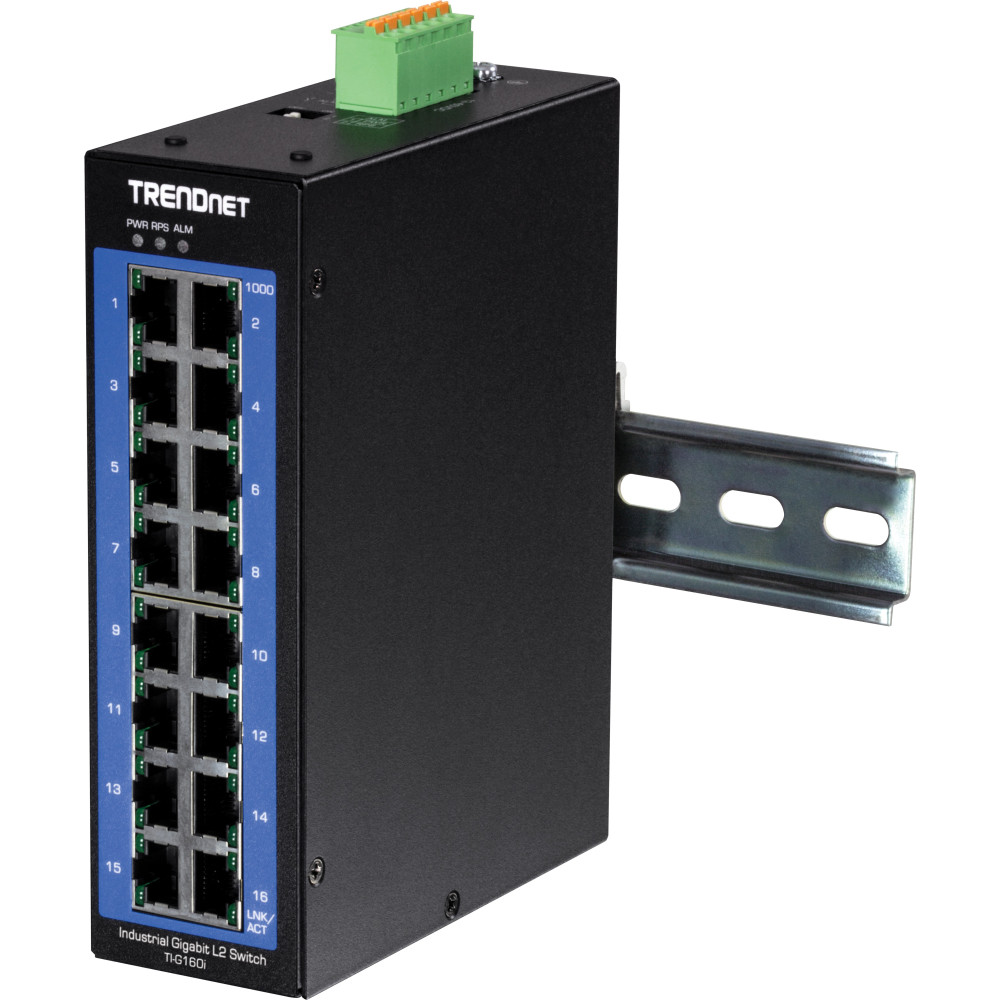

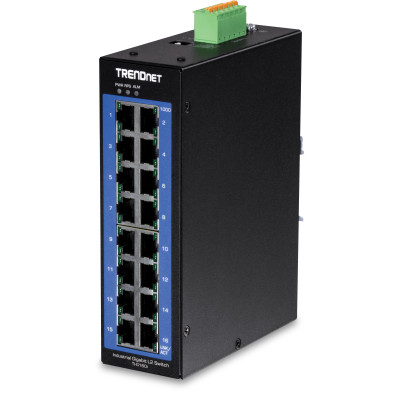

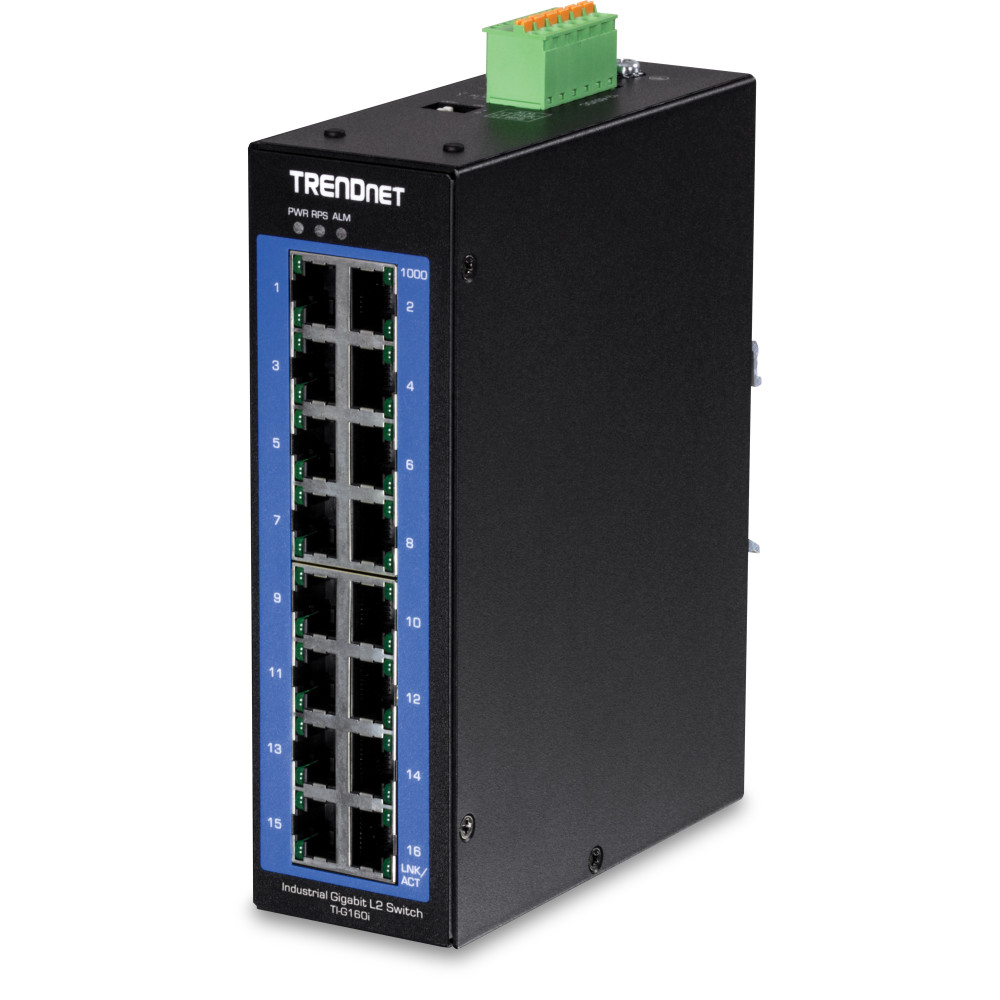

TRENDnet's TI-160i 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch delivers advanced management features with a 32Gbps switching capacity. Users are able to connect sixteen devices to the switch for high speed gigabit network connections. The switch is equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.
TRENDnet Hive is a cloud management platform that provides a centralized cloud-based, remote network management solution for TRENDnet network devices. The TRENDnet Hive cloud networking solution offers better overall visibility of your network devices from a single intuitive and easy-to-use cloud interface. Advanced features supported with the Hive cloud networking solution include event and device hardware monitoring, traffic statistics, notification alerts, and troubleshooting tools. With the TRENDnet Hive network cloud manager, network device provisioning can be more easily accomplished through scheduled or immediate deployment of batch firmware and configuration updates. Reduce the time, complexity, and management costs of your network with the reliable TRENDnet Hive cloud networking solution.
Easily manage and configure the TI-G160i Managed Switch remotely by updating the switch to the latest firmware for access to TRENDnet Hive.This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service. With the purchase of each compatible device the first year of TRENDnet Hive for 'Consumers and End Users' is free or you can upgrade to TRENDnet Hive Pro for 'Integrators and Partners' for a nominal annual fee.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 16 |
| Ethernet Ports | 16 Gigabit (10/100/1000TX |
| Standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex) |
| Jumbo Frame Support | 10KB |
| MAC Table Size | 8K |
| Power | |
| Power Consumption | 12 W |

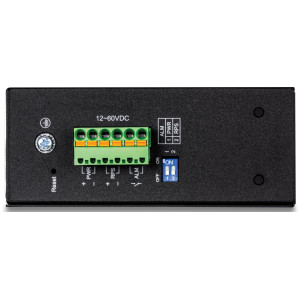

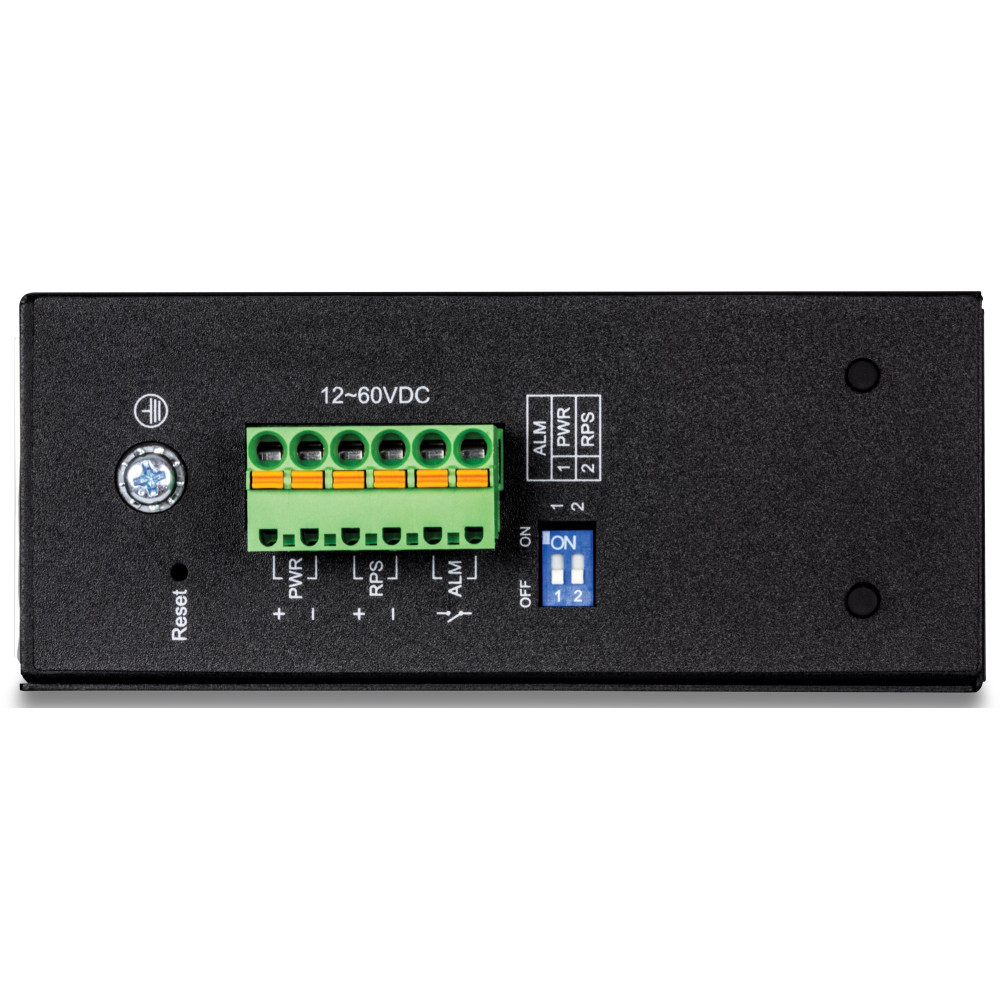

| Connection | 6-pin terminal block |
| Input Voltage | 12-60V DC |
| Surge Protection | 6kV |
| Overload Protection | Yes |
| Mechanical | |

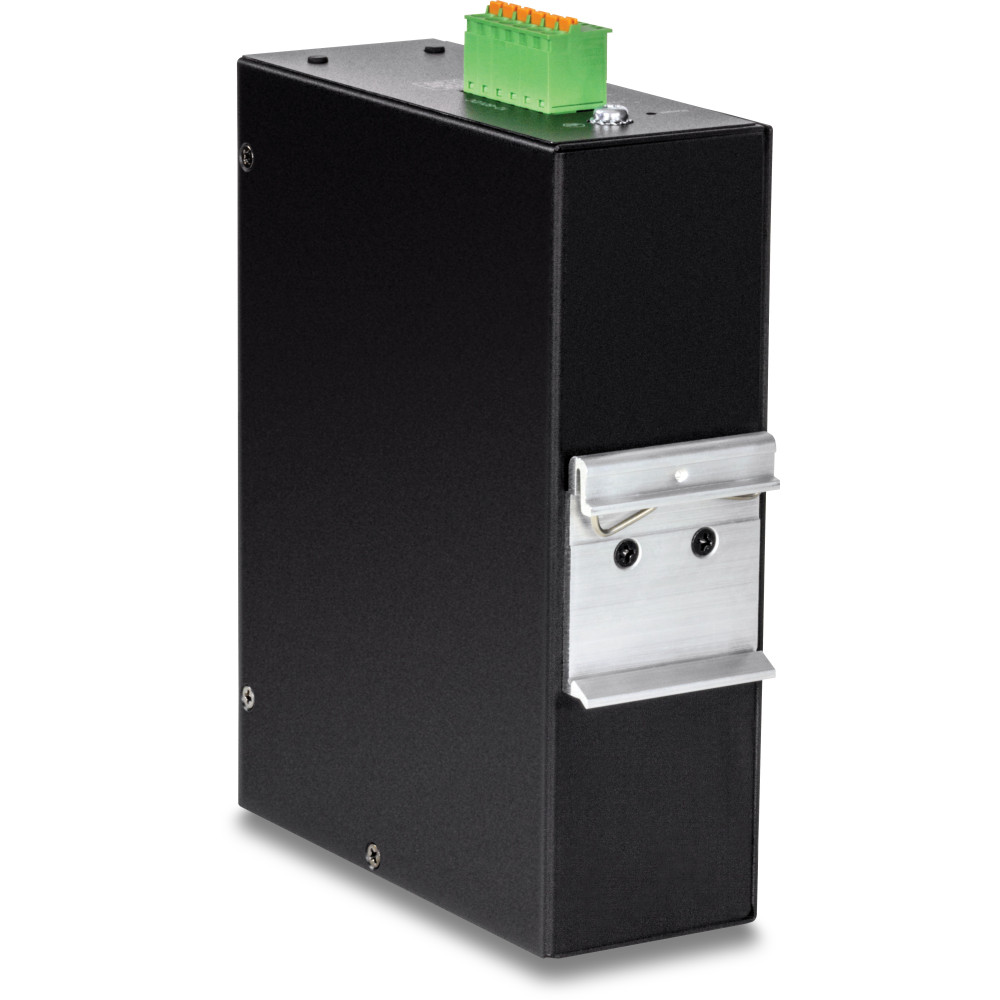

| Mounting | DIN-rail |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Material | IP40 metal case |
| Weight | 884g (1.95 lbs.) |
| Dimensions | 160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, FCC |
| MTBF | 1,072,674 hours @ 25° C, 177,143 hours @ 75° C |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet Hive User's Guide | 2.45MB |
| TRENDnet TI-642i / TI-G160i / TI-G102i Quick Installation Guide | 4.3MB |
| TRENDnet Managed Industrial L2 Switch Series User's Guide | 4.99MB |
| TRENDnet TI-160i Datasheet | 1.84MB |
