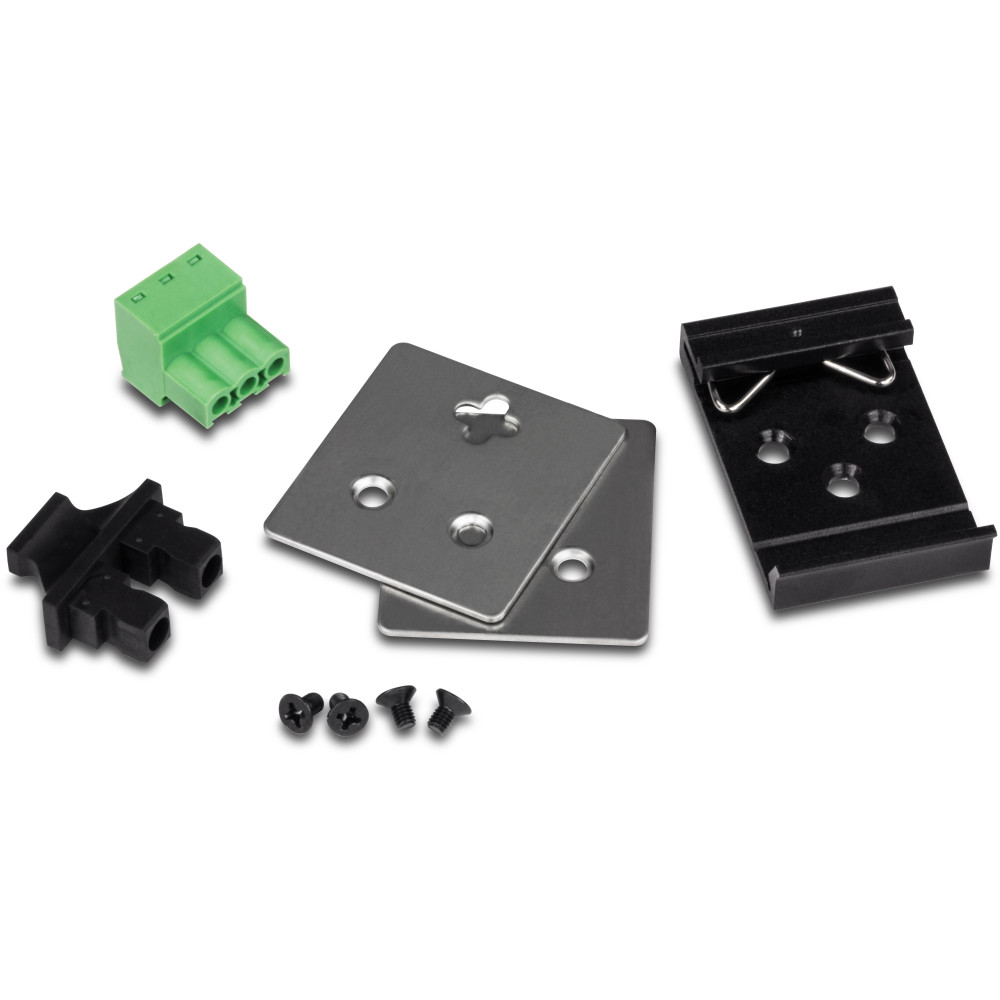

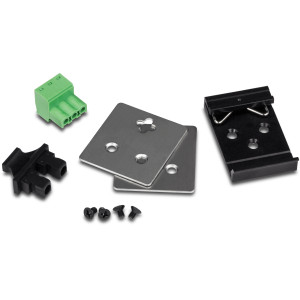

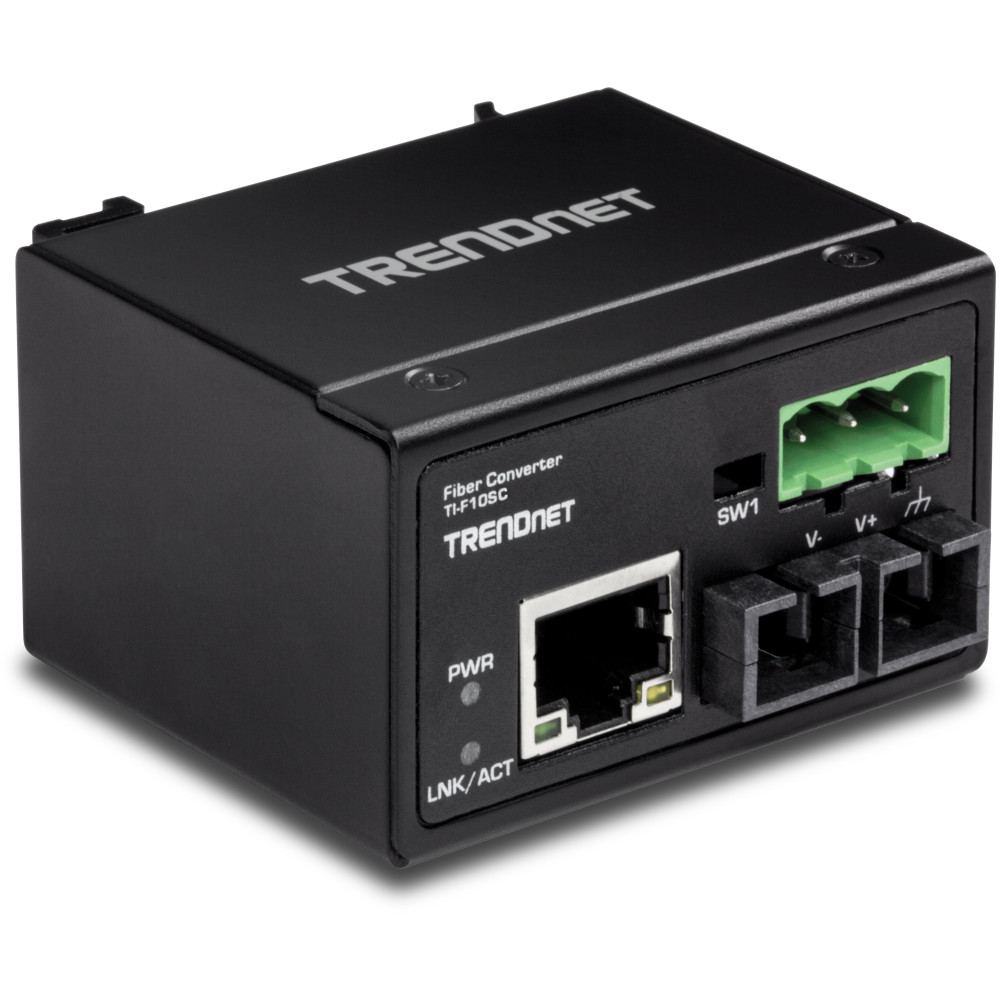

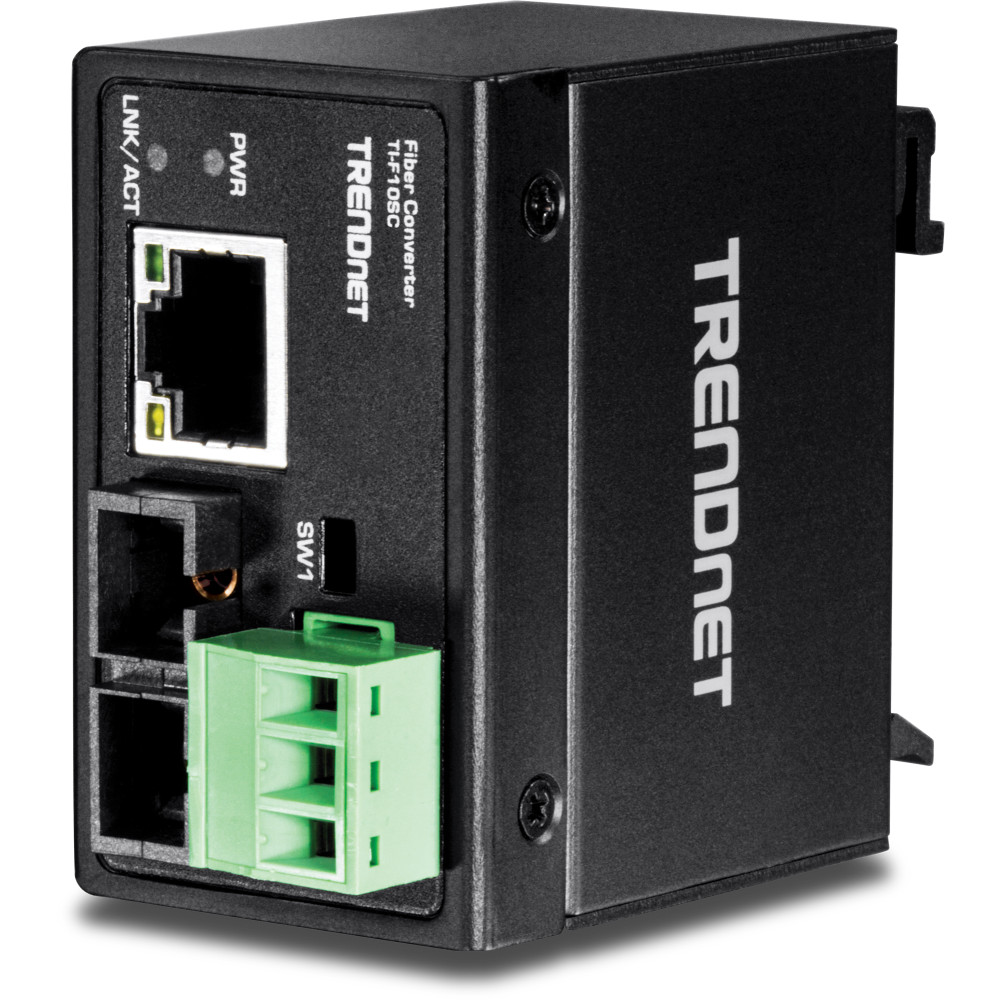

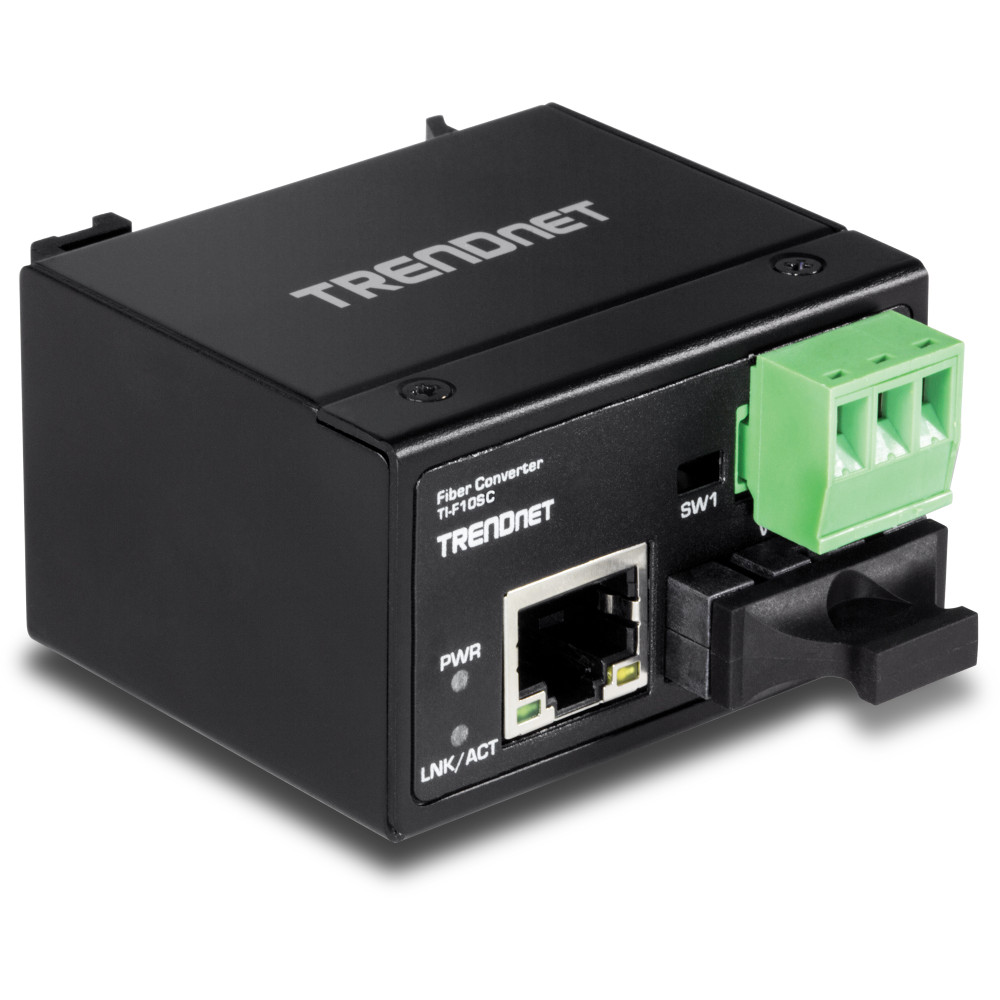

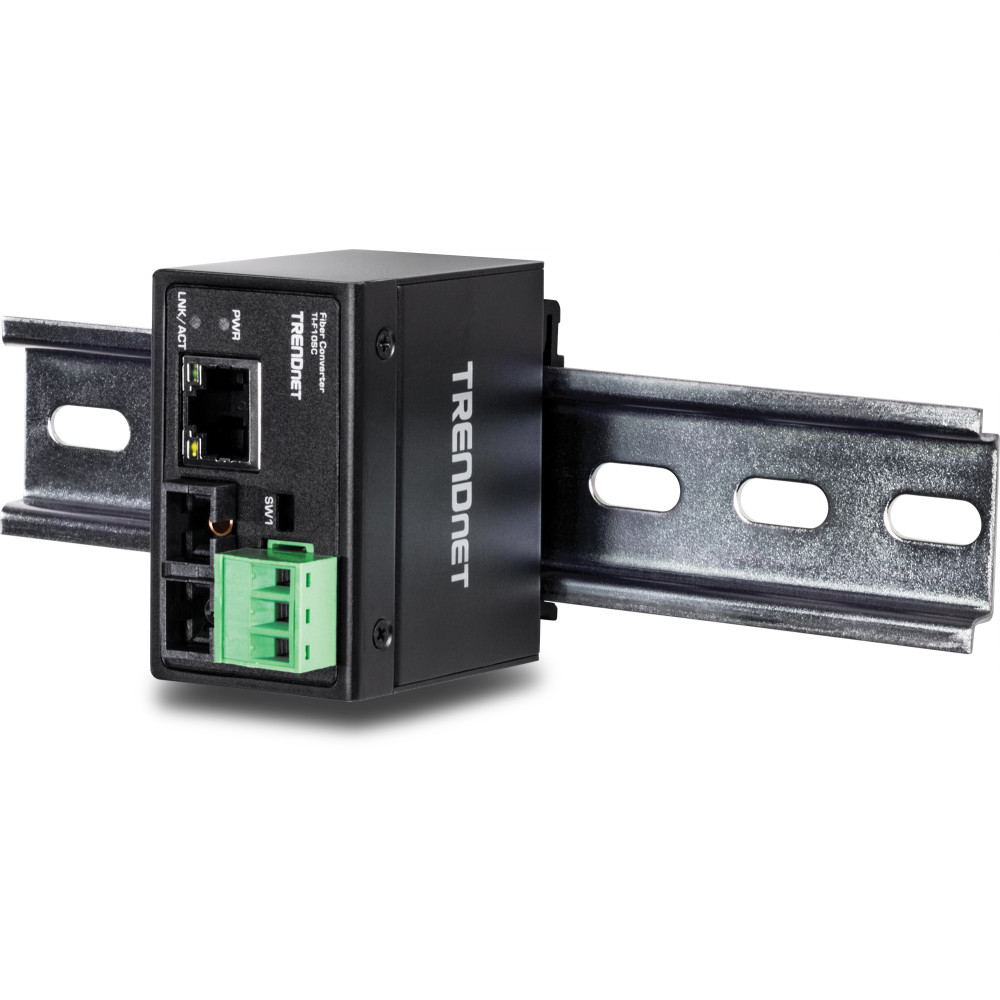

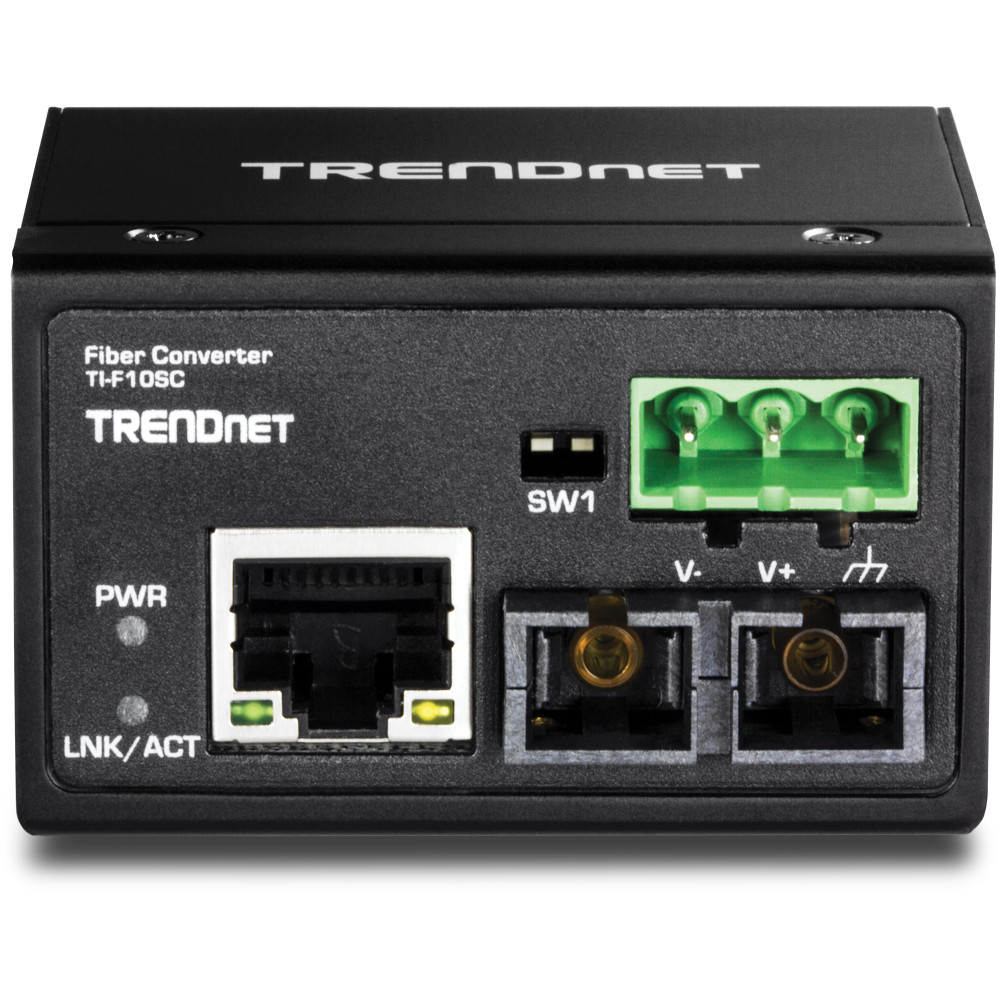

TRENDnet's TI-F10SC is a compact IP40 rated 100Base-FX fiber converter with hardened components rated for extreme industrial environments. It accommodates building-to-building or long distance networking with 100Base-FX Multi-Mode fiber over distances of up to 2 km (1.2 miles). Both DIN-rail and wall mount hardware is included. Power supply sold separately (MDR-60-24).
| Technology | |
| Category | Media Converter |
| Media Converter Type | Fiber to Fast Ethernet |
| Total Ports | 2 |
| Ethernet Ports | 1 Fast Ethernet (10/100TX) |
| Fiber Ports | 1 x 100Base-FX port |
| Fiber Interface | SC Connector |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Power | |
| Power Consumption | 1.92 W |
| Input Voltage | 12 to 60 VDC |
| Mechanical | |
| Enclosure | IP40 protection, metal |
| Mounting | DIN-rail, Wall mount |
| Shock / Vibration | IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| Weight | 88 g (3.1 oz.) |
| Dimensions | 60 x 50 x 35 mm (2.36 x 2 x 1.4 in.) |
| Ratings | |
| Operating Temperature | - 40 to 75 °C (-40 to 167 °F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TI-F10SC Datasheet | 1019.01KB |
| TRENDnet TI-F10SC/TI-F10S30 Quick Installation Guide | 2.84MB |
| Image | Model | Product Name | Price | |
 | MDR-60 | MEAN WELL MDR-60 (-12,-24,-48) 60-Watt Miniature Power Supply 12V, 24V or 48V | $70.00 |
