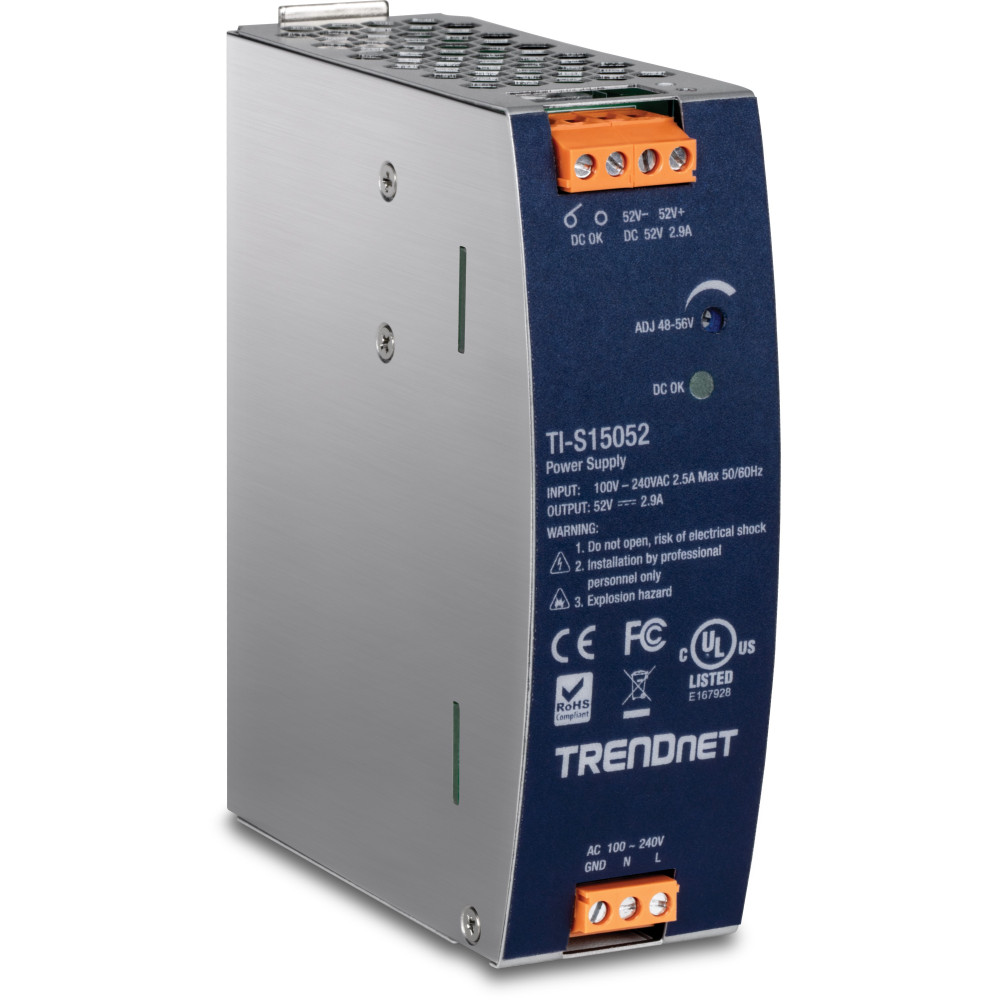

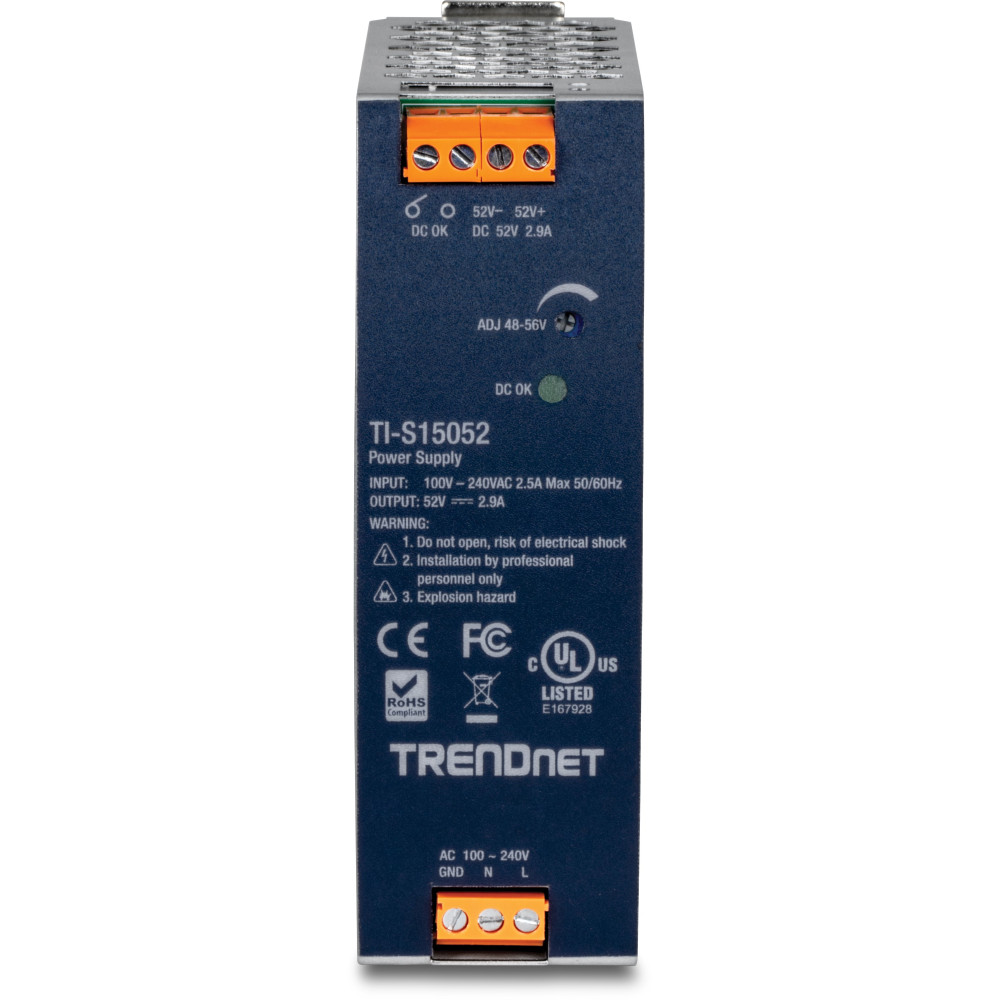

TRENDnet TI-S15052 150-Watt AC to DC DIN-Rail Power Supply, 52V Output

New TRENDnet TI-S15052 150W Industrial DIN Rail Power Supply, PFC, 52V Output
Model: TI-S15052
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TI-S15052 150-Watt DIN-RAIL AC to DC Power Supply with PFC, 48-56V Output

TRENDnet’s TI-S15052 AC to DC Industrial DIN-Rail Power Supply with PFC Function supplies up to 150W (52V DC, 2.89A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This DIN-Rail power supply comes with active PFC, an integrated DIN-rail mount, overload current protection.

Key Features

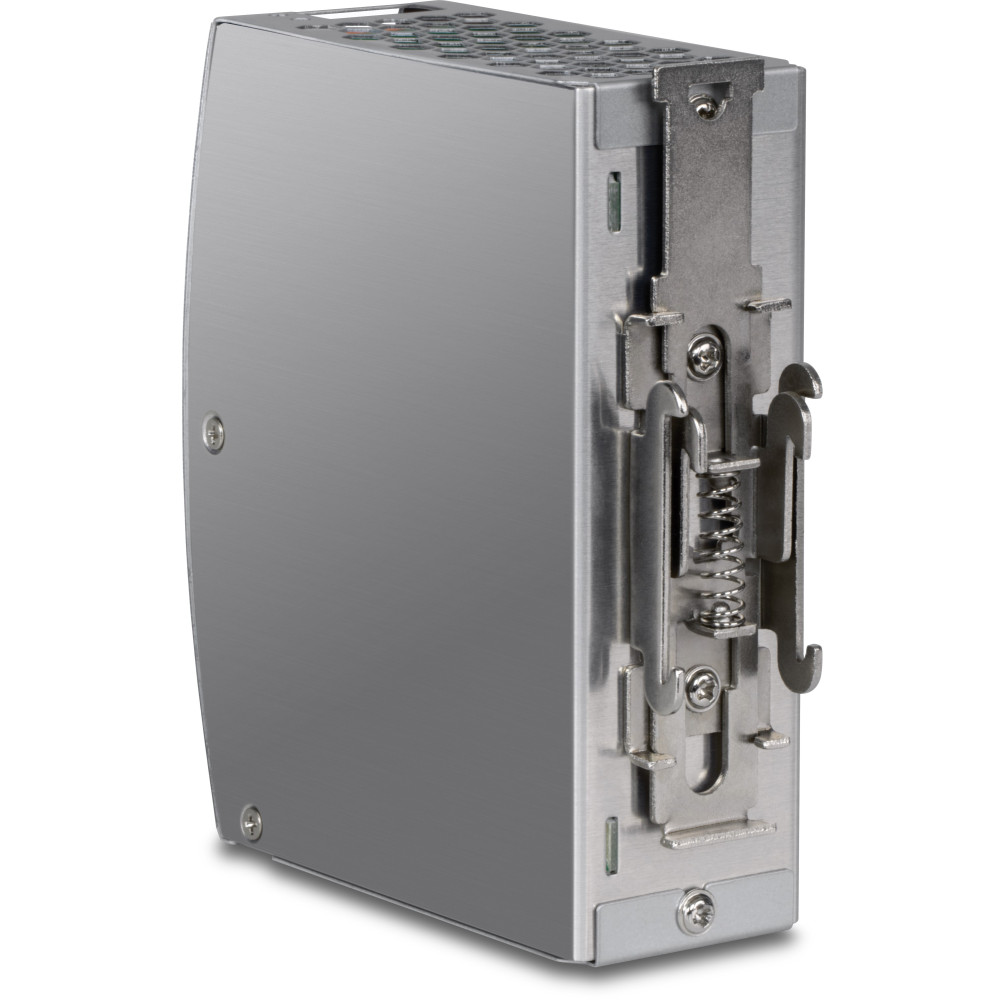

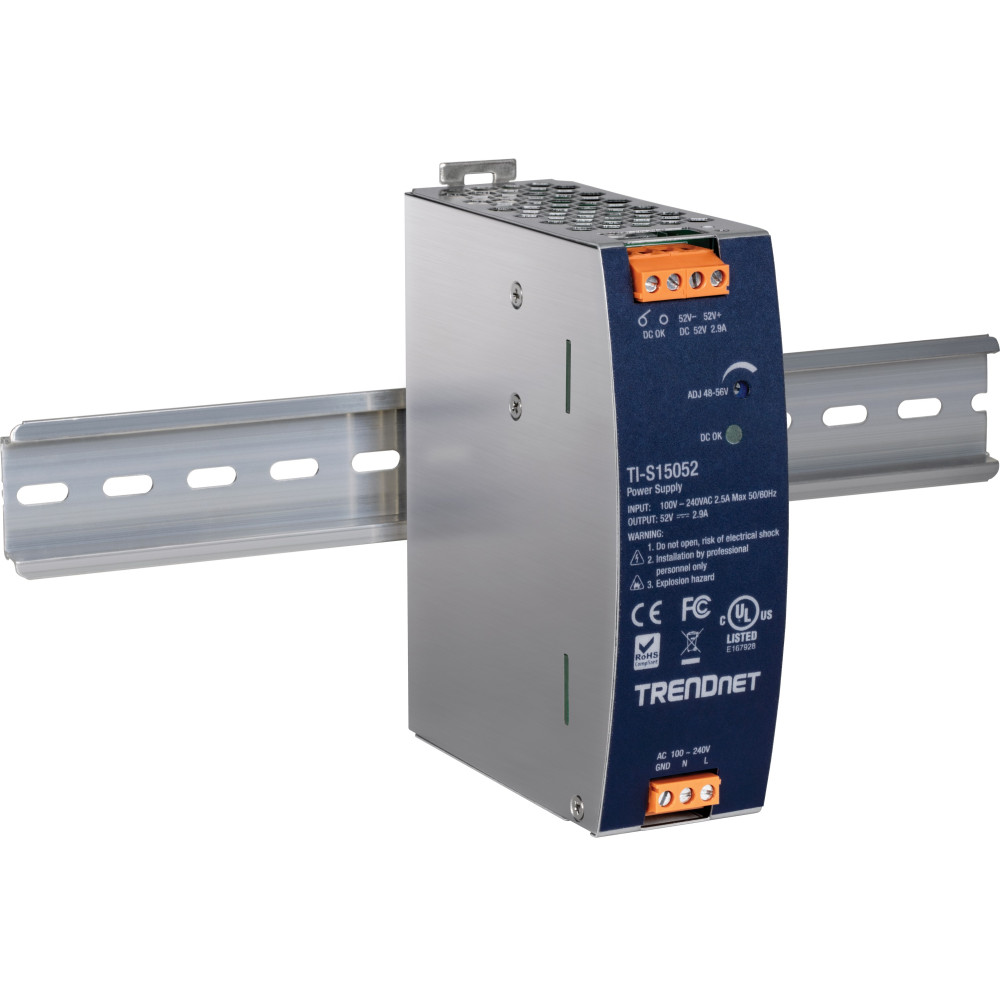

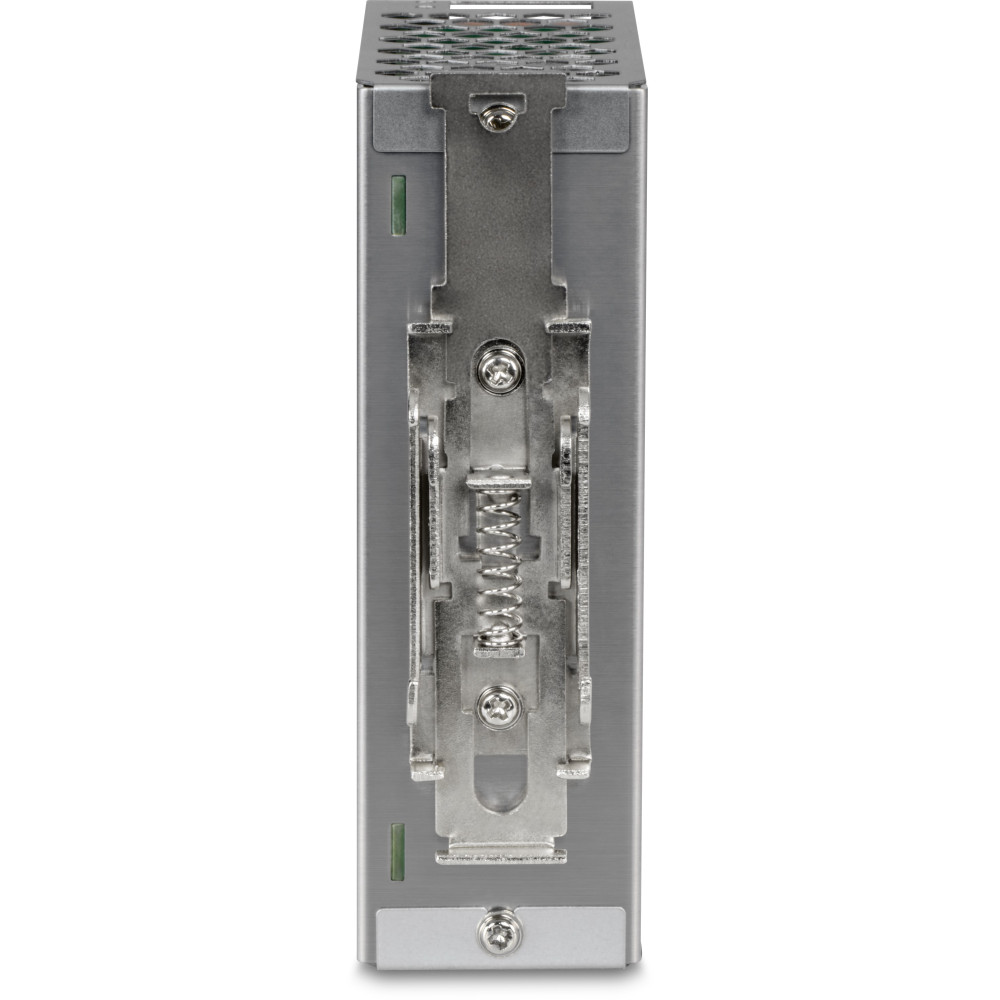

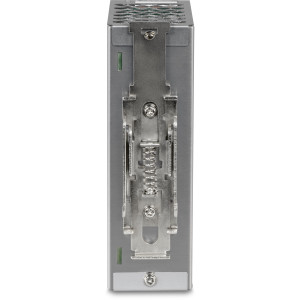

  • Industrial power supply with integrated DIN-Rail mount
  • Provides up to 150W of power (52V DC, 2.89A)
  • Supported output voltage 48 - 56V DC
  • High efficiency 93% and low power dissipation
  • 150% peak load capability
  • Built-in active Power Factor Controller (PF > 0.96)
  • Cooling by natural air convection
  • Protections: Overload, short circuit, over power, over voltage, over current, over temperature
  • UL 508 approved
  • Built-in DC OK relay contact
  • -25° - 70° C (-13° - 158° F) wide operating temperature range
  • NDAA / TAA compliant (U.S. and Canada only)
  • 1-year warranty

NOTE: A power cord is not included and sold separately. Order the AC power cord at PWRCORD-NOPLUG (or see Product Accessories tab). The PWRCORD-NOPLUG has 3 stripped 18 AWG wires that screw into the TI-S15052 terminal blocks.

Technology
CategoryPower Supply
Power
Rated Power150 Watts
Output Voltage52 VDC
Input Voltage90 to 264 VAC | 127 to 370 VDC
Overload ProtectionYes
Mechanical
Weight542g (1.19 lb.)
Dimensions40 x 125.2 x 102mm (1.6 x 4.9 x 4 in.)
Ratings
Operating Temperature-25° - 70° C (-13° - 158° F)
Humidity95% non-condensing
Safety StandardsUL508
MTBF200,000 hours @ 25° C
Warranty1 Year
Download NameFile Size
TRENDnet TI-S15052 Datasheet694.28KB
