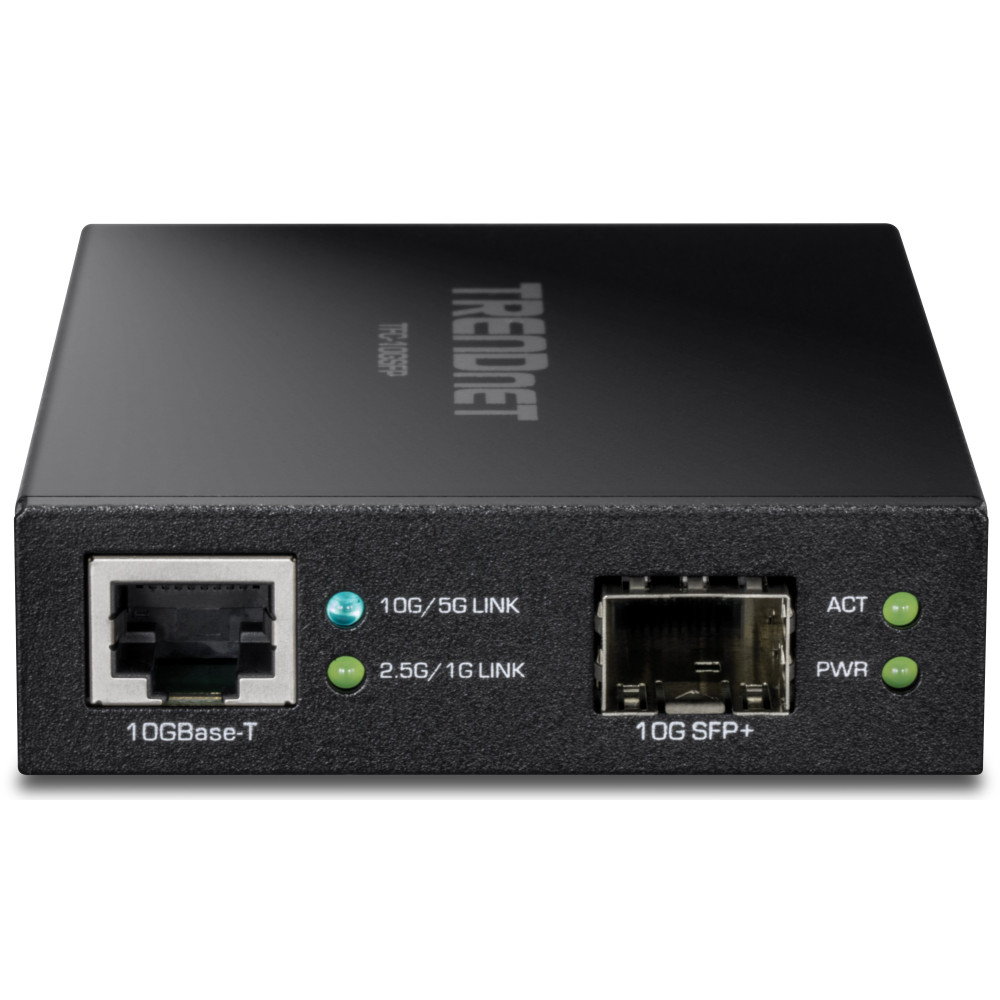

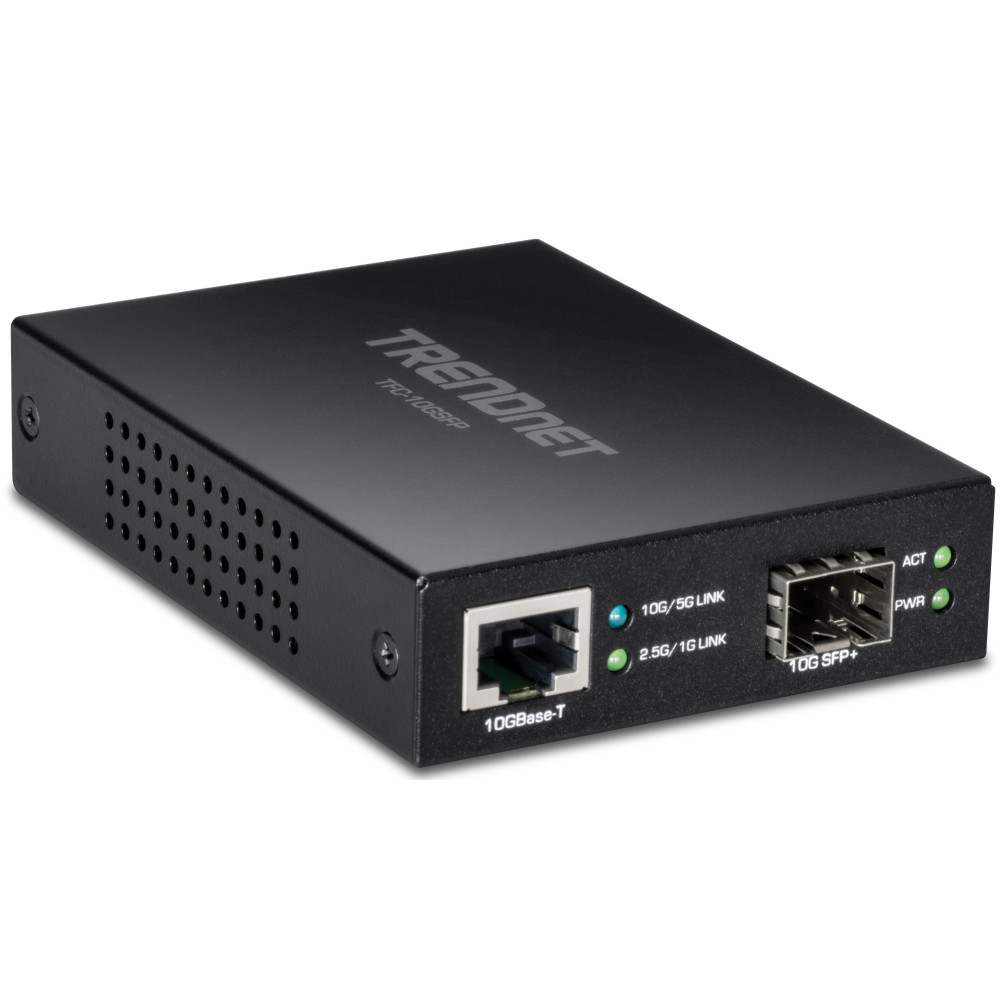

The TFC-10GSFP compact 10GBASE-T to SFP Fiber Media Converter converts a 10GBASE-T (Copper 10Gbps) ethernet connection to 10G BASE-SX/LX (Fiber) SFP media connection , and vice versa. The 10GBASE-T RJ-45 port on the 10G SFP+ transceiver supports a full-duplex 10G connection at wire speed. The SFP slot supports both multimode (SX) or single-mode (LX) SFP modules.
Count on the TFC-10GSFP Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.
Technology | |
Category | Media Converter |
Media Converter Type | Fiber to 10G Ethernet |
Total Ports | 2 |
Ethernet Ports | 10 Gigabit |
Fiber Ports | 10 Gigabit SFP port |
Fiber Interface | SFP slot |
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3z |
Transfer Rate | Gigabit: 2000Mbps (full duplex), 10G: 20Gbps (full duplex) |
Power | |
Power Consumption | 4W |
Mechanical | |
Enclosure | Metal |
Mounting | Desktop, Wall mountable |
LED Indicators | Port status |
Weight | 188g (6.63 oz.) |
Dimensions | 105 x 75 x 22 mm (4.13 x 2.95 x 0.86 in.) |
Ratings | |
Operating Temperature | 0° - 50° C (32 - 122° F) |
Humidity | Max 90% non-condensing |
RoHS Compliant | Yes |
Certifications | FCC, CE |
Warranty | 3 year |
Download Name | File Size |
TRENDnet TFC-10GSFP Datasheet | 2.25MB |
TRENDnet TFC-GSFP/TFC-FSFP/TFC-10GSFP Quick Installation Guide | 3.67MB |
