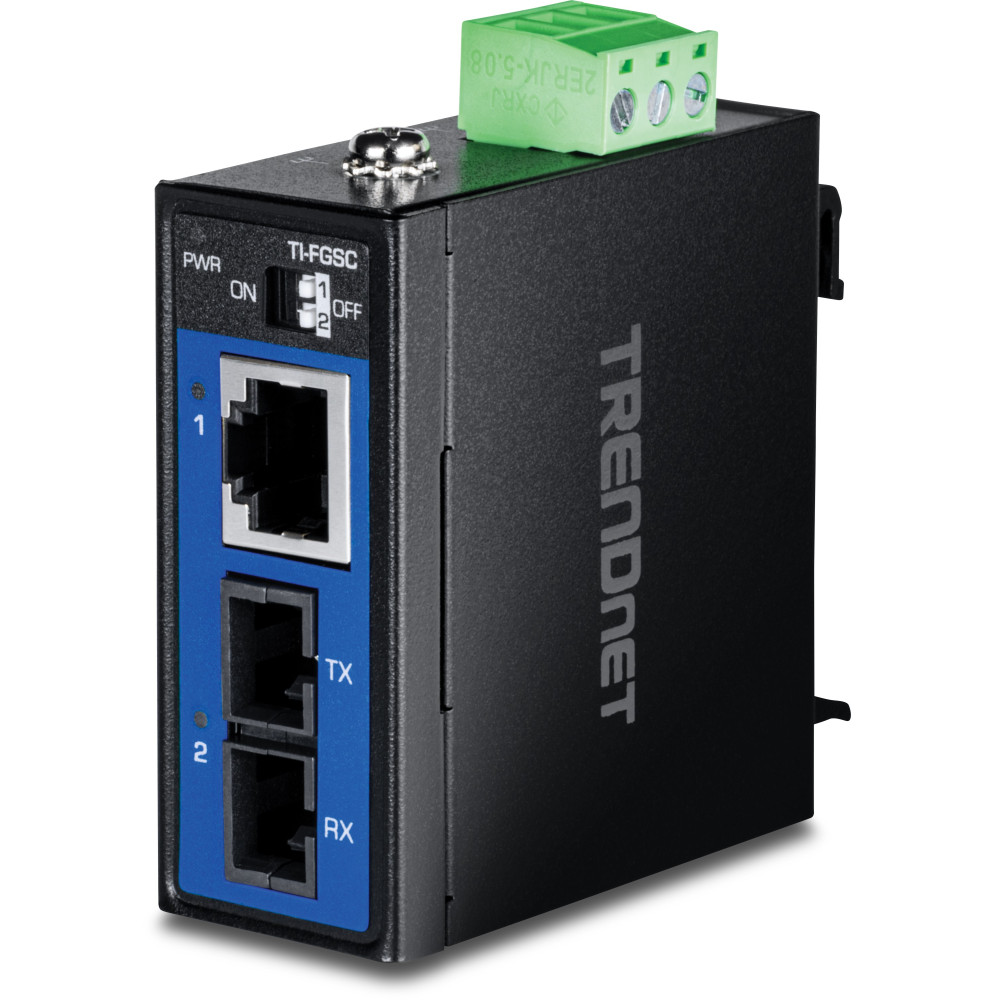

TRENDnet TI-FGSC Hardened Industrial 1000BASE-LX Multi-Mode SC Fiber Converter

TRENDnet TI-FGSC Compact IP50 Rated 1000Base-LX Fiber Converter, Up to 1km

TRENDnet's TI-FGSC Hardened Industrial 1000BASE-LX Multi-Mode SC Fiber Converter features a gigabit RJ45 port and a 1000BASE-LX SC interface port for building-to-building or long-distance fiber optic cable runs of up to 1km (0.62 mi.). The industrial multi-mode media converter’s compact IP50-rated design allows for flexible installation, provides ingress dust protection, and includes DIN-rail and wall mounting hardware options.

The industrial SC fiber converter’s rugged design provides resistance to standard compliance levels of shock and vibration, and operates within an extreme temperature range of -40° - 75° C (-40° - 167° F). The front panel DIP switches quickly allow switching between switch/converter modes, and enable or disable Link Fault Pass Through (LFPT).

Key Features

• Hardened IP50-rated industrial compact media converter
• 1000BASE-LX (1310nm) multi-mode fiber for distances of up to 1km (0.62 mi)

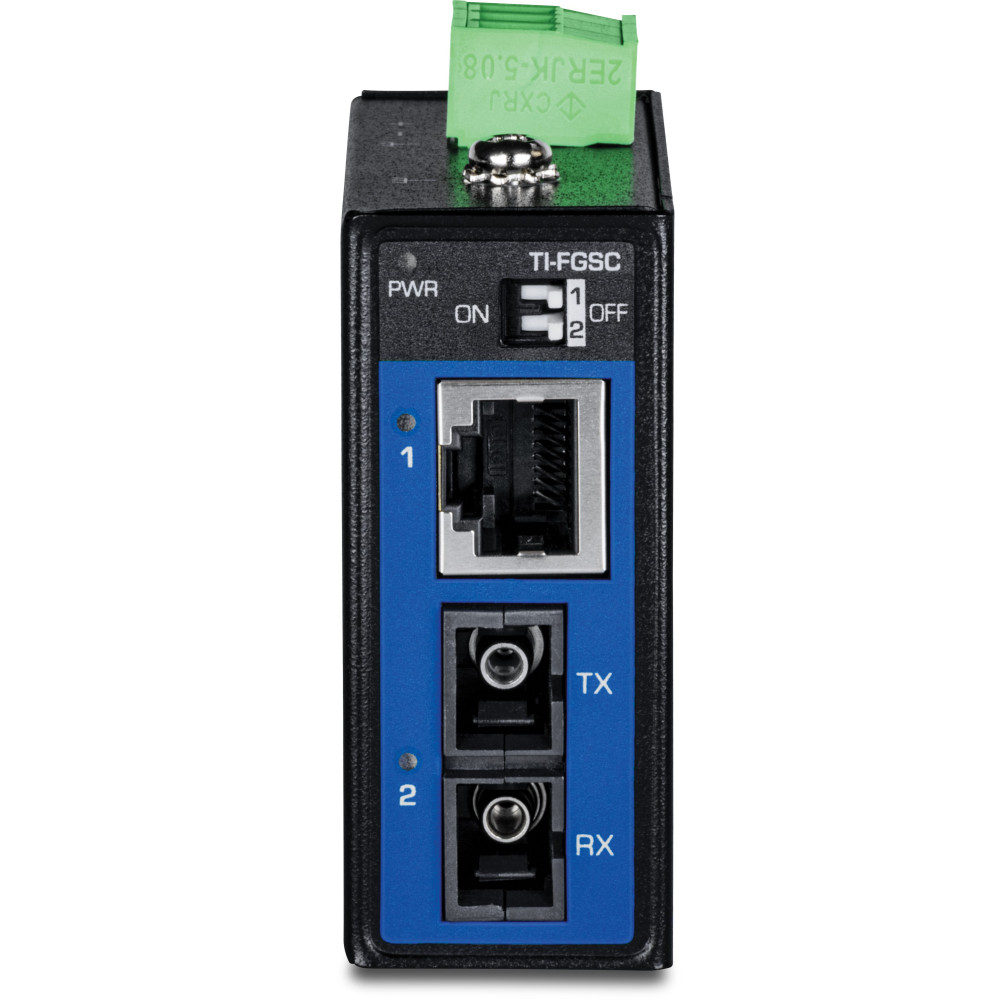

• 1 x Gigabit RJ45 port and 1 x SC-type interface port
• Operating temperature range of -40° - 75° C (-40° - 167° F)

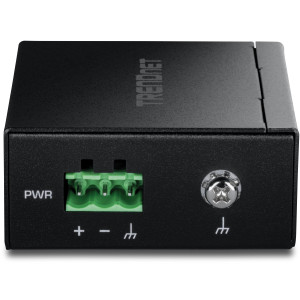

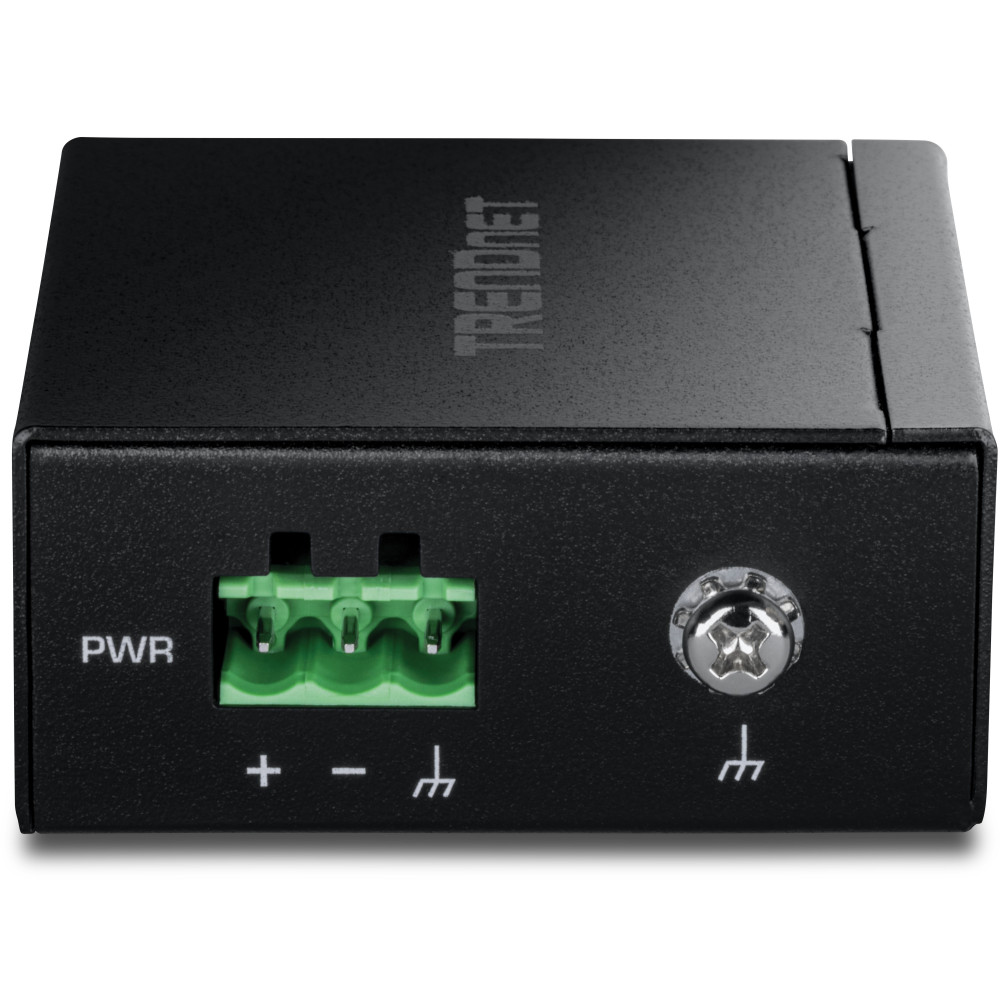

• 12 - 60V DC power input with overload current protection
• 6kV RJ45 Ethernet surge protection
• Fanless design for silent operation

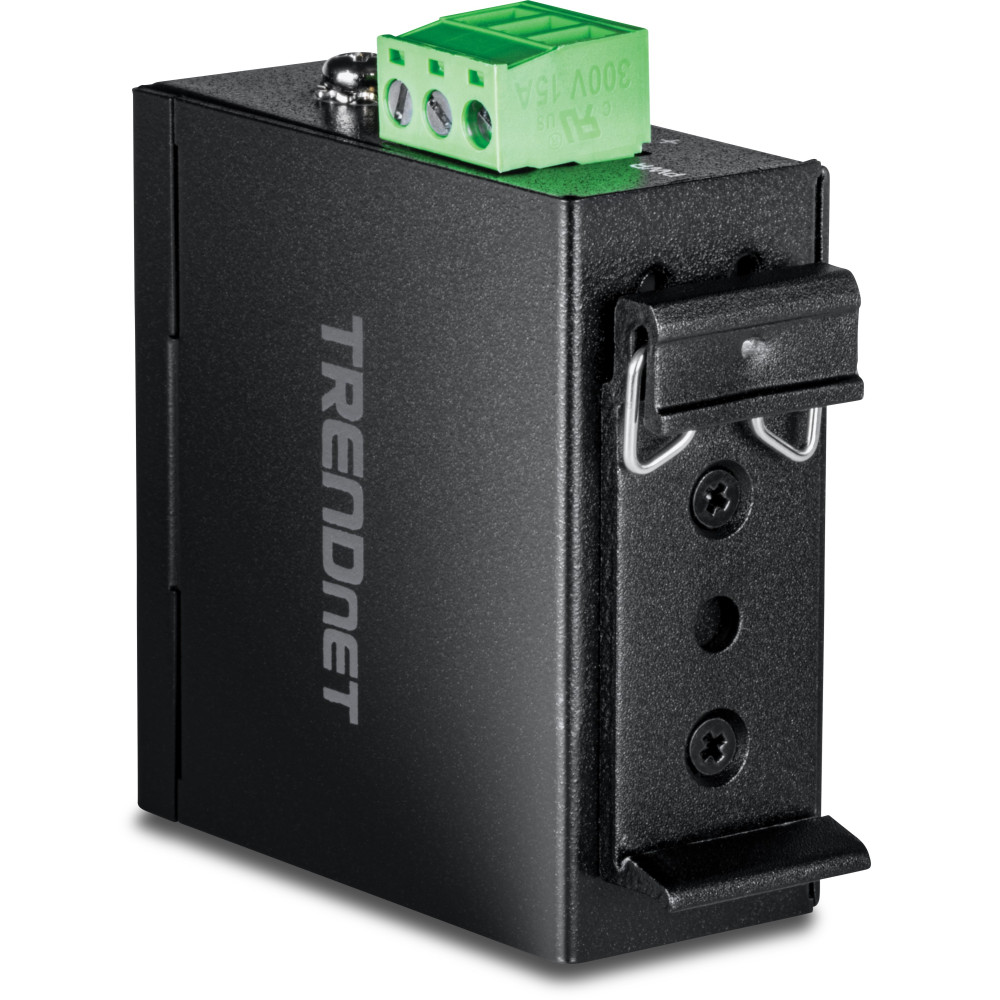

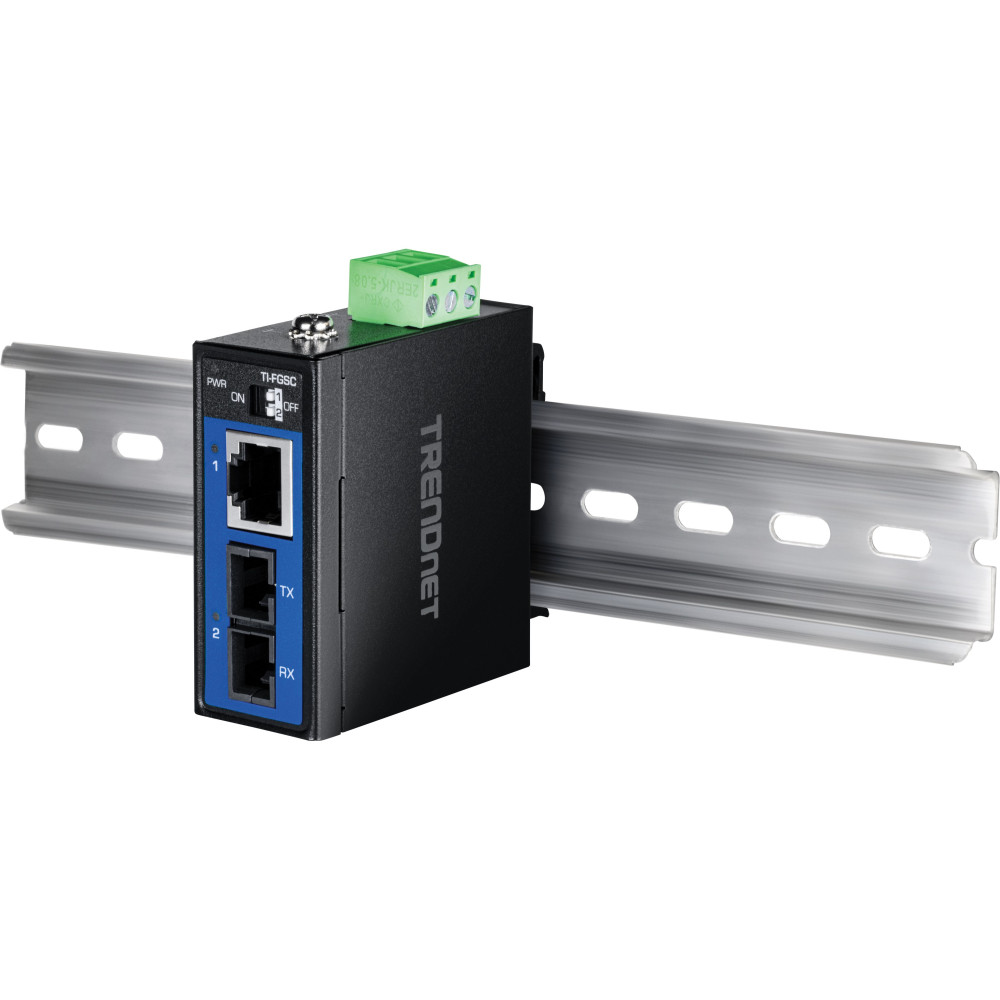

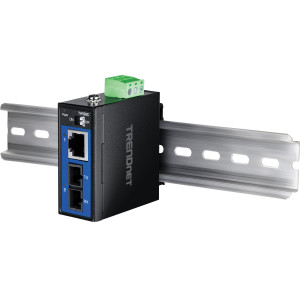

• Includes DIN-Rail mount and wall mount brackets
• Power supply sold separately (model: MDR-60-24)
• NDAA / TAA compliant (U.S. and Canada only)
• 3 year warranty

In the Box

1. TI-FGSC
2. Removable terminal block
3. DIN-rail and wall mount kit
