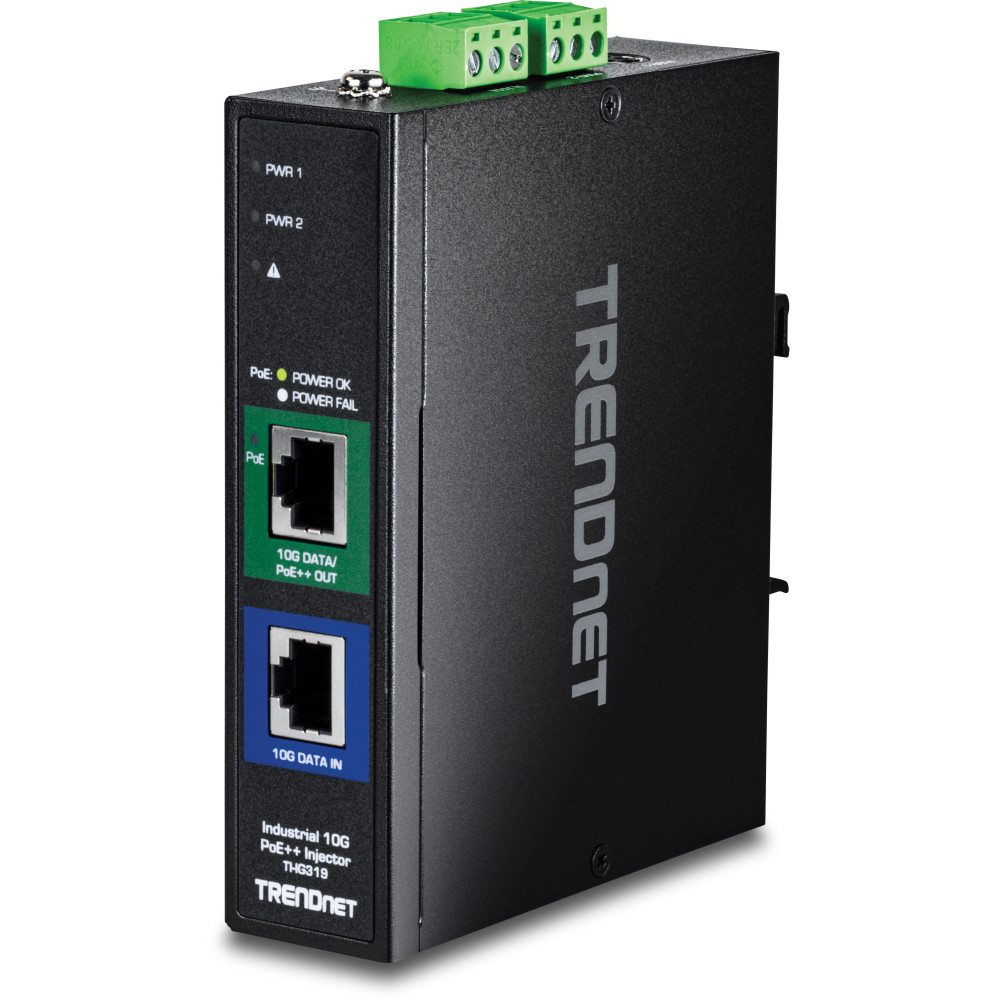

TRENDnet TI-IG319 Industrial 10G PoE++ Injector

New TRENDnet TI-IG319 120-watt Industrial Gigabit PoE++ Injector
Model: TI-IG319
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TI-IG319 Industrial 10G PoE++ Injector with 1x 10G Port and 1x 10G PoE++ Port

TRENDnet’s TI-IG319 90W 2-Port Industrial 10G PoE++ Injector allows users to add PoE++ power to a non-PoE switch. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE/PoE+/PoE++ device. This multi-gig industrial PoE++ injector supplies up to 120W of power to PoE devices. The fanless design conveniently eliminates operating noise and lowers energy consumption.

The industrial 10G injector is equipped with an IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a temperature range of -40° - 75° C (-40° – 16758° F) for extreme industrial environments.

Key Features

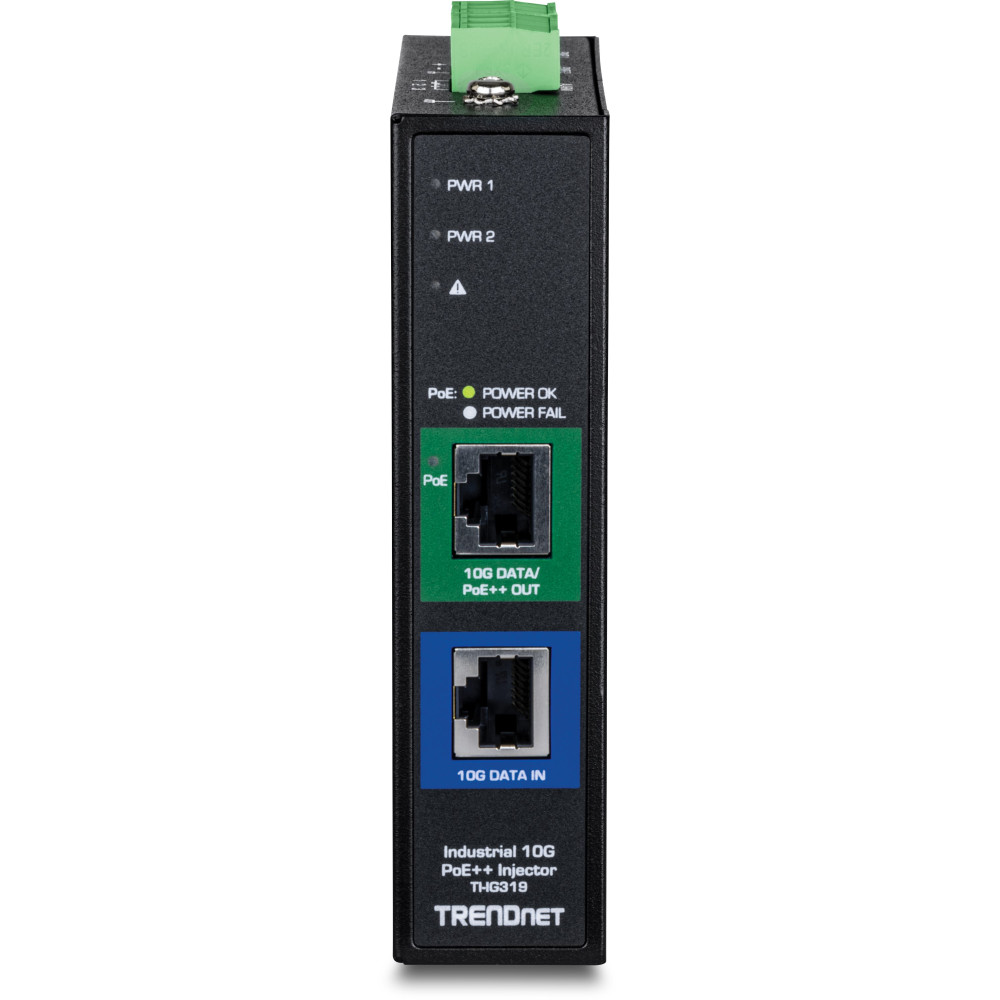

  • 1 x 10G PoE++ port (Data + PoE out)
  • 1 x 10G port (Data in)
  • 120W PoE power budget
  • Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
  • Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
  • Network a PoE device located up to 100m (328 ft.)
  • Fanless design eliminates operating noise and lowers energy consumption
  • Extreme operating temperature range -40° - 75° C (-40° - 167° F)

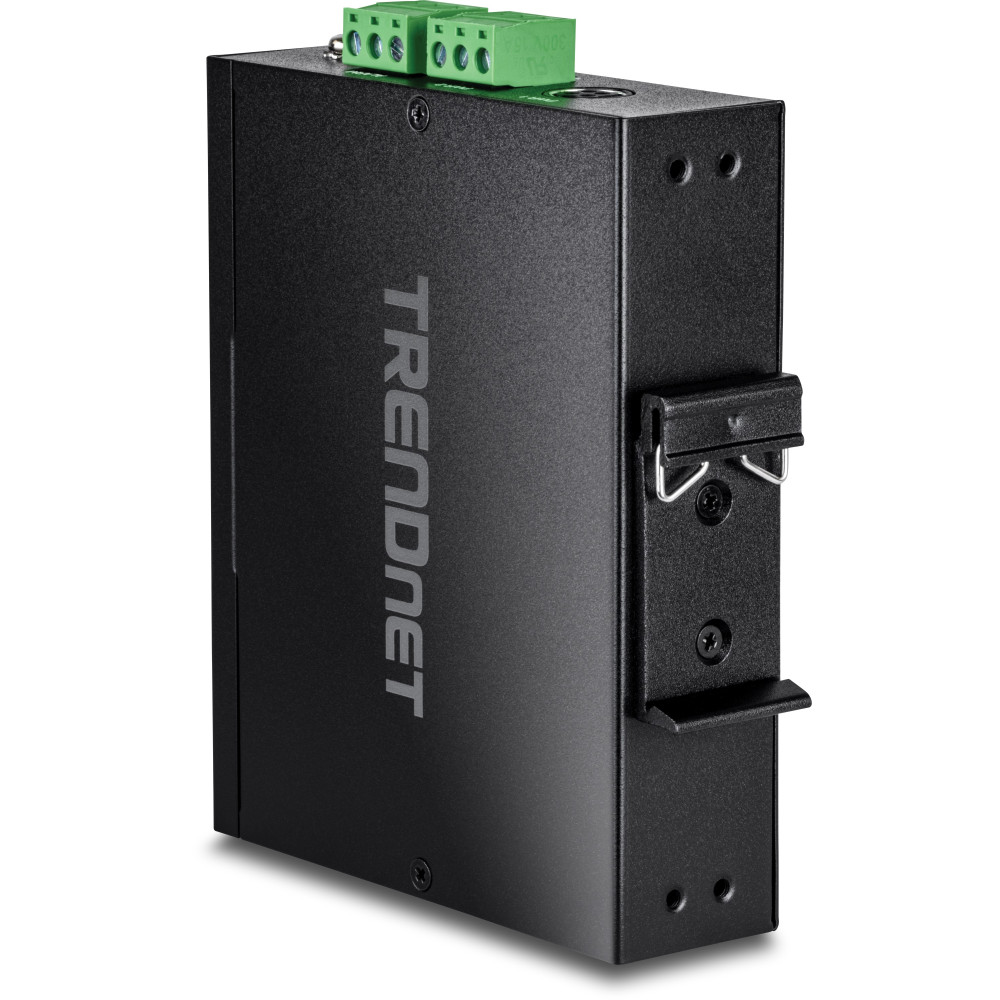

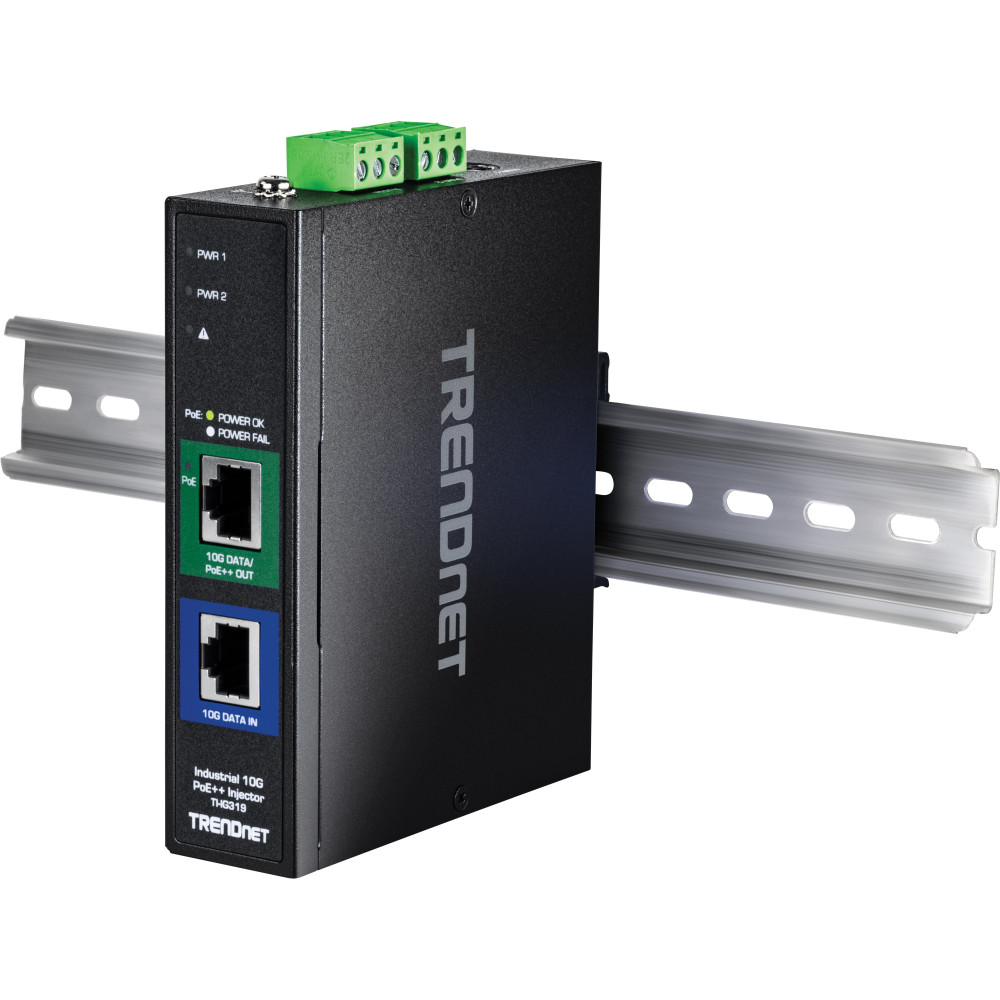

  • Includes DIN-Rail mount and wall mount
  • Power supply sold separately (model: TI-S15052)
  • NDAA / TAA compliant (U.S. and Canada only)
  • 3-Year Warranty

In the Box

  1. TI-IG319
  2. Removable terminal blocks
  3. DIN-rail and wall mount kit

Bringing high-powered Power over Ethernet equipment online is only the start. Every industrial network has challenges, and our sales staff has the experience to help with yours. Contact us today to see how we can boost your performance and reduce costs.

Technology
CategoryPoE Injector & Splitter
Total Ports2
Ethernet Ports1 10 Gigabit
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz
Power
PoE Power Output120 Watts
Power Consumption8.3 W

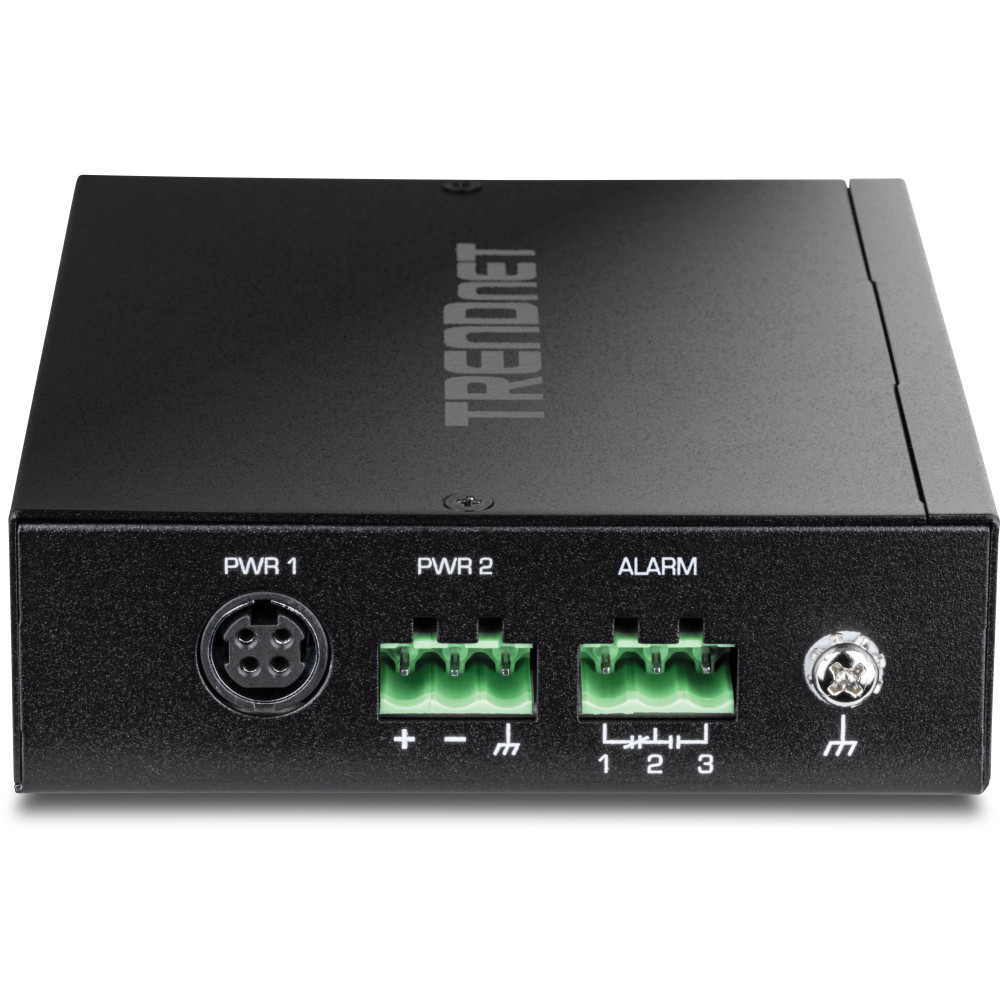

Connection2x 3-pin (power, ground, and alarm relay)
Input Voltage48 - 57 VDC
Surge ProtectionYes
Overload ProtectionYes
Mechanical
EnclosureMetal, IP50 Protection
MountingDIN-Rail & Wall Mounting
Shock / VibrationIEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-31
LED IndicatorsPower and PoE
Weight406g (14.3 oz.)
Dimensions120 x 98 x 30mm (4.72 x 3.85 x 1.18 in.)
Ratings
Operating Temperature- 40° - 75° C (-40° - 167° F)
Humidity95% non-condensing
RoHS CompliantYes
CertificationsFCC, CE, LVD
Warranty3 Years
Tags: TI-IG319
