TRENDnet TI-IG215 Industrial 2.5G PoE+ Injector

Name: TRENDnet TI-IG215 Industrial 2.5G PoE+ Injector
Brand: TRENDnet
SKU: TI-IG215
Price: 79.99 USD
Availability: OnlineOnly

New

TRENDnet TI-IG215 30-watt Industrial Gigabit PoE+ Injector, IP50 rating

Model: TI-IG215
Availability: Normally in Stock

Manufacturer: TRENDnet

Standard Shipping & Handling

$79.99

Request a Volume Quote

Qty: Add to Cart

Add to Wish List Add to Compare

Description Specifications Downloads

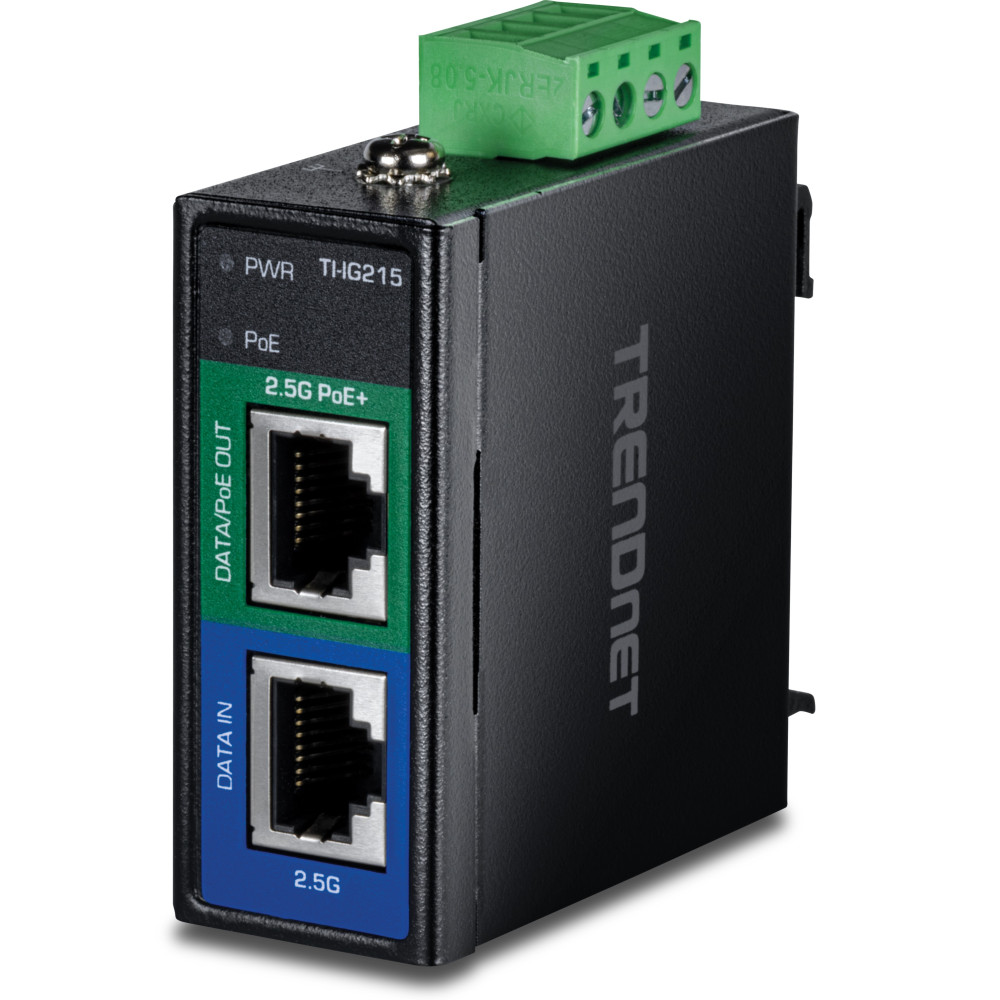

TRENDnet TI-IG215 Industrial 2.5G PoE+ Injector, 1x 2.5G Port and 1x 2.5G PoE+ Ports

TRENDnet’s TI-IG215 Industrial 2.5G PoE+ Injector allows users to add PoE+ power to a non-PoE 2.5G switch. Connect the 2.5G PoE+ injector to a non-PoE switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE/PoE+ device. This multi-gig industrial PoE+ injector supplies up to 30W of power to a PoE device. The fanless design conveniently eliminates operating noise and lowers energy consumption.

The 2.5G PoE+ injector is equipped with an IP50-rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° - 75° C (-40° -167° F) for harsh industrial environments. Grounding point protects equipment from external electrical surges.

Key Features

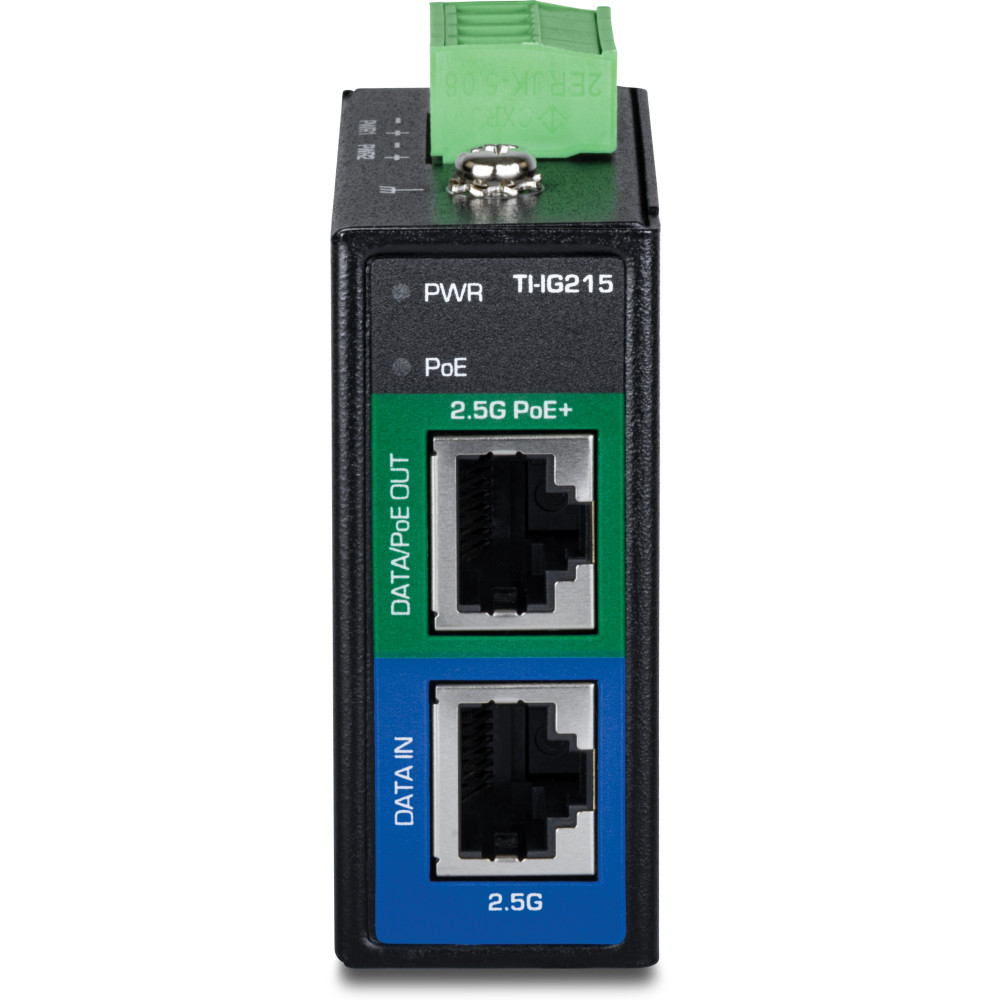

1 x 2.5G PoE+ port (Data + PoE out)
1 x 2.5G port (Data in)
30W PoE power budget
Supports PoE (15.4W) and PoE+ (30W) devices
Uses IEEE 802.3af and IEEE 802.3at industry PoE standards for greater device interoperability
Network a PoE device located up to 100m (328 ft.) away
Fanless design eliminates operating noise and lowers energy consumption
Extreme operating temperature range - 40° — 75° C (-40° — 167° F)

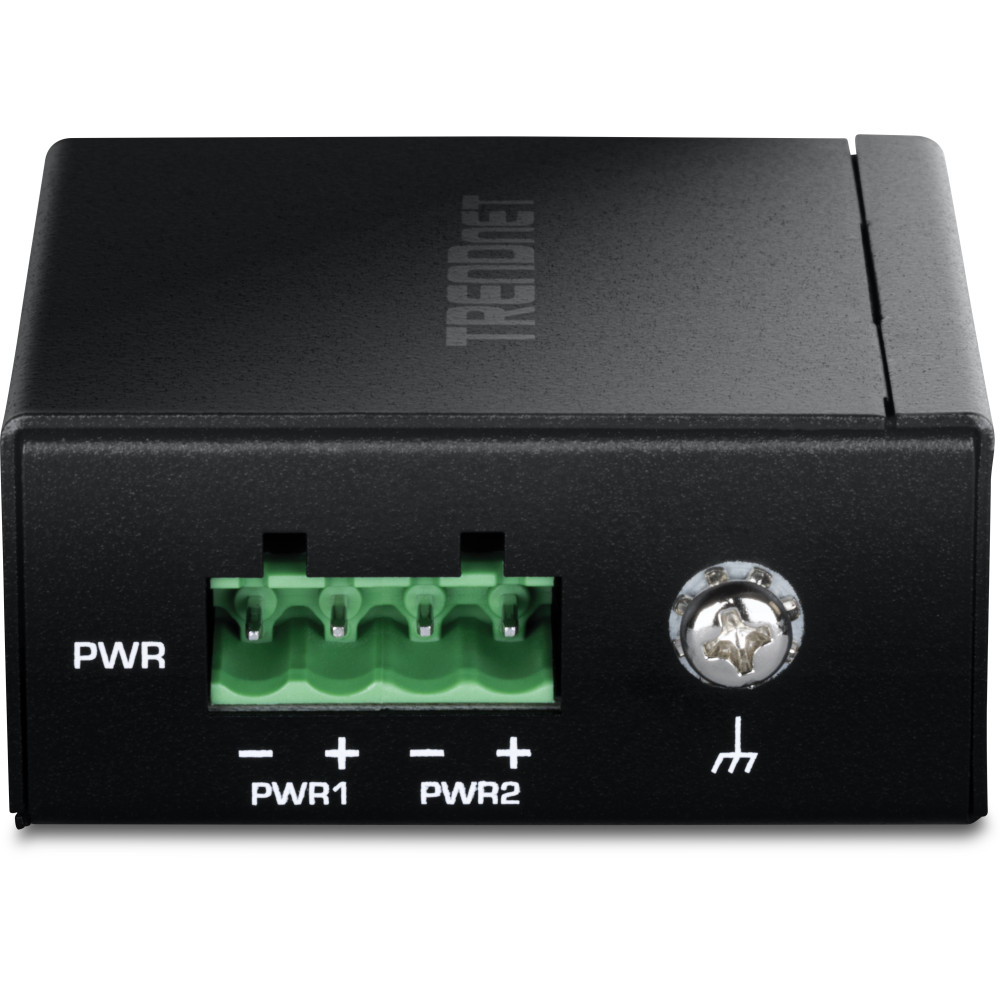

Redundant power inputs with overload current protection

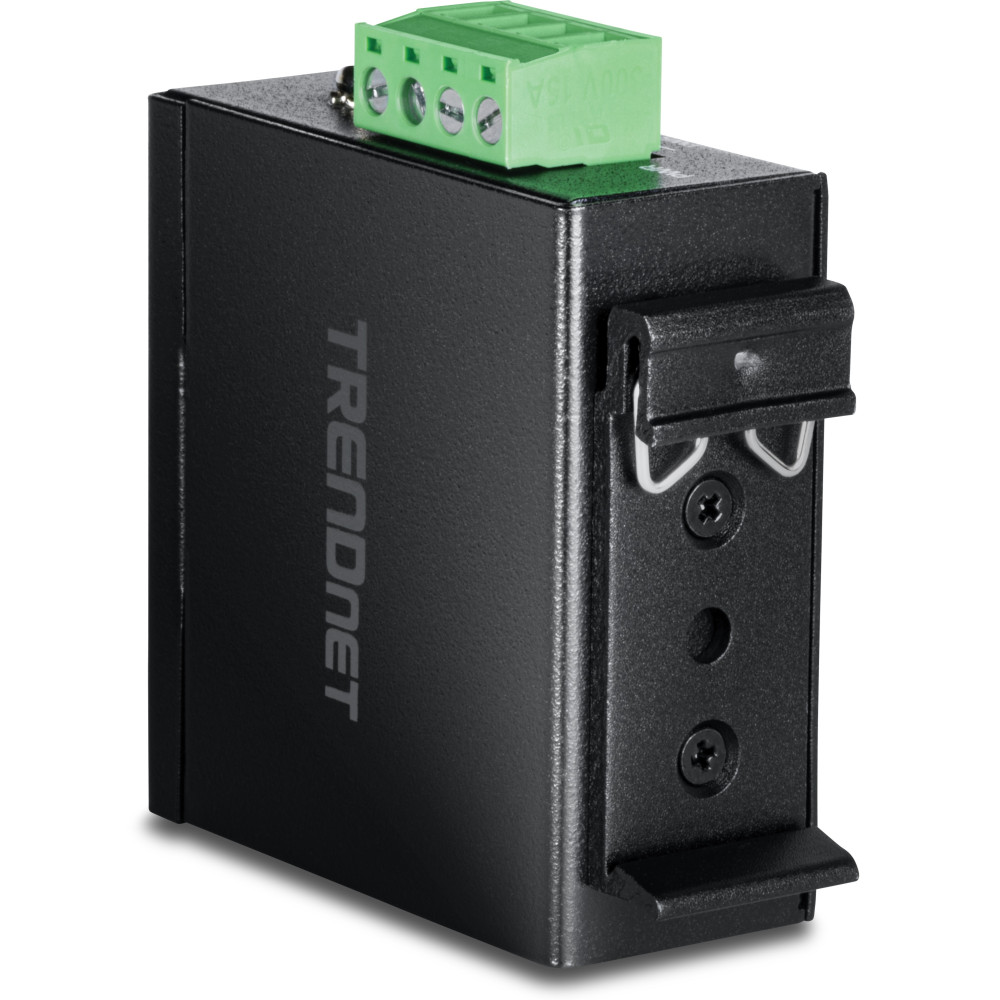

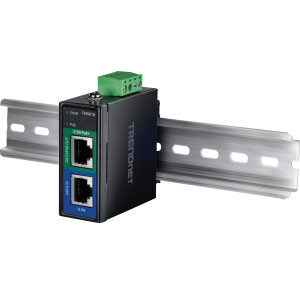

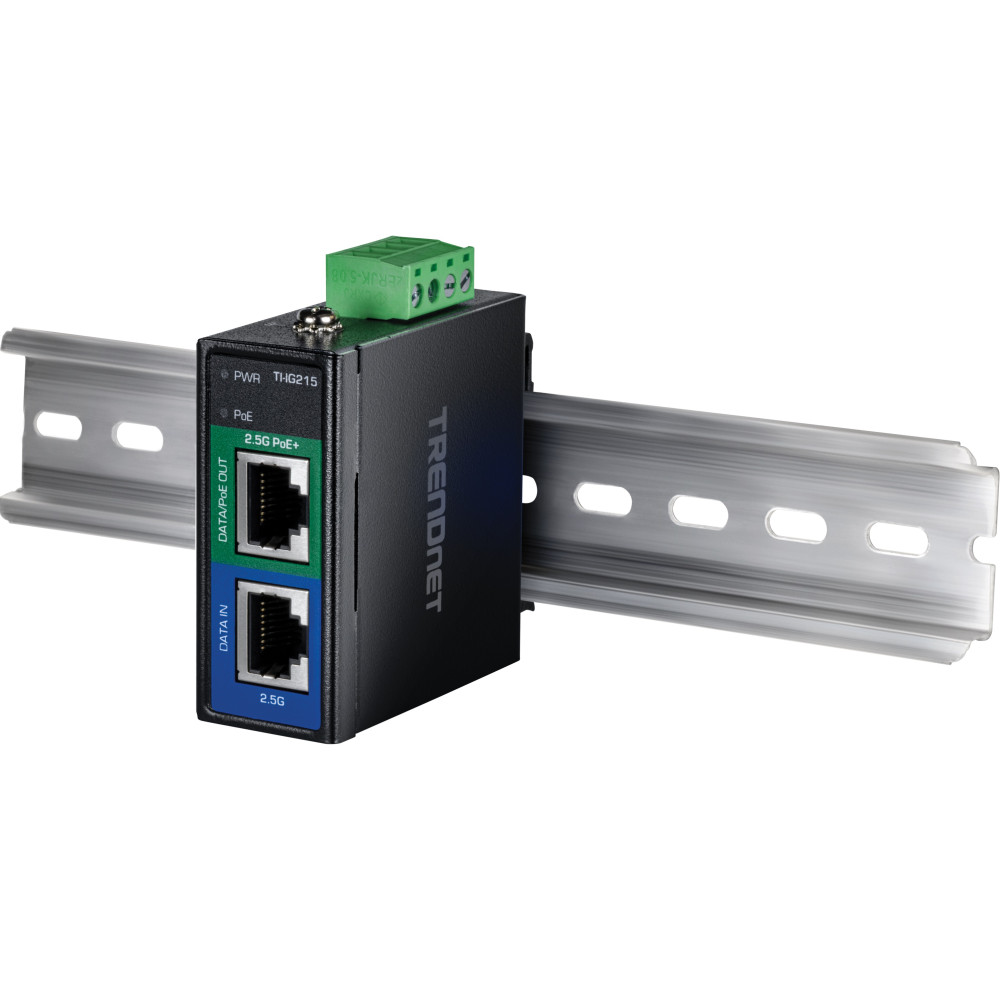

Includes DIN-Rail mount and wall mount
Power supply sold separately (model: TI-S15052)
NDAA / TAA compliant (U.S. and Canada only)
3-Year Warranty

In the Box

TI-IG215
Removable terminal block
DIN-rail and wall mount kit

Bringing high-powered Power over Ethernet equipment online is only the start. Every industrial network has challenges, and our sales staff has the experience to help with yours. Contact us today to see how we can boost your performance and reduce costs.

Technology
Category	PoE Injector & Splitter
Total Ports	2
Ethernet Ports	1 2.5 Gigabit
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz
Power
PoE Power Output	30 Watts
Power Consumption	4.3 W
Connection	4-pin Terminal Block
Input Voltage	48 - 57 VDC
Surge Protection	Yes
Overload Protection	Yes
Mechanical
Enclosure	Metal, IP50 Protection
Mounting	DIN-Rail & Wall Mounting
Shock / Vibration	IEC 60068-2-27, IEC 60068-2-6
LED Indicators	Power and PoE
Weight	133g (4.7 oz.)
Dimensions	60 x 58 x 26mm (2.36 x 2.28 x 1.02 in.)
Ratings
Operating Temperature	- 40° - 75° C (-40° - 167° F)
Humidity	95% non-condensing
Certifications	FCC, CE, LVD, Freefall (IEC 60068-2-31), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Warranty	3 Years
