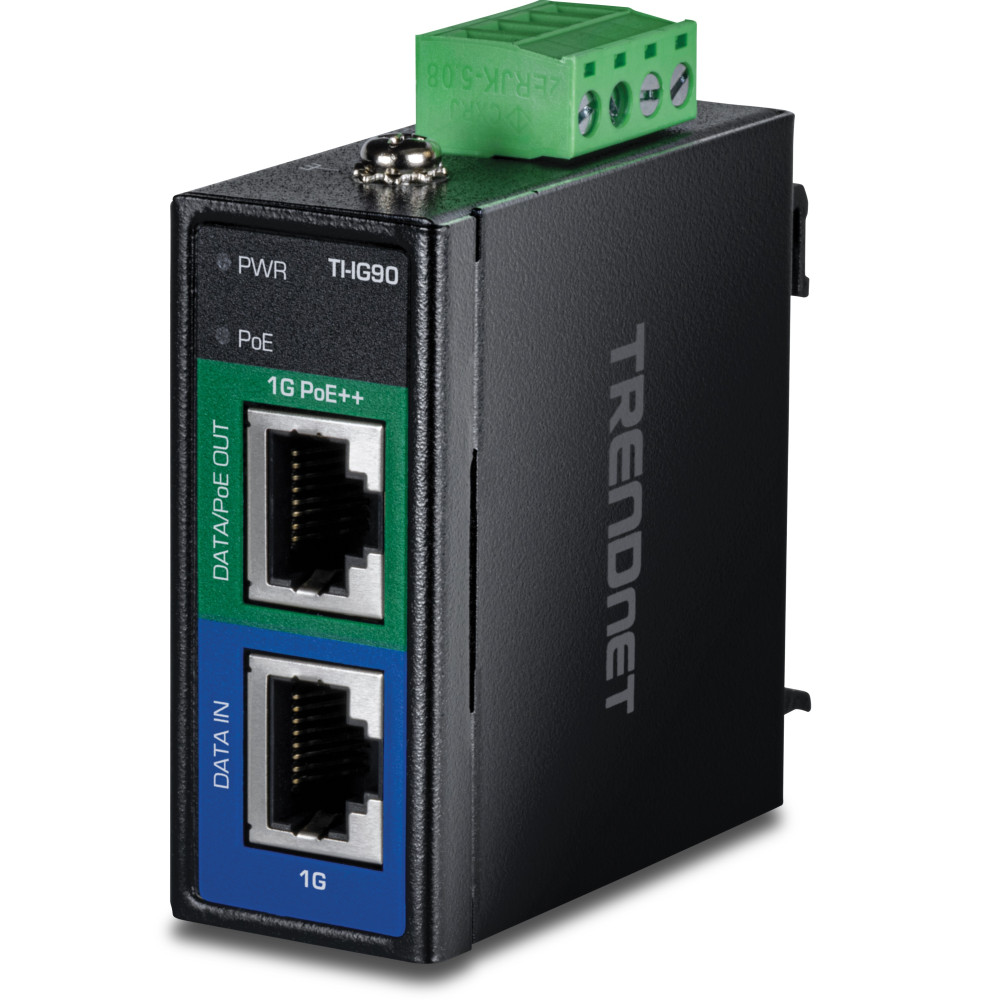

TRENDnet’s TI-IG90 is a reliable IP50 rated Industrial Gigabit PoE++ Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, or PoE++ (up to 95W) device. This industrial PoE injector features dual redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector.
The TI-IG90 PoE+ injector is designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° - 75° C (-40° -167° F) for harsh industrial environments. Grounding point protects equipment from external electrical surges.
Bringing high-powered Power over Ethernet equipment online is only the start. Every industrial network has challenges, and our sales staff has the experience to help with yours. Contact us today to see how we can boost your performance and reduce costs.
| Technology | |
| Category | PoE Injector & Splitter |
| Total Ports | 2 |
| Ethernet Ports | 1 Gigabit |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Functionality | PoE Injector |
| Power | |
| PoE Power Output | 95 Watts |
| Power Consumption | 10.6W (without PoE) @ 56V DC |

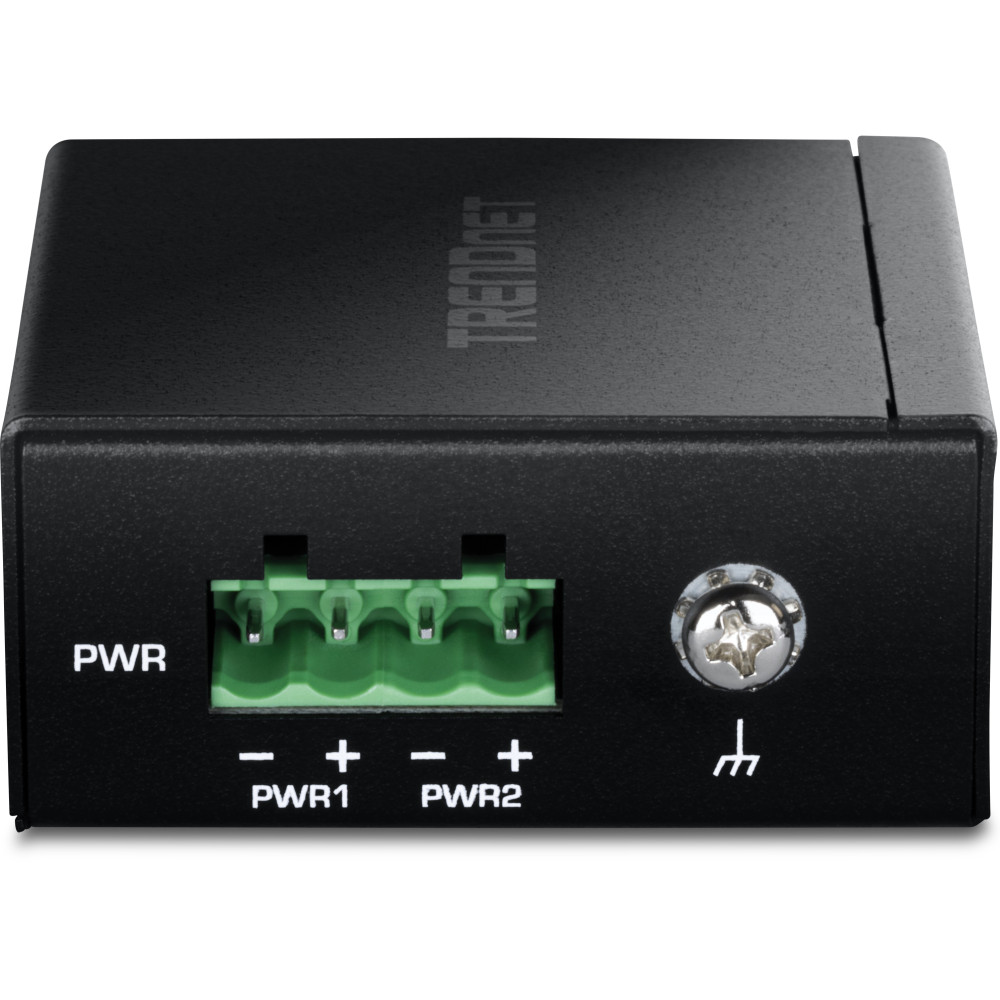

| Connection | 4-pin Terminal Block |
| Input Voltage | 48 - 57 VDC |
| ESD Protection | 6 KV |
| Surge Protection | 6 KV |
| Overload Protection | Yes |
| Mechanical | |
| Enclosure | Metal, IP50 Protection, grounding point |

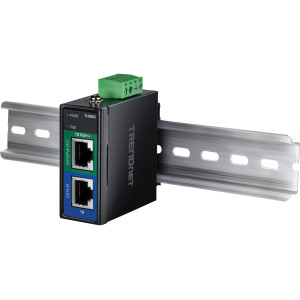

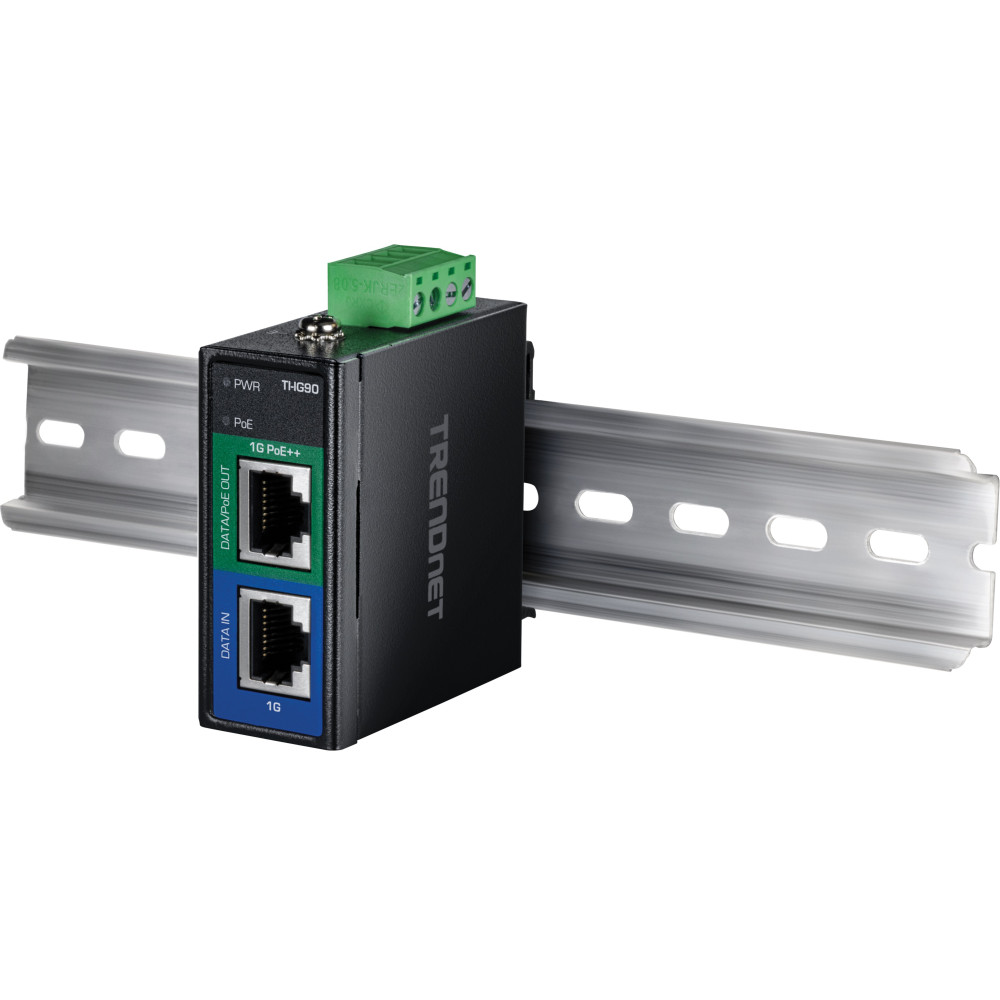

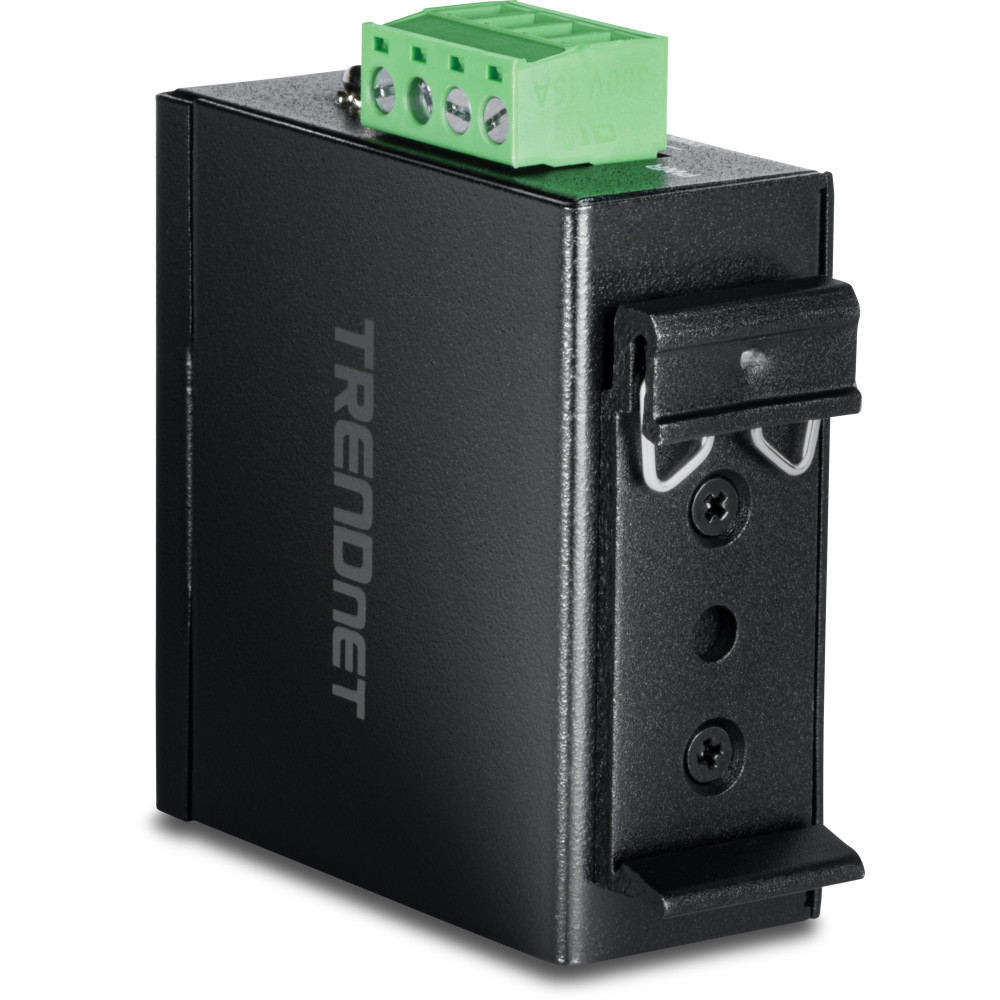

| Mounting | DIN-Rail & Wall Mounting |
| Shock / Vibration | IEC 60068-2-27, IEC 60068-2-6 |

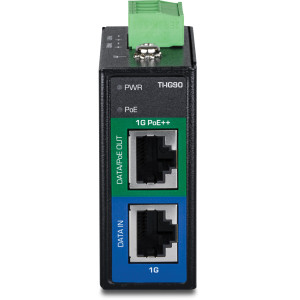

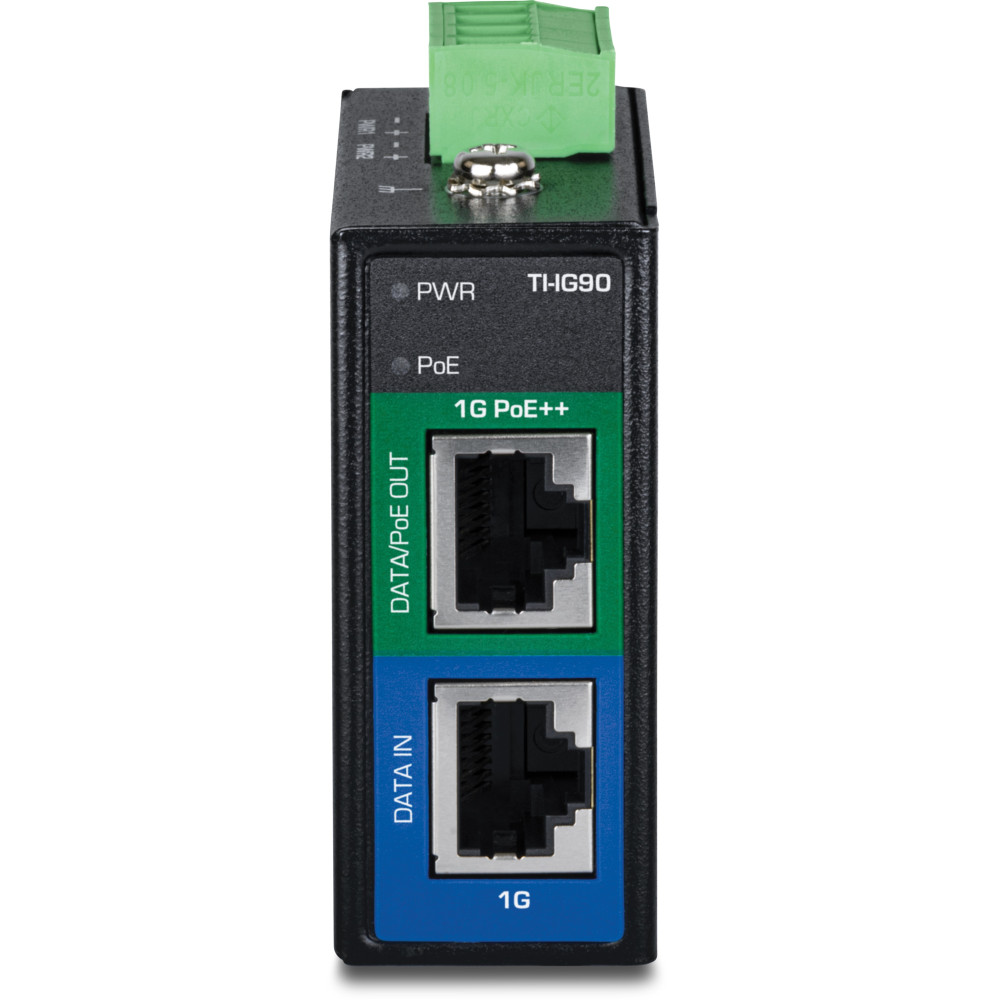

| LED Indicators | Power and PoE |
| Weight | 134g (4.47 oz.) |
| Dimensions | 60 x 60 x 25 mm (4.1 x 3.2 x 1.2 in.) |
| Ratings | |
| Operating Temperature | - 40° - 75° C (-40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE, Freefall (IEC 60068-2-31), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
| MTBF | 7,531,265 hours @ 25° C |
| Warranty | 3 Years |
| Download Name | File Size |
| TRENDnet TI-IG30/TI-IG90/TI-IG215/TI-IG219/TI-IG319 QIG | 4.86MB |
| TRENDnet TI-IG90 Datasheet | 3.34MB |
