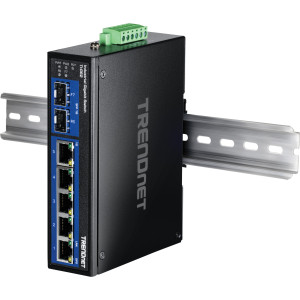

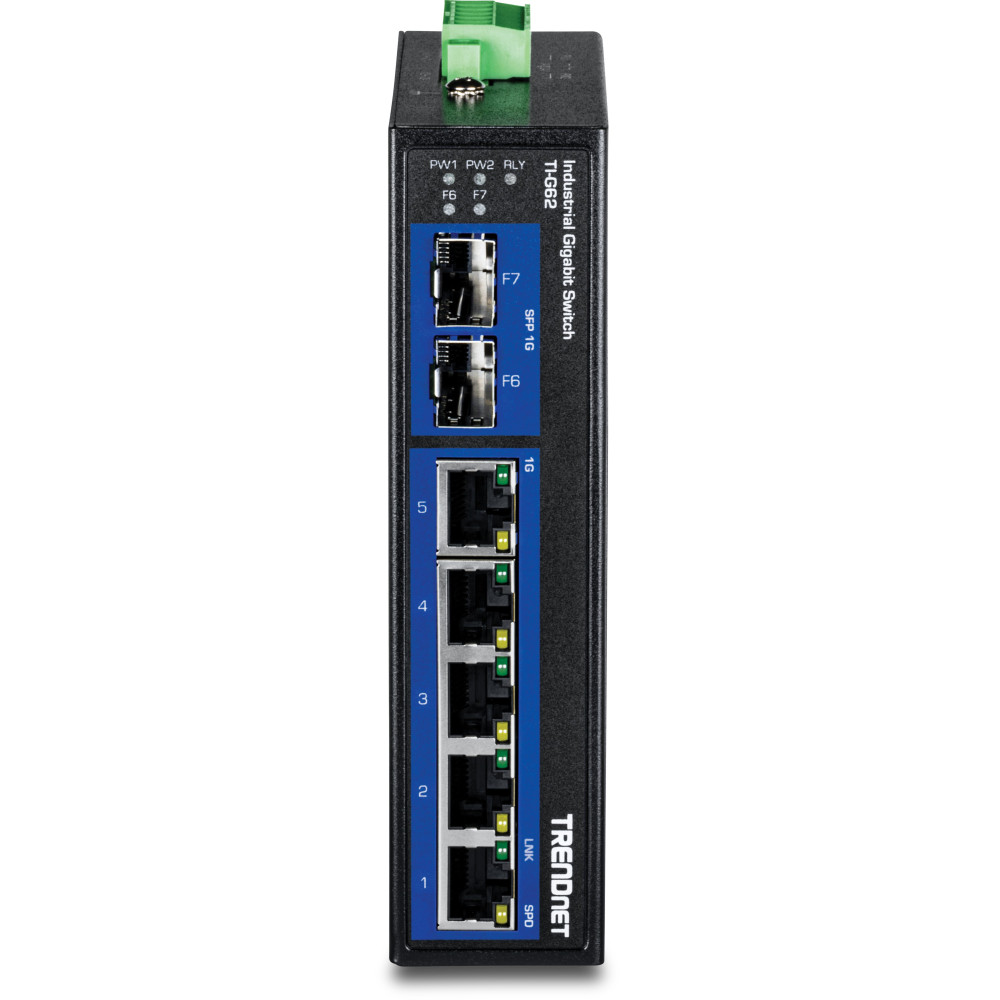

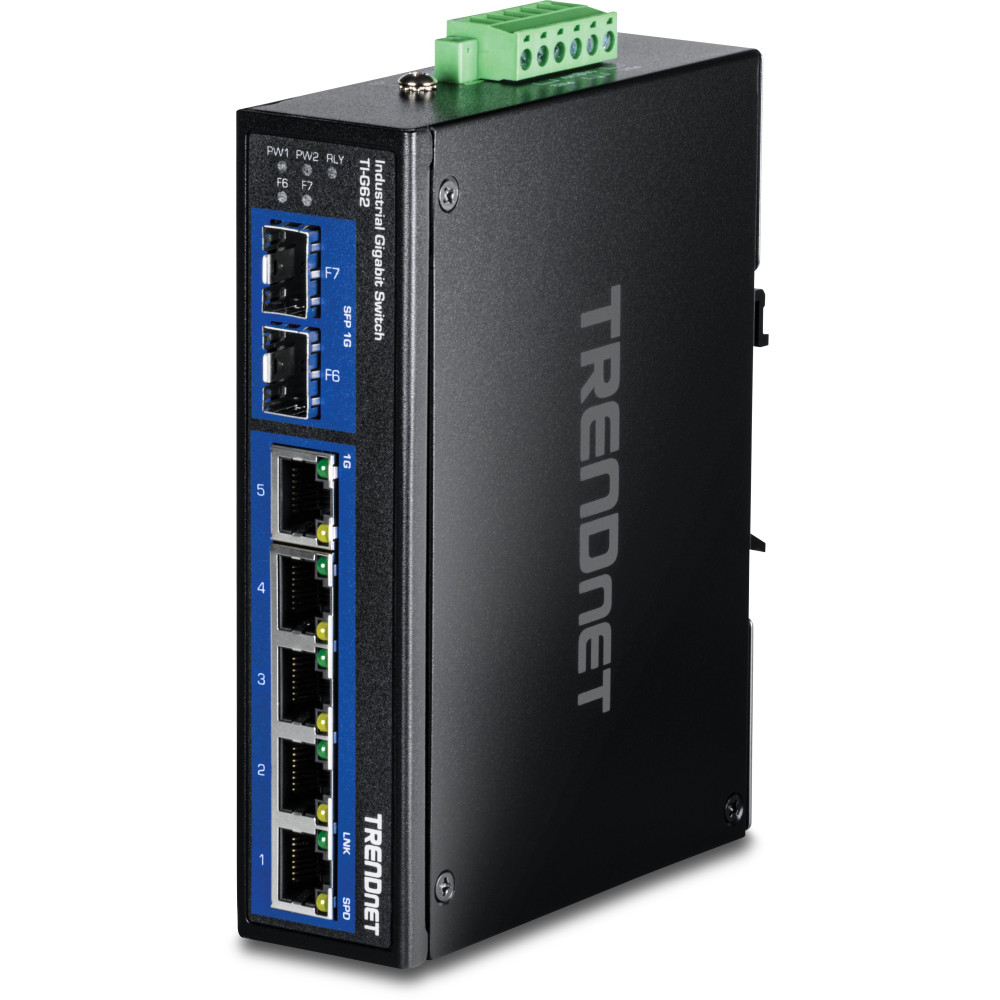

The TI-G62 7-Port Industrial Gigabit DIN-Rail Switch features a rugged IP50- rated metal enclosure for industrial environments. This industrial unmanaged switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures within -40° - 75° C (-40° - 167° F). Redundant power inputs with power failure alarm relay and overload current protection minimize network downtime. This industrial switch is equipped with five gigabit RJ45 ports and two gigabit SFP ports for long-distance connectivity. It includes DIN-rail and wall mount hardware.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 7 |
| Ethernet Ports | 5 Gigabit (10/100/1000TX) |
| Standards | IEEE 802.3, IEEE 802.3u ,IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex), Gigabit SFP: 2Gbps (full duplex) |
| Jumbo Frame Support | 9KB |
| MAC Table Size | 4K |
| Power | |
| Power Consumption | 4.5W @ 56V DC |

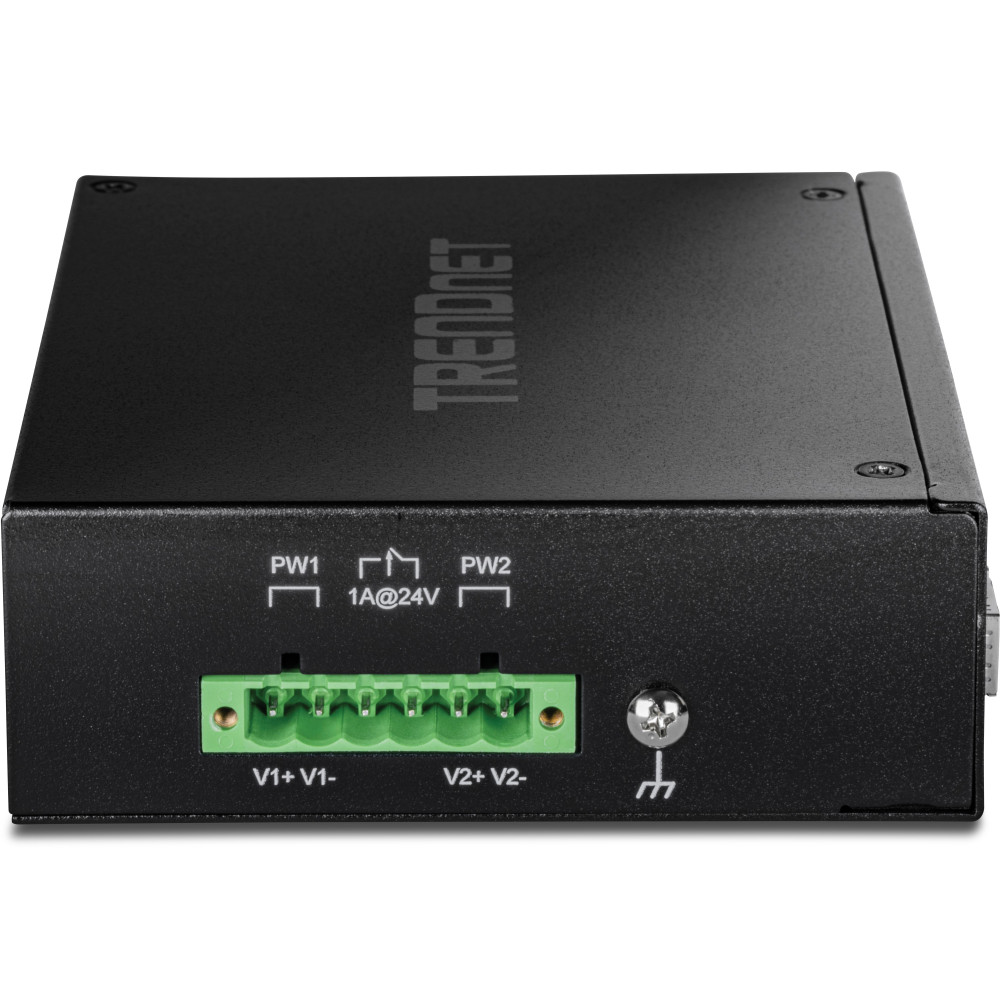

| Connection | 6-pin terminal block |
| Input Voltage | 12-56V DC |
| Overload Protection | Yes |
| Mechanical | |

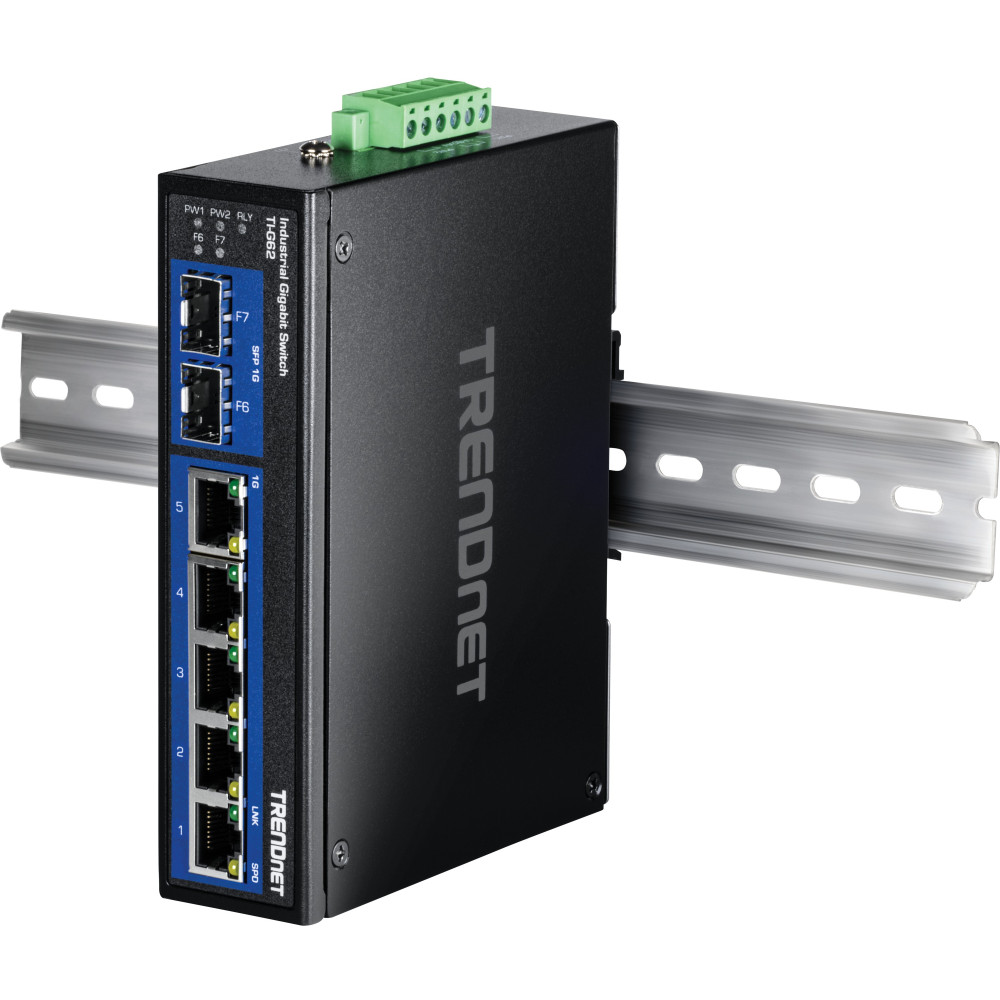

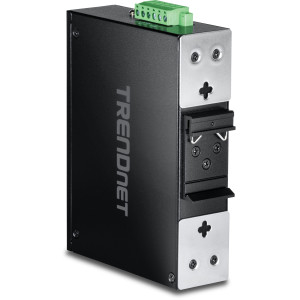

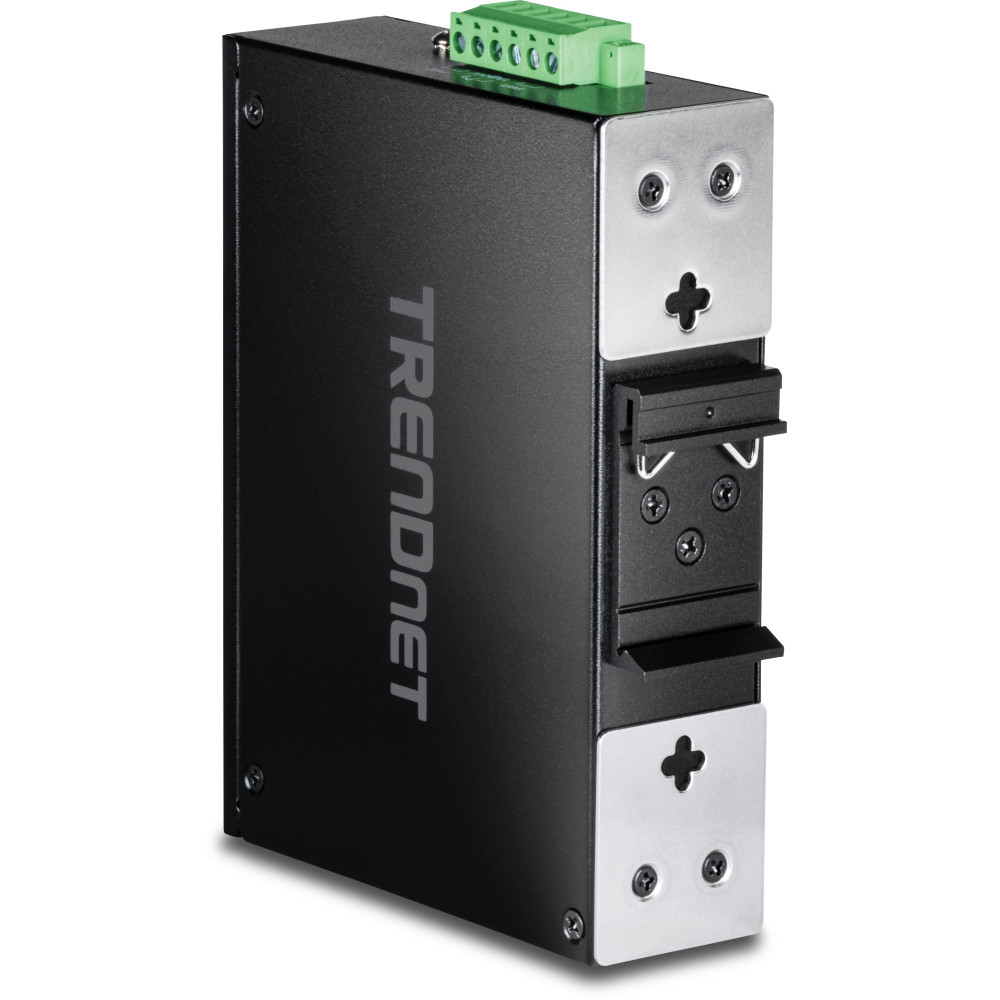

| Mounting | DIN-rail or wall mount |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Material | IP50 metal case |
| Weight | 527g (1.16 lbs.) |
| Dimensions | 143 x 104 x 36mm (5.6 x 4.1 x 1.4 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, FCC, LVD, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
| MTBF | 1,300,000 hours @ 25°C |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet Unmanaged IP50 Switch Quick Installation Guide | 8.02MB |
| TRENDnet TI-G62 Datasheet | 3.47MB |
