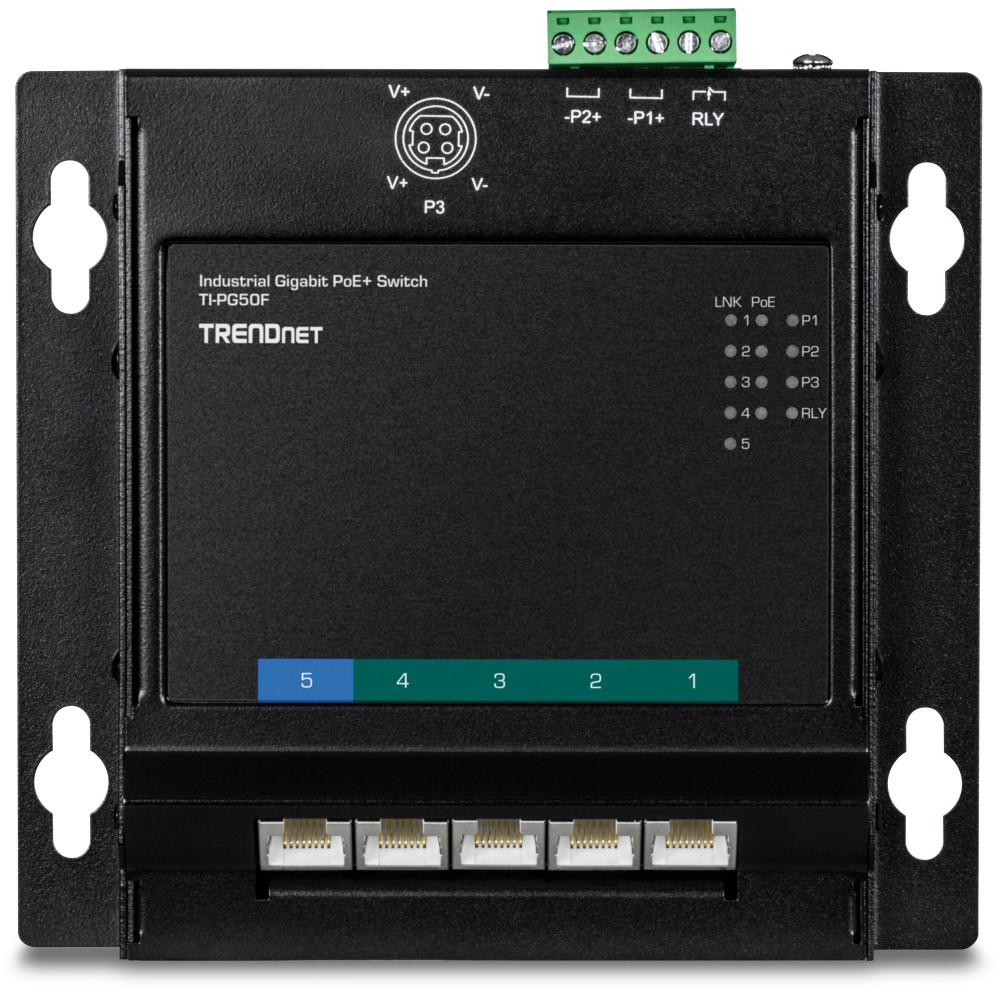

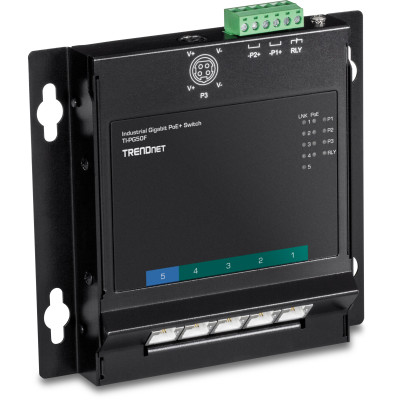

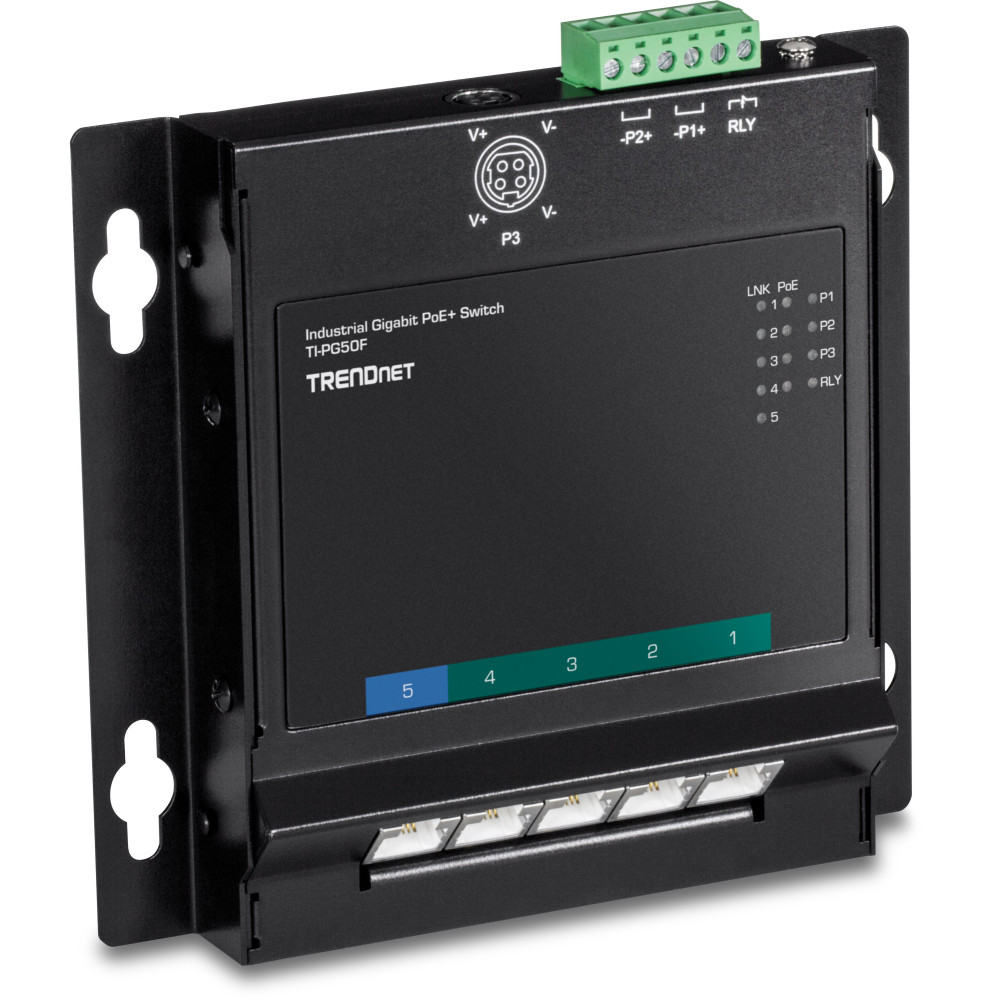

The TI-PG50F 5-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch is well suited for IP surveillance, IoT, and automation networks for homes and businesses. This hardened industrial gigabit flat switch provides front access to ports and power interfaces for easier installation. The flat and compact size makes it ideal for cabinet installations where space is limited. The hardened industrial front access switch features 4 Gigabit PoE+ ports and 1 Gigabit port for connecting devices such as wireless access points, IP cameras, and IoT appliances. It comes equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

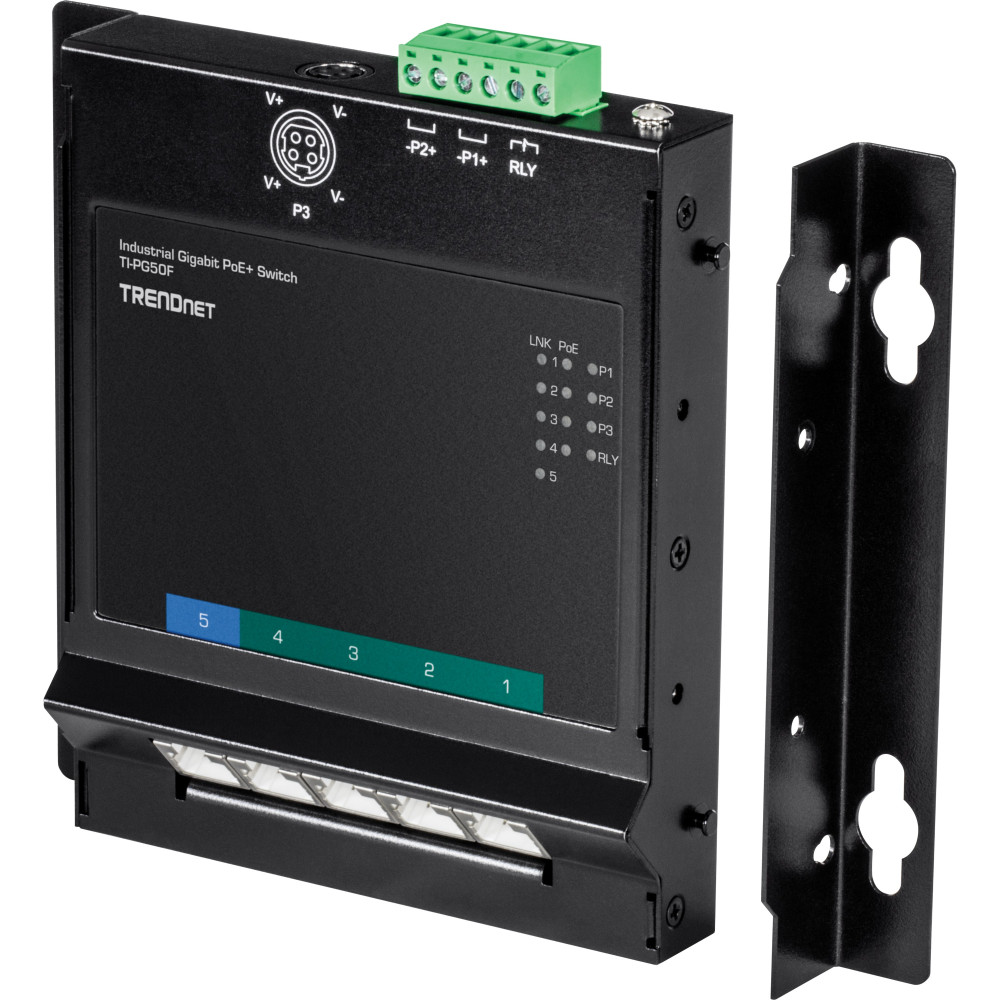

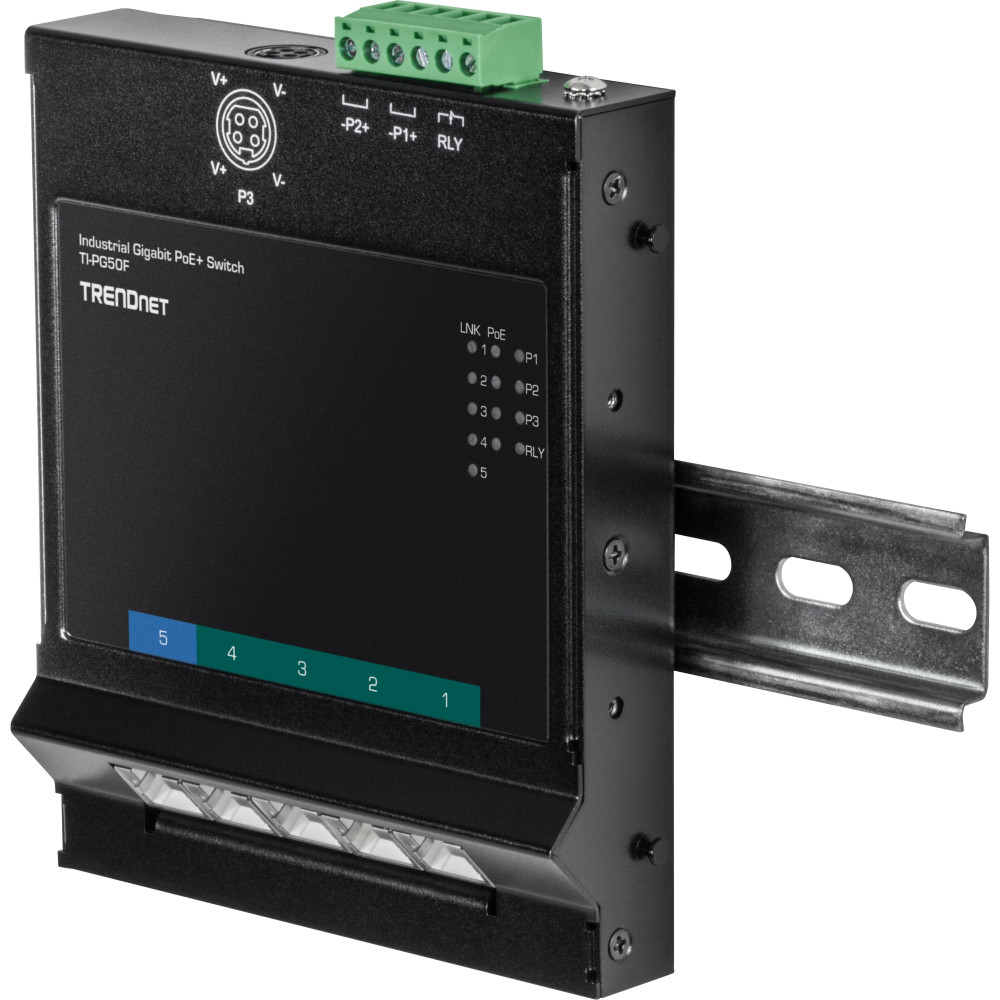

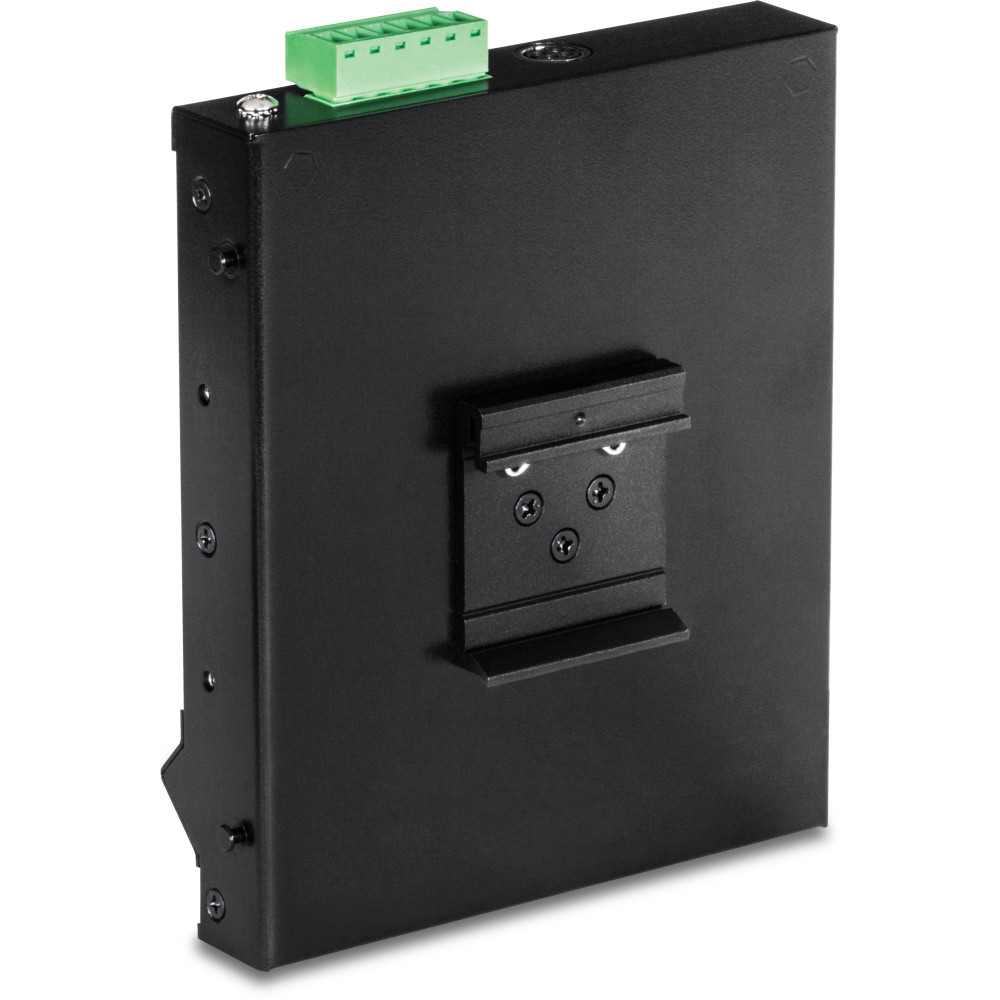

It includes a DIN-Rail bracket and magnetic wall mount kit.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
Technology | |
Category | Ethernet Switch (PoE) |
Total Ports | 5 |
Ethernet Ports | 4 Gigabit PoE+, 1 Gigabit port |
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2Gbps (full duplex) |
Jumbo Frame Support | 9KB |
MAC Table Size | 2K |
Power | |
PoE Power Output | Up to 30W per port |
Power Consumption | 5W (no PoE) |
Connection | 6-pin terminal block |
Input Voltage | 48-56V DC |
Overload Protection | Yes |
Mechanical | |
Mounting | DIN-rail or wall mount |
Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
Material | IP40 metal case |
Weight | 510g (1.2 oz.) |
Dimensions | 120 x 145 x 25mm (4.7 x 5.7 x 1 in.) |
Ratings | |
Operating Temperature | -40° - 75° C (40° - 167° F) |
Humidity | 95% non-condensing |
RoHS Compliant | Yes |
Certifications | CE, FCC |
MTBF | 454,556 hours |
Warranty | Lifetime |
