TRENDnet TI-PG80F 8-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

New TRENDnet TI-PG80F 8-Port Gigabit Ethernet Front Access Switch, 8 Gigabit PoE+ ports, 16 Gbps switching capacity, DIN-rail/Magnet
Model: TI-PG80F
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

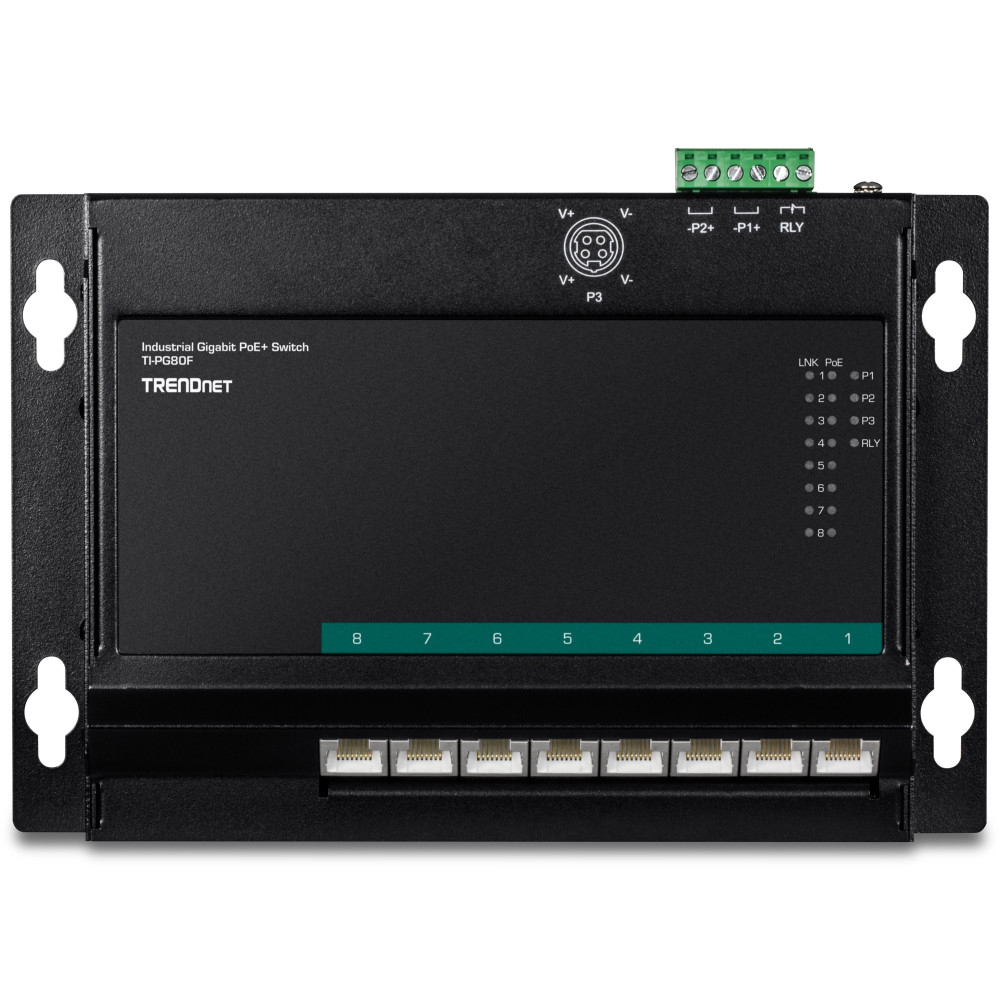

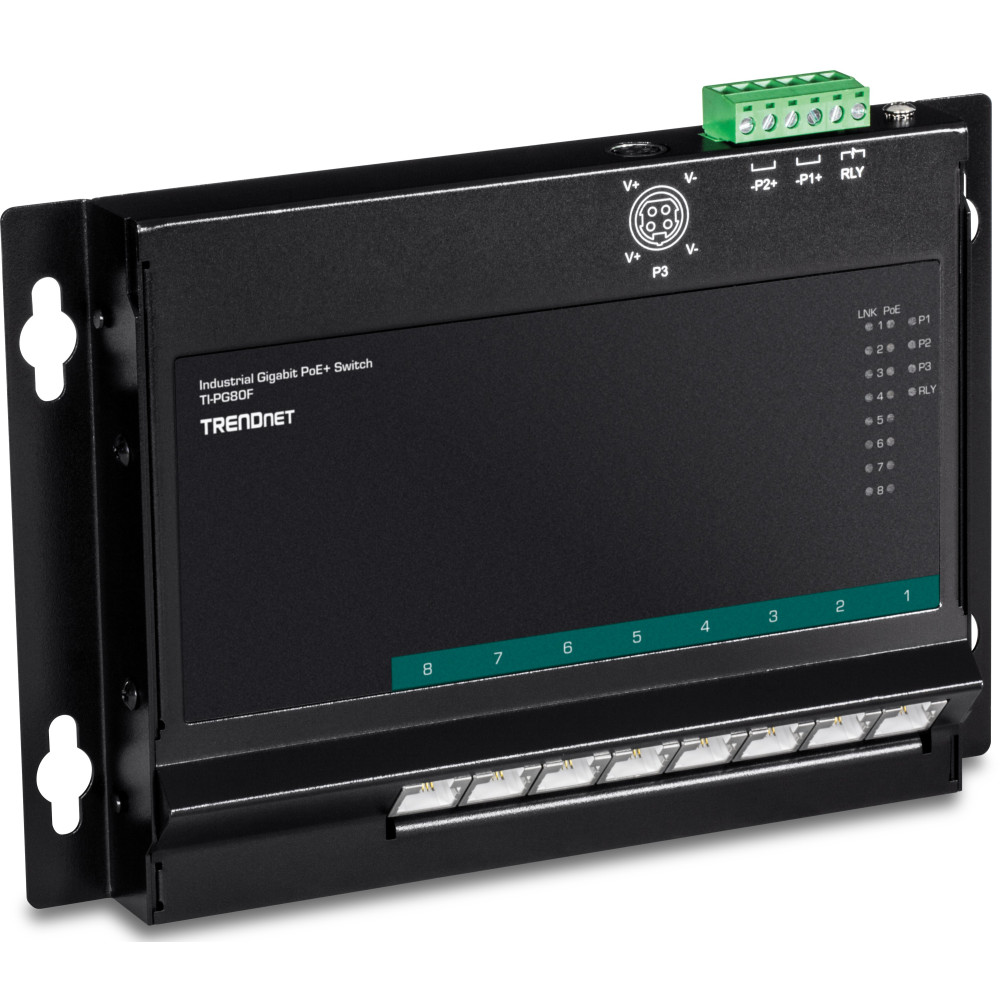

TRENDnet TI-PG80F 8-Port Front Access Gigabit PoE+ Switch with 8 Gigabit PoE+ Ports

The TI-PG50F 5-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch is well suited for IP surveillance, IoT, and automation networks for homes and businesses. This hardened industrial gigabit flat switch provides front access to ports and power interfaces for easier installation. The flat and compact size makes it ideal for cabinet installations where space is limited. The hardened industrial front access switch features 8 Gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. It comes equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

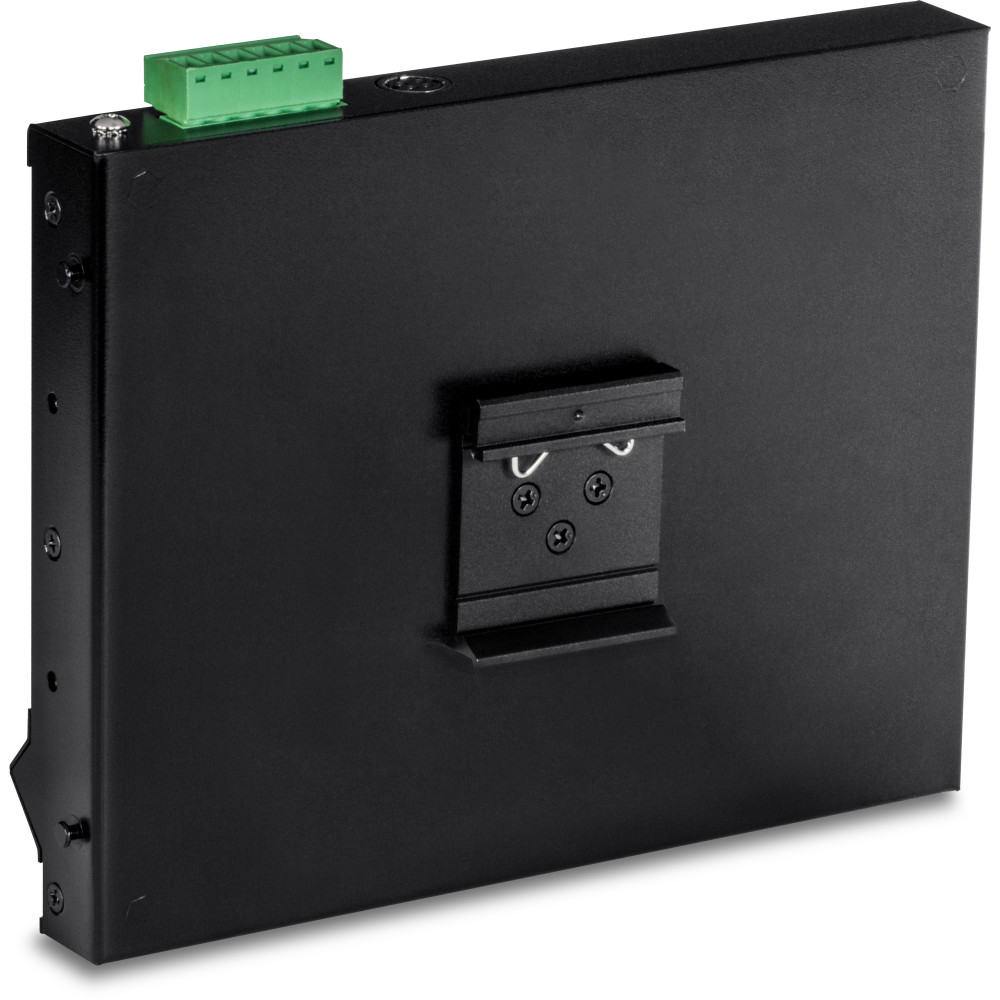

It includes a DIN-Rail bracket and magnetic wall mount kit.

Key Features

  • 8 Gigabit PoE+ ports
  • 200W PoE power budget
  • 16Gbps switching capacity
  • Supports jumbo frames up to 9KB
  • Hardened IP40 rated metal housing

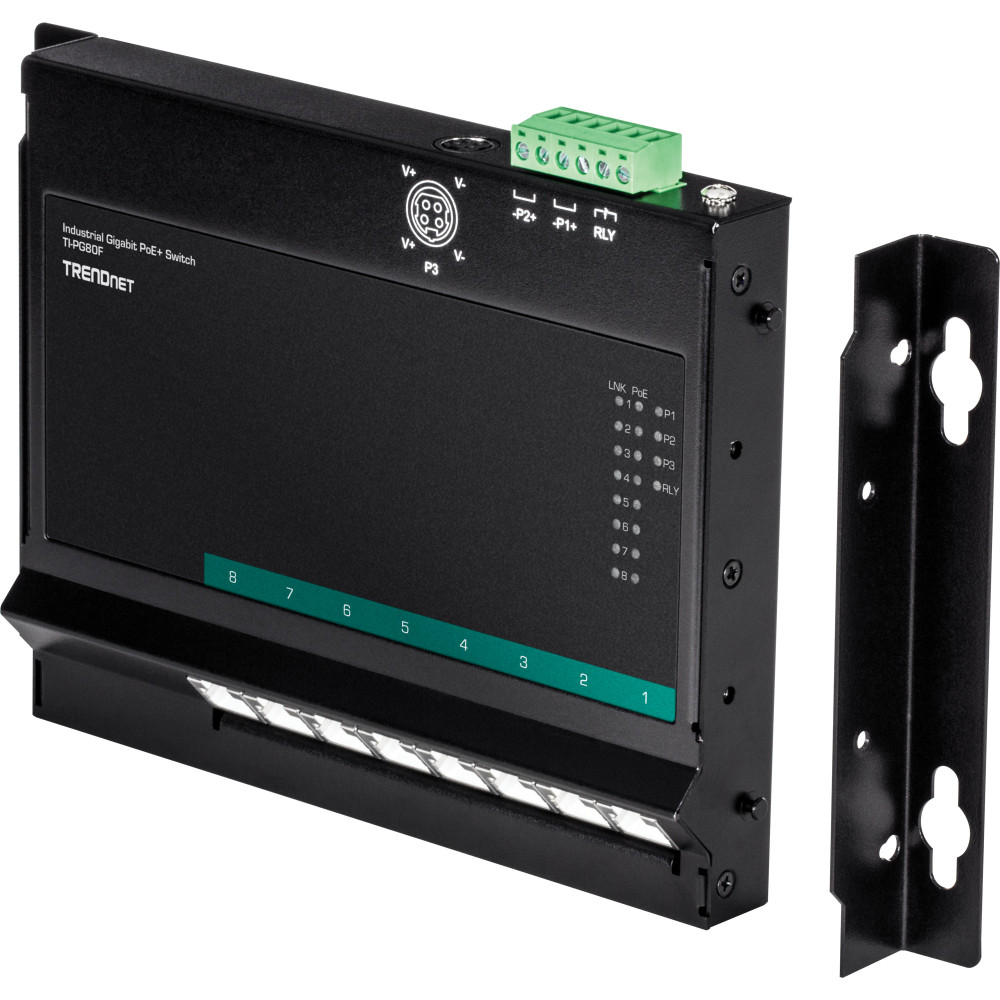

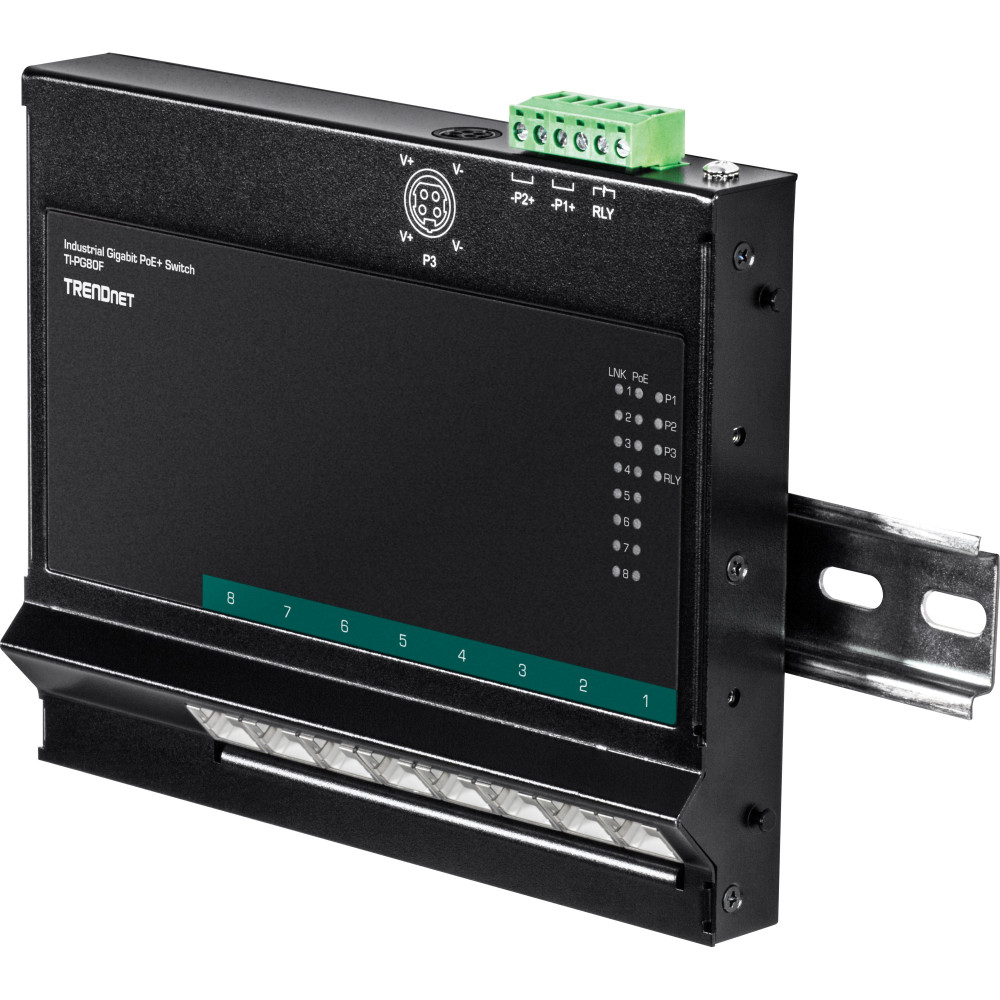

  • Includes DIN-Rail bracket and magnetic wall mount kit
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • Redundant power inputs with overload current protection
  • Alarm relay triggered by power failure
  • Power supply sold separately
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

In the Box

  1. TI-PG80F
  2. Quick Installation Guide
  3. Removable terminal block
  4. DIN-Rail / wall and magnet mount kit

Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.

Technology
CategoryEthernet Switch (PoE)
Total Ports8
Ethernet Ports8 Gigabit PoE+
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Transfer RateEthernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2Gbps (full duplex)
Jumbo Frame Support9KB
MAC Table Size4K
Power
PoE Power OutputUp to 30W per port
Power Consumption5.76W (no PoE)
Connection6-pin terminal block
Input Voltage48-56V DC
Overload ProtectionYes
Mechanical
MountingDIN-rail or wall mount
Shock / VibrationShock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
MaterialIP40 metal case
Weight726g (2 lbs.)
Dimensions185 x 145 x 25mm (7.2 x 5.7 x 1 in.)
Ratings
Operating Temperature-40° - 75° C (40° - 167° F)
Humidity95% non-condensing
RoHS CompliantYes
CertificationsCE, FCC
MTBF500,000 hours
WarrantyLifetime
Tags: TI-PG80F
