The XPOL-1-5G+-21 is Poynting’s third generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2x2 MIMO antenna. The antenna has been completely redesigned from previous generations, featuring an all-new enclosure and high-performing antenna design. The XPOL-1-5G+ is now ultra-wideband, covering a broad frequency range from 410 to 6000 MHz. This allows it to be utilized across different cellular operators and technologies, and it is ready for future cellular technologies up to 6GHz for 5G applications. The 2x2 MIMO antenna option offers a 2-in-1 solution that includes two cross-polarized cellular antennas. Under most conditions, these cross-polarized antennas can potentially double your data rates.
The XPOL-1-5G+ antenna delivers exceptional performance with a peak gain of 6 dBi, nearly double the peak gain of the previous version (V2). This improvement enables superior signal strength and extended coverage in Fixed Wireless Access (FWA) deployments.The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further enhancing its performance. This makes the antenna perfect for various application areas, such as urban, suburban, and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust, and vandal resistant, granting it an IP65 rating, suitable for outdoor environments.

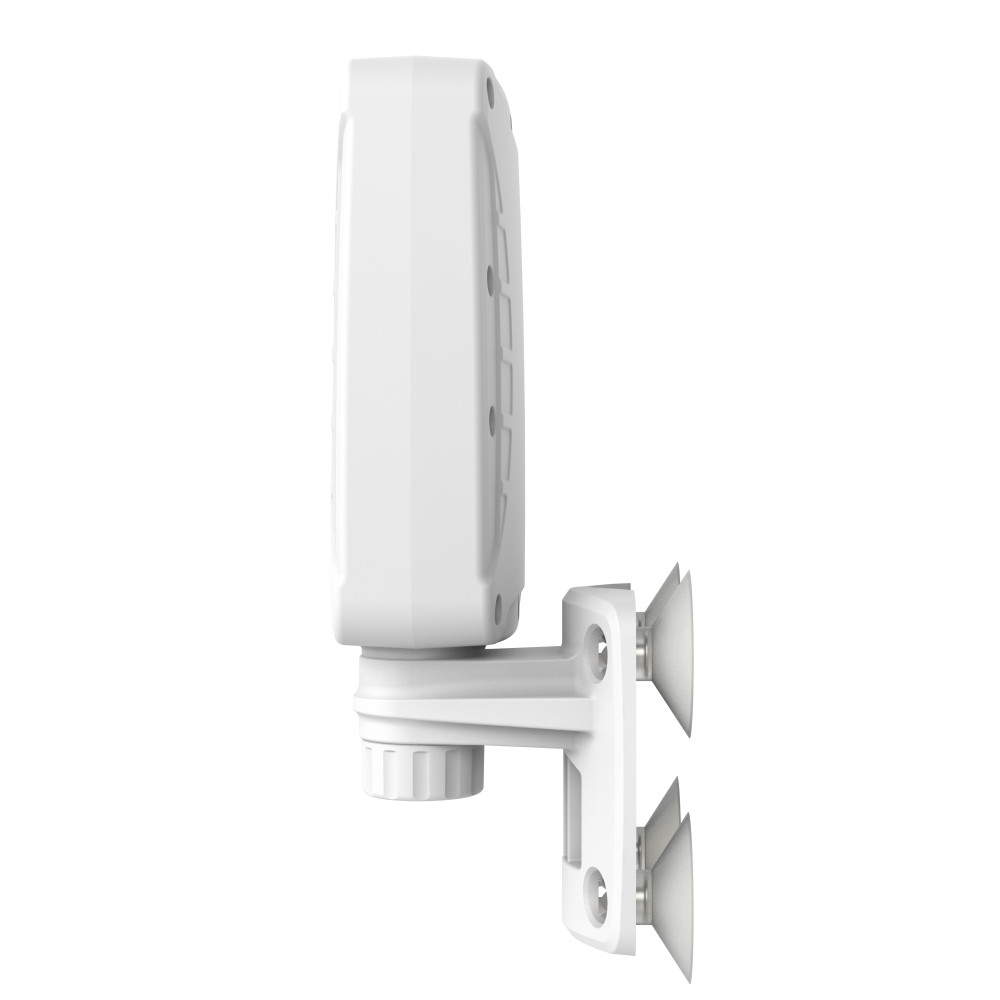

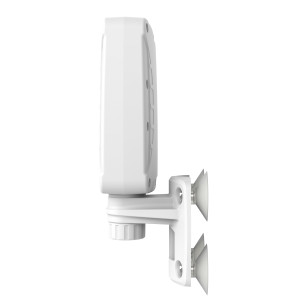

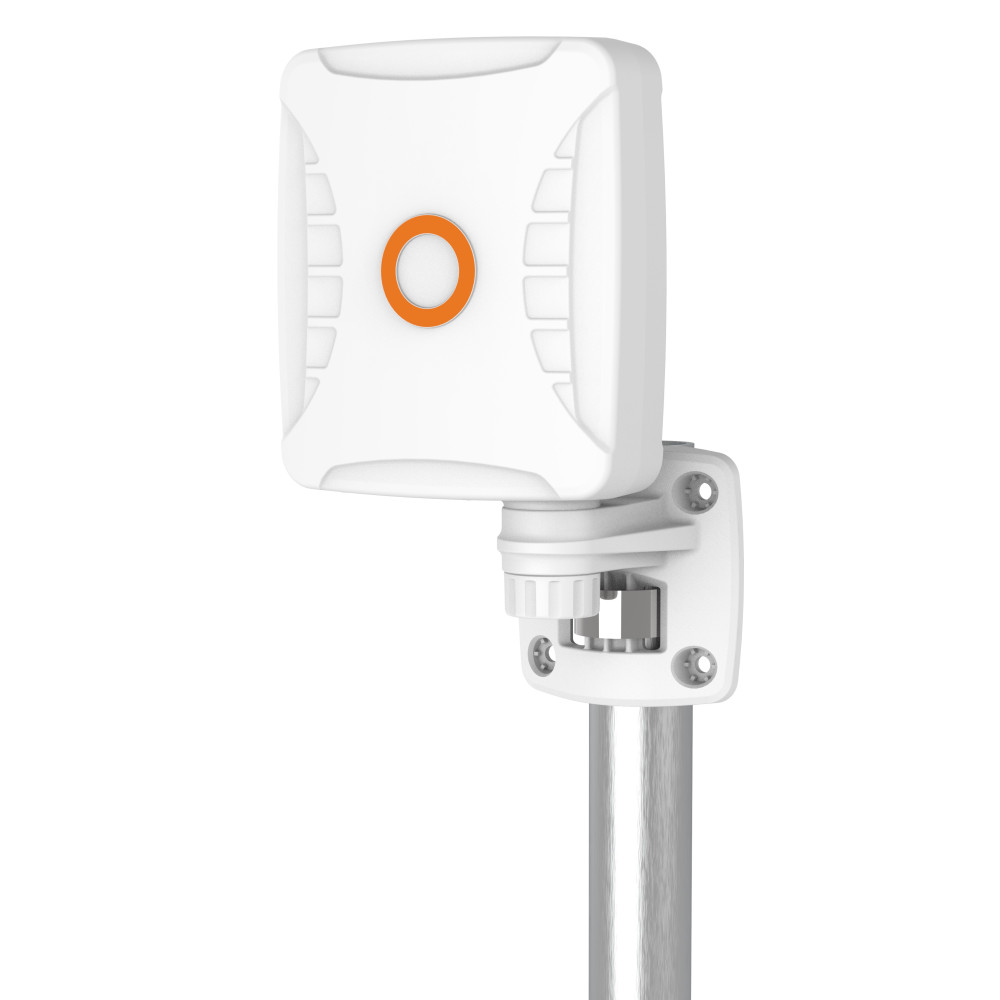

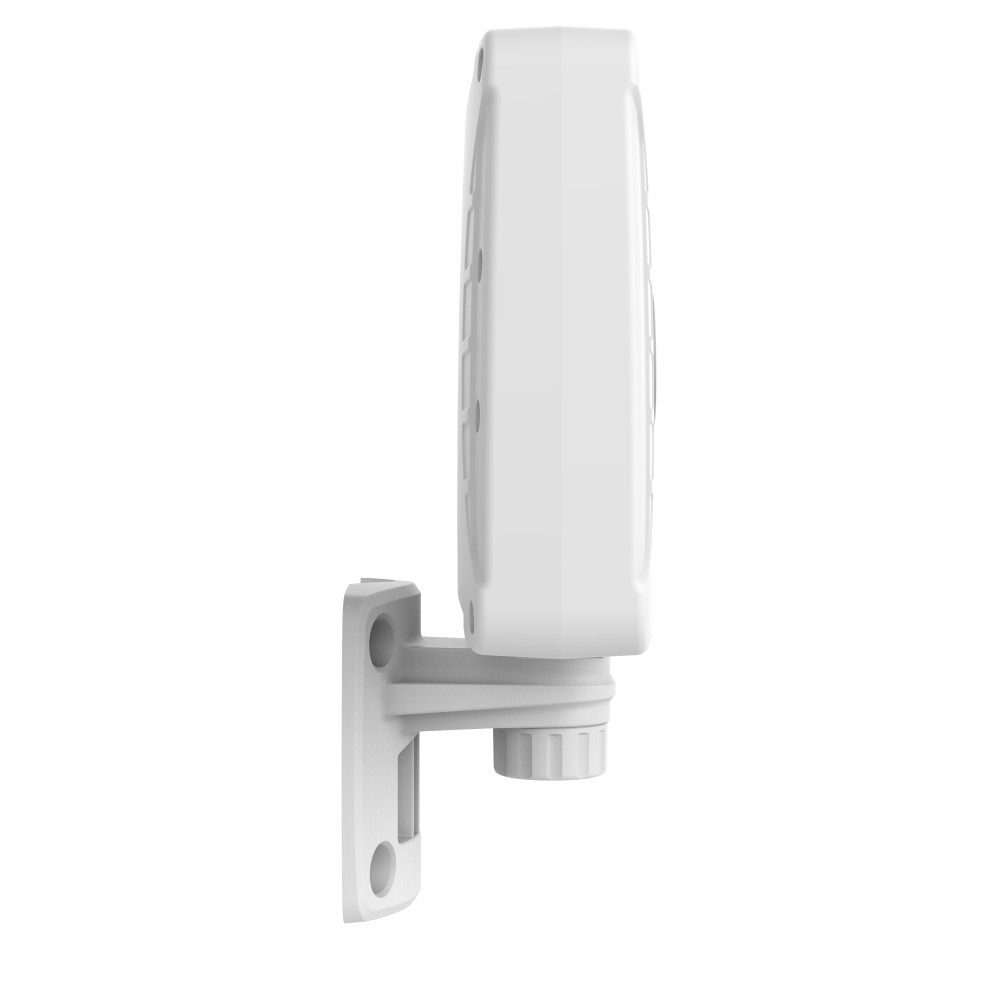

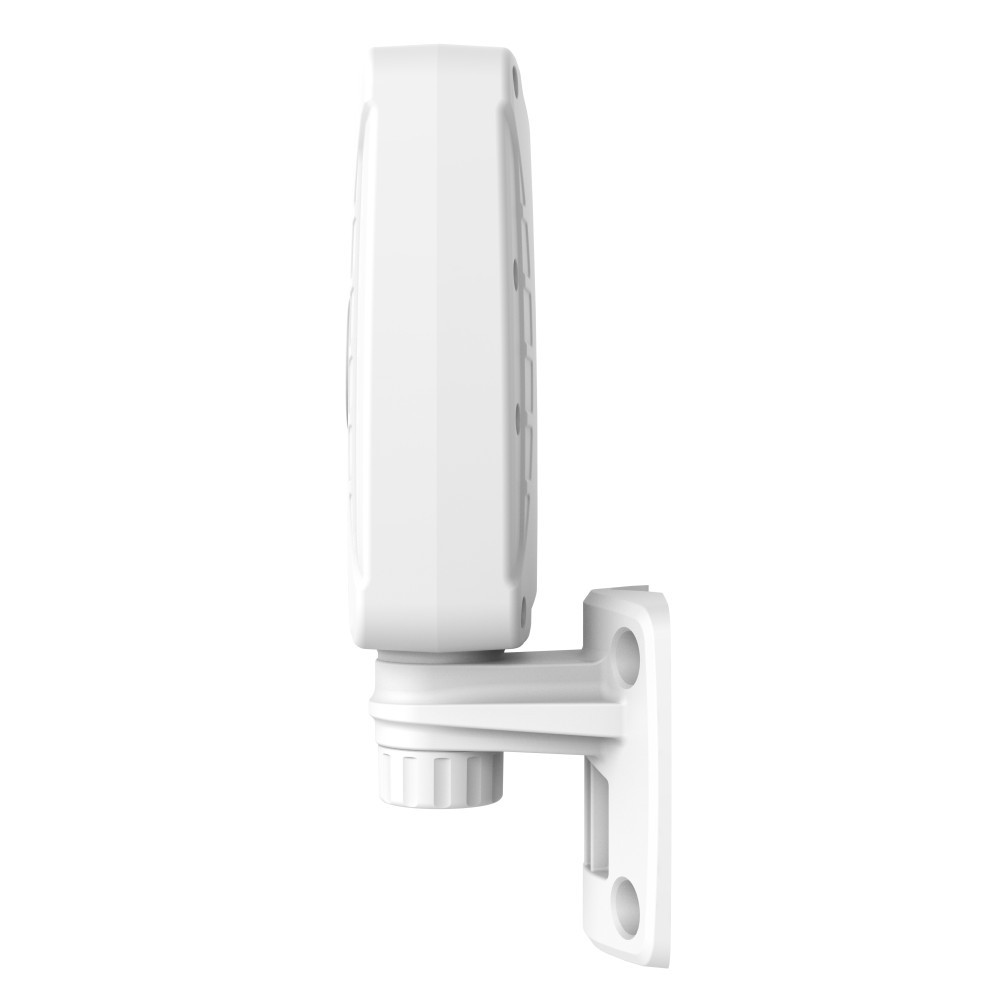

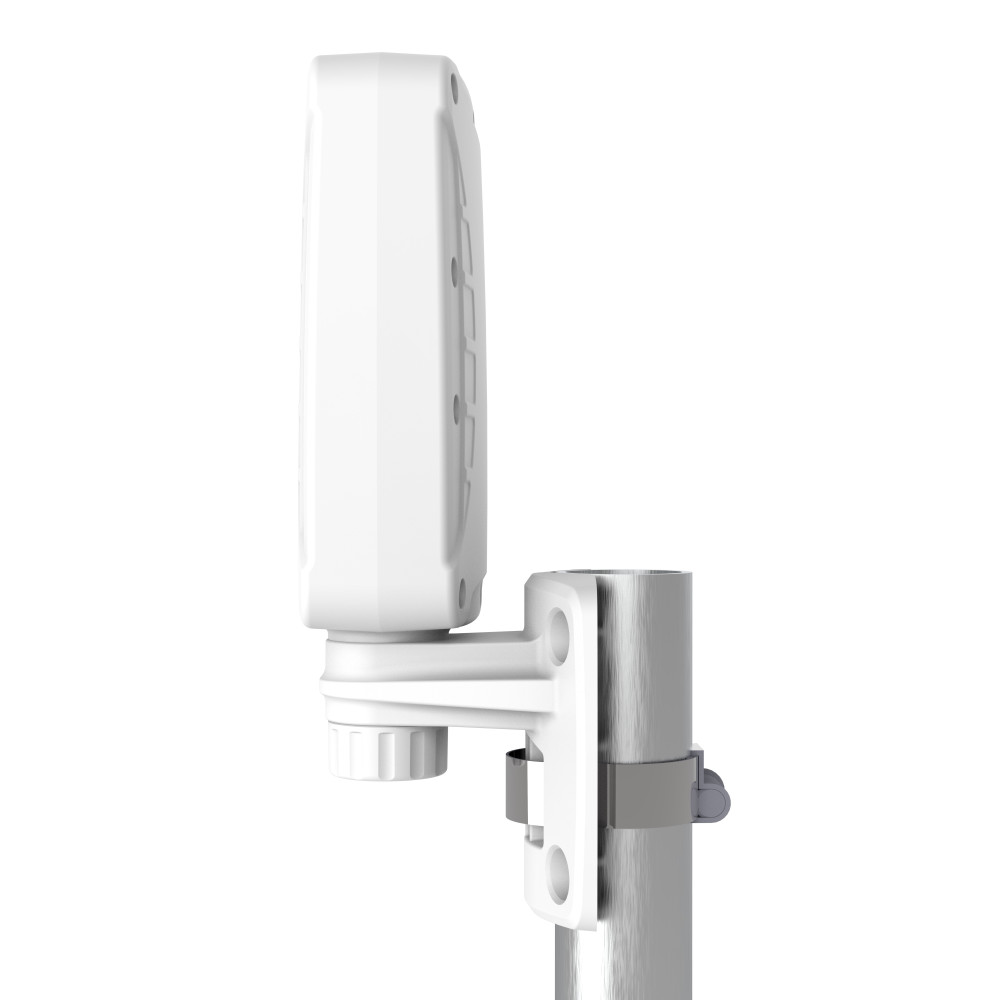

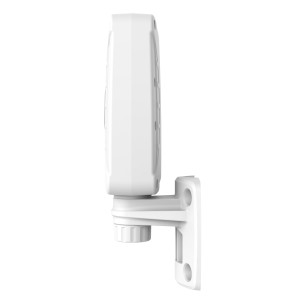

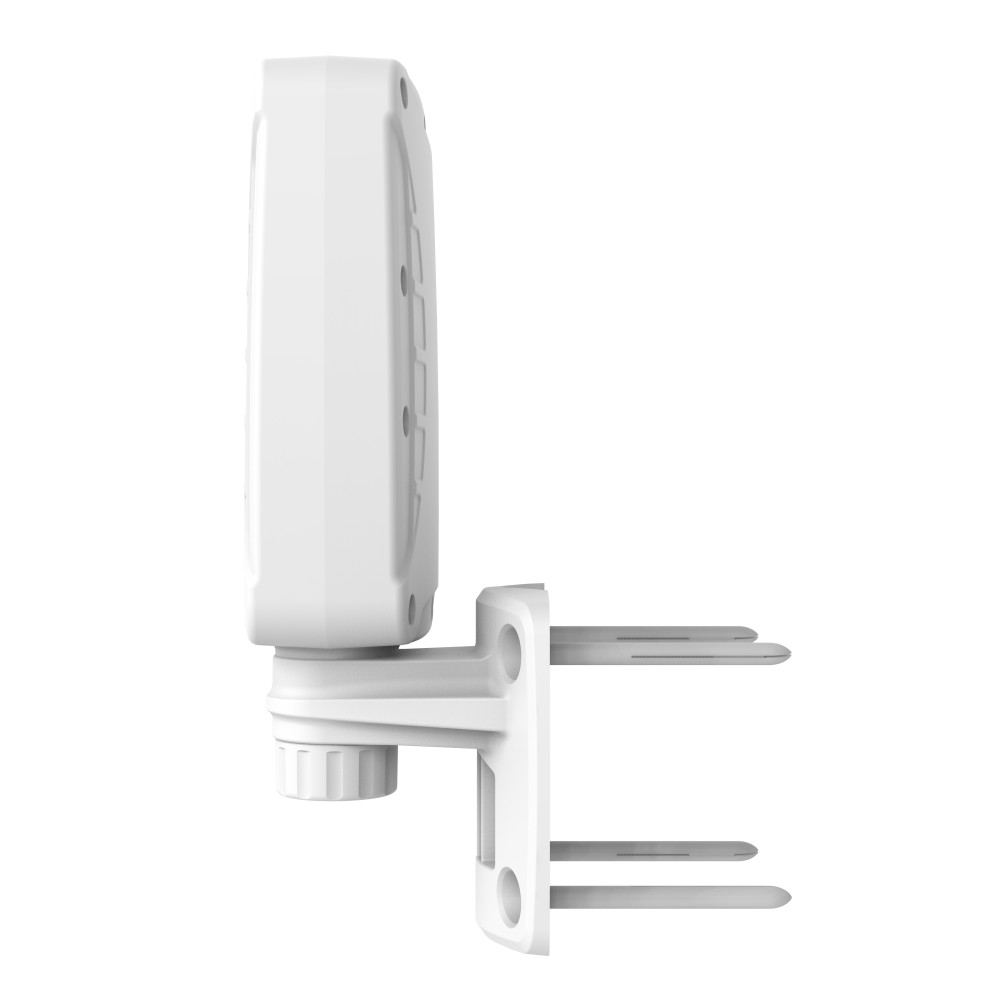

The XPOL-1-5G+-21 antenna also offers a variety of mounting options to ease the installation process. It can be wall or pole mounted to be used as an outdoor antenna or it can be window mounted with the help of suction cups to be used as an indoor antenna.
This antenna is also available in a 4x4 MIMO version. See the XPOL-1-5G+-41.
The Poynting XPOL-1-5G+-21 2-in-1 X-Polarized MIMO 5G Antenna, with its wide frequency range (410 - 6000 MHz) and rugged, weatherproof design (IP65 rated), is suitable for a broad range of Fixed Wireless Access (FWA) applications. It is ideal for small to medium-sized businesses across various commercial and industrial sectors such as retail outlets, gas stations, guesthouses, and banks. It can serve as a reliable backup connectivity option for locations that use fibre or Starlink as their primary internet connection. It is also suitable for homes and small offices in both urban and suburban environments as well as temporary offices on construction sites.
For information on the Poynting XPOL-1-5G+-21 cross-polarized MIMO 5G antenna and other industrial networking products, contact us to speak with one of our knowledgeable engineering and sales staff members. Our commitment to excellence extends beyond just antennas. We’re ready to share our expertise and dedicated support for all your infrastructure requirements. Westward Sales is ready to be your preferred partner in technology.
| Technology | |
| Category | Antenna |
| Wireless | |
| 2:1 Combination Antennas | 2:1 (2 LTE) |
| Pattern | Omnidirectional |
| Cellular Frequencies | 410 - 470 MHz, 617 - 960 MHz, 1427 - 1517 MHz, 1710 - 2700 MHz, 3300 - 4200 MHz, 4400 - 6000 MHz |
| VSWR | ≤2.5:1 Over 90% of the band |
| Gain | 6 dBi |
| Polarization | Cross Polarised |
| Impedance | 50 ohm |
| Mechanical | |
| Cabling | 5-meter lengths |
| Connector Type | SMA (M) |
| Mounting | Wall, pole, and window mount |
| Color | White |
| Weight | 0.7 kg |
| Dimensions | 246 mm x 157 mm x 88 mm |
| Ratings | |
| Operating Temperature | -40°C to +80°C |
| Humidity | Up to 98% |
| Certifications | IP65 rated (water and dust proof), MIL-STD 810G/ASTM B117 (salt spray), IK10 (impact), UL 94-HB (flammability) |
| Wind Velocity Rating | ≤250 km/h *Except for window mount configuration |
| Download Name | File Size |
| Poynting XPOL-1-5G+ 2x2 Datasheet | 2.31MB |
