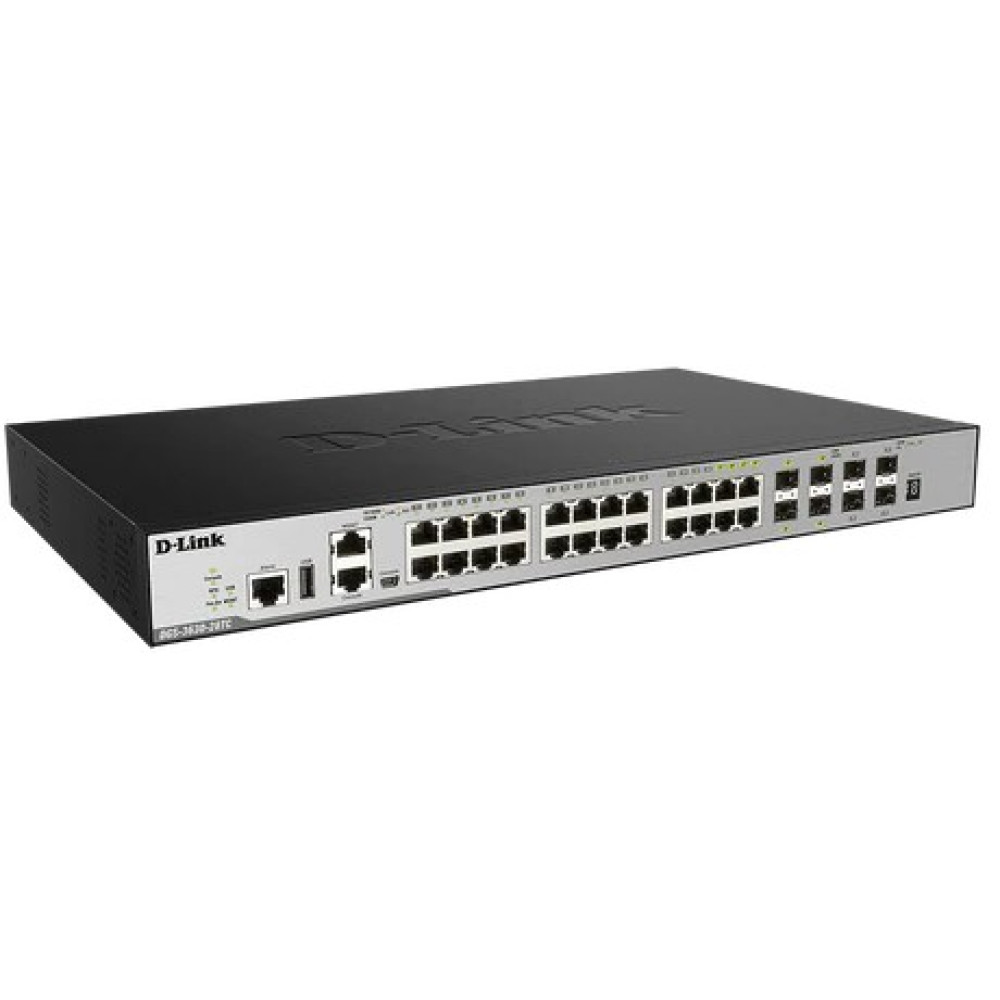

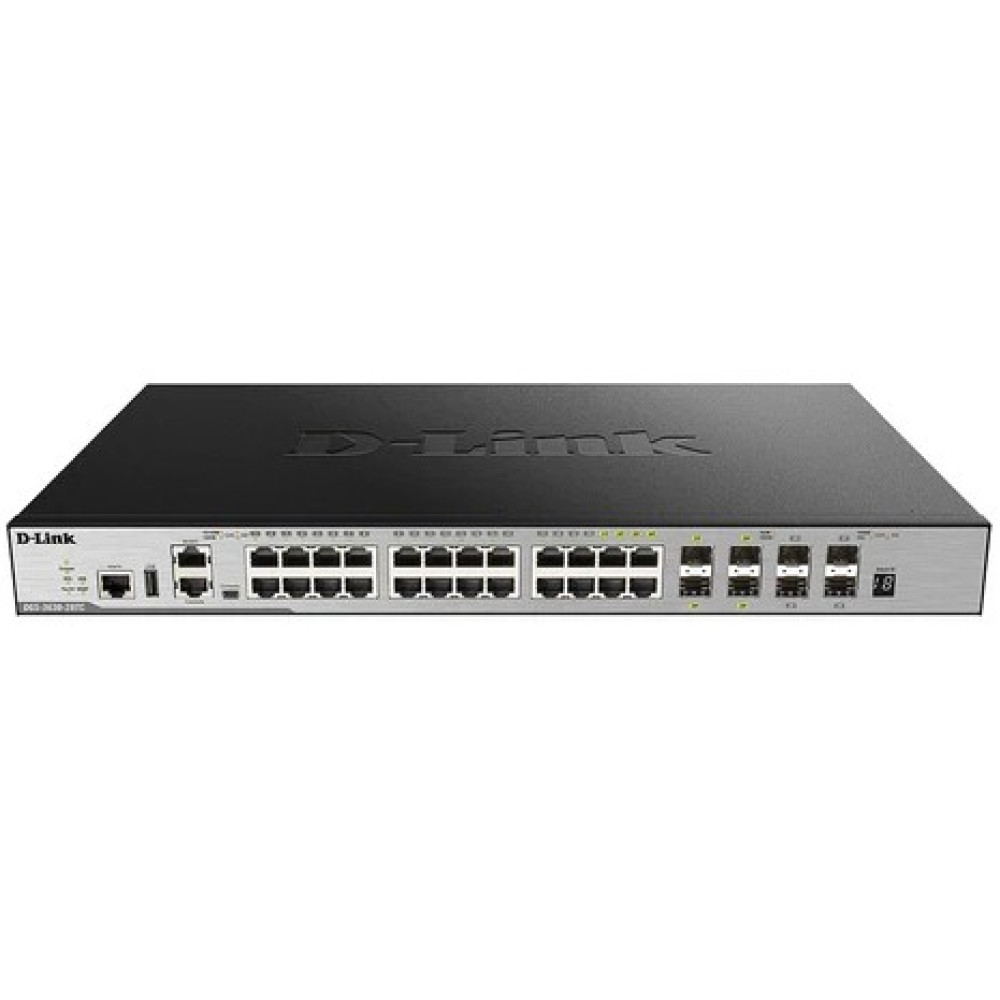

D-Link DGS-3630-28TC/SI 28-Port Layer 3 Stackable Fully Managed Gigabit Switch

D-Link DGS-3630-28TC/SI L3 Fully Managed Switch, 20 Gigabit Ports, 2 Combo Ports, 4 10G SFP+ Ports

Designed specifically for Small to Medium Businesses, Enterprises and ISPs, the DGS-3630-28TC/SI Gigabit L3 Stackable Managed Switch combines 4x embedded 10G stacking/uplink ports, built-in 6kV surge protection, Intelligent Switch Resource Management, and upgradeable software images. This Standard Image (SI) model provides core SMB and SME functionality such as L2 switching, entry-level routing, L2 multicast, advanced QoS, Operations, Administration, and Maintenance (OAM), and robust security features.

The DGS-3630-28TC/SI allows multiple switches to be combined to form a single physical or virtual stack. This increases redundancy over multiple physical units, simplifies management, and provides a single IP address to manage all members in the stack. Up to 9 switches can be combined using DACs to make up to 432 Gigabit Ethernet ports available, allowing switching capacity to be increased with demand. In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), the DGS-3630-28TC/SI also supports advanced Ethernet failover redundancy technologies, such as ERPS and FlexLink while Ethernet Ring Protection Switching (ERPS) provides millisecond-level failover in a ring topology.

The DGS-3630-28TC/SI provides a robust set of security features including multi-layer Access Control Lists (ACLs) and 802.1X user authentication via TACACS+ and RADIUS. It also offers extensive VLAN support, including GVRP and 802.1Q VLAN to enhance security and performance.

The DGS-3630-28TC/SI provides the D-Link Network Assistant (DNA) utility, an industry-standard CLI, and an intuitive web-based management interface that enables administrators to set up and remotely manage their networks. Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

The DGS-3630-28TC/SI features built-in 6 kV surge protection on all Ethernet access ports, and requires no external surge protection devices. This effectively protects the switches against sudden electrical surges caused by events such as lightning strikes or unstable electrical current. It also features D-Link Green technology, which includes a power-saving mode, smart fan feature, reduced heat dissipation, and cable length detection. The power-saving feature automatically powers down ports that have no link or link partner, and ensures that LEDs are shut off when not needed.

Key Features

• 20 x 10/100/1000BASE-T ports
• 4 x Combo 10/100/1000BASE-T/SFP ports
• 4 x 10G SFP+ ports
• 6 kV surge protection on all RJ-45 access ports
• Switch Resource Management (SRM) for flexible management of system resources
• Redundant Power Supply (RPS) support
• MPLS L2VPM/L3 VPN support
• Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6
• SDN-enabled switch, compatible with Openflow 1.3
